Hekatron FH.Genius Wireless pushbutton battery-powered, mains-powered (W x H x D) 130 x 130 x 32 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 155.45 / piece)
€ 155.45
plus VAT.
Highlights & Details

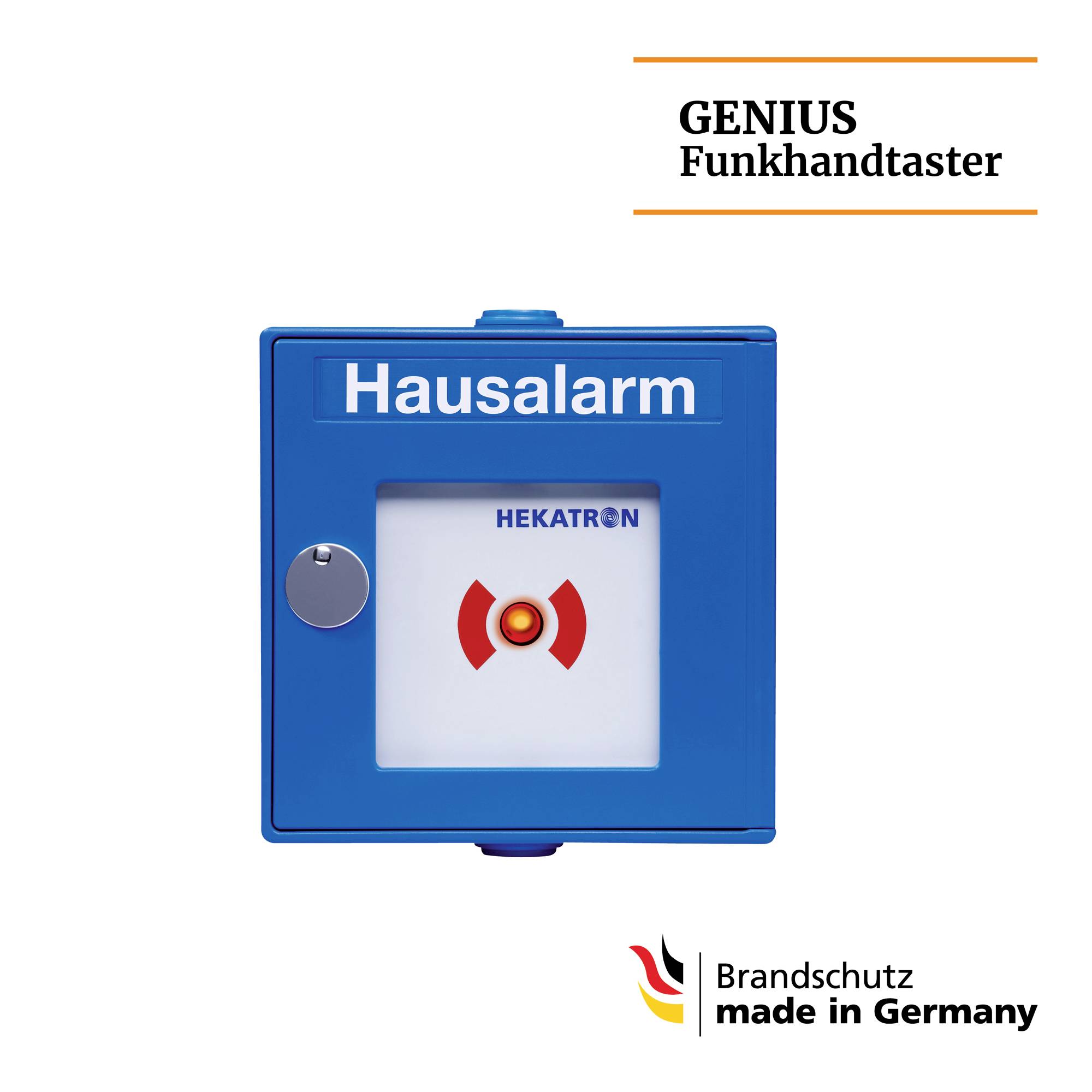

Hekatron Wireless pushbutton FH.Genius 31-5000013-01-03
- Manual house alarm and radio interface in one deviceFor Genius wireless systemDismantling detection
Technical specifications
- Frequency range 868.3 MHz SRD bandSupply voltage (external) 10 - 30 VDCPower supply (internal): 3.6 V Lithium battery Thionyl chloride 2 x 2.2 AhAlarm relay/status relay: 1 changeover contact: Max. Contact load 30 V/1A (external power supply required!)Alarm input: Potential-free contact (external power supply required)Colour: Blue, similar to RAL 5005
- Product type
Wireless pushbutton
- Power supply (LOV)
battery-powered
mains-powered

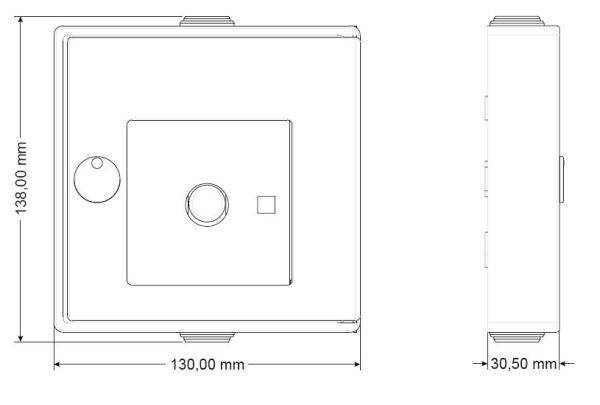

- Dim
(W x H x D) 130 x 130 x 32 mm
- Content
1 pc(s)
- Weight
237 g
- Width
130 mm
- Height
130 mm
- Depth
32 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2865651 Hekatron FH.Genius Wireless pushbutton battery-powered, mains-powered (W x H x D) 130 x 130 x 32 mm
User & Safety Instructions
User & Safety Instructions 2865651 Hekatron FH.Genius Wireless pushbutton battery-powered, mains-powered (W x H x D) 130 x 130 x 32 mm
Description

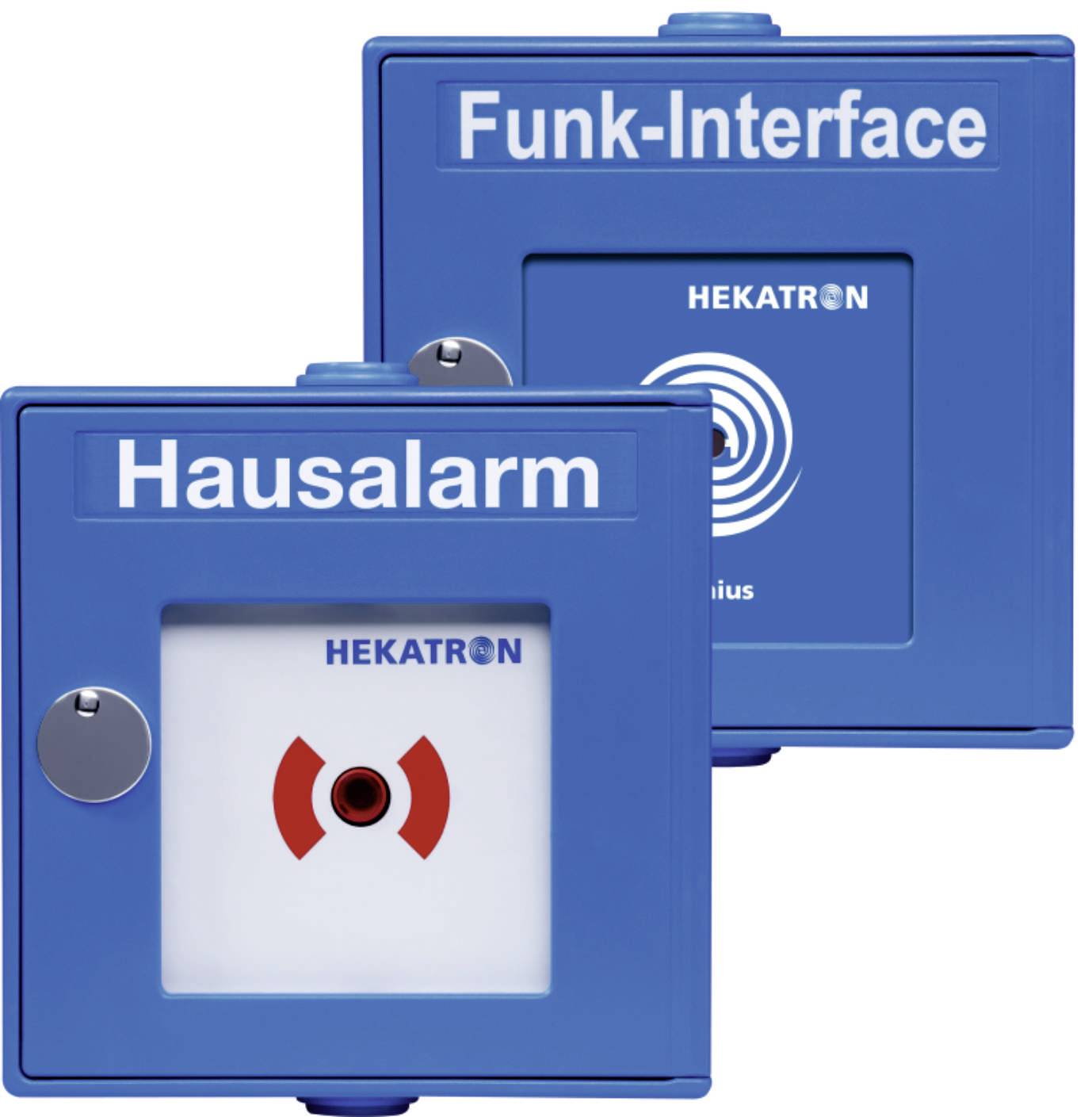

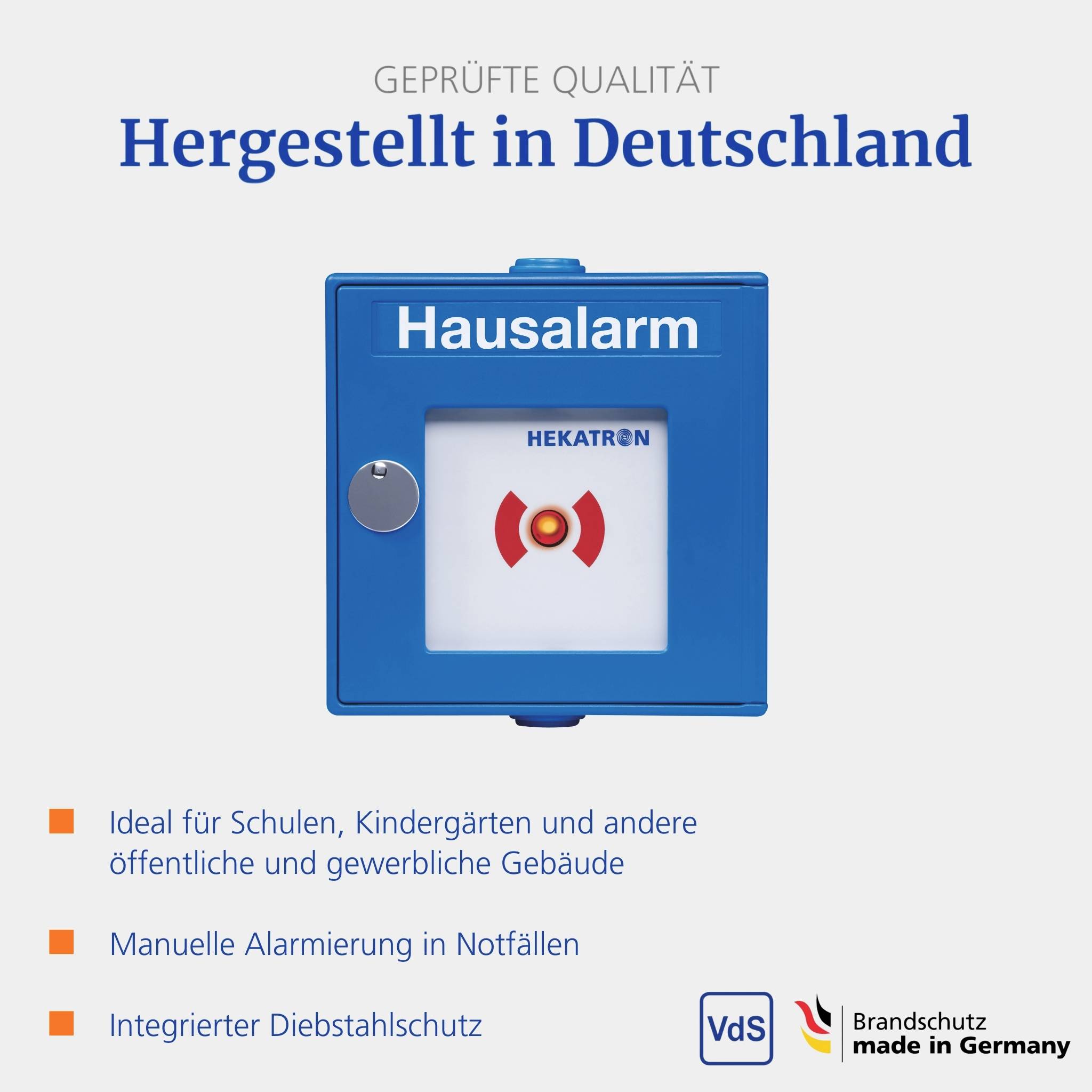

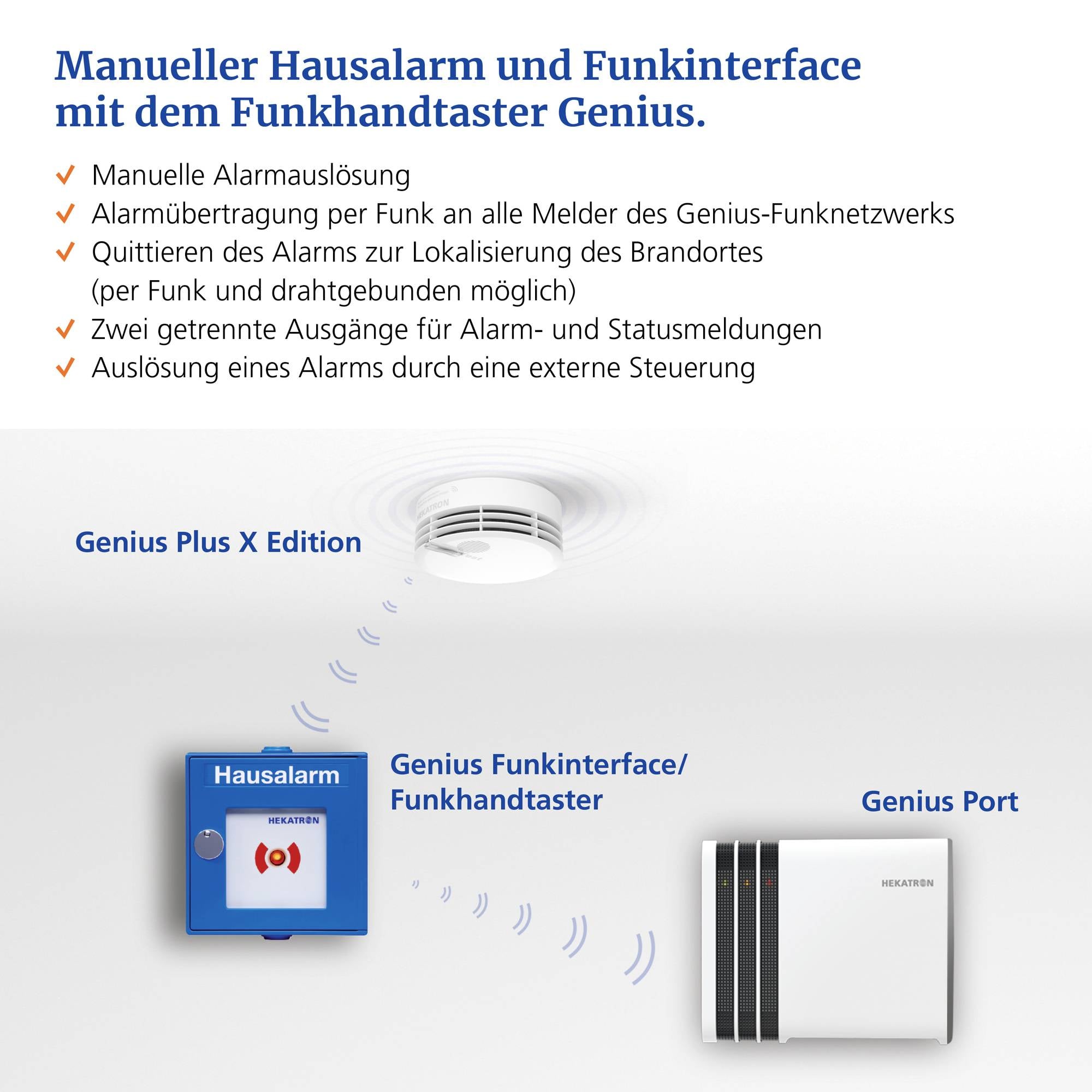

Two in one: Manual house alarm and radio interface in one device. "House Alarm" application:The radio button Genius supplements the radio smoke detector Genius Plus X/HX with radio module FM.Pro/Pro X and/or FM.Basis/Basis X by a manual alarm. In the event of a fire being detected at an early stage, the alarm can be alerted directly and manually by pressing a button. As such, persons can be warned much faster in case of danger.Application "Radio Interface":On the one hand the radio button can forward alarms to your own radio network via radio via the integrated interfaces, on the other hand it can transmit alarm and status messages to external devices and systems via wire from your own radio network. Alarm and status messages can be acknowledged locally and externally via the radio button Genius.Installation:As a manual alarm trigger, the Genius wireless button should be mounted on the wall in a clearly visible and freely accessible way, 1.4 m (±0.2 m) above the floor using the supplied attachment set. When used as a radio interface, the wireless button only has to be located in the wireless range of the smoke detector Genius Plus X/HX with radio modules FM.Pro/Pro X and/or FM.Basis/X.Wireless retrofit buttonThe integration into an existing Genius wireless system is possible at any time.Automatic on/offThe Genius wireless button automatically becomes active when the cover plate is inserted. When removing the cover plate, the hand-held button changes its operating mode, if the cover plate is reinserted by 180°, the Genius wireless button switches off automatically after 5 minutes.
This text is machine translated.
This text is machine translated.
Features
- Manual alarm of the wireless smoke detectorsGenius Plus X/HX® locally and via external controlAcknowledgement of alarms and status messages locally and externallyTransmission of alarms and status messages via wire and radioControl of external devicesHand button with integrated radioRetrofitted with Genius wireless network70 lines with identification code6 collective alarm lines"Single operation" functionRepeaterNo radio pollutionRadio route monitoringDismantling detection (Genius Plus X/HX® and Radio Module Pro only)Mute switchTypical battery life of 10 yearsTwo permanently installed batteriesCan be used, for example, in stairwells, corridors, passageways (escape areas), etc.Surface mounting
Hints
The wireless button requires an external power supply (10 - 30 V DC) for use of the inputs and relays (alarm and status relays). The built-in batteries are only used for internal operation.
