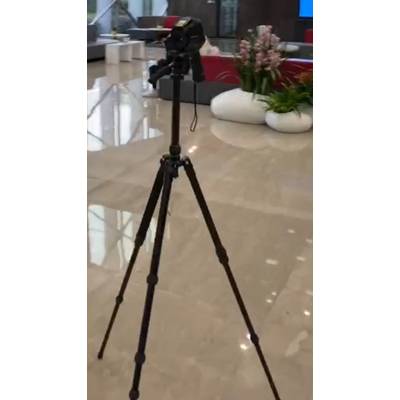

A tripod with a mounted camera stands in a modern, bright lobby with polished stone floors and decorative plants.

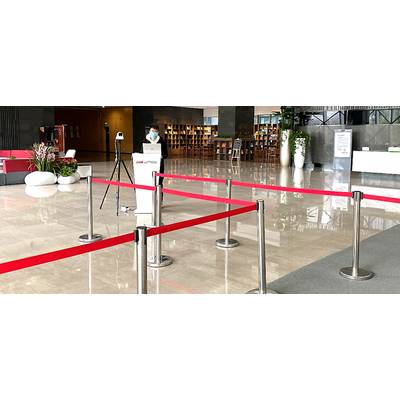

'Reception area with red barrier tape, thermal scanner and person wearing a mask at the entrance. Modern, open design with plants.'

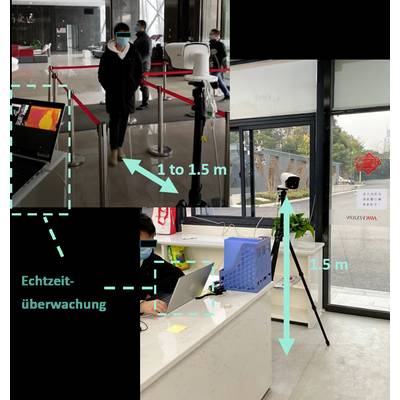

A person passes through a security checkpoint with camera surveillance. Distance marked between 1 to 1.5 metres, with signage reading 'Real-time monitoring'.

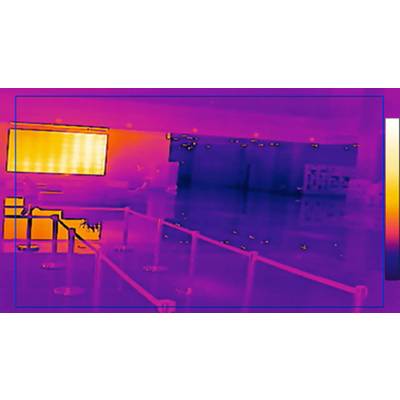

Thermal imaging of an empty room with barriers; the screen displays a high temperature with warmer colours.

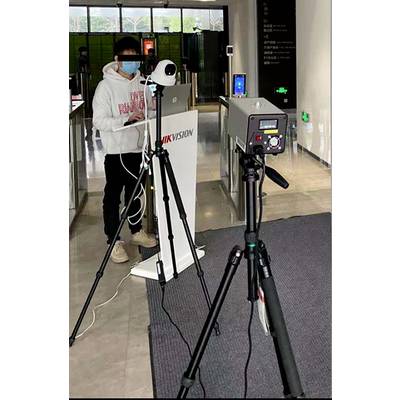

A person is operating a temperature measuring device on a tripod at the entrance of a building; security screening in an indoor environment.

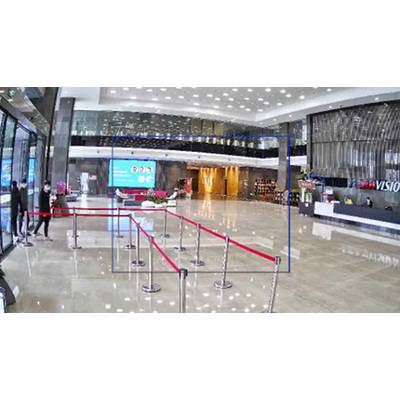

Entrance area of a modern building with a reception desk on the right. On the left, barrier tapes and people wearing masks are visible.

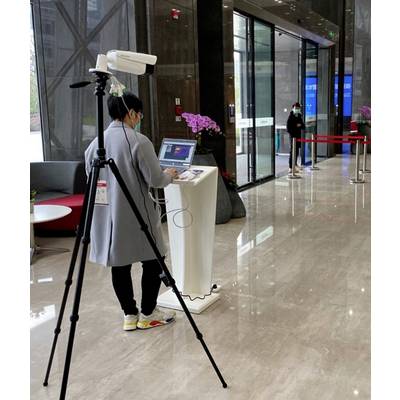

A person is standing in an office building and operating a laptop on a standing desk. A tripod with a camera is positioned in front of them.

1/10

Datasheet (PDF)

Dispatches on Thu, 24 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 4,461.34 / piece)

€ 4,461.34

plus VAT.

Report legal concerns

LAN IP-Bullet camera;2688 x 1520 p;HIKVISIONNetzwerkkamera;DS-2TD2617B-6/PA (B)Indoors

Highlights & Details

Bullet surveillance camera, focal length 8 mm
With thermal sensor, resolution 160x 120, focal length 6.2 mm
Temperature monitoring, fever screening
Face detection
Free IVMS-4200 software and Hik-Connect app

Technical specifications

Thermal module:
Image sensor: Uncooled vanadium oxide focus plane arrangements
Resolution 160 x 120 Output resolution 320 x 240
Pixel spacing 17 μm
Wavelength: 8 to 14 μm
NETD (Noise Equivalent Temperature Difference): ≤ 40 mk (@25 °C, F# = 1.1)
Focal length: 6.2 mm
IFOV 2.74 mrad
Aperture angle 25° x 18.7° (H x V)
Min Focus distance 0.6 m
Aperture: F1.1
Temperature measurement: 3 temperature measurement rules, 21 measurements in total (10 points, 10 ranges and 1 line)
Temperature range: From 30 °C to 45 °C.
Temperature accuracy: ± 0.5 °C
VIDEO COMPRESSION: H.264/H.264/MJPEG
Working temperature: From 10 °C to 35 °C.
User: Up to 32

Product type: IR CCTV camera with temperature monitor

CCTV features: PoE IEEE 802.3af
Face recognition
Saves footage on SD card
Fever screening
IR LEDs

Camera type: Bullet camera

Resolution (max.): 2688 x 1520 p

Sensor size: 9.4 mm (1/2.7")

Sensor type: CMOS

Focal length: 8 mm

Max. viewing angle hor.: 39.42°

Vertical viewing angle: 22.14°

App compatibility: Yes

Transfer type: LAN

Light sensitivity (+ IR): 0.0018 lx

Light sensitivity (- IR): 0.0089 lx

IR range (max.): 40 m

Used at: Indoors

Type: microSD card (up to 128 GB)

Width: 113.5 mm

Height: 115.2 mm

Depth: 358.3 mm

Dim: (W x H x D) 113.5 x 115.2 x 358.3 mm

Weight: 1.76 kg

F-numbers: F1.6

: IP66

Signal standard: IP

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2251770 HIKVISION Netzwerkkamera DS-2TD2617B-6/PA (B) LAN IP IR CCTV camera with temperature monitor 2688 x 1520 p

User & Safety Instructions

User & Safety Instructions 2251770 HIKVISION Netzwerkkamera DS-2TD2617B-6/PA (B) LAN IP IR CCTV camera with temperature monitor 2688 x 1520 p

Information

Information 2251770 HIKVISION Netzwerkkamera DS-2TD2617B-6/PA (B) LAN IP IR CCTV camera with temperature monitor 2688 x 1520 p

Description

The Hikvision DS-2TD2617B thermal bullet thermal camera can measure the temperature of objects with high accuracy in real time. The camera is capable of detecting and tracking people with a higher body temperature in crowded public areas. The camera can be used for inspection and quarantine in places such as customs, airport, school and hospital.

This text is machine translated.

Features

160 x 120 pixel thermal detector
Temperature measuring range: 30 °C to 45 °C; Measuring accuracy: ± 0.5 °C
Reliable alarm sounding in case of temperature limit violation
3D DNR, improvement of image details
Acoustic alarm
WDR: 120 dB
Day night switch: Automatic IR-blocking filter
Bi-spectrum image overlay, picture-in-picture preview
Simultaneous live view: Up to 20
Client: IVMS-4200, Hik-Connect
Micro SD-card slot (Micro SD / SDHC / SDXC-card up to 128 G), for manual / automatic recording
TVS 6000V lightning protection, overvoltage protection and transient protection.

Scope of delivery

Screws and raw plugs.

Hints

For indoor use only (outdoor area has too many interference factors).

Memory card not included

System requirements

Windows, iOS
