HiLook IK28P-460B LAN, Corded, Digital, Patch cable IP-Network video recorder set
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 368.91 / piece)
€ 368.91
plus VAT.
Only 5 Piece(s) available
Highlights & Details
HiLook IP Network video recorder set for Outdoors, Indoors, Fixed
- High resolution 6 MP picture quality – captures every detail with crystal-clear picture quality;Intelligent recognition technology – reduces false alarms through precise person and vehicle detection;Robust design – With protection class IP67 weather-proof and Ideal for outdoor use;Efficient H.265+ compression – Saves storage space and bandwidth without compromising picture quality;Simple PoE installation – One cable for each camera Power supply and data transmission, WAS simplifies installation.
Technical specifications
- 6 MP set 6 megapixel
- Product type
Network video recorder set
- CCTV features
Motion detector
IR LEDs
White spotlight
Identity recognition
Vehicle recognition
PoE IEEE 802.3af
Microphone
- Signal standard
IP
- Channels
8
- Camera type
Bullet camera
- Transfer type
LAN
Corded
Digital
Patch cable
- Used at
Outdoors
Indoors
Fixed
- Outputs
HDMI
RJ45
USB
VGA
- Inputs
RJ45
- Focal length
2,8 mm
- App compatibility
Yes
- Series
Hikvision Professional
- Power supply
100 - 240 V
12 V / DC
- Built-in memory
2 TB
Documents & Downloads
Datasheet
Datasheet 3775789 HiLook IK28P-460B LAN, Corded, Digital, Patch cable IP-Network video recorder set
User & Safety Instructions
User & Safety Instructions 3775789 HiLook IK28P-460B LAN, Corded, Digital, Patch cable IP-Network video recorder set
Description

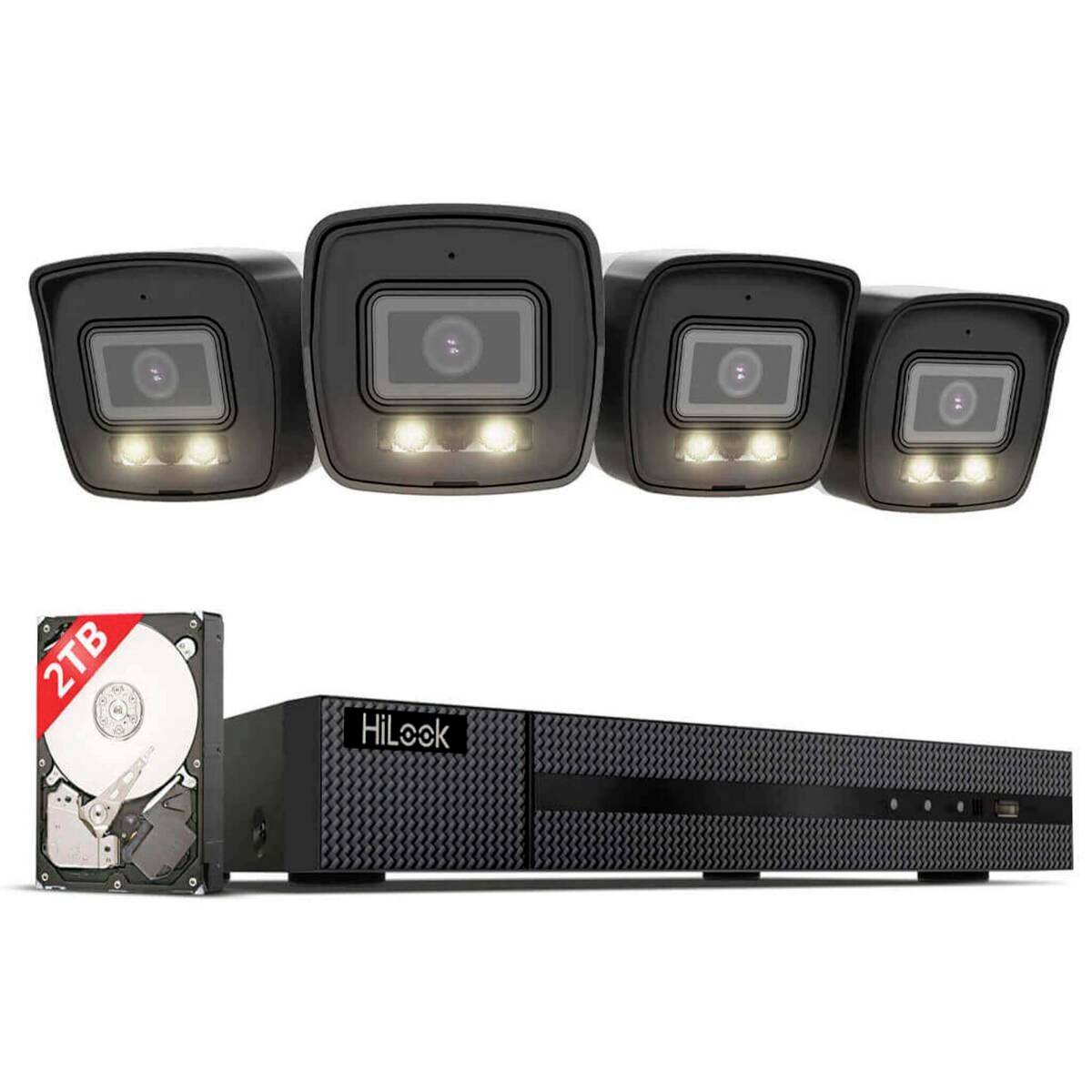

The HiLook IP-kit 6 MP surveillance camera set (IK28P-460B) offers a comprehensive solution for modern video surveillance. The set contains four 6 megapixel bullet network cameras as well as a 8-channel network video recorder (NVR) with a pre-installed 2 TB hard drive. It enables an especially easy installation as an all-in-one PoE kit. The NVR supports 4K resolution, while the cameras are equipped with Smart hybrid light technology to provide both personal and vehicle detection. Through the efficient H.265+ compression the memory requirement is clearly reduced. Each camera has an integrated microphone for reliable real-time audio monitoring and is water and dust-proof thanks to its IP67 protection class, making it suitable for both indoor and outdoor use.

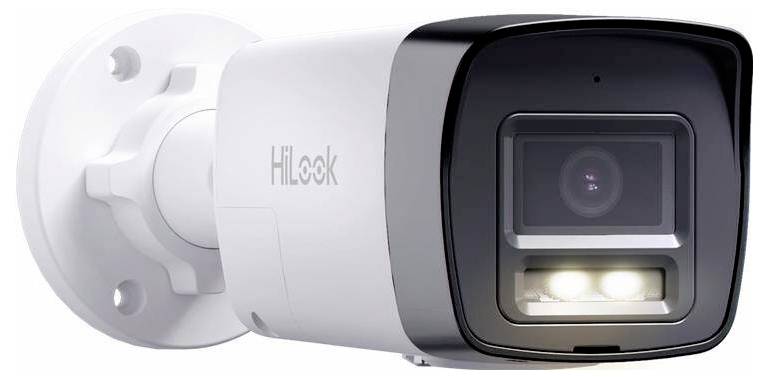

The cameras work with a 1/2.4" progressive scan CMOS image sensor and achieve a maximum resolution of 3200 × 1800. The minimum illumination is 0,005 lux in color and 0 lux in black/white with activated IR. The firmly installed 2.8 mm lens provides a horizontal viewing angle of 105°, a vertical of 55° and a diagonal of 127°. The IR range is up to 30 meters. For video recording the formats H.265+, H.265, H.264+ and H.264 are supported, for audio G.711, G.722.1, G.726, MP2L2, PCM and AAC-LC are available.
The NVR offers eight IP video inputs and supports different resolutions from 8 MP over 6 MP up to 720p. The HDMI output enables playback at up to 4K resolution. The integrated 2 TB hard drive can be extended to a maximum of 8 TB. The recorder supports numerous network protocols such as TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP AND RTSP. In addition, up to 32 users can access the system.
It comes with a 8-channel PoE NVR, four 6 MP bullet cameras and four network cables. The set is suitable for small to medium-sized surveillance projects and offers high-quality picture and sound monitoring. Thanks to the weather-proof design, it can be used flexibly indoors and outdoors. The high 6 MP detail sharpness, intelligent recognition technology, robust design as well as efficient compression and PoE technology make this set a reliable and powerful solution for various security applications.
This text is machine translated.
The cameras work with a 1/2.4" progressive scan CMOS image sensor and achieve a maximum resolution of 3200 × 1800. The minimum illumination is 0,005 lux in color and 0 lux in black/white with activated IR. The firmly installed 2.8 mm lens provides a horizontal viewing angle of 105°, a vertical of 55° and a diagonal of 127°. The IR range is up to 30 meters. For video recording the formats H.265+, H.265, H.264+ and H.264 are supported, for audio G.711, G.722.1, G.726, MP2L2, PCM and AAC-LC are available.
The NVR offers eight IP video inputs and supports different resolutions from 8 MP over 6 MP up to 720p. The HDMI output enables playback at up to 4K resolution. The integrated 2 TB hard drive can be extended to a maximum of 8 TB. The recorder supports numerous network protocols such as TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP AND RTSP. In addition, up to 32 users can access the system.
It comes with a 8-channel PoE NVR, four 6 MP bullet cameras and four network cables. The set is suitable for small to medium-sized surveillance projects and offers high-quality picture and sound monitoring. Thanks to the weather-proof design, it can be used flexibly indoors and outdoors. The high 6 MP detail sharpness, intelligent recognition technology, robust design as well as efficient compression and PoE technology make this set a reliable and powerful solution for various security applications.
