HiLook IKS-2044BTH-PH/W LAN, Wi-Fi IP Network video recorder
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
Only 5 Piece(s) available
Highlights & Details
LAN, Wi-Fi IP-Bullet camera;HiLook;IKS-2044BTH-PH/WOutdoors, Indoors
- KI People & Vehicle Detection - Immediately notifies you when something really is relevant;Plug & Play WLAN complete set up – complete setup in under 5 minutes;Free Smartphone APP - no subscription, no follow-up costs, full control from everywhere;4MP Bullet + PT Turret cameras with hybrid light:4 MP "ColorVu" color night view - delivers colorful, even in darkness Detailed images instead of classical black and white IR;Intelligent person & vehicle detection – drastically reduces false alarms and notifies you only when something is really relevant.
Technical specifications
- Product type
Network video recorder
- CCTV features
Saves footage on SD card
IR LEDs
Speaker
Microphone
ONVIF support
- Camera type
Bullet camera
- Transfer type
LAN
Wi-Fi
- Used at
Outdoors
Indoors
- Signal standard
IP
Documents & Downloads
Datasheet
Datasheet 3775795 HiLook IKS-2044BTH-PH/W LAN, Wi-Fi IP Network video recorder
User & Safety Instructions
User & Safety Instructions 3775795 HiLook IKS-2044BTH-PH/W LAN, Wi-Fi IP Network video recorder
User & Safety Instructions 3775795 HiLook IKS-2044BTH-PH/W LAN, Wi-Fi IP Network video recorder
Description

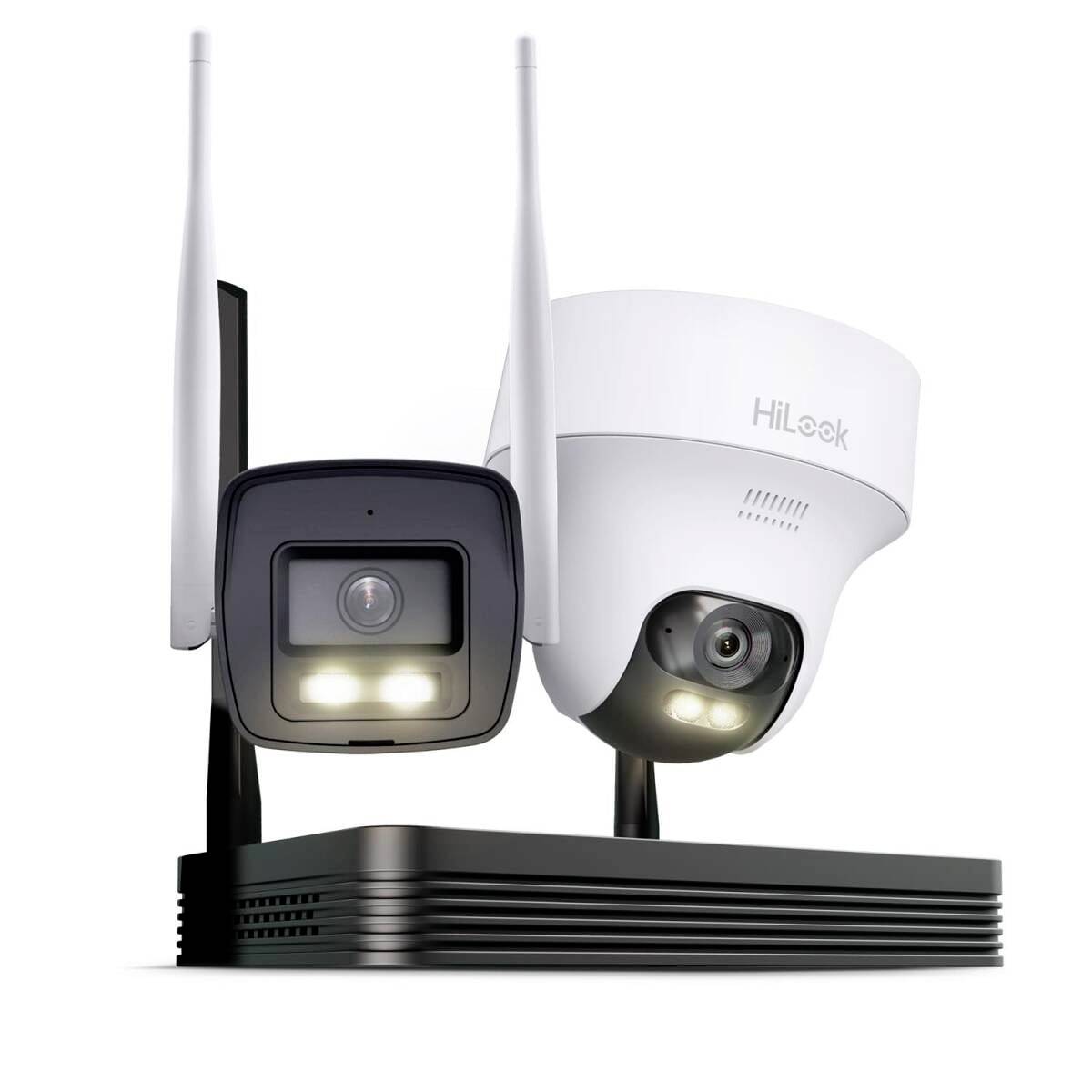

The HiLook EasyLink WLAN kit (article number: ICS-2044BTH-PH/W) is a comprehensive monitoring system consisting of a 4 MP bullet camera, a 4 MP PT turret camera and a WiFi-NVS. The two cameras transmit their video data wirelessly to the Network Video Server (NVS), which serves as a central recording unit. The NVS is connected to the home network via RJ45 cable or alternatively via WLAN. The system receives Internet access via the connected router, so that live streams and saved recordings can be retrieved at any time via the HiLookVision APP. The integration is convenient, because the pairing of new cameras is possible automatically via QR code Scan.
The Wi-Fi NVS (NVR-104H-S/W) supports two wirelessly paired cameras and enables recording and playback in up to 6 MP with H.265/H.264 compression. It has a microSD slot for memory cards up to 512 GB. The HiLookVision APP provides live viewing, playback and two-way audio. In addition to WLAN, a LAN connection is also available, and a SIM slot enables operation independent of the home network. Power is supplied via 12 V DC, a 230 V power supply is included.
The 4 MP wireless outdoor bullet camera is equipped with a 1/2.7" progressive scan CMOS sensor and a 2.8-mm lens (F1.6). It offers an IR-night vision range of up to 30 meters with Smart-IR technology. The intelligent motion detection reliably classifies people and vehicles. The IP66-casing makes it weather-proof. An in-built microphone and a loudspeaker enable two-way communication. The camera uses WLAN in the 2.4-GHz range with a range of up to 120 meters in open space. Power is supplied via 12 V DC, a power supply is included in the delivery.
The 4 MP PT Indoor and Covered Outdoor Turret camera also features a 1/2.7" Progressive Scan CMOS Sensor and a 2.8 mm lens (F2.0). The camera can be controlled remotely via APP and allows motorized panning and tilting. It offers night vision with IR-illumination up to 20 meters as well as white light up to 15 meters in the Smart-light mode. Like a bullet camera, it supports AI-assisted people and vehicle detection. The protection class IP54 is suitable for indoor use and protected outdoor areas. Also here microphone, loudspeaker, two-way audio as well as WLAN are available with a range of up to 120 meters. The power is supplied via 12 V DC (power supply included).
The delivery also includes a RJ45 Cat5e UTP cable with 1 meter length, which can be used for the network connection or firmware updates. Optionally a microSD card with up to 512 GB can be used for local recording in the NVS.
The HiLook EasyLink system is compatible with the Hik-Connect APP for mobile monitoring. It works exclusively with devices of the EasyLink series and is not compatible with indoor stations of Metzler intercom systems. A microSD card is not included in the delivery.
This text is machine translated.
The Wi-Fi NVS (NVR-104H-S/W) supports two wirelessly paired cameras and enables recording and playback in up to 6 MP with H.265/H.264 compression. It has a microSD slot for memory cards up to 512 GB. The HiLookVision APP provides live viewing, playback and two-way audio. In addition to WLAN, a LAN connection is also available, and a SIM slot enables operation independent of the home network. Power is supplied via 12 V DC, a 230 V power supply is included.
The 4 MP wireless outdoor bullet camera is equipped with a 1/2.7" progressive scan CMOS sensor and a 2.8-mm lens (F1.6). It offers an IR-night vision range of up to 30 meters with Smart-IR technology. The intelligent motion detection reliably classifies people and vehicles. The IP66-casing makes it weather-proof. An in-built microphone and a loudspeaker enable two-way communication. The camera uses WLAN in the 2.4-GHz range with a range of up to 120 meters in open space. Power is supplied via 12 V DC, a power supply is included in the delivery.
The 4 MP PT Indoor and Covered Outdoor Turret camera also features a 1/2.7" Progressive Scan CMOS Sensor and a 2.8 mm lens (F2.0). The camera can be controlled remotely via APP and allows motorized panning and tilting. It offers night vision with IR-illumination up to 20 meters as well as white light up to 15 meters in the Smart-light mode. Like a bullet camera, it supports AI-assisted people and vehicle detection. The protection class IP54 is suitable for indoor use and protected outdoor areas. Also here microphone, loudspeaker, two-way audio as well as WLAN are available with a range of up to 120 meters. The power is supplied via 12 V DC (power supply included).
The delivery also includes a RJ45 Cat5e UTP cable with 1 meter length, which can be used for the network connection or firmware updates. Optionally a microSD card with up to 512 GB can be used for local recording in the NVS.
The HiLook EasyLink system is compatible with the Hik-Connect APP for mobile monitoring. It works exclusively with devices of the EasyLink series and is not compatible with indoor stations of Metzler intercom systems. A microSD card is not included in the delivery.
This text is machine translated.
