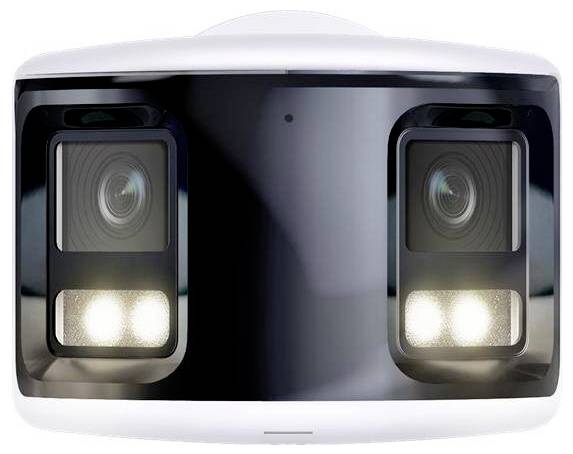

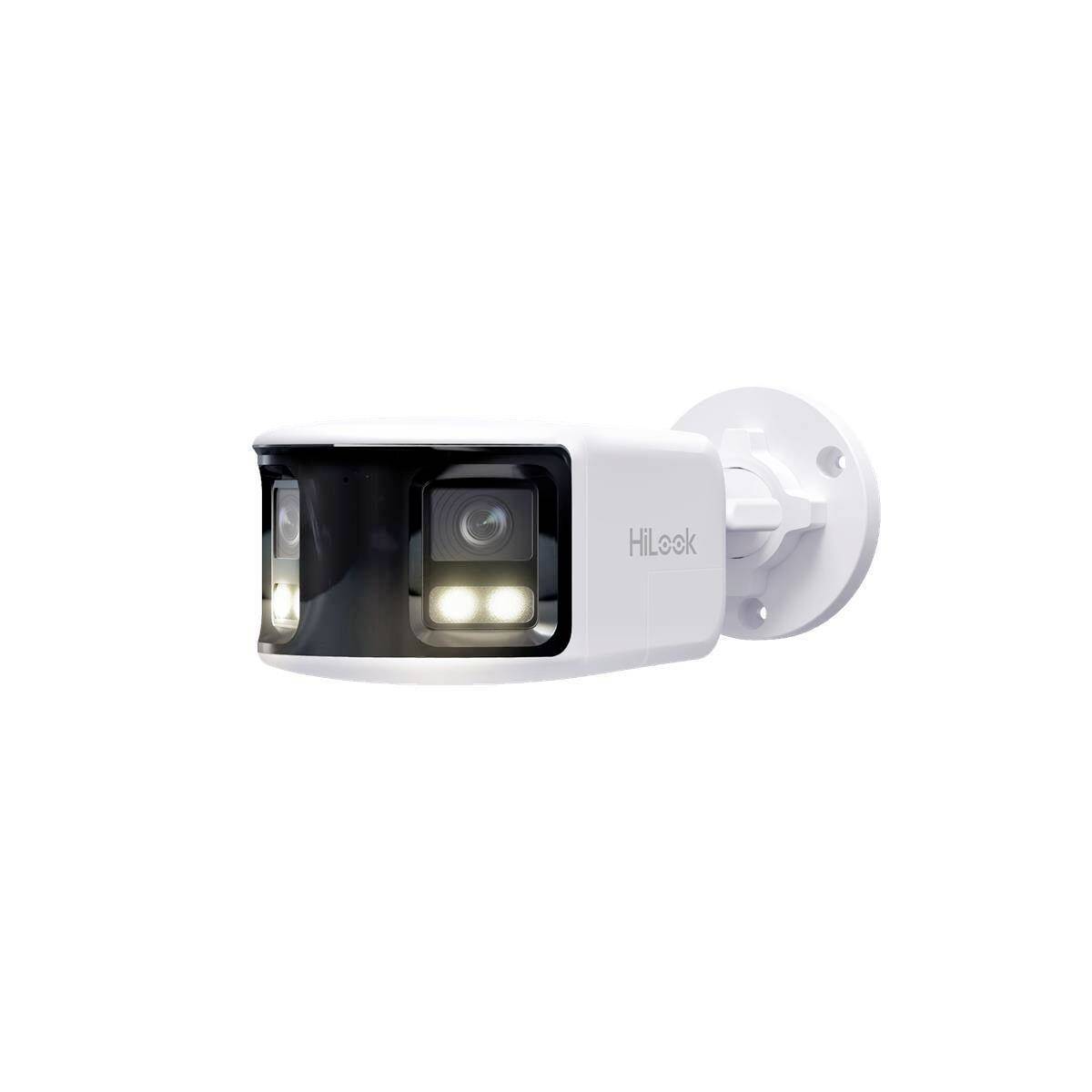

HiLook IPC-B480HAD-LUF/SL LAN, Corded IP CCTV camera

The camera has a 1/2.4" CMOS image sensor with progressive scanning and achieves a maximum resolution of 4256 × 1888 pixels (8 MP). It is equipped with a 2 mm fixed lens and offers an extremely wide field of vision of 180° horizontal and 77° vertical. The minimum illumination is 0.005 lux with F1.6 with activated AGC, while thanks to integrated IR and white light illumination the photos are possible even at 0 lux. The additional lighting works with Smart hybrid light and reaches a range of up to 30 meters. A WDR value of 120 dB ensures that the camera provides balanced exposure even in high-contrast scenes.

For video processing, the camera supports modern compression techniques such as H.265+, H.265, H.264+ and H.264. The substream can also be output in H.265, H.264 or MJPEG. For audio, the model has an integrated microphone and a speaker, allowing two-way audio. A noise suppression provides for clearer sound quality. Local storage can be done via microSD, SDHC or SDXC cards with a capacity of up to 512 GB.

The power supply is flexibly available via 12 V DC ± 25 % or PoE according to IEEE 802.3af with a maximum power consumption of 11.5 W. The weather and dust-proof IP67 housing makes the camera suitable for outdoor areas. The operating temperature range reaches from –30 °C to +60 °C at an air humidity of up to 95 % (not condensing). The dimensions are 103.6 × 76 × 234.5 mm, the weight is about 560 g.

An RJ-45 port (10/100M), a microSD memory card slot and a reset button are available on the connections. The alarm and event functions include motion and tamper detection, targeted alarms for people and vehicles, and visual and acoustic warning signals such as flash and loudspeaker alerts. The camera is compatible with IVMS-4200, HiLookVision, ONVIF (Profile S/T/G), ISAPI and SDK-based integration.

The DS-1280ZJ-XS connection box and the DS-2280ZJ wall mount are optional accessories. Certifications such as CE, CB, KC, IP67, RoHS, WEEE and REACH confirm the quality, safety and environmental compatibility of the device.
