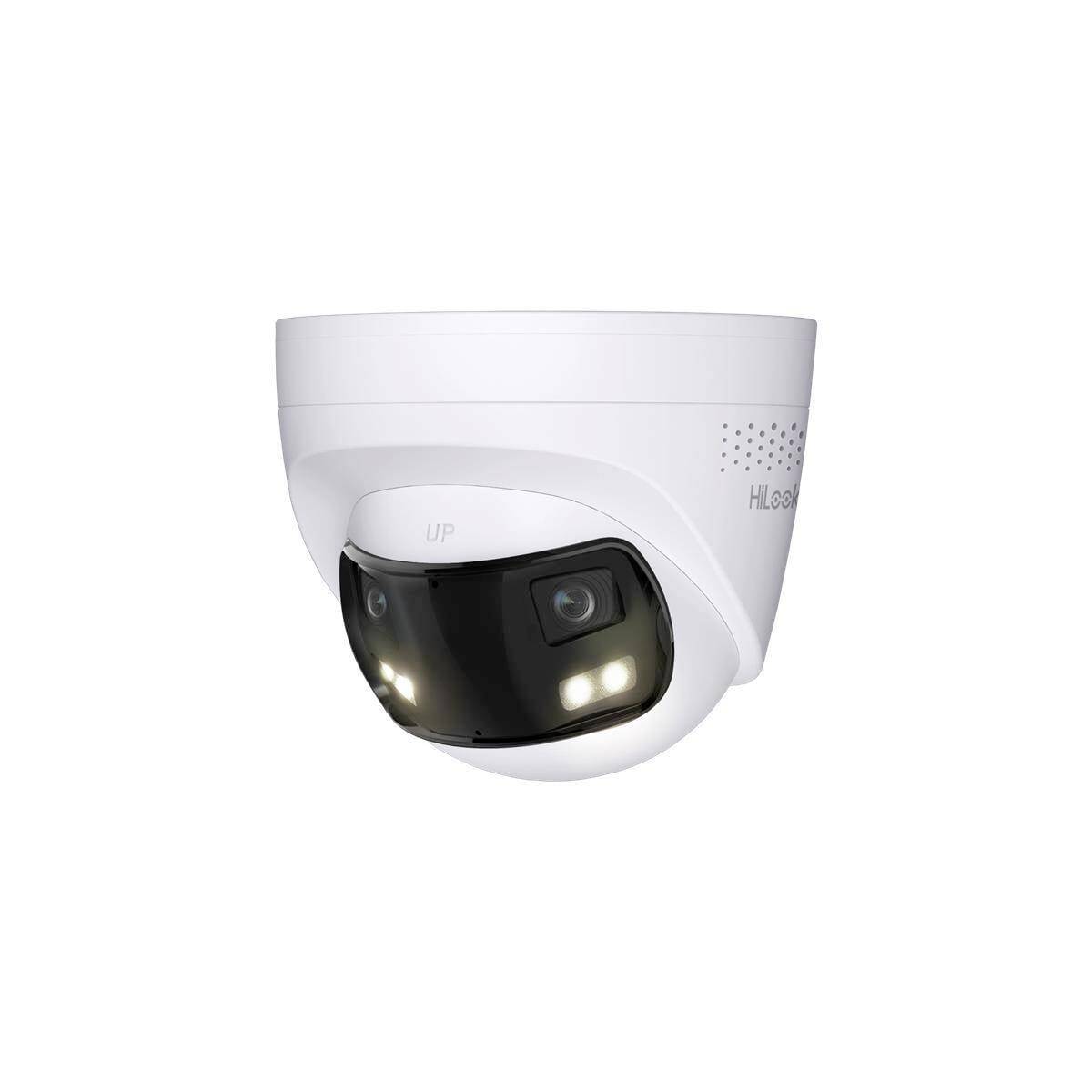

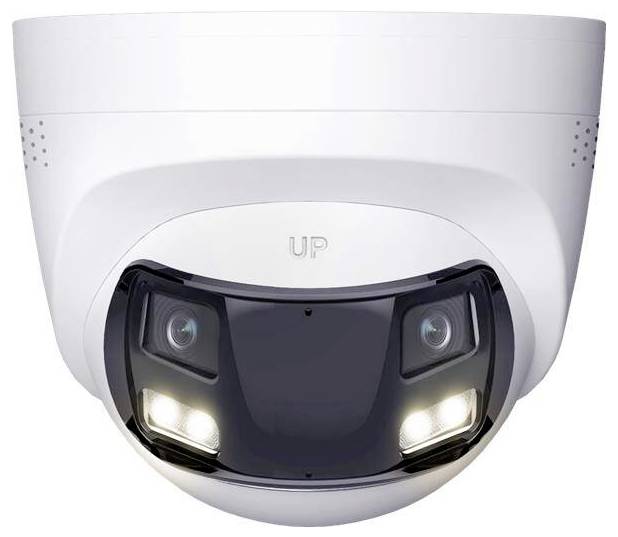

HiLook IPC-T280HAD-LUF/SL LAN, Corded IP CCTV camera

The camera is equipped with a 1/2.4" CMOS image sensor with progressive scanning and achieves a maximum resolution of 4256 × 1888 pixels. It has a 2 mm fixed lens with a aperture of F1.6 and an M12 connection. The field of view is horizontal 180° and vertical 77°, whereby a very large area is covered. For optimum night vision a combination of infrared and white light lighting with a range of up to 30 meters is provided through the Smart hybrid light technology. The minimum illumination is 0.005 Lux in color (F1.6, AGC ON). A WDR value of 120 dB ensures that even high-contrast scenes are reproduced in detail.

The video compression supports H.265+, H.265, H.264+, H.264 as well as MJPEG. The main stream delivers up to 20 images per second in full resolution of 4256 × 1888 pixels; the substream also achieves up to 20 fps. An in-built microphone and a speaker are available for audio, which enables two-way audio. An integrated noise filtering also provides for clearer voice transmissions.

A microSD, SDHC or SDXC card with up to 512 GB is suitable for local storage. The alarm functions include an integrated flash light, an acoustic alarm as well as an intelligent motion detection for persons and vehicles. Supported network protocols include ONVIF (profile S, T, G), TCP/IP, HTTP, RTSP and more. Up to 32 users can be set up, divided into administrator, operator and user.

The camera possesses the protection class IP67 and is thus water and dust-proof. It works reliably in a temperature range from 30 °C to +60 °C and tolerates up to 95 % air humidity (not condensing). The power supply is via 12 V DC ± 25 % or PoE according to IEEE 802.3af, with a power consumption of up to 10 to 11.5 watt. The dimensions are Ø 130.1 mm × 109.1 mm, the weight is about 580 g. The casing is made of metal, while the cover is made of plastic.
