Name: Hobbywing Platinum Pro 25A V4 Model aircraft brushless motor controller Load (Amp max.): 40 A
Brand: Hobbywing
SKU: 3400172
Availability: SoldOut

A Hobbywing Platinum 25A Electronic Speed Controller with multiple connected cables, used in model aircraft for motor control.

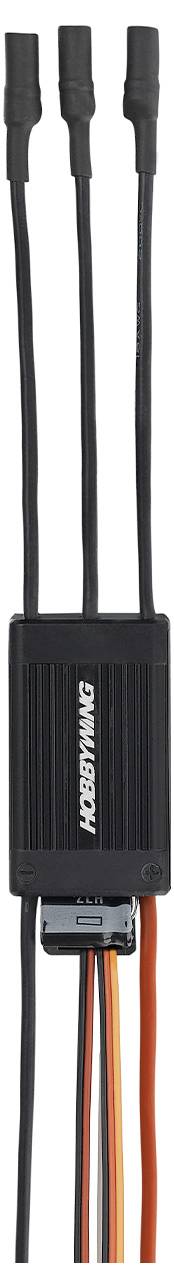

Black electronic component with three cables on top and four below, including a red and an orange cable.

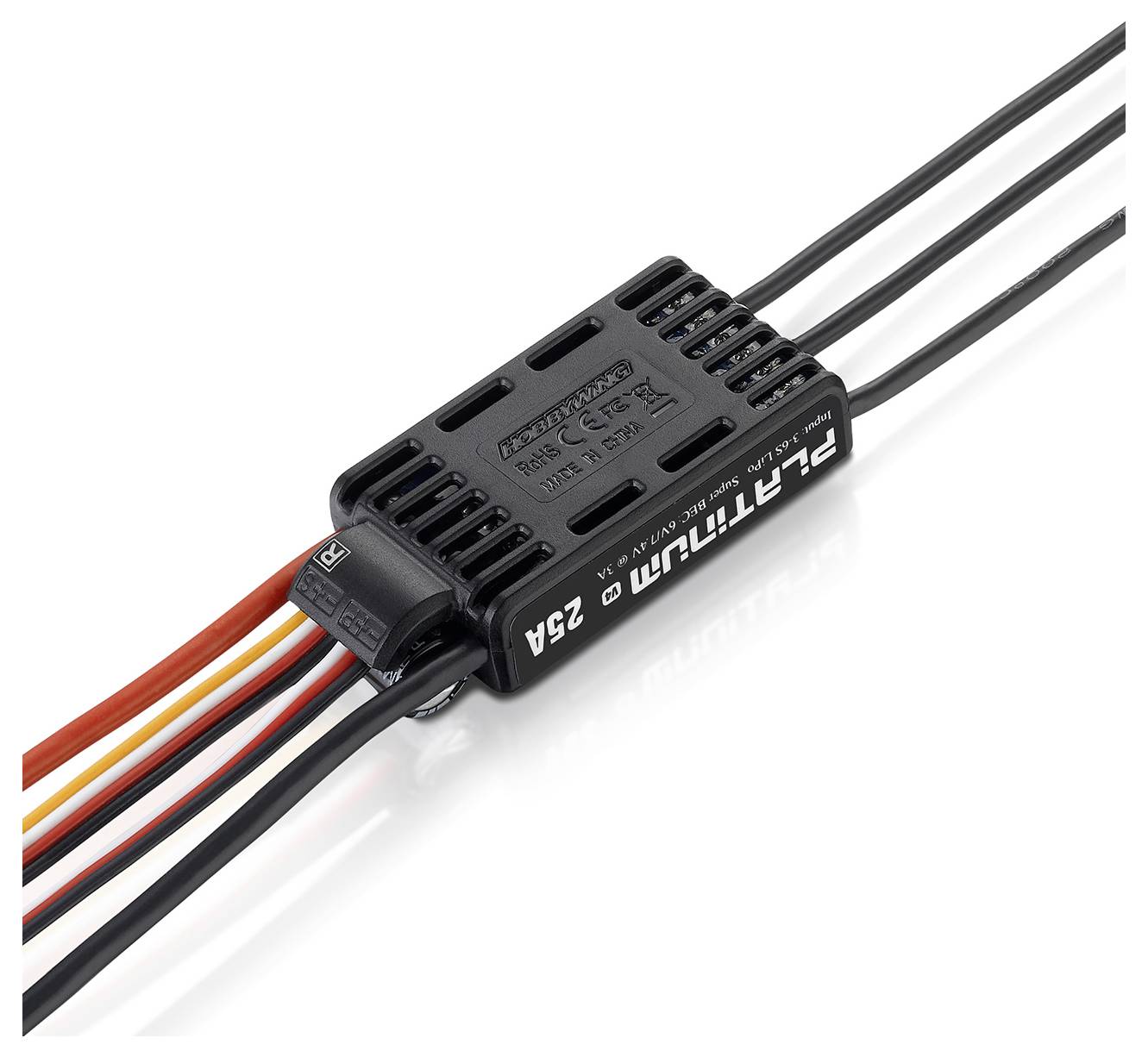

Electronic speed controller with multiple cables in various colours, used for controlling electric motors in models.

1/3

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 38.99 / piece)

€ 38.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Input voltage 3-6S LiPo
Cable battery/motor: 1x 16AWG (red and black, 100mm), 3x 18AWG (black, 100mm)
Plug: 3.5mm gold-contact (female)
Programming: LCD programming box, Wi-Fi module, OTA module, separate programming connection
Applications: 250-series helicopter, surface models and multi-helicopter

Product type: Model aircraft brushless motor controller

Permanent current: 25 A

Dim: (L x W x H) 47 x 22 x 10 mm

Load (max.): 40 A

Weight: 27 g

BEC data: 6-7.4V @7A (switch mode)

Width: 22 mm

Height: 10 mm

Length: 47 mm

Motor connector system: 3.5mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3400172 Hobbywing Platinum Pro 25A V4 Model aircraft brushless motor controller Load (Amp max.): 40 A

Description

With the Platinum 25A V4, Hobbywing sets new standards in the area of controller technology. Excellent control response, protection mechanisms and extensive programming and application options characterize this controller. This control is suitable for helicopters of the 250er class (rotor blade lengths 200-300mm) as well as for surface models and helicopters. With a capacity of 25A and operation with 3-6S LiPo, it has a compact dimensions and low weight.

This text is machine translated.

Features

The latest DEO technology: For smooth, linear control Start-up function for soft start-up and programmable brake function
Programmable: Via Hobbywing WiFi Express module or LCD programming box
Strong BEC: BEC 6V / 7.4V with 3A peak 7A
Governor function: 3 different governor modes are available. External Governor, Store Governor and Eleven Governor

Description

Features

The latest DEO technology: For smooth, linear control Start-up function for soft start-up and programmable brake function
Programmable: Via Hobbywing WiFi Express module or LCD programming box
Strong BEC: BEC 6V / 7.4V with 3A peak 7A
Governor function: 3 different governor modes are available. External Governor, Store Governor and Eleven Governor
