Buy Honeywell PC45D000000200 Label printer Direct thermal 203 x 203 dpi Max. label width: 118 mm

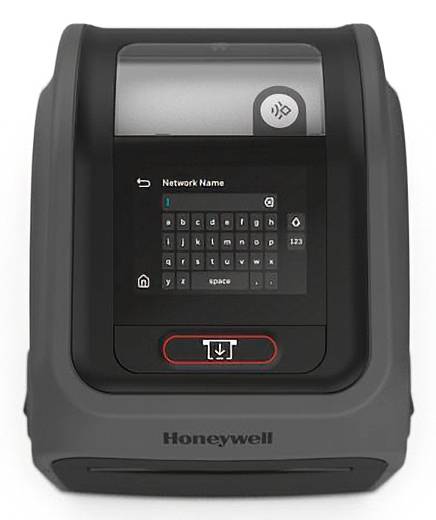

Honeywell label printer touchscreen showing a 'Network Name' text-entry keyboard and a highlighted confirm/submit button.

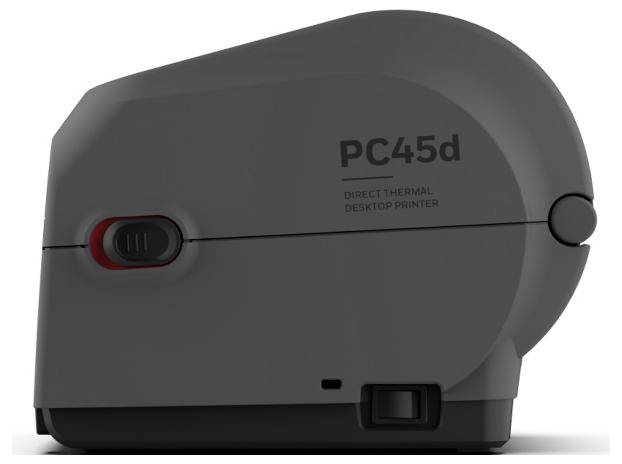

Gray PC45d direct thermal desktop printer shown from the side with 'PC45d' branding visible.

Compact gray PC45d direct thermal desktop printer shown in side view with model name on the front.<br>

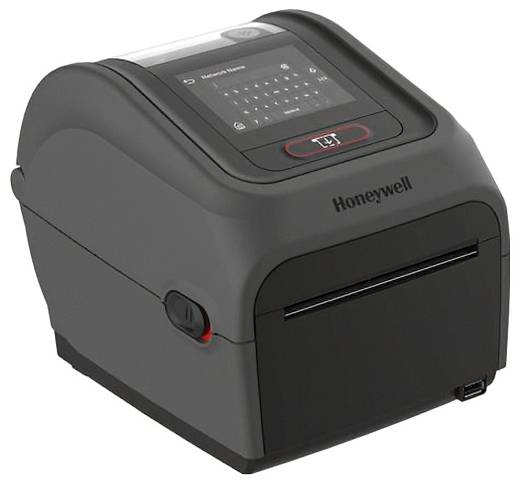

Honeywell desktop label printer with touchscreen control panel and front paper slot on a black-gray casing.

Black Honeywell desktop label printer with touchscreen control panel and front paper output slot.

Two compact Honeywell PC45d desktop label printers shown on a white background.

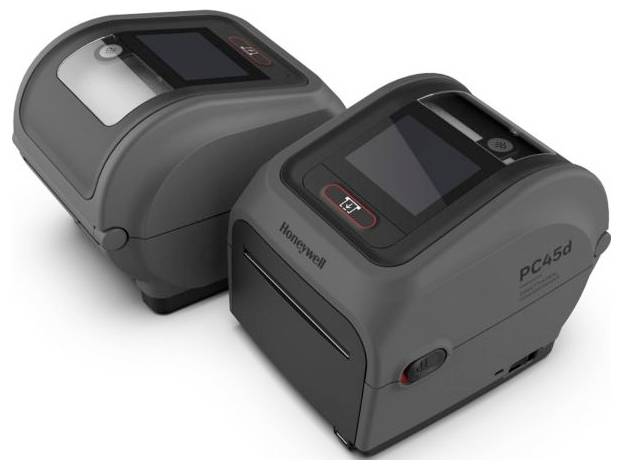

Two compact black Honeywell PC45d label printers shown from an angle, with touchscreen displays and front label slots.

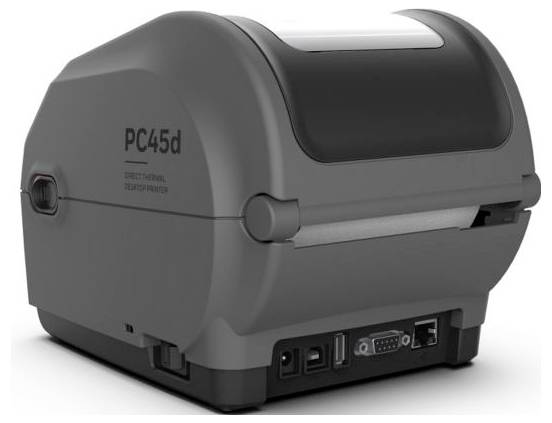

Gray label printer labeled 'PC45d' with rear power and data ports visible on a white background.

Gray PC45d industrial label printer shown in three-quarter view, with front ports and a top paper slot visible.

1/9

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 407.56 / piece)

€ 407.56

plus VAT.

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Honeywell PC45D label printer Thermal direct 203 x 203 DPI Cable bound Ethernet/LAN

Highlights & Details

Thermal direct
203 x 203 DPI
Maximum print width 10.8 cm
Integrated barcodes: QR Code
Transmission technology: Cable-bound
USB port Ethernet/LAN
Display: LCD 8.89 cm (3.5") 320 x 240 Pixel Colour display Display-Background lighting
1.8 kg

Technical specifications

Product type: Label printer

Type: PC45D000000200

Printing technology: Direct thermal

Functions: Printer

Type: B/W

Print resolution: 203 x 203 dpi

Print speed (black/white): 203.2 mm/s

Features: Touch display

Interfaces: USB
RJ45

Power supply (LOV): via PSU

Max. label width: 118 mm

Factory colour: Black

Width: 181.3 mm

Height: 215.6 mm

Depth: 168 mm

Dim: (W x H x D) 181.3 x 215.6 x 168 mm

Weight: 1.8 kg

Network: Yes

Wi-Fi: No

Suitable for: Label printing

Bluetooth: No

Screen size diagonal (inches): 3.5 inch

Display resolution: 320 x 240 Pixel

Power supply (details): 100 - 240 V

: 256 MB

Safety: LEAP
PEAP
TLS
TTLS
WEP
WPA
WPA2
WPA2

Transfer type: Corded

UKCA: yes

Built-in RFID module: yes

Operating temperature (T-T): 0 - 45 °C

Ethernet LAN: yes

Storage relative humidity (H-H): 10 - 90 %

Backlight display: yes

Print speed: 8 lpm

Colour display: yes

USB port: yes

Minimum print length: 6.35 mm

Maximum label width: 11.8 cm

RS-232 ports: 1

Flash memory: 512 MB

Maximum media length: 6.35 mm

Maximum roll diameter: 12.7 cm

Storage temperature (T-T): -20 - 90 °C

Maximum printing width: 10.8 cm

Built-in display: yes

AC adapter output current: 3.15 A

Documents & Downloads

Datasheet

Datasheet 3804237 Honeywell PC45D000000200 Label printer Direct thermal 203 x 203 dpi Max. label width: 118 mm

User & Safety Instructions

User & Safety Instructions 3804237 Honeywell PC45D000000200 Label printer Direct thermal 203 x 203 dpi Max. label width: 118 mm

Description

The Honeywell PC45d is a powerful, compact 4-inch desktop label printer designed specifically for demanding working environments in logistics, retail, healthcare and manufacturing. With its intuitive 3.5-inch color touchscreen and rugged design, it offers easy operation and seamless integration into existing IT infrastructures. Thanks to the modern Honeywell Printer Edge platform, the PC45d guarantees reliable performance, high network security and easy fleet management from a distance.

This text is machine translated.

Features

3.5" (8.89 cm) color LCD touchscreen (320 x 240 pixels)
256 MB RAM, 512 MB flash memory
Sensors: Adjustable transmission and reflection sensor (Gap, Notch, Black Mark, Continuous)
Special features: Integrated real-time clock (RTC)
Printer languages: ZSim2 (ZPL-II), Direct Protocol (DP), Fingerprint (FP), Intermec Printer Language (IPL), DPL, PDF, XML-enabled
