Buy Renkforce RF-TPP3-01 Thermal transfer printer Direct thermal 203 x 203 dpi Max. label width: 80 mm USB, RS-232, LAN

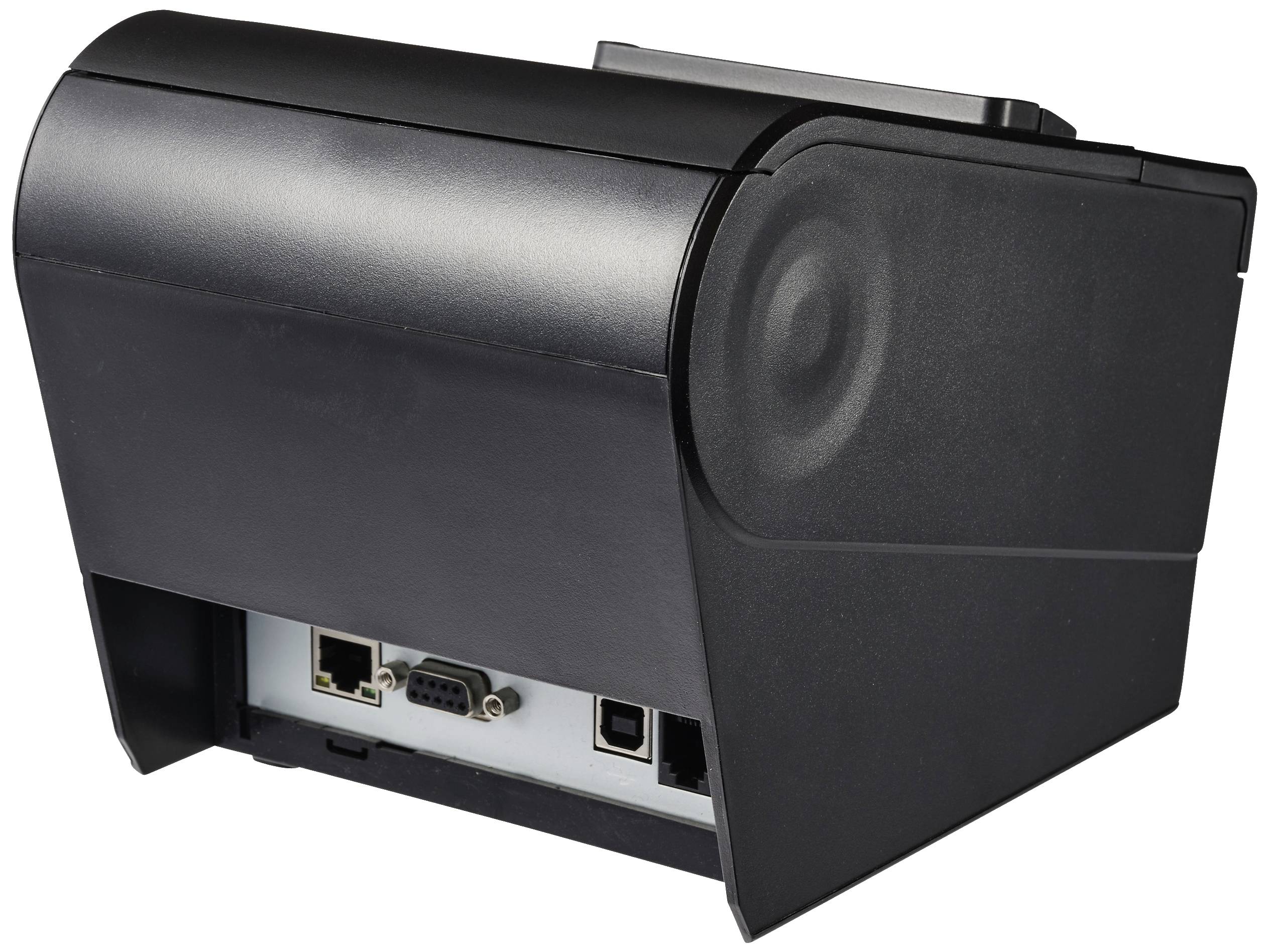

A black printer viewed from behind, with visible connection sockets for power and data cables.

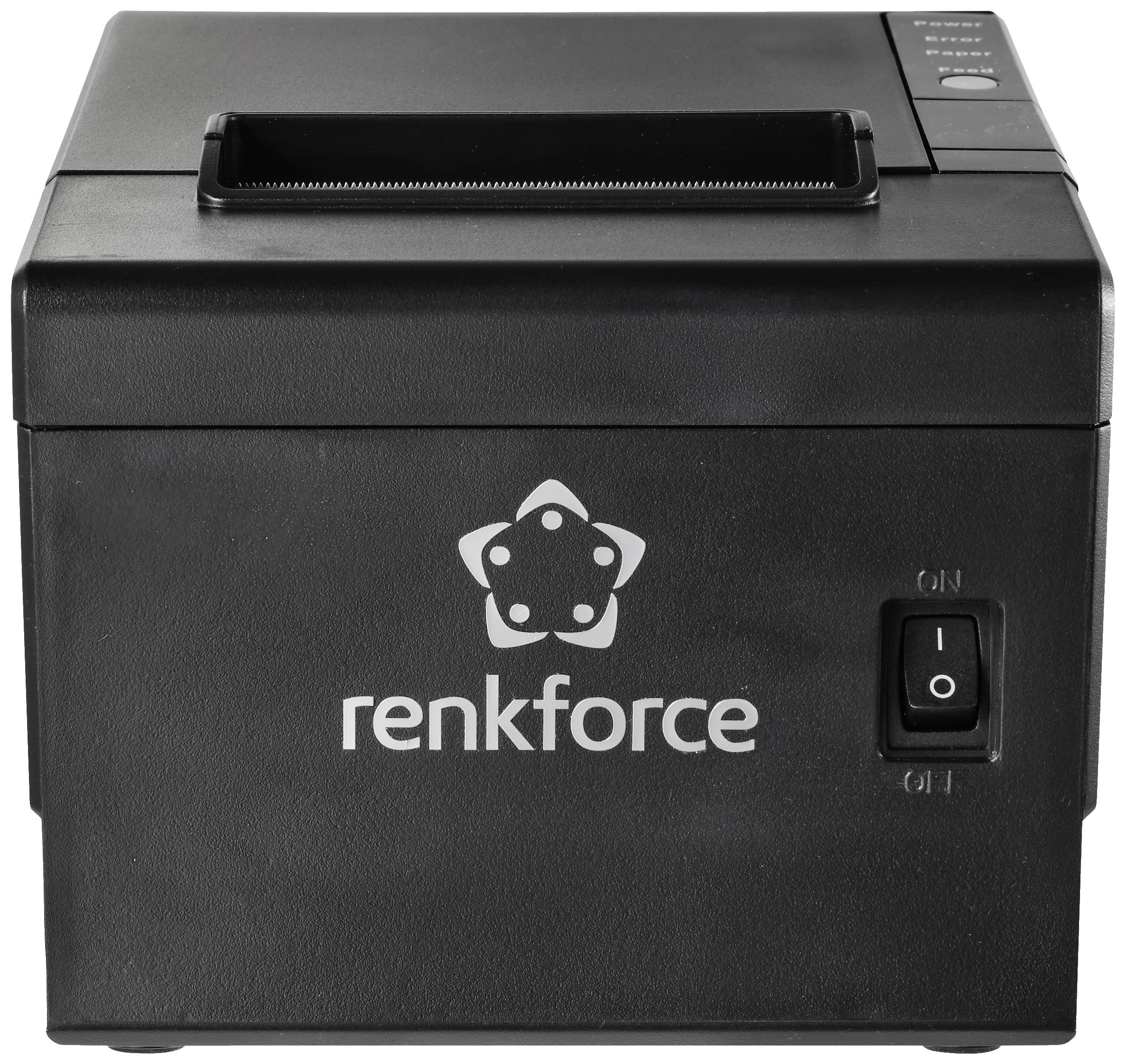

Black Renkforce printer with power switch on the front panel.

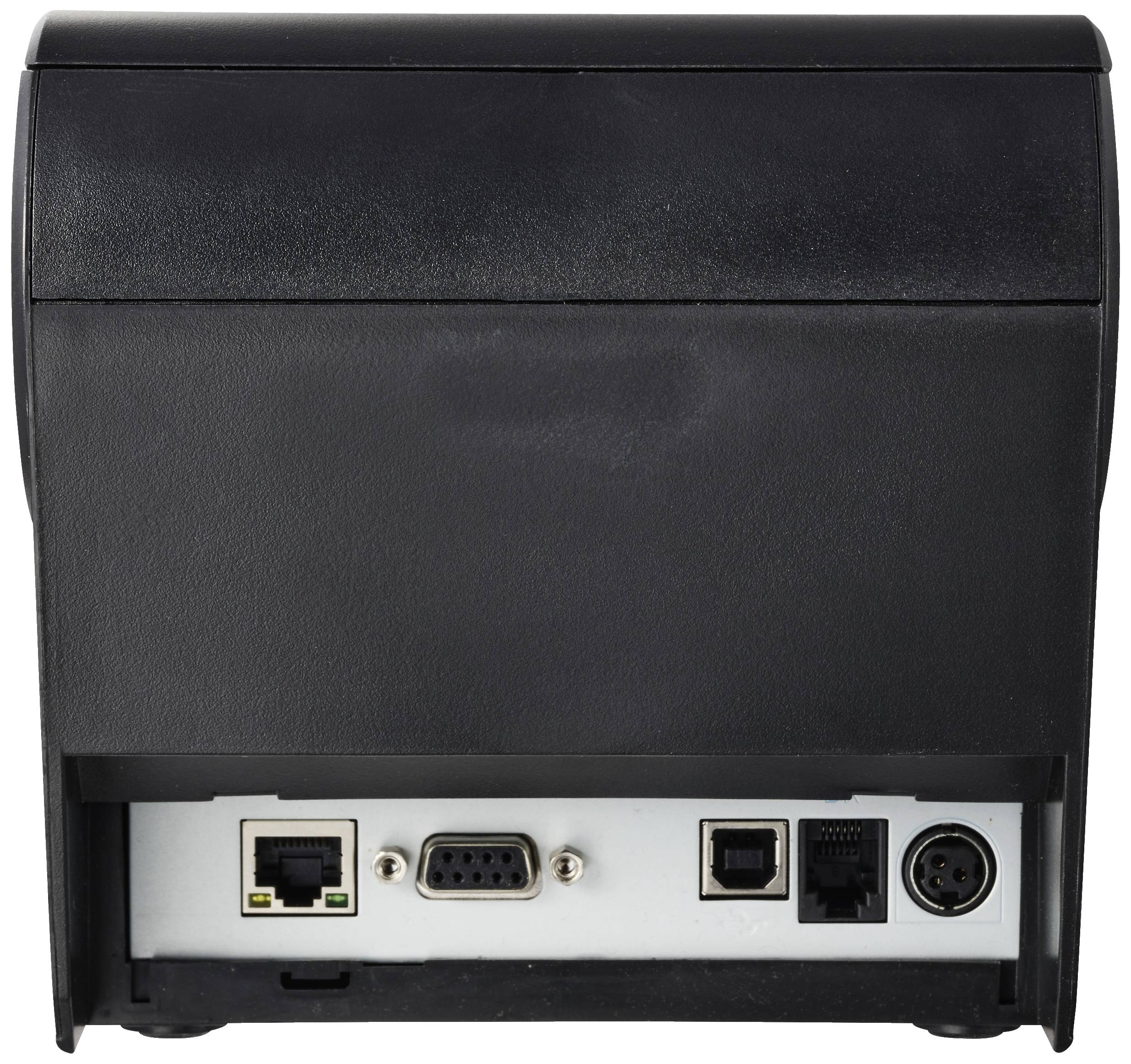

A black electronic device with ports on the back: Ethernet, serial port, USB, and power socket.

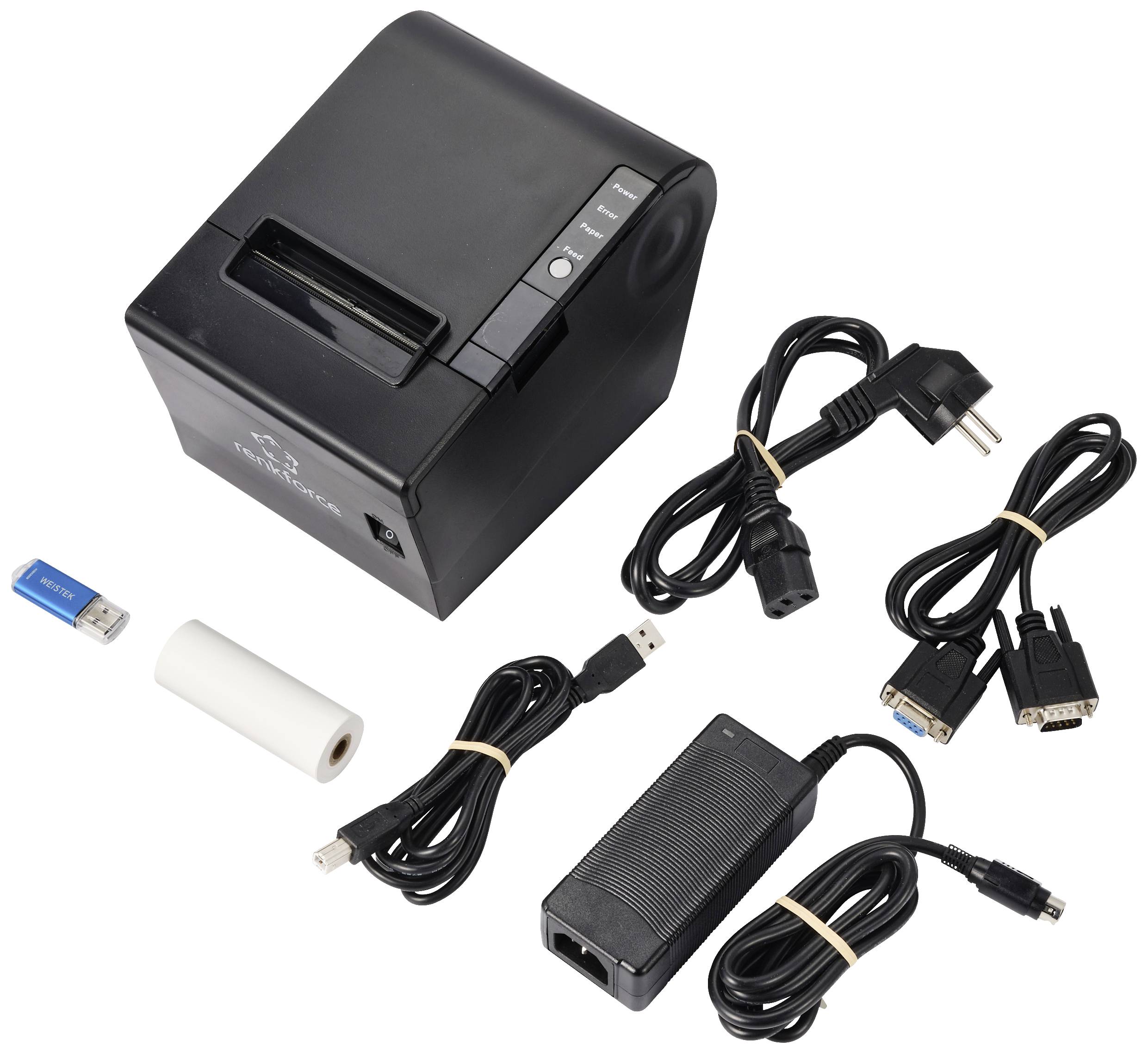

Thermal printer with power supply, USB stick, paper roll and various cables. Suitable for point-of-sale environments and receipt printing.

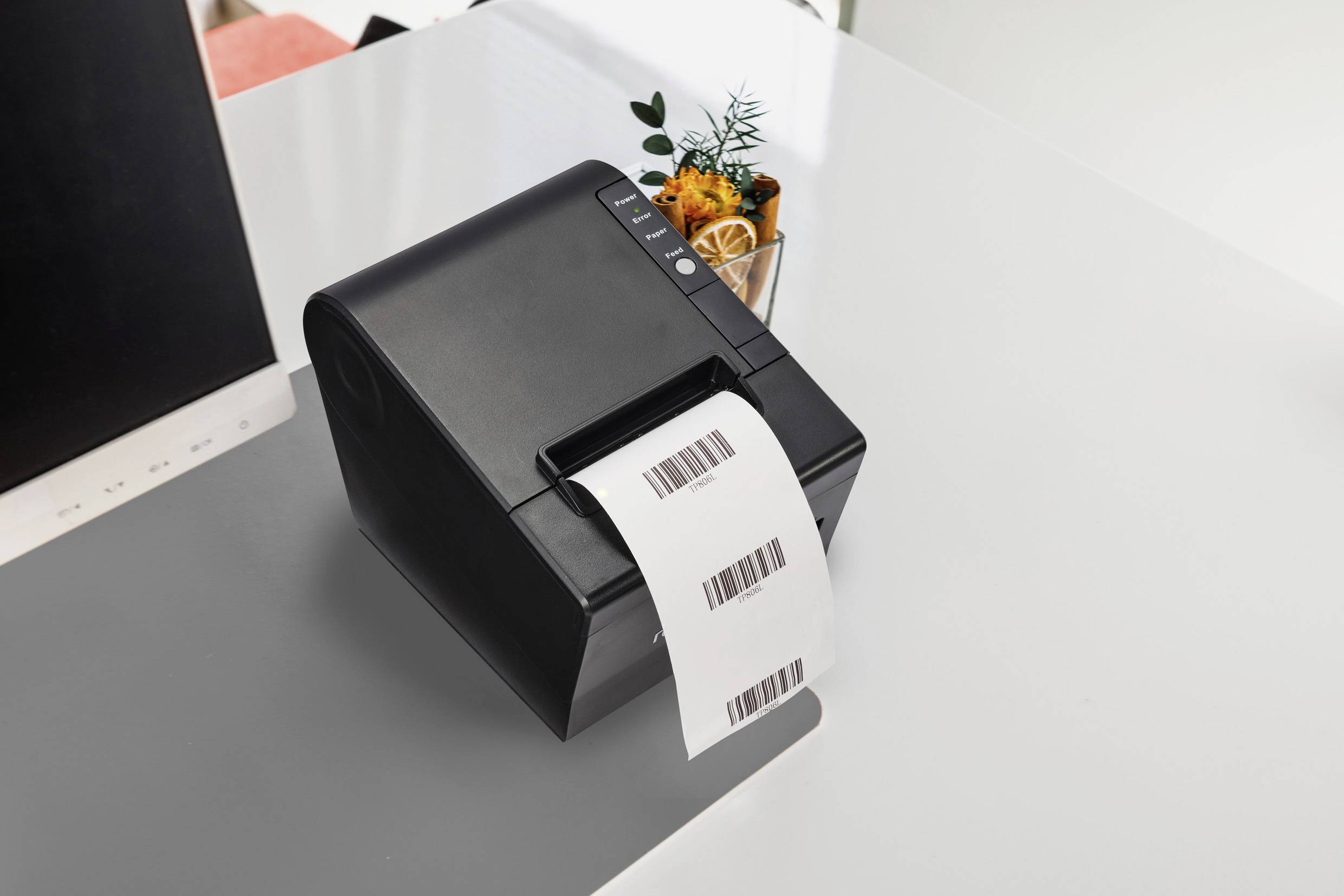

A black label printer sits on a white table, printing a sheet with barcodes. A small plant pot is visible in the background.

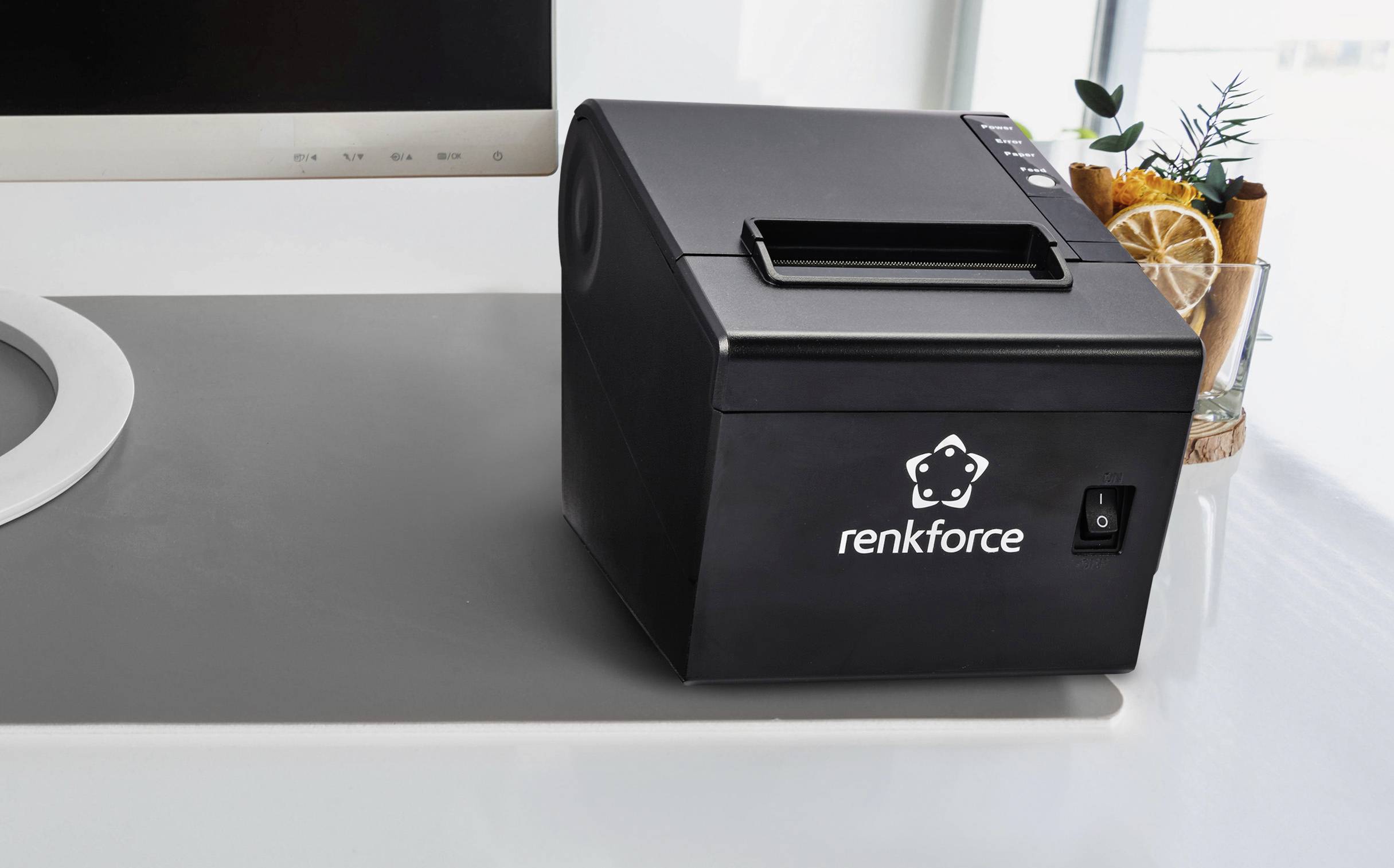

A black Renkforce printer sits on a desk. Next to the printer are pens and dried orange slices in a glass.

1/8

Our service for you

Fast track dispatch on Wed, 23 Sep

6 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 142.85 / piece)

€ 142.85

plus VAT.

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Renkforce automatic high-speed thermal transfer printer - 3"(76.2 mm)

Prints at speeds up to 250 mm/s
Interface: USB+Serial RS232 + Ethernet
Supported barcodes: 1D UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93, 2D PDF417, QR code
Sensors: Automatically detects end of paper, open cover, over-temperature and high/low voltage
Movable paper guard plate supports 58mm and 80mm thermal paper.

Technical specifications

Max 250mm/s, 58/80mm
Reliability: TPH life: 150km, 2 million cuts life;
Interface: USB+Serial RS232 + Ethernet
Printer direction: Vertical and horizontal
Printing method: Direct thermal line printing
Resolution: 203dpi (8dots / mm)
Printing speed: 250 mm/s max.
Print Width: 48mm - 72mm (max.)
Paper Width: 58mm - 80mm(max.)
Sensors: Detection for Paper end, cover open, over-temperature and high/low voltage
LEDs lndicator: Two color LEDs: Ready(Green), Paper(Red), Error(Red)
Control key: Feed
Paper cut: Manual Tear or Auto-Cutter
Driver: XP / Win7/Win8 /Win10/POSReady/Linux /OPOS
Barcode supported: 1D UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93, 2D PDF417, QR code
Resident Fonts:
Character set
Font Font A:12*24 Font B:9*17 CHN: 24*24
Number of Columns 48/64
Alphanumeric 95
Expanded Character 128*47
Code page 47
Color: Black
Power adapter: GM53-240200-D
USB type: B-type 1.2M

Product type: Thermal transfer printer

Type: RF-TPP3-01

Printing technology: Direct thermal

Functions: Printer

Type: B/W

Print resolution: 203 x 203 dpi

Print speed (black/white): 250 mm/s

Features: Automatic cutter

Interfaces: USB
RS232
LAN (10/100 Mbps)

Power supply (LOV): mains-powered

Max. label width: 80 mm

Factory colour: Black

Width: 145 mm

Height: 146 mm

Depth: 195 mm

Dim: (W x H x D) 145 x 146 x 195 mm

Weight: 1.80 kg

Network: Yes

Wi-Fi: No

Suitable for: Label printing
Receipt printing

Connections: USB + Serial RS232 + Ethernet

Related consumables: Thermal paper

Power supply (details): Input: AC 100 - 240V 50/60Hz, 2.0A
Output: DC 24V ±5% / 2.0A, 48W

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2734627 Renkforce RF-TPP3-01 Thermal transfer printer Direct thermal 203 x 203 dpi Max. label width: 80 mm USB, RS-232, LAN

Download

Download 2734627 Renkforce RF-TPP3-01 Thermal transfer printer Direct thermal 203 x 203 dpi Max. label width: 80 mm USB, RS-232, LAN

Description

Features

Max 250 mm/s, 58/80 mm
Lifespand: 150 km, 2 million cuts;
Interface: USB+Serial RS232 + Ethernet
Printer direction: Vertical and horizontal
Printing method: Direct thermal line printing
Resolution: 203 dpi (8 dots / mm)
Printing speed: 250 mm/s max.
Print width: 48 mm - 72 mm (max.)
Paper width: 58 mm - 80 mm(max.)
Sensors: Automatically detects end of paper, open cover, over-temperature and high/low voltage
LED indicator: Two colour LEDs: Ready (green), Paper (red), Error (red)
Control key: Feed
Paper cut: Manual tear or auto-cutter
Driver: XP / Win7/Win8 /Win10/POSReady/Linux /OPOS
Supported barcodes: 1D UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93, 2D PDF417, QR code
Resident fonts:
Character set
Font A: 12*24 Font B: 9*17 CHN: 24*24
Number of columns: 48/64
Alphanumeric 95
Expanded character 128*47
Code page 47
