1/3

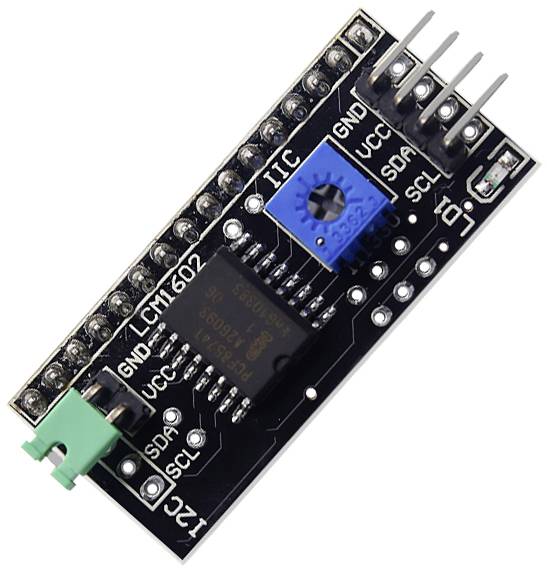

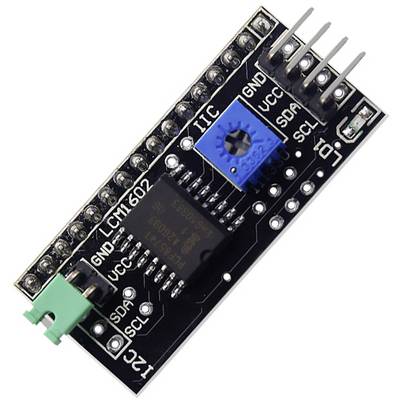

Iduino ME033 Converter module 1 pc(s) Compatible with (development kits): Arduino
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€ 4.03
plus VAT.
Technical specifications
- I2C module for LCD
- Packaging type
Piece
- Product type
Converter module
- Compatible with
Arduino
- Interfaces
I²C
SPI™
- Suitable for
Arduino
- Tool type
Converter
- Height
12 mm
- Length
46 mm
- Width
19 mm
- Weight
4.6 g
- Compatible with
Arduino
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2315239 Iduino ME033 Converter module 1 pc(s) Compatible with (development kits): Arduino
User & Safety Instructions
User & Safety Instructions 2315239 Iduino ME033 Converter module 1 pc(s) Compatible with (development kits): Arduino
Description
This is another great serial IIC/I2C/TWI/SPI interface. Because the controller's pin resources are limited, your project may not be able to use normal LCD shielding after a certain number of sensors or SD cards are connected. However, with this I2C interface module, you can display the data via only 2 wires. If you already have I2C devices in your project, this LCD module does not cost any resources at all. It's fantastic for a based project.
I2C address: 0x20 ~ 0X27 (the original address is 0x20, you can change it yourself) the backlight and the contrast are set with a potentiometer.
2 IIC interfaces are included, which can be connected via Dupont Line or an IIC cable. I2C address: 0x27 (I2C address: 0x20 ~ 0X27 (original address is 0X27, you can change it yourself)
This text is machine translated.
I2C address: 0x20 ~ 0X27 (the original address is 0x20, you can change it yourself) the backlight and the contrast are set with a potentiometer.
2 IIC interfaces are included, which can be connected via Dupont Line or an IIC cable. I2C address: 0x27 (I2C address: 0x20 ~ 0X27 (original address is 0X27, you can change it yourself)
This text is machine translated.
