igus XSM-1618-20 Plain bearing Bore diameter 16 mm
Product type
Plain bearing
Width
20 mm
Bore Ø
16 mm
Outside Ø
18 mm
Maintenance
maintenance-free
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 2.29 / piece)
€ 4.89
-53 %
€ 2.29
incl. VAT
14-day return policy included
Highlights & Details
Iglidur® X bearings, without a federal
- Pressure loads of up to 150 Mpa
- High universal chemical resistance
- High temperature resistance
- High wear resistance
- Very low moisture absorption
Technical specifications
- Product type
Plain bearing
- Series
XSM
- Type
XSM-1618-20
- Width
20 mm
- Bore Ø
16 mm
- Outside Ø
18 mm
- Linear speed (max.)
5 m/s
- Oscillating speed (max.)
1.1 m/s
- Rotational speed (max.)
1.5 m/s
- COF (kinetic, against steel) (max.)
0.27 µ
- COF (kinetic, against steel) (min.)
0.09 µ
- Max. temperature
250 °C
- Min. temperature
-100 °C
- Maintenance
maintenance-free
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1416623 igus XSM-1618-20 Plain bearing Bore diameter 16 mm
Description
High temperature and chemical resistance. If it's hot, iglidur® X the right
Solution. This applies both in the literal as well as in the context of transmission, for example in the case of extreme
Chemicals. It is interesting that the wear resistance at high temperatures even increases.
This text is machine translated.
Solution. This applies both in the literal as well as in the context of transmission, for example in the case of extreme
Chemicals. It is interesting that the wear resistance at high temperatures even increases.
This text is machine translated.
Hints

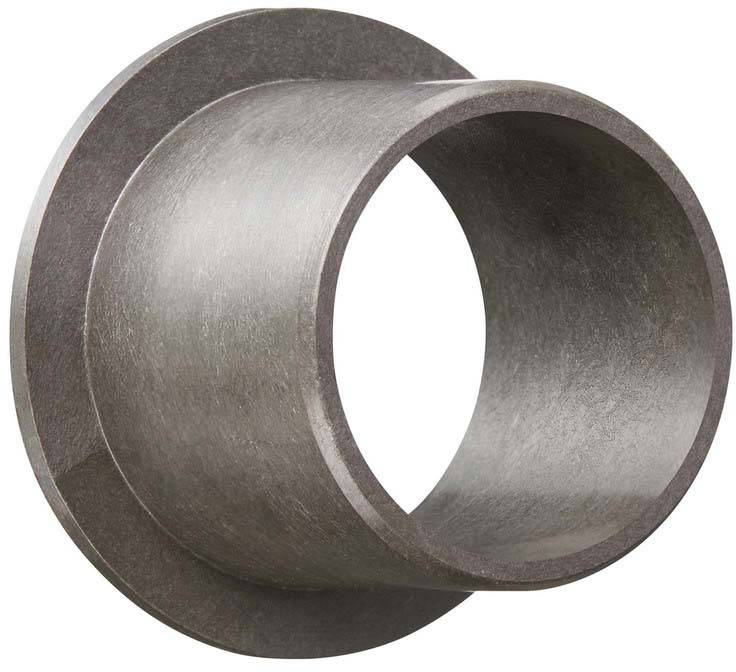

Similar product shown
