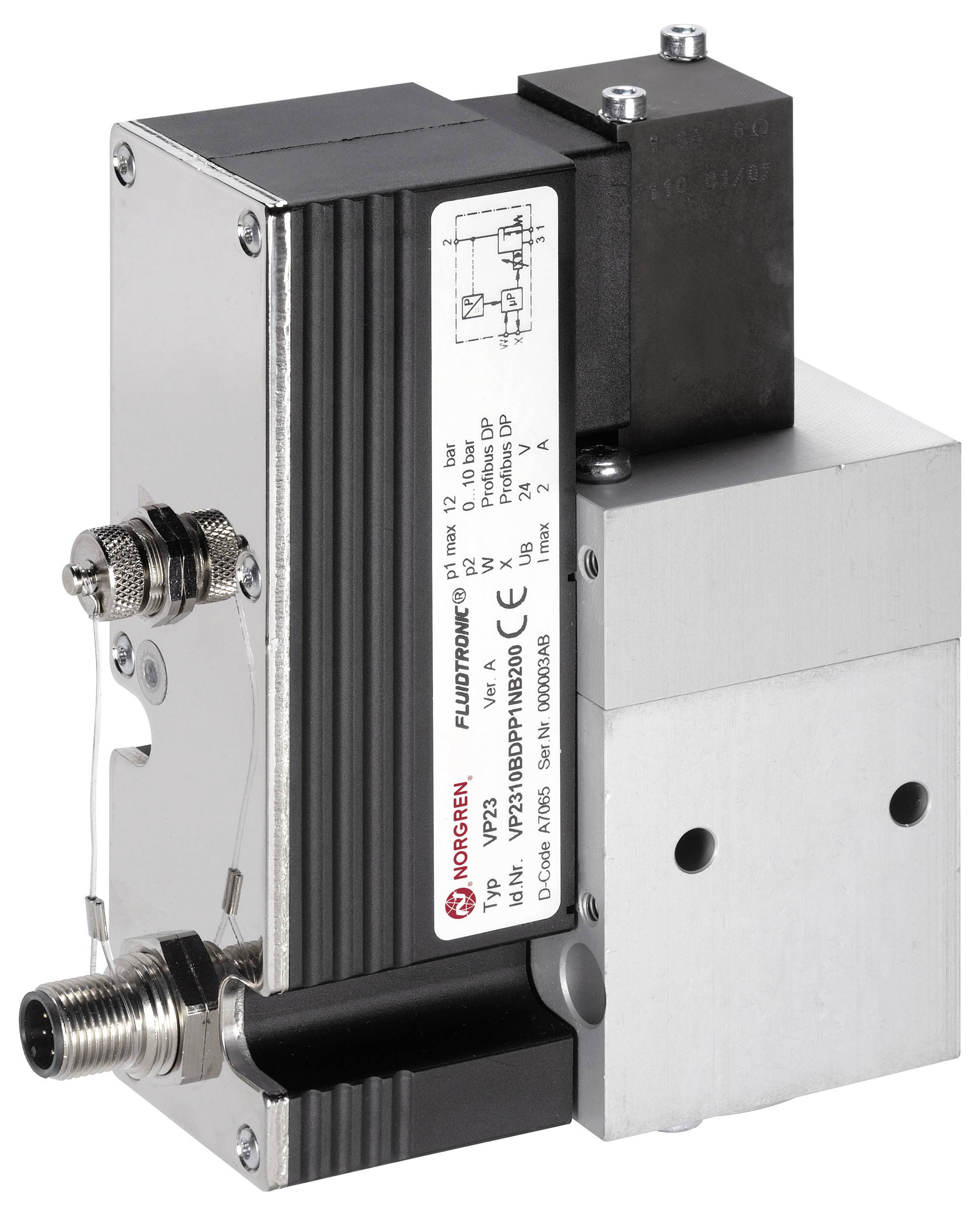

IMI NORGREN Pressure regulator VP2316BE761MB200 Enclosure material Aluminium 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,525.21 / piece)
€ 1,525.21
plus VAT.
14-day return policy included
Technical specifications
- Product type
Pressure regulator
- Enclosure material
Aluminium
- Connection
ND 16
- Operating temperature
-5 °C (min)
- Min. operating temperature
-5 °C
- Manufacturer part #
VP2316BE761MB200
- Media temperature (range)
-5 up to +50 °C
- Max. media temperature
+50 °C
- Media temperature (min.)
-5 °C
- Width
70 mm
- Height
132.6 mm
- Length
166.5 mm
IP65
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-5 °C
Documents & Downloads
Datasheet
Datasheet 3294517 IMI NORGREN Pressure regulator VP2316BE761MB200 Enclosure material Aluminium 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3294517 IMI NORGREN Pressure regulator VP2316BE761MB200 Enclosure material Aluminium 1 pc(s)
Description
VP23 Proportional pressure regulator
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
