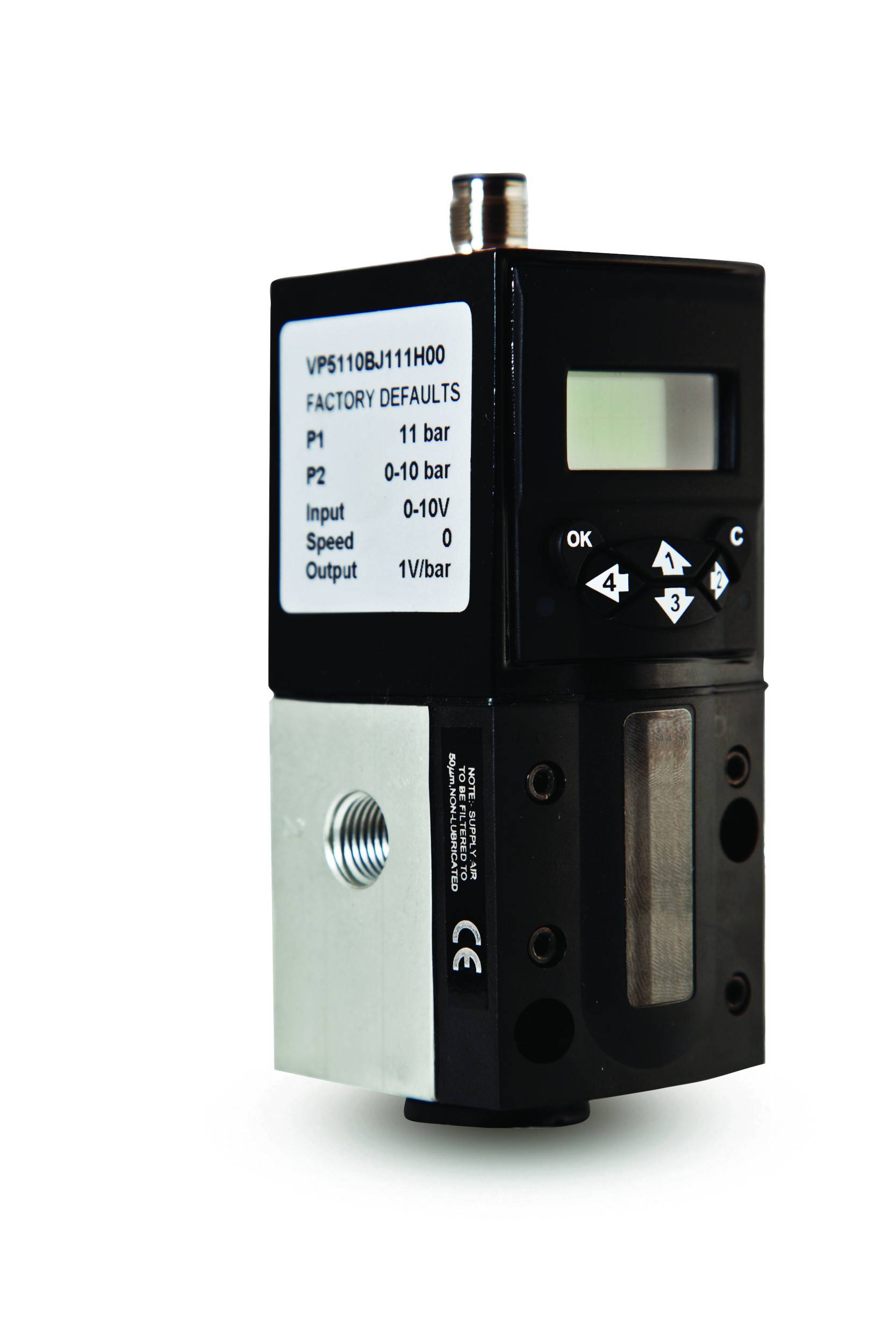

IMI NORGREN Pressure regulator VP5110BJ111H00 Enclosure material Aluminium, Nylon, Zinc 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1,279.00 / piece)
€ 1,279.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
Pressure regulator
- Enclosure material
Aluminium
Nylon
Zinc
- Connection
G 1/4
- Operating temperature
0 °C (min)
- Min. operating temperature
0 °C
- Manufacturer part #
VP5110BJ111H00
- Media temperature (range)
0 up to +50 °C
- Max. media temperature
+50 °C
- Media temperature (min.)
0 °C
- Medium
Compressed air
- Width
50 mm
- Height
55 mm
- Length
132 mm
IP65
- Max. ambient temperature
+50 °C
- Min. ambient temperature
0 °C
Documents & Downloads
Datasheet
Datasheet 3294550 IMI NORGREN Pressure regulator VP5110BJ111H00 Enclosure material Aluminium, Nylon, Zinc 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3294550 IMI NORGREN Pressure regulator VP5110BJ111H00 Enclosure material Aluminium, Nylon, Zinc 1 pc(s)
Description
VP51 Proportional pressure regulator programmable
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
