IMI NORGREN Pressure regulator VP5110BJ411H00 Enclosure material Aluminium, Nylon, Zinc 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,074.79 / piece)
€ 1,074.79
plus VAT.
14-day return policy included
Technical specifications
- Product type
Pressure regulator
- Enclosure material
Aluminium
Nylon
Zinc
- Connection
G 1/4
- Operating temperature
0 °C (min)
- Min. operating temperature
0 °C
- Manufacturer part #
VP5110BJ411H00
- Media temperature (range)
0 up to +50 °C
- Max. media temperature
+50 °C
- Media temperature (min.)
0 °C
- Width
50 mm
- Height
55 mm
- Length
132 mm
IP65
- Max. ambient temperature
+50 °C
- Min. ambient temperature
0 °C
Documents & Downloads
Datasheet
Datasheet 3294551 IMI NORGREN Pressure regulator VP5110BJ411H00 Enclosure material Aluminium, Nylon, Zinc 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3294551 IMI NORGREN Pressure regulator VP5110BJ411H00 Enclosure material Aluminium, Nylon, Zinc 1 pc(s)
Description

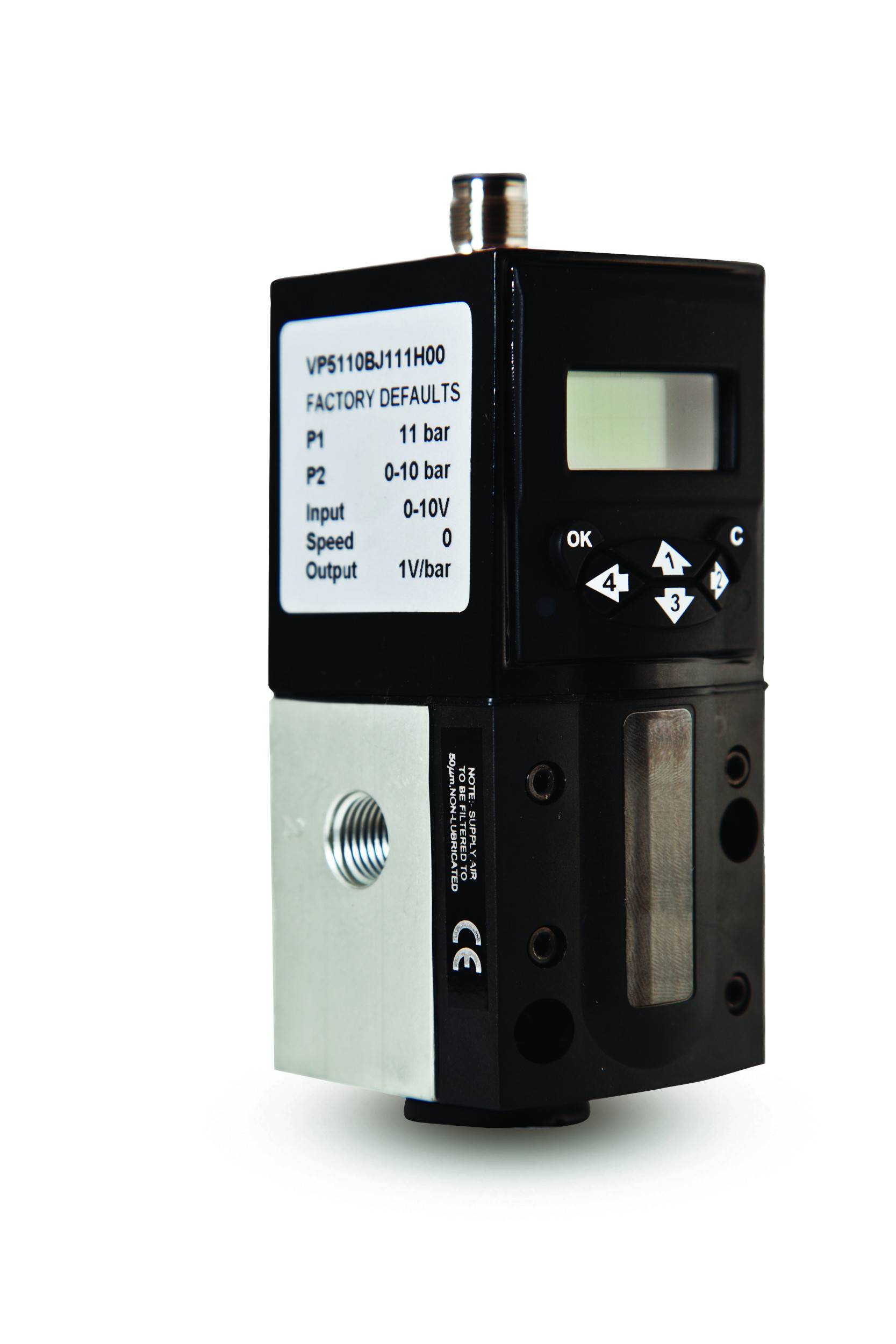

VP51 Proportional pressure regulator programmable
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
