IMOU ZSM1Kit-EU-3-M Smoke detector set and hub app-controlled mains-powered, battery-powered (Ø x H) 86 mm x 34.5 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 65.54 / piece)
€ 65.54
plus VAT.
Only 4 Piece(s) available
IMOU Smoke detector set and hub ZSM1Kit-EU-3-M ZSM1Kit-EU-3-M app-controlled
Highlights & Details

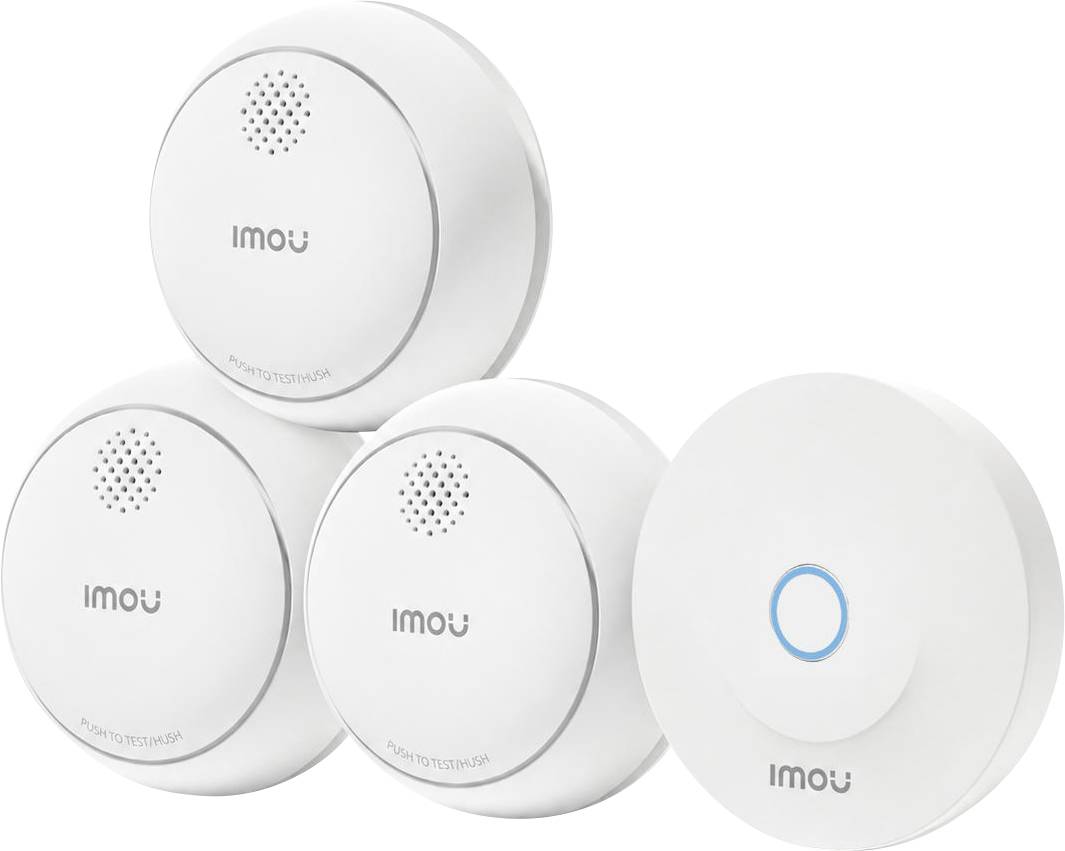

- 3x IMOU ZSM1 Smart smoke detector and 1x ZG2S Smart gateway
- Visual and/or photoelectric smoke detection
- Local alarm with up to 85 dB at 3 m and red LED display
- Networked alarm: One triggers, alerts all connected detectors
- Real-time push notifications via the IMOU Life APP
- Release of alarm for up to 6 user accounts
- Remote mute switching via the APP
Technical specifications
- Smart smoke detector ZSM1 – certification/sensor system EN 14604; photoelectric smoke detection
- Smart ZSM1 smoke detector – radio/frequency: Zigbee, 2.4 GHz
- Smart ZSM1 smoke detector - alarm: Up to 85 dB at 3 m; red LED indicator
- Smart smoke detector ZSM1 - power supply: DC 3 V; 1 x CR123A / CR17335 lithium battery
- Smart ZSM1 Smoke Detector - Battery runtime: > 5 years; Low battery warning at 2.6 +/- 0.05 V.
- Smart smoke detector ZSM1 – operating data: Standby current <= 10 µA;
- Smart smoke detector ZSM1 - operating current 150 mA; 0 to +55 °C
- Smart ZSM1 smoke detector - Mounting: Ceiling mounting; screws or 3M adhesive pad on a smooth, dry surface
- Smart smoke detector ZSM1 - minimum distances: 50 cm to lamps, 60 cm to kitchen cabinets, 150 cm to ventilation and air conditioning systems
- Smart gateway ZG2S - Wireless protocols: WLAN IEEE 802.11 b/g/n (2.4 GHz), Zigbee 3.0
- Smart gateway ZG2S - alarm / APP: Buzzer, LED-display and APP-notification, max. 60 dB at 3 m.
- Smart gateway ZG2S communication: > 80 m range
- Smart gateway ZG2S - wireless power 20 dBm (gateway)
- Smart gateway ZG2S - power supply DC 5 V
- Smart gateway ZG2S - Operating temperature: -10 to +55 °C; 0 to 95 % rF, non-condensing
- Smart gateway ZG2S – Assembly: Table and wall mounting
- Smart gateway ZG2S - Dimensions 68.0 x 68.0 x 24.0 mm
- Smart gateway ZG2S – weight 60 g
- Product type
Smoke detector set and hub
- Power supply (LOV)
mains-powered
battery-powered
- Detector features
app-controlled
- SPL
85 dB
- Dim

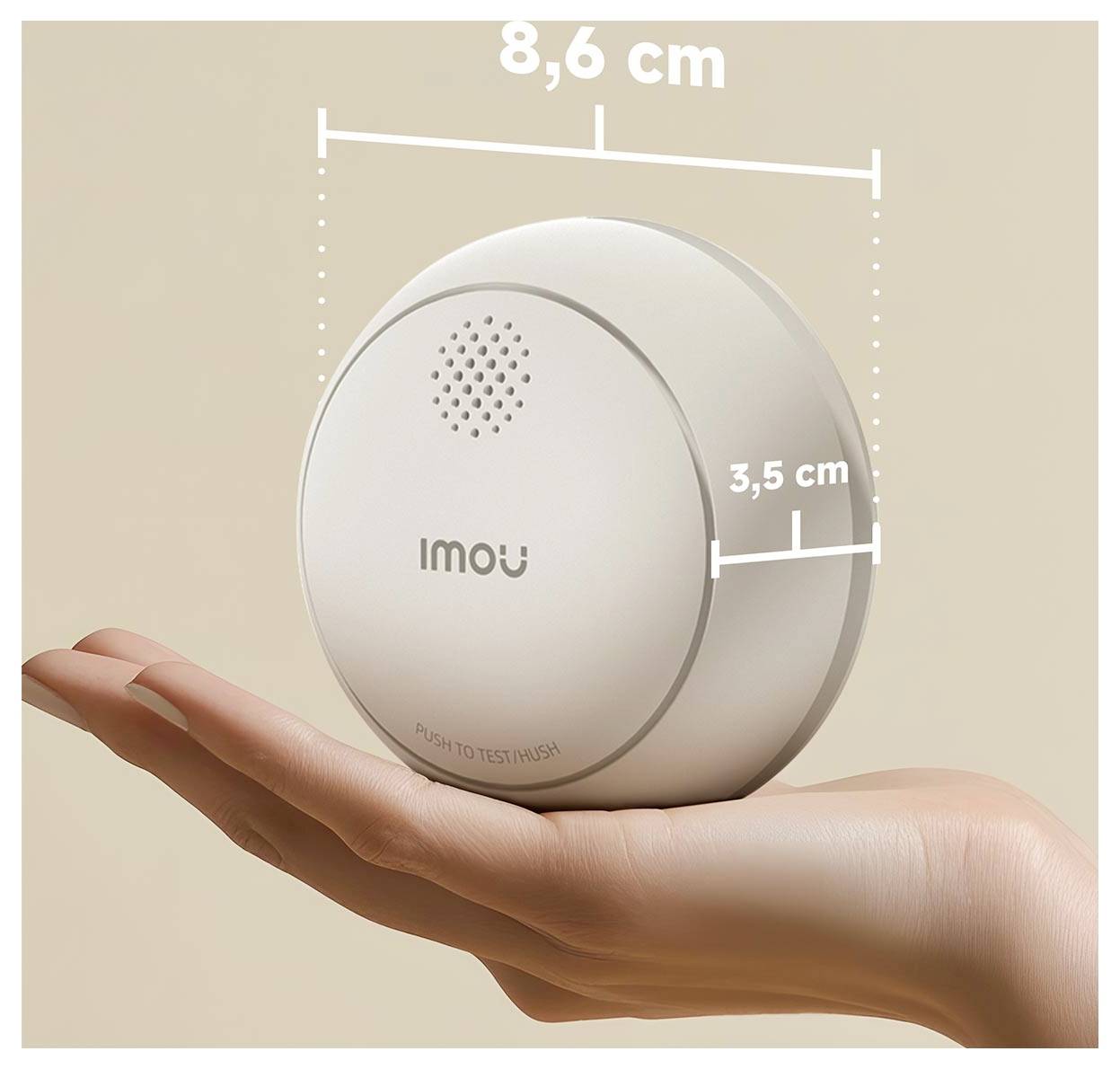

(Ø x H) 86 mm x 34.5 mm
- Certification
EN14604
Zigbee
- Content
1 pc(s)
- Weight
150 g
- Height
34.5 mm
- (Ø)
86 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3813217 IMOU ZSM1Kit-EU-3-M Smoke detector set and hub app-controlled mains-powered, battery-powered (Ø x H) 86 mm x 34.5 mm
User & Safety Instructions
User & Safety Instructions 3813217 IMOU ZSM1Kit-EU-3-M Smoke detector set and hub app-controlled mains-powered, battery-powered (Ø x H) 86 mm x 34.5 mm
Description

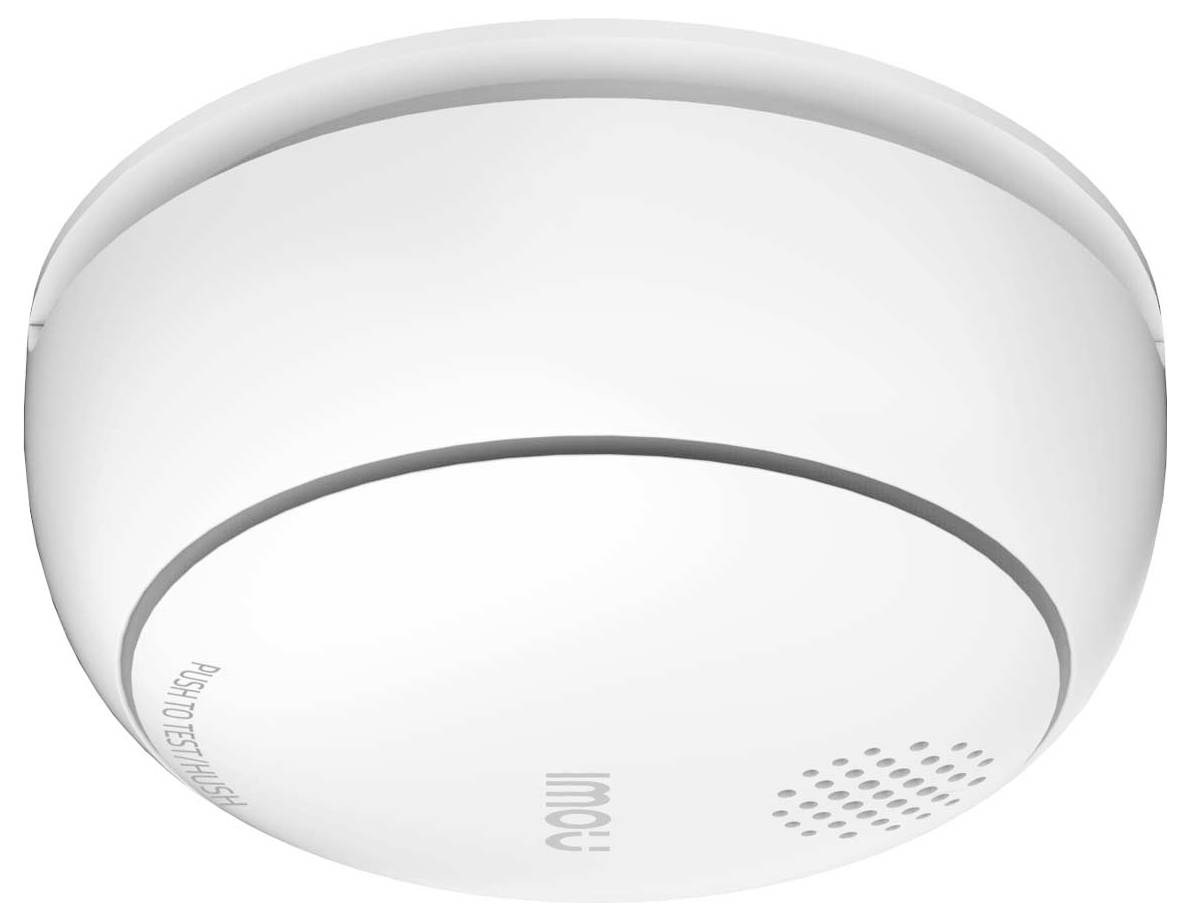

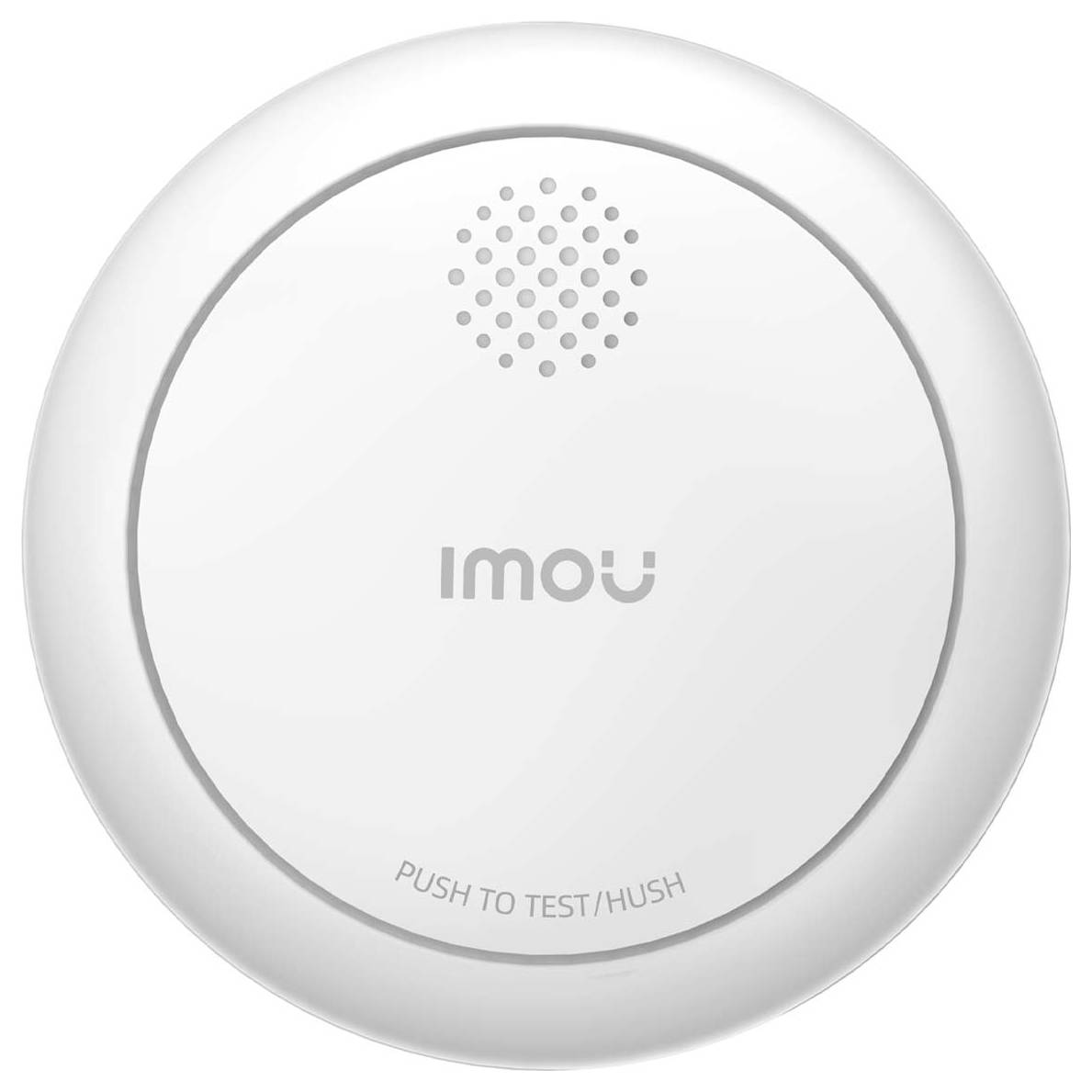

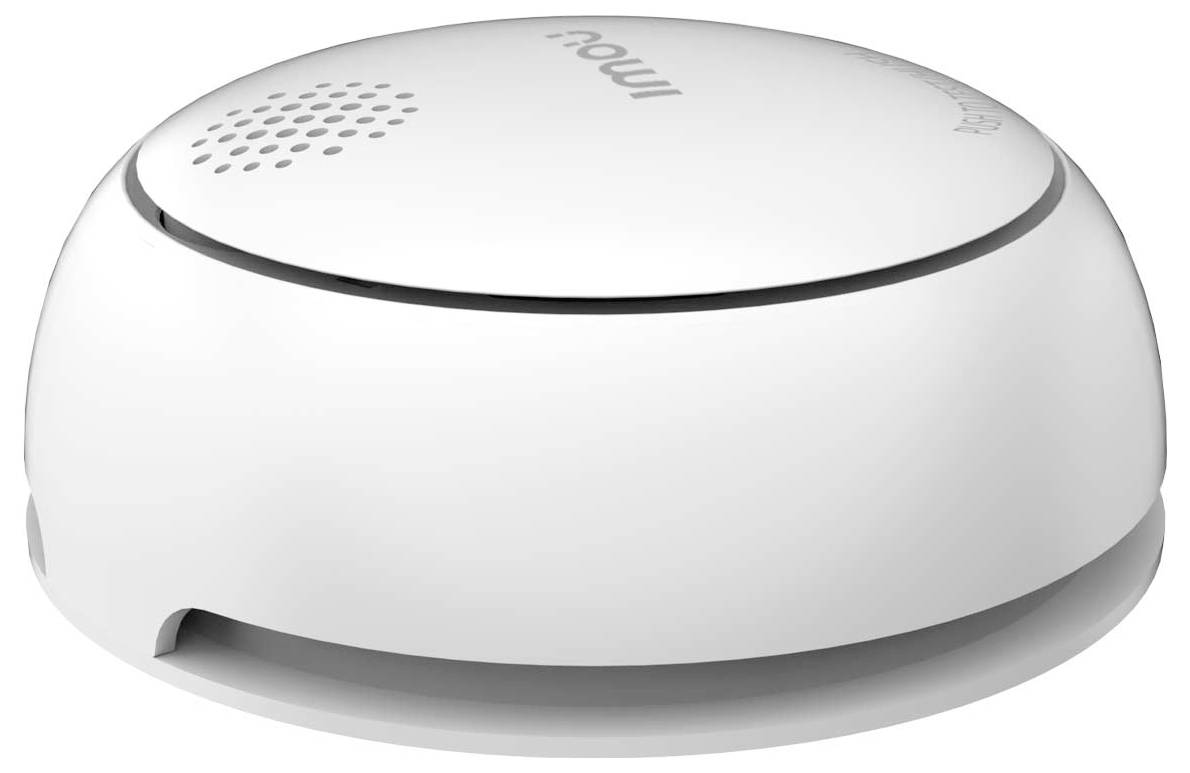

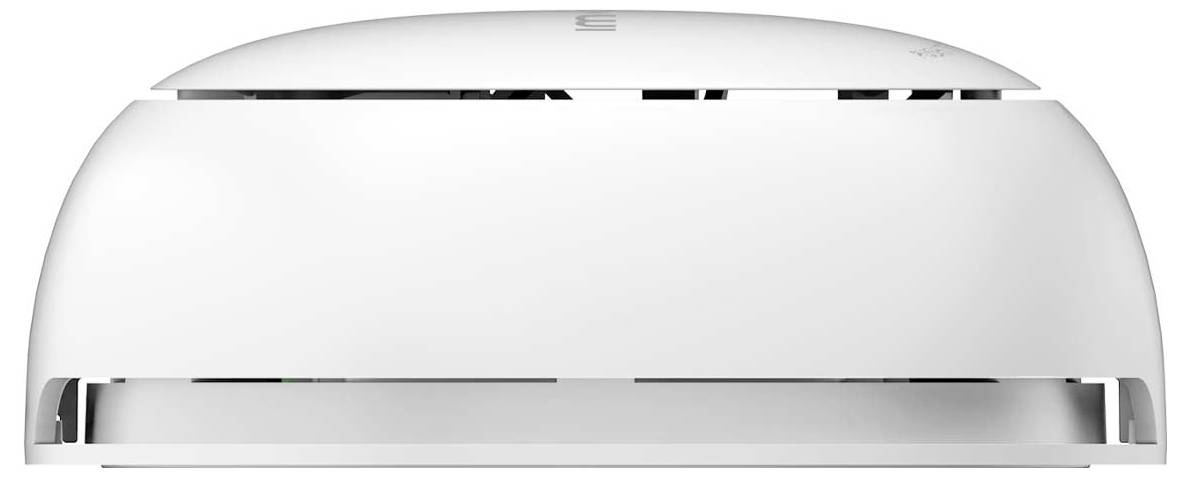

The IMOU Smart smoke detector set consists of three ZSM1 smoke detectors and a ZG2S Smart gateway. It is suitable for apartments, single-family houses, terraced houses and multi-story residential areas in which several rooms are to be monitored networked.

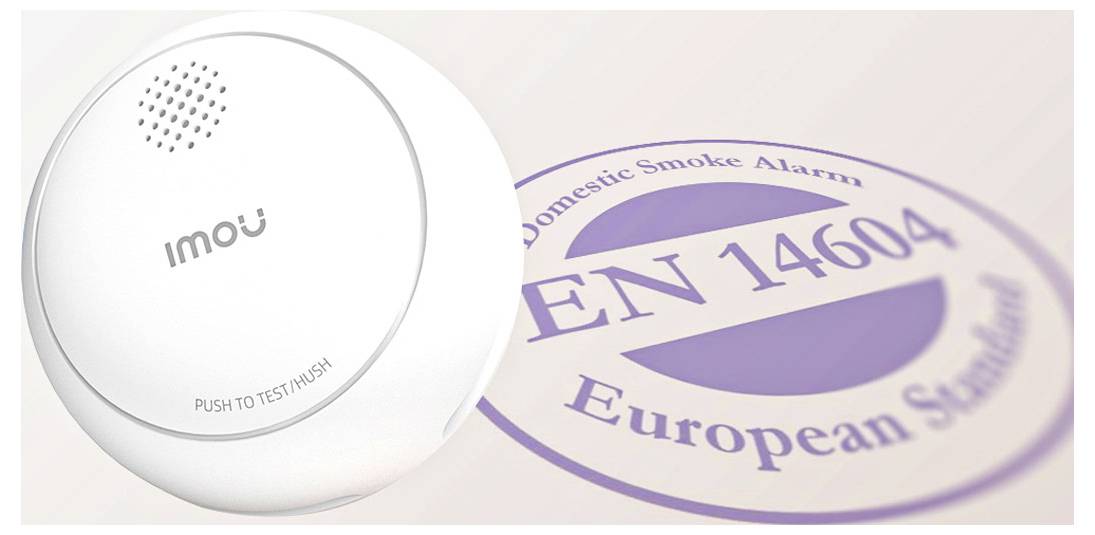

The ZSM1 smoke detectors use photoelectric smoke detection and are certified in accordance with EN 14604-1. When smoke is detected, the warning lights warn directly on site with an alarm sound of up to 85 dB at 3 m and a red LED indicator.
The detectors are connected by Zigbee 3.0 thanks to the ZG2S Smart gateway. The gateway provides the connection to the IMOU Life APP HER via 2.4 GHz wireless LAN. In case of an alarm you receive push-notifications on your smartphone and you can see which smoke detector has triggered the alarm. The alarm messages can be shared with up to six user accounts, so that even family members or other residents can be informed. A triggered alarm can be muted via the APP.
The set supports a networked multi-area alarm for consistent alarm at home: If one smoke detector detects smoke, all other detectors connected to the same gateway will trigger. In the event of an Internet failure, this local, networked alarm remains active. APP notifications will be available again when the Internet connection is established.
The ZSM1 also operates without a gateway as a stand-alone smoke detector with local alarm. The ZG2S Smart gateway is required for APP notifications, remote mute and the networking of several smoke detectors.
It is mounted on the ceiling. The supplied screws are recommended for permanent safe attachment. Alternatively, you can use the 3M adhesive pads supplied on a flat, level and dry surface. Power is supplied by a CR123A or CR17335 lithium battery with a battery life of more than five years.
This text is machine translated.
The ZSM1 smoke detectors use photoelectric smoke detection and are certified in accordance with EN 14604-1. When smoke is detected, the warning lights warn directly on site with an alarm sound of up to 85 dB at 3 m and a red LED indicator.
The detectors are connected by Zigbee 3.0 thanks to the ZG2S Smart gateway. The gateway provides the connection to the IMOU Life APP HER via 2.4 GHz wireless LAN. In case of an alarm you receive push-notifications on your smartphone and you can see which smoke detector has triggered the alarm. The alarm messages can be shared with up to six user accounts, so that even family members or other residents can be informed. A triggered alarm can be muted via the APP.
The set supports a networked multi-area alarm for consistent alarm at home: If one smoke detector detects smoke, all other detectors connected to the same gateway will trigger. In the event of an Internet failure, this local, networked alarm remains active. APP notifications will be available again when the Internet connection is established.
The ZSM1 also operates without a gateway as a stand-alone smoke detector with local alarm. The ZG2S Smart gateway is required for APP notifications, remote mute and the networking of several smoke detectors.
It is mounted on the ceiling. The supplied screws are recommended for permanent safe attachment. Alternatively, you can use the 3M adhesive pads supplied on a flat, level and dry surface. Power is supplied by a CR123A or CR17335 lithium battery with a battery life of more than five years.
This text is machine translated.
Features
- Local multi-area alarm even in case of Internet failure
- Zigbee-3.0 connection between smoke detectors and gateway
- Gateway with 2.4 GHz WLAN
- More than five years of battery life
- Ceiling mounting with screws or 3M adhesive pads
Scope of delivery
- 3x IMOU ZSM1 Smart smoke detector
- 1x IMOU ZG2S Smart gateway
- 1x quick start guide
- 1x information sheet for legal regulations
- 3x 3M adhesive pads and screw sets for installation
Hints
Mounting instructions: Install smoke detectors only on the ceiling in accordance with the manufacturer's instructions. Keep a distance of at least 50 cm to lights, 60 cm to kitchen cabinets and 150 cm to ventilation openings, exhaust fans or air-conditioners. Do not install in damp, wet or steamy areas such as bathrooms.
