IMOU ZSM1Kit-EU-6-M Smoke detector 6-piece set incl. 5-year battery battery-powered (Ø x H) 86 mm x 34.5 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 6 pc(s))
Total (€ 18.91 / piece)
€ 113.44
plus VAT.
Only 4 Set(s) available
IMOU Smoke detector ZSM1Kit-EU-6-M ZSM1Kit-EU-6-M 6-piece set incl. 5-year battery
Highlights & Details
- 6 IMOU ZSM1 Smart smoke detector and 1 ZG2S Smart gateway
- Visual and/or photoelectric smoke detection
- Local alarm with up to 85 dB at 3 m and red LED display
- Networked alarm: One triggers, alerts all connected detectors
- Real-time push notifications via the IMOU Life APP
- Release of alarm for up to 6 user accounts
- Remote mute switching via the APP
- Local multi-area alarm even in case of Internet failure
- Zigbee-3.0 connection between smoke detectors and gateway
- Gateway with 2.4 GHz WLAN
- More than five years of battery life
- Ceiling mounting with screws or 3M adhesive pads
Technical specifications
- Technical data
- Product: IMOU Smart smoke detector set, 6 pack
- MODEL: ZSM1KIT-EU-6-M
- Smart ZSM1 smoke detector: Smart ZSM1 smoke detector
- EN 14604; photoelectric smoke detection
- Wireless / frequency: Zigbee, 2.4 GHz
- Alarm: Up to 85 dB at 3 m; red LED display
- Power supply: DC 3 V; 1 x CR123A / CR17335 lithium battery
- Battery runtime:ü. 5 years
- Low battery warning at 2.6 +/- 0.05 V.
- Operating data: Standby current below 10 µA;
- Operating current 150 mA; 0 to +55 °C
- Mounting: Ceiling mounting; screws or 3M adhesive pad on a smooth, dry surface
- Minimum distances: 50 cm to lamps, 60 cm to kitchen cabinets, 150 cm to ventilation and air-conditioning equipment

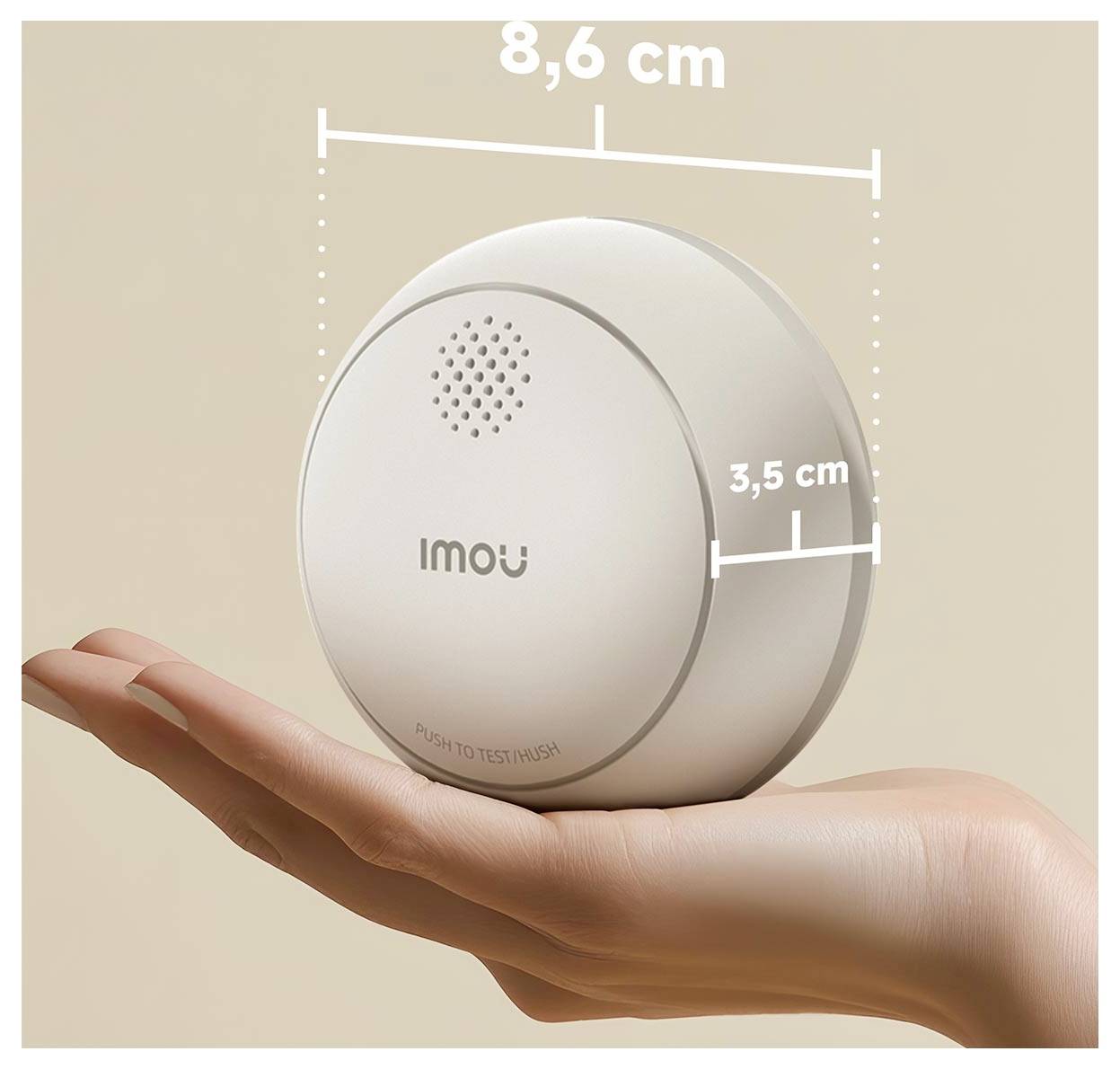

- Dimensions: Ø 86 x H 34.5 mm
- Smart ZG2S gateway: Smart ZG2S gateway
- Wireless protocols: WLAN IEEE 802.11 b/g/n (2.4 GHz), Zigbee 3.0
- Alarm / APP: Buzzer, LED display and APP notification; max. 60 dB at 3 m.
- Communication: Over 80 m communication range;
- Radio power 20 dBm (gateway)
- Power supply: DC 5 V
- Operating temperature: -10 to +55 °C; 0 to 95 % relative humidity, non-condensing
- Mounting: Table or wall mounting
- Dimensions 68.0 x 68.0 x 24.0 mm
- Weight: 60 g
- Product type
Smoke detector
- Power supply (LOV)
battery-powered
- Power consumption (idle/triggered)
< 10 µ A
- Detector features
incl. 5-year battery
- SPL
Smoke detector: Up to 85 dB (at 3 m)
Gateway: Max. 60 dB (at 3 m)
- Dim
(Ø x H) 86 mm x 34.5 mm
Zigbee
- Content
6 pc(s)
- Weight
60 g
- Height
34.5 mm
- (Ø)
86 mm
Documents & Downloads
Datasheet
Datasheet 3814696 IMOU ZSM1Kit-EU-6-M Smoke detector 6-piece set incl. 5-year battery battery-powered (Ø x H) 86 mm x 34.5 mm
User & Safety Instructions
User & Safety Instructions 3814696 IMOU ZSM1Kit-EU-6-M Smoke detector 6-piece set incl. 5-year battery battery-powered (Ø x H) 86 mm x 34.5 mm
Description

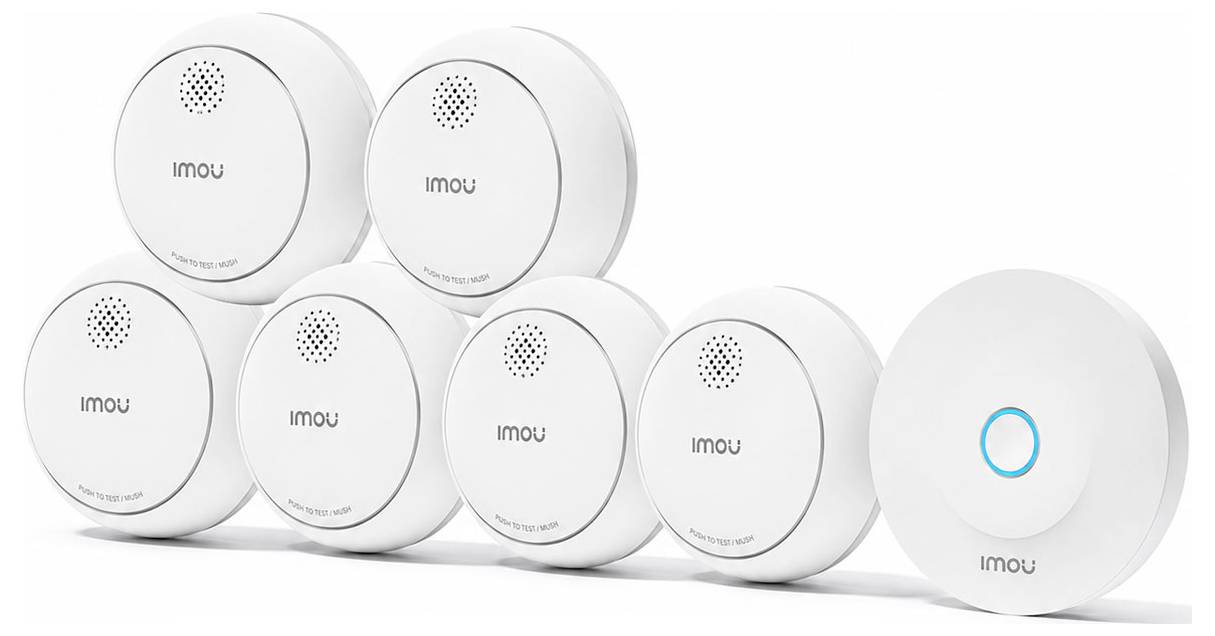

The IMOU Smart smoke detector set consists of six ZSM1 smoke detectors and a ZG2S Smart gateway. It is suitable for apartments, single-family houses, terraced houses and multi-story residential areas in which several rooms are to be monitored networked.

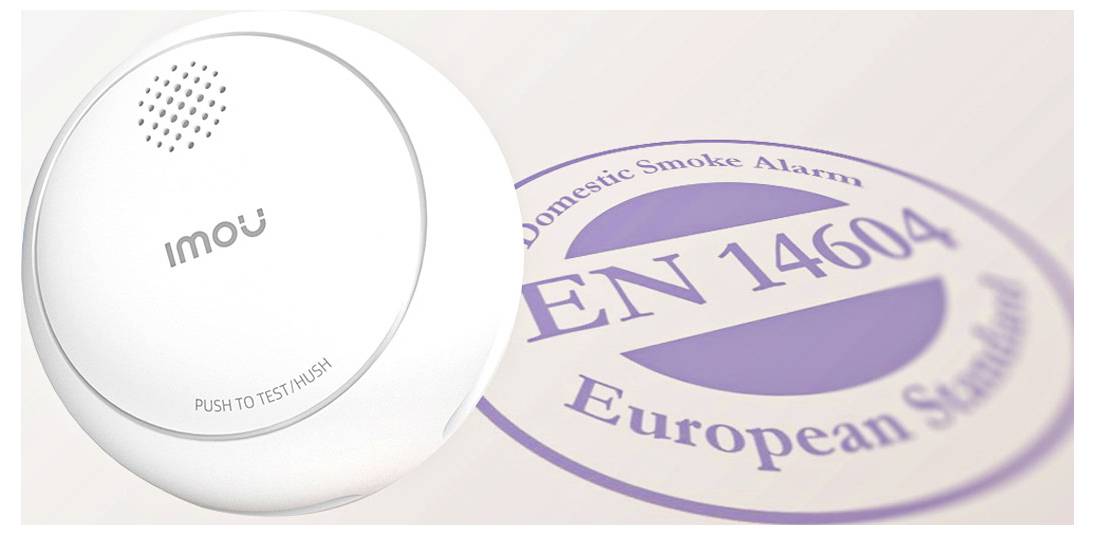

The ZSM1 smoke detectors use photoelectric smoke detection and are certified in accordance with EN 14604-1. When smoke is detected, the warning lights warn directly on site with an alarm sound of up to 85 dB at 3 m and a red LED indicator.
The detectors are connected by Zigbee 3.0 thanks to the ZG2S Smart gateway. The gateway provides the connection to the IMOU Life APP HER via 2.4 GHz wireless LAN. In case of an alarm you receive push-notifications on your smartphone and you can see which smoke detector has triggered the alarm. The alarm messages can be shared with up to six user accounts, so that even family members or other residents can be informed. A triggered alarm can be muted via the APP.

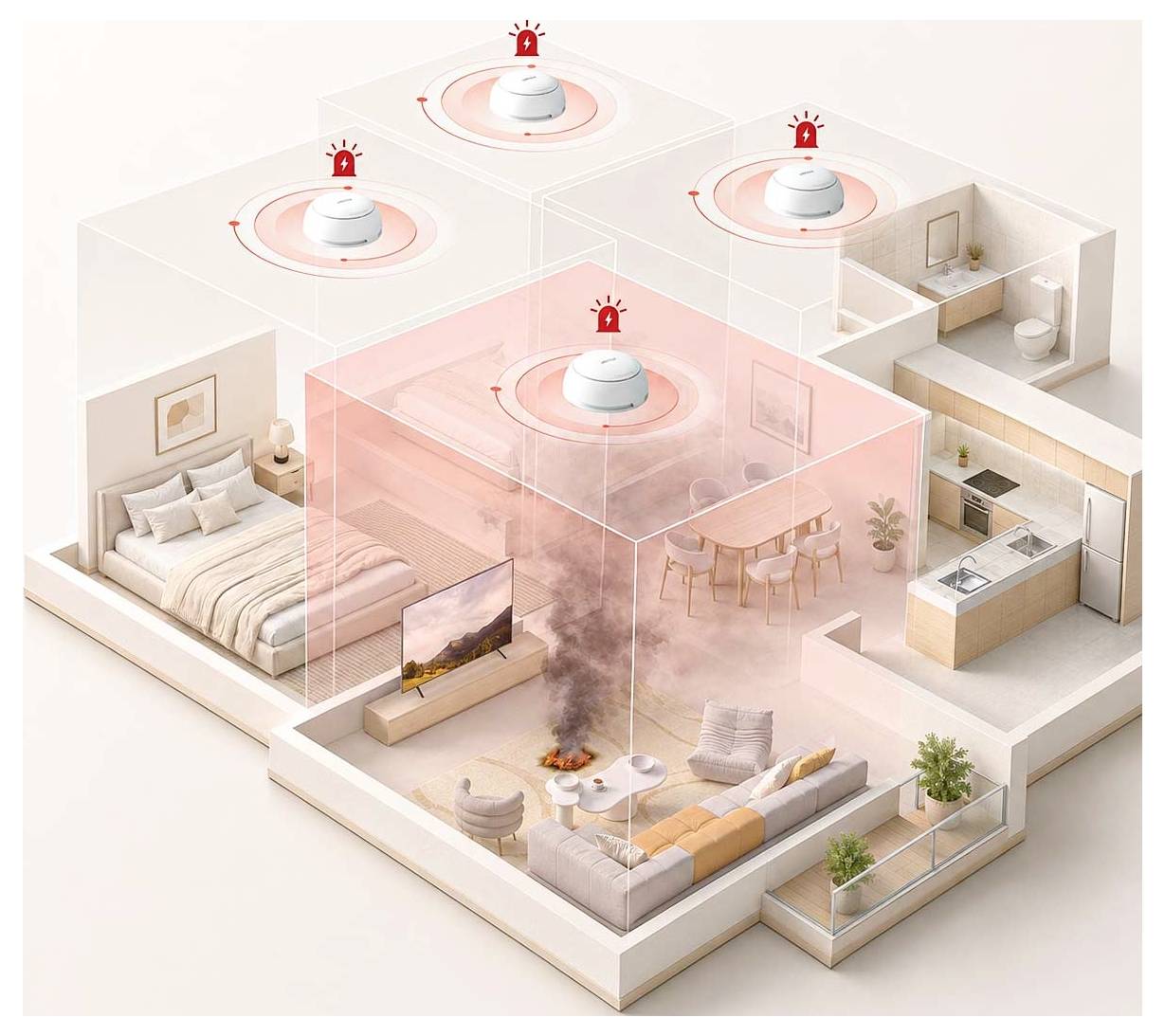

The set supports a networked multi-area alarm for consistent alarm at home: If one smoke detector detects smoke, all other detectors connected to the same gateway will trigger. In the event of an Internet failure, this local, networked alarm remains active. APP notifications will be available again when the Internet connection is established.
The ZSM1 also operates without a gateway as a stand-alone smoke detector with local alarm. The ZG2S Smart gateway is required for APP notifications, remote mute and the networking of several smoke detectors.
It is mounted on the ceiling. The supplied screws are recommended for permanent safe attachment. Alternatively, you can use the 3M adhesive pads supplied on a flat, level and dry surface. Power is supplied by a CR123A or CR17335 lithium battery with a battery life of more than five years.
This text is machine translated.
The ZSM1 smoke detectors use photoelectric smoke detection and are certified in accordance with EN 14604-1. When smoke is detected, the warning lights warn directly on site with an alarm sound of up to 85 dB at 3 m and a red LED indicator.
The detectors are connected by Zigbee 3.0 thanks to the ZG2S Smart gateway. The gateway provides the connection to the IMOU Life APP HER via 2.4 GHz wireless LAN. In case of an alarm you receive push-notifications on your smartphone and you can see which smoke detector has triggered the alarm. The alarm messages can be shared with up to six user accounts, so that even family members or other residents can be informed. A triggered alarm can be muted via the APP.
The set supports a networked multi-area alarm for consistent alarm at home: If one smoke detector detects smoke, all other detectors connected to the same gateway will trigger. In the event of an Internet failure, this local, networked alarm remains active. APP notifications will be available again when the Internet connection is established.
The ZSM1 also operates without a gateway as a stand-alone smoke detector with local alarm. The ZG2S Smart gateway is required for APP notifications, remote mute and the networking of several smoke detectors.
It is mounted on the ceiling. The supplied screws are recommended for permanent safe attachment. Alternatively, you can use the 3M adhesive pads supplied on a flat, level and dry surface. Power is supplied by a CR123A or CR17335 lithium battery with a battery life of more than five years.
This text is machine translated.
Scope of delivery

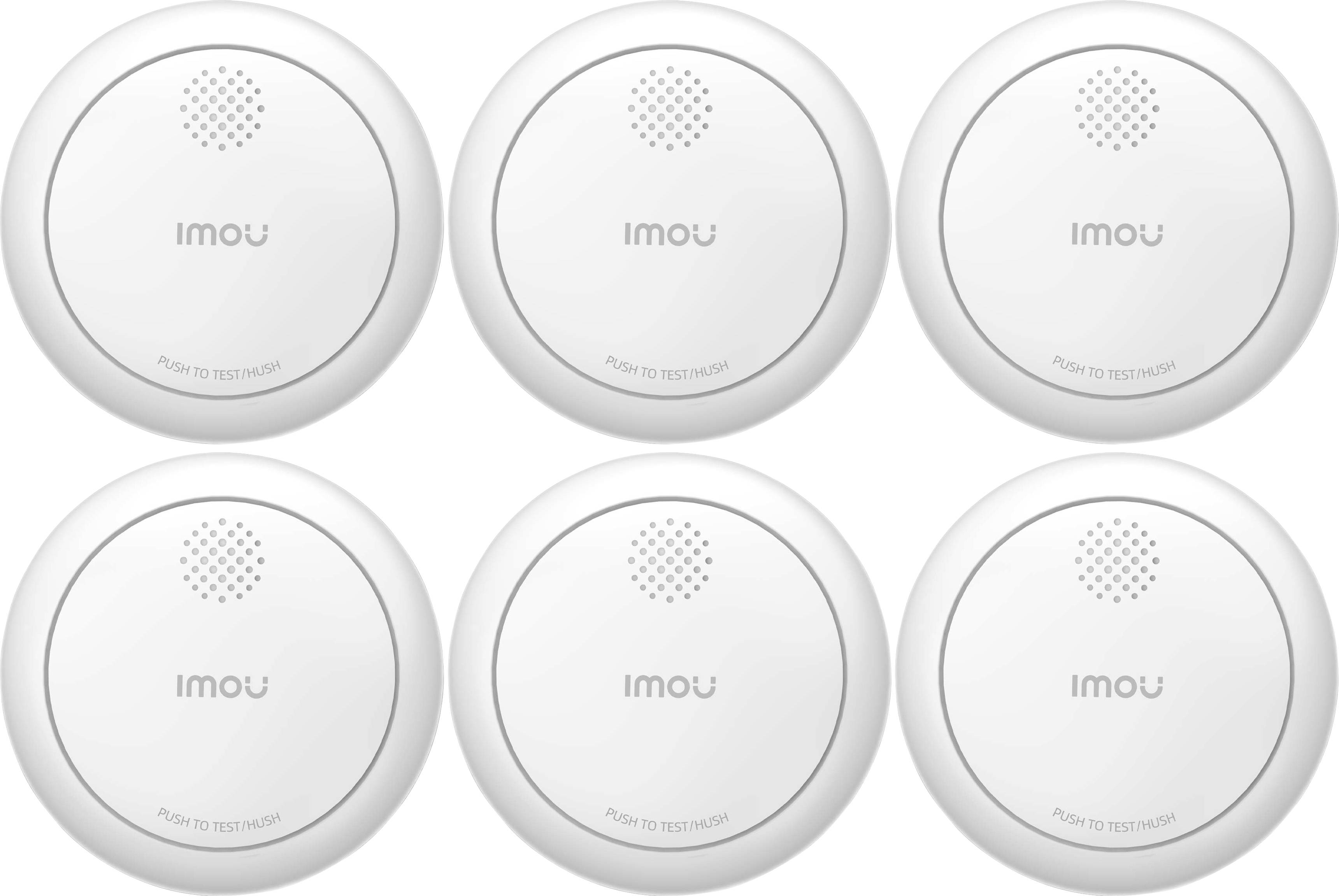

- 6x IMOU ZSM1 Smart smoke detector
- 1x IMOU ZG2S Smart gateway
- 1x quick start guide
- 1x information sheet for legal regulations
- 6x 3M adhesive pads and screw sets for mounting
Hints
Only mount smoke detectors on the ceiling according to the manufacturer's instructions. Keep a distance of at least 50 cm to lights, 60 cm to kitchen cabinets and 150 cm to ventilation openings, exhaust fans or air-conditioners. Do not install in damp, wet or steamy areas such as bathrooms.
