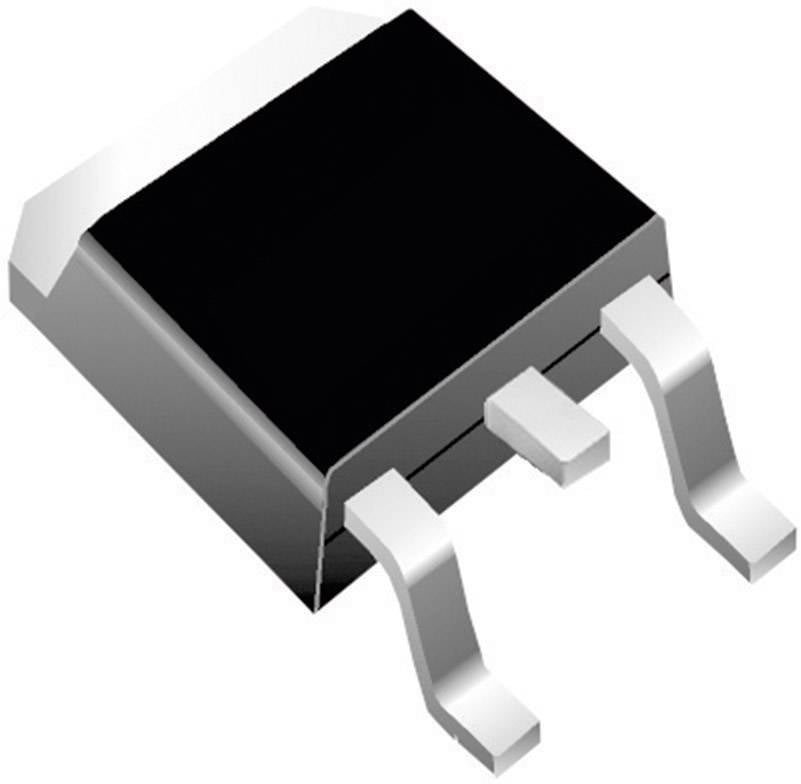

Image similar
Infineon Technologies IRLR8743PBF MOSFET 1 N-channel 135 W DPAK
Product type
MOSFET
Enclosure
DPAK
Type
N-channel
Power (max) P(TOT)
135 W
R(DS)(on)
3.1 mΩ
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 2
Total (€ 1.79 / piece)
€ 1.89
-5 %
€ 3.58
incl. VAT
14-day return policy included
Technical specifications
- Type
IRLR8743PBF
- Product type
MOSFET
- Enclosure
DPAK
- Manufacturer
Infineon Technologies
- Manuf. code
INF
- Type
N-channel
- I(d)
160 A
- UBR DSS
30 V
- Power (max) P(TOT)
135 W
- R(DS)(on)
3.1 mΩ
- R(DS)(on) reference current
25 A
- R(DS)(on) reference voltage
10 V
- U(GS)(th) max.
2.35 V
- U(GS)(th) reference current (max.)
100 µA
- Q(G)
59 nC
- Q(G) reference voltage
4.5 V
- C(ISS)
4880 pF
- C(ISS) reference voltage
15 V
- Operating temperature (min.)
-55 °C
- Mounting type
Surface-mount
- Series
HEXFET®
- Operating temperature (max.)
+175 °C
- Transistor property
Standard
- U(DSS)
30 V
- Channels
1
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 161216 Infineon Technologies IRLR8743PBF MOSFET 1 N-channel 135 W DPAK
User & Safety Instructions
User & Safety Instructions 161216 Infineon Technologies IRLR8743PBF MOSFET 1 N-channel 135 W DPAK
