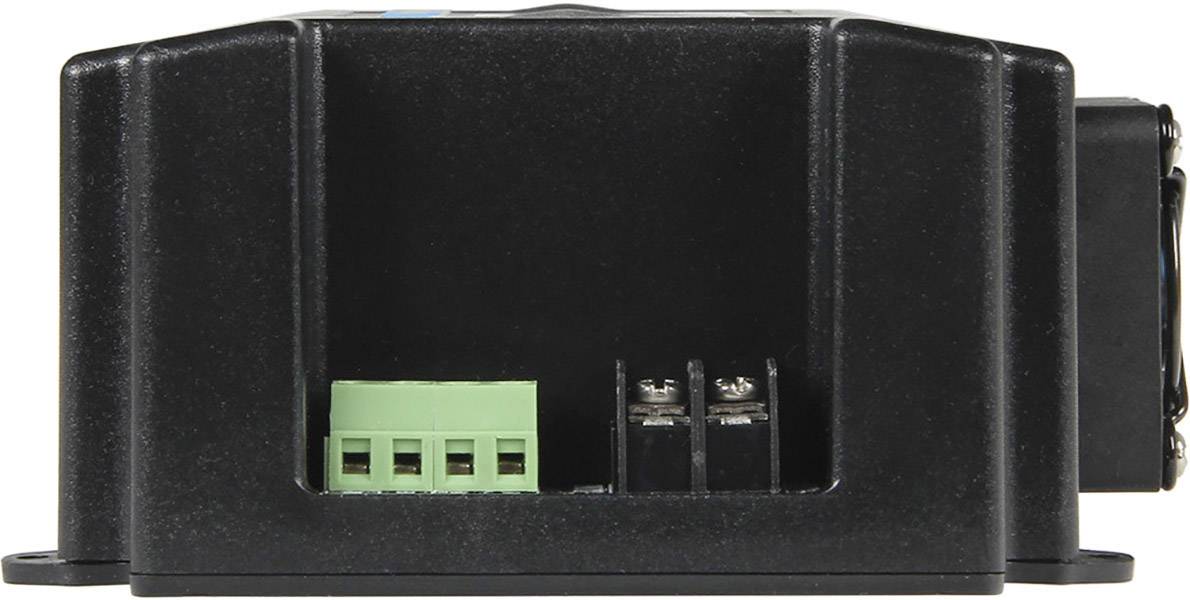

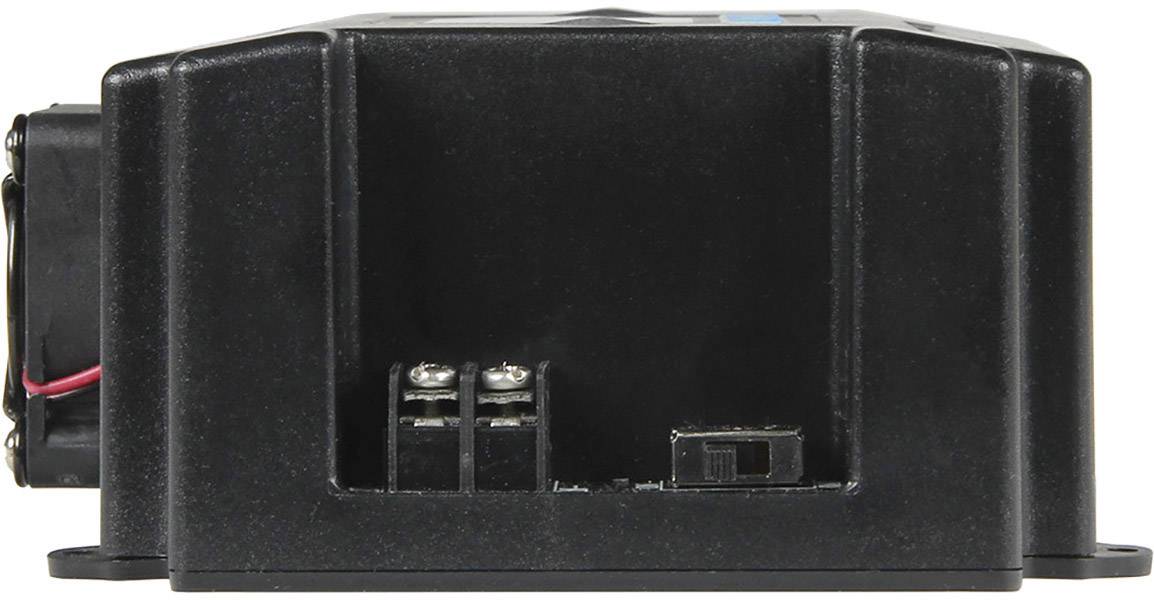

Joy-it DPM8605 DC/DC converter 75 V DC - 60 V DC/5 A 300 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 42.01 / piece)
€ 42.01
plus VAT.
Technical specifications
- Voltage resolution 10 mV
- Current resolution: 1 mA
- Ripple<: 50 mVpp
- Response time<: 50 ms
- Display accuracy (voltage): 10 mV
- Display accuracy (current): 1 mA
- Voltage fault tolerance: 2 ‰ + 1 digit
- Current measurement fault tolerance 5 ‰ + 1 digit
- Product type
DC/DC converter
- Used at
Indoors
Outdoors
- Output
Screw terminals
- No. of outputs
1 x
300 W
- Input voltage
75 V DC
- Output voltage
60 V DC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Dim
(L x W x H) 112 x 131 x 55 mm
- Weight
374 g
- Content
1 pc(s)
- Width
131 mm
- Height
55 mm
- Length
112 mm
- Type
DPM8605
- Type
Programmable laboratory power supply
- Residual ripple
<50 mVpp
Documents & Downloads
Datasheet
Datasheet 2149765 Joy-it DPM8605 DC/DC converter 75 V DC - 60 V DC/5 A 300 W
Datasheet 2149765 Joy-it DPM8605 DC/DC converter 75 V DC - 60 V DC/5 A 300 W
User & Safety Instructions
User & Safety Instructions 2149765 Joy-it DPM8605 DC/DC converter 75 V DC - 60 V DC/5 A 300 W
Description
The DPM 8600 series of power supplies are programmable power supplies, which are a high output, very compact and optimally designed. Furthermore, it is equipped with a TTL/CMOS communication interface, which provides it with a serial communication protocol. It can also be used with Modbus-RTU communication protocol and supports the further development of own protocols. It even offers a multi-purpose solution for design and testing requirements.The DPM8600er can also be used with a wireless remote control. This remote control has a 2.4” LCD screen. It has many display values, a simple operation, a built-in lithium battery, which can be recharged and a range of up to 10 meters. The special feature is that several power supplies can be controlled at the same time. This power supply can be used in various applications. It can be used, for example, as an ammeter, a smart meter, an LED driver, voltage regulator for solar systems or in an industrial control.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Power supply unit
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
