Industrial sensor with white thread and black head, suitable for measurements in various industrial applications.

Industrial sensor with white thread and black head, suitable for measurements in various industrial applications.

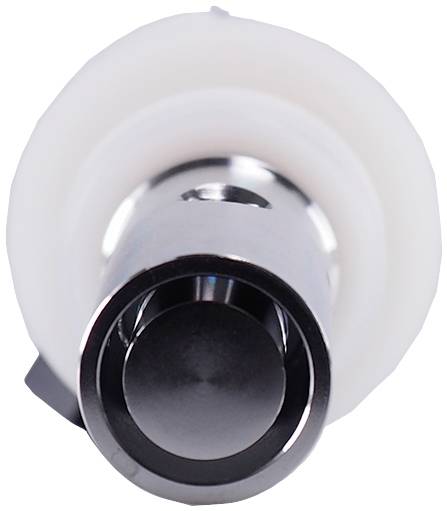

Metallic button in a round, white plastic casing.

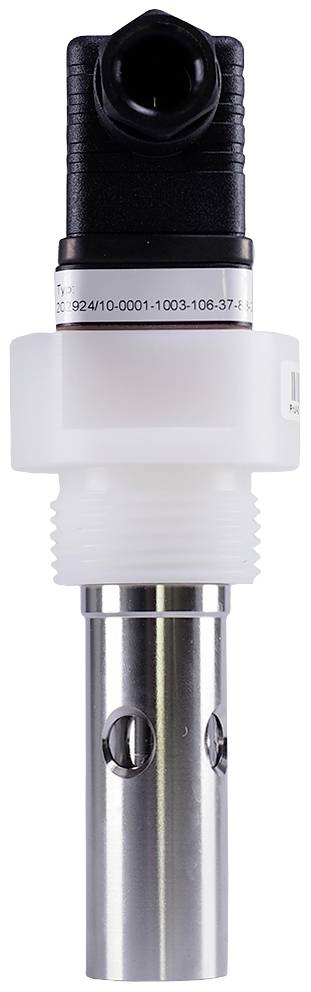

A temperature or pressure sensor with a white plastic housing and a metallic measuring range at the bottom, used for industrial applications.

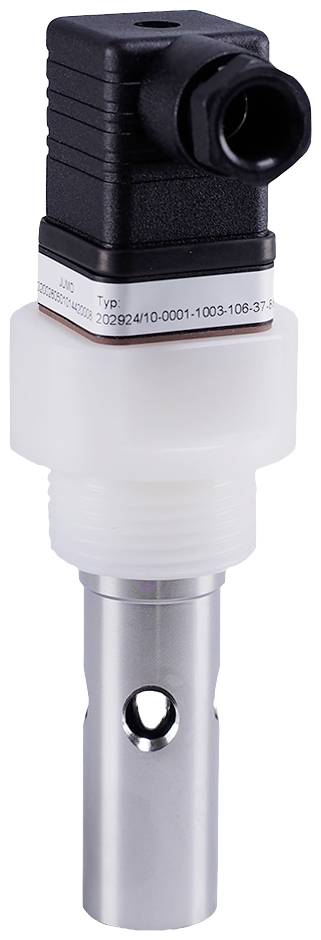

An industrial sensor for measurement in piping systems, with a black connection head and white housing. Primarily constructed from metal and plastic.

1/4

Jumo

Datasheet (PDF)

European union

Dispatches on Wed, 23 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 763.87 / piece)

€ 763.87

plus VAT.

Report legal concerns

Technical specifications

Product type: Conductivity sensor

Type: 00089393

UKCA: not relevant

Documents & Downloads

Datasheet

European union

Datasheet 2756110 Jumo 00089393 Conductivity sensor 1 pc(s)

User & Safety Instructions

European union

User & Safety Instructions 2756110 Jumo 00089393 Conductivity sensor 1 pc(s)

User & Safety Instructions 2756110 Jumo 00089393 Conductivity sensor 1 pc(s)

Description

This conductive conductivity sensor has a cell constant of K=0.01 (for measuring ranges 0.05 to 10 US/cm or 0.1 to 20 MOhm/cm) as well as a measuring insert Pt100 in two-wire circuit. Installation is done via the process connection G 1A, which is made of PVDF. An angular device plug to DIN 43650 is available as an electrical connection. The material of the electrode is stainless steel (1.4571). Installed length 78 mm. The operating temperature is 0 to +135 °C and the maximum pressure load is 16 bar at 25 °C and 9 bar at 60 °C.
