Jumo 00300200 Conductivity sensor 1 pc(s)

A sensor with a cylindrical casing and threaded screw, likely used for measuring temperature or conductivity in technical applications.

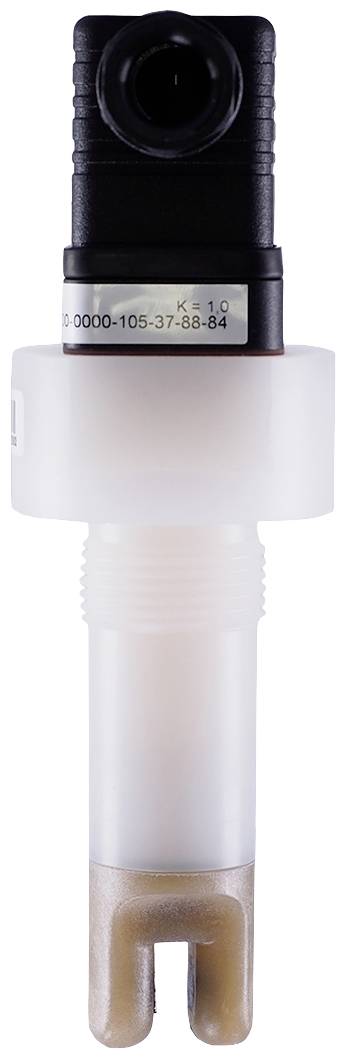

An electrical device with a black upper section and a white plastic casing. A measuring probe is visible at the bottom.

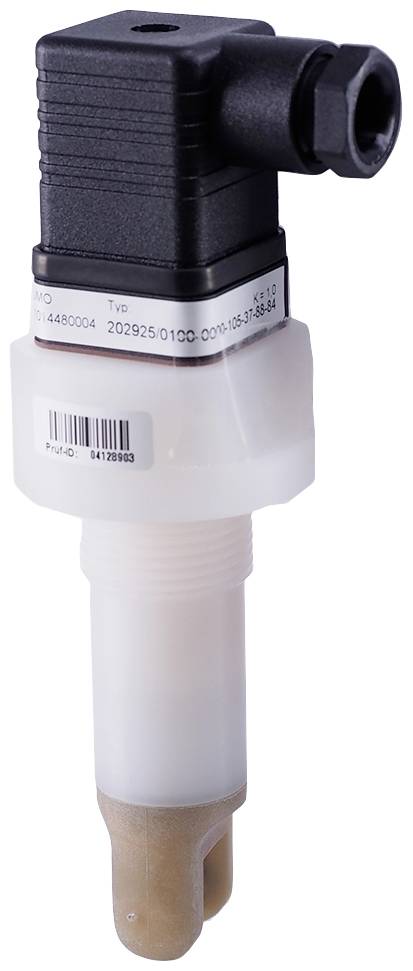

A sensor with a plastic housing, suitable for industrial applications. It has a black connection plug on top.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 909.00 / piece)
€ 909.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Conductivity sensor

Length

76 mm

Type

00300200

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2756115 Jumo 00300200 Conductivity sensor 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2756115 Jumo 00300200 Conductivity sensor 1 pc(s)

User & Safety Instructions 2756115 Jumo 00300200 Conductivity sensor 1 pc(s)

Description

This conductive conductivity sensor has a cell constant of K=1.0 (for measuring ranges 10µ up to 15 MS/cm) as well as a Pt100 measurement insert in two-wire circuit. The installation is done via the process connection G 3/4A made of PVDF. An angular device plug to DIN 43650 is available as an electrical connection. The material of the electrode is graphite, the installation length is 76 mm. The operating temperature is 0 to +130°C, the maximum pressure load is 16 bar at 25°C and 9 bar at 60°C, maximum 1 bar at 130°C.

This text is machine translated.
