Jumo 00566252 1 pc(s)

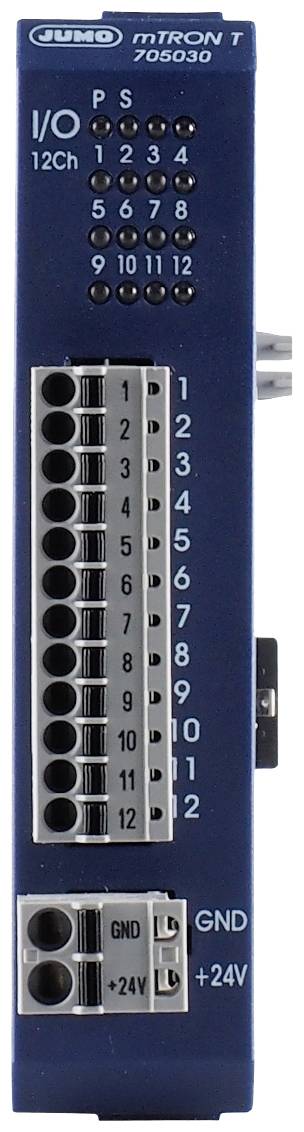

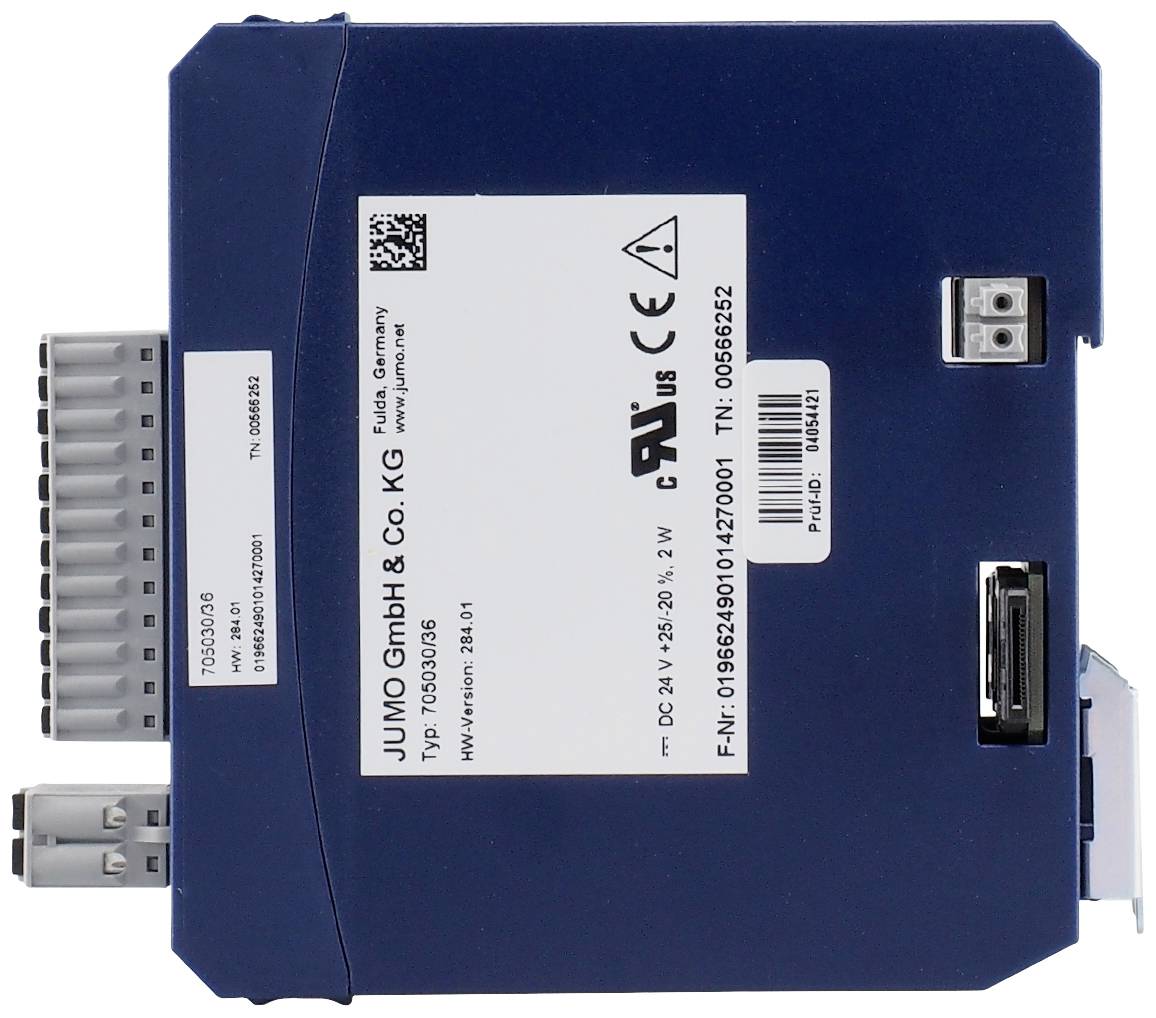

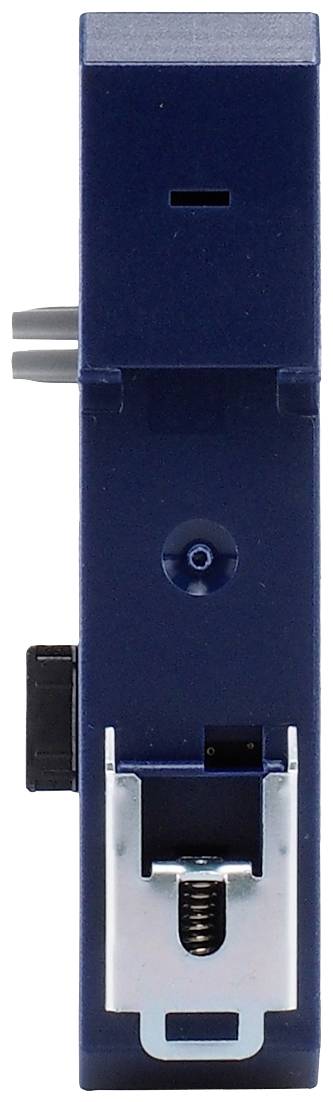

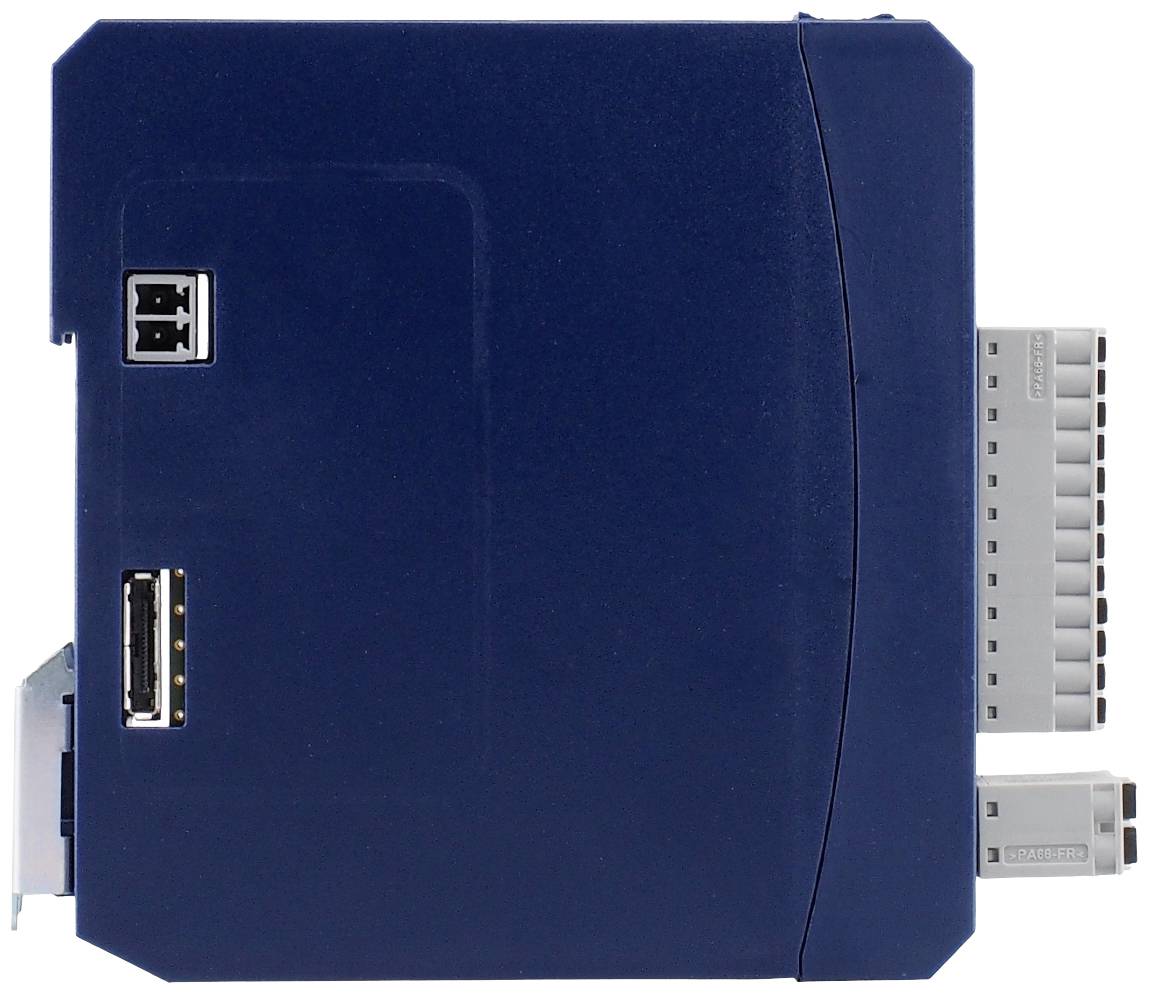

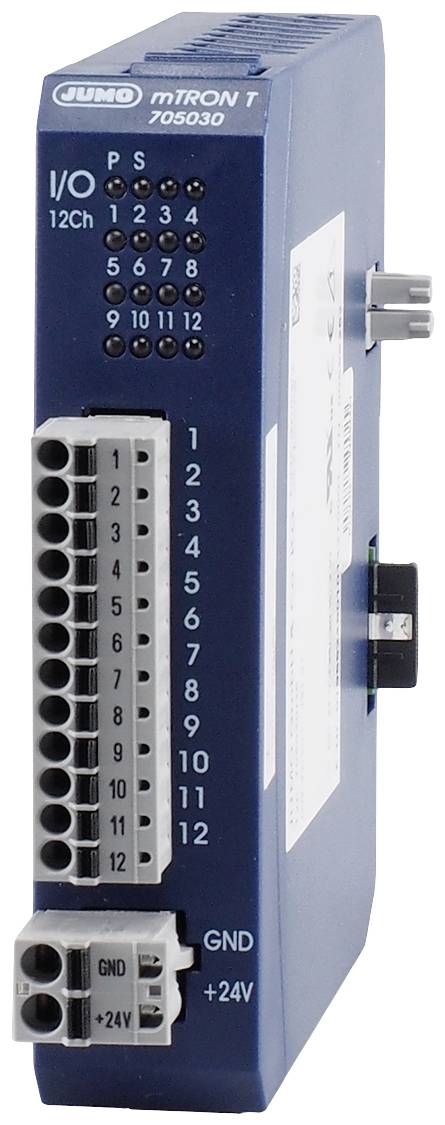

The 12-channel digital in/output module (component of the entire mTRON T system) for DIN rail mounting has a power supply of DC 24 V +25/ -20%. The module has twelve channels, which can be optionally configured as digital inputs or digital outputs. The digitized input states are available in the system for further processing. The digital outputs are controlled via the system bus by digital signals (assignment via the connection list or directly from the PLC). The load current of up to 6 A (12 x max. 500 mA) is to be supplied via the front-sided terminals +24 V/ GND. The presence of the power supply, the operating states of the module as well as the states of the digital inputs and outputs are indicated by LEDs. A setup program allows the user to conveniently configure the digital I/O module. If servicing is required, the module slot can be simply pulled forwards out of the housing. The housing including bus board is thereby installed on the DIN rail.
