Buy KAMAR Headlight L3430 LED (monochrome) front

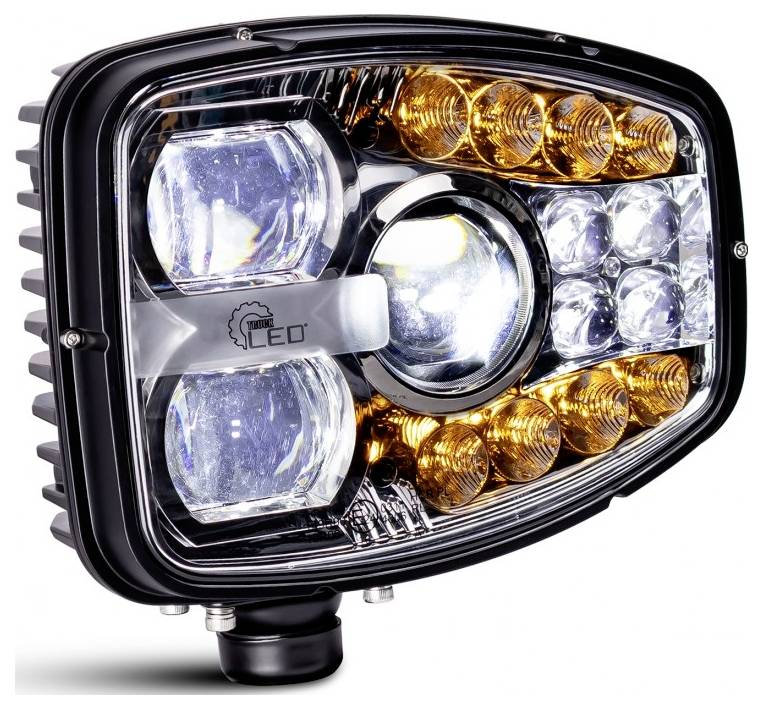

Close-up of a black rectangular LED vehicle headlight with clear lenses and amber marker lights on a white background.

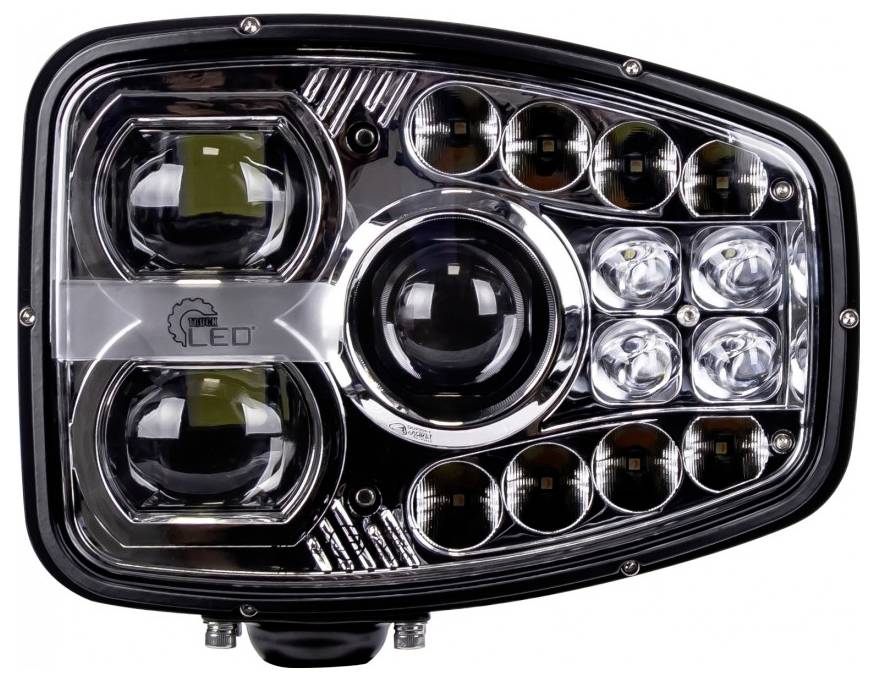

Black LED headlight assembly with a central projector lens, two large side reflectors, and multiple smaller accent lights in a rectangular housing.

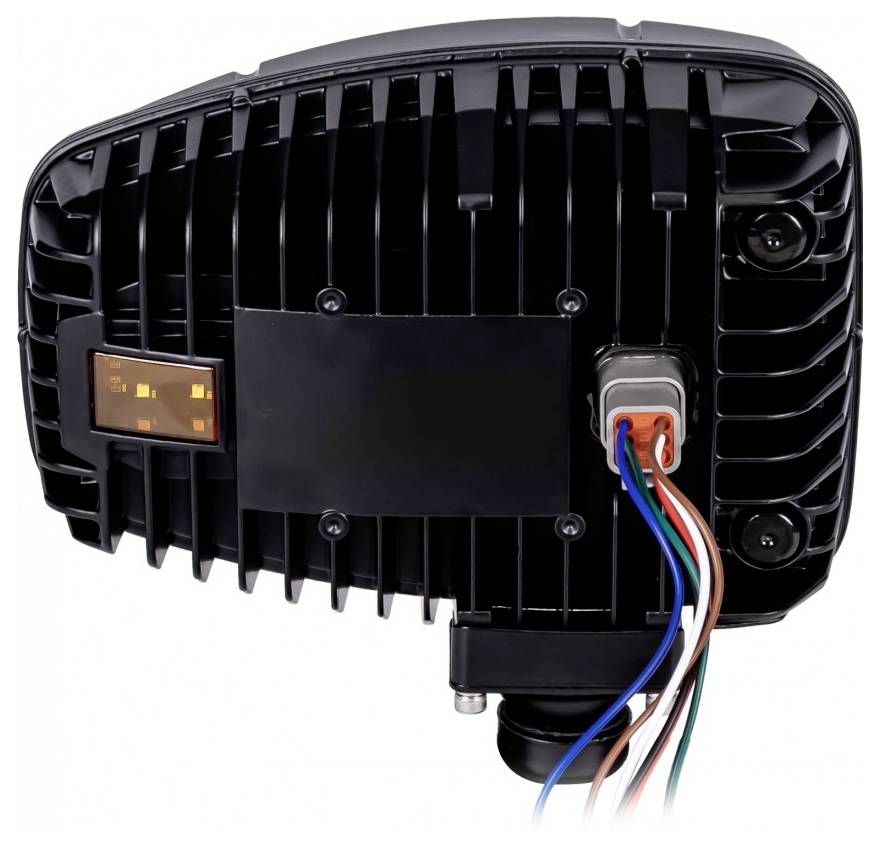

Rear view of a black automotive light assembly with a central mounting plate, amber side marker, and exposed multi-colored wiring harness.<br>

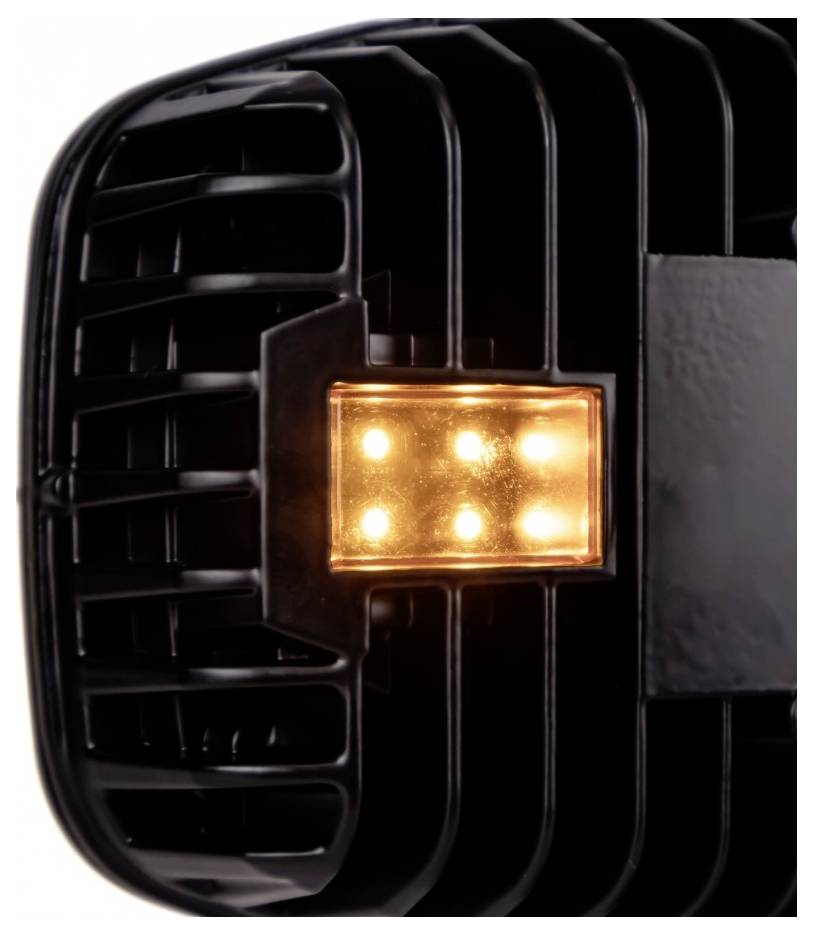

Close-up of a black car grille or vent with a glowing amber rectangular light in the center.

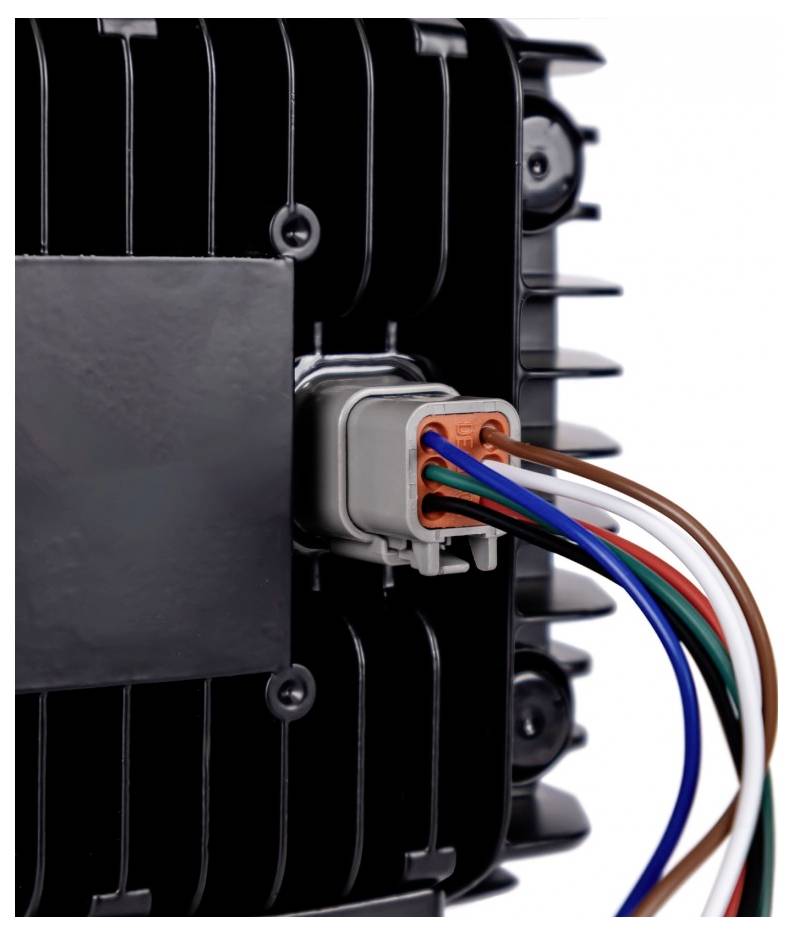

Close-up of a black electronic device with a multi-wire connector plugged into the side, showing colored wires extending outward.

Promotional poster for new head lamps, showing a front loader and close-up LED headlight products labeled L3430 left and L3431 right, with IP65, R10, R148, and R149 icons.

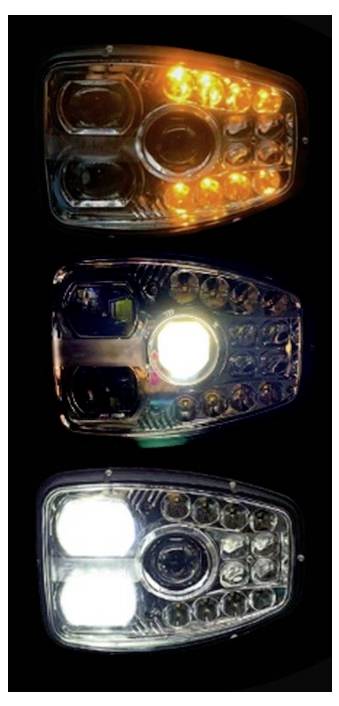

Three stacked car headlight assemblies, showing different light states: amber turn signal at top, bright white lamp in middle, and illuminated twin lights at bottom.

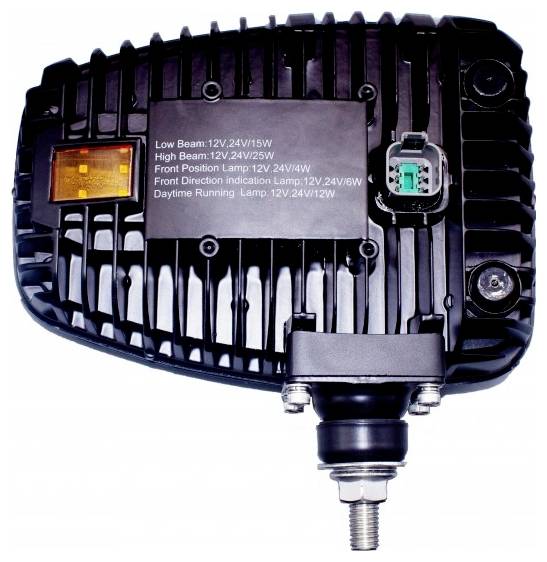

Rear view of a vehicle headlight assembly showing mounting hardware, wiring connector, and labeled beam and lamp specifications.<br>

Technical dimension drawing of a rectangular vehicle mirror, shown front and side views with measurements 217, 158, 26, 59, and 187 mm.

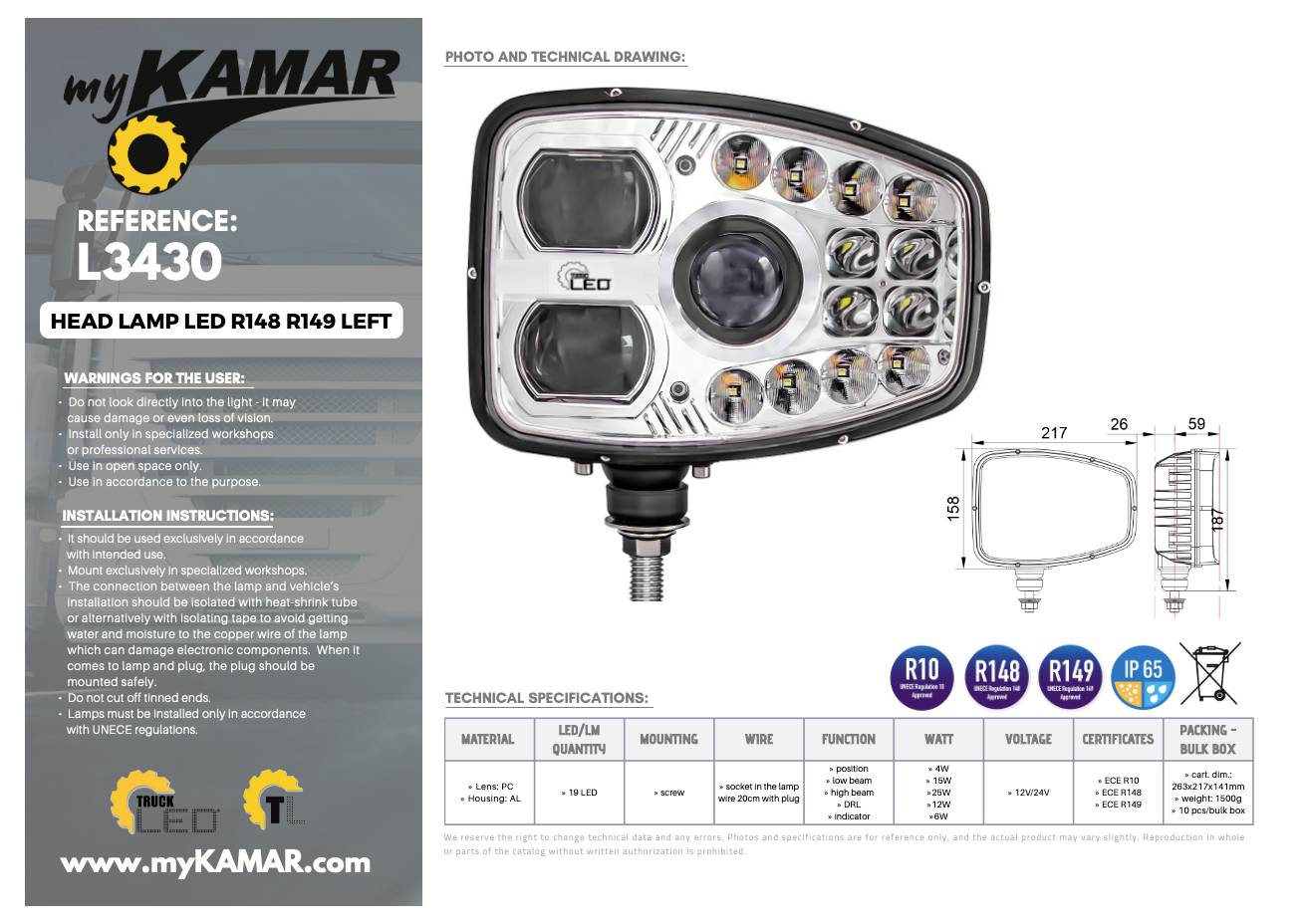

MyKAMAR head lamp LED R148 R149 left, with photo, technical drawing, dimensions, and specifications panel.

1/11

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 159.66 / piece)

€ 159.66

plus VAT.

Report legal concerns

Highlights & Details

LED front-light left 12–24V with stand, dim, remote, daytime running lights & indicator lights

LED front headlights on the left side of the vehicle
Connection via 6-pin German plug with 200 mm cable
All lighting functions integrated
High light output with low power consumption
Long life thanks to LED technology
Robust design for professional use
Compact design for versatile mounting

Technical specifications

Parking light 4 W
Low beam 15 W
Distance light 25 W
Daylight driving light (DRL): 12 W
Flashing light 6 W

Product type: Headlight

Bulb type: LED (monochrome)

Recommended use: Agriculture
Quads
Forklifts
Construction plant

LEDs: 19 pc(s)

Fastening method: Screw mount

Operating voltage: 12 V DC
24 V DC

Content: 1 pc(s)

ECE type approval labels: ECE R10 R148 R149

Mounting site: front

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3746040 KAMAR Headlight L3430 LED (monochrome) front

Warranty Terms

Warranty Terms 3746040 KAMAR Headlight L3430 LED (monochrome) front

Description

Modern LED head spot light for commercial vehicles, trucks, construction and agricultural machines. The spotlight combines all the important light functions in a compact, high-quality casing and provides optimum view as well as enhanced safety in daily use. Thanks to efficient LED technology it offers strong light output with low power consumption and long life.

The headlight is specially designed for the left side of the vehicle.

Functions:
LED front headlights with integrated parking light, low beam, high beam, daytime running lights and flashing light – all functions combined compactly in one system.

The robust housing is designed for demanding applications and reliably resists vibrations, moisture and dirt. Owing to its compact design the headlight Ideal is suitable for different vehicle types and retrofit solutions. The modern look of each vehicle is upgraded in addition.

This text is machine translated.

Features

Mounting side: Left
Operating voltage 12 24 V DC
Lighting functions: Parking light, low beam, high beam, daytime running lights, flashing light
Power consumption:
Parking light 4 W
Low beam 15 W
Distance light 25 W
Daylight driving light (DRL): 12 W
Flashing light 6 W
Connection: German plug 6-pin with 200 mm cable
Light source LED
Aluminium casing material
Disc material: Polycarbonate (PC)
Mounting: Screw fixing
APPROVALS: ECE R148, ECE R149, ECE R10
