KAMAR Headlight L3431 L3431 LED (monochrome) front

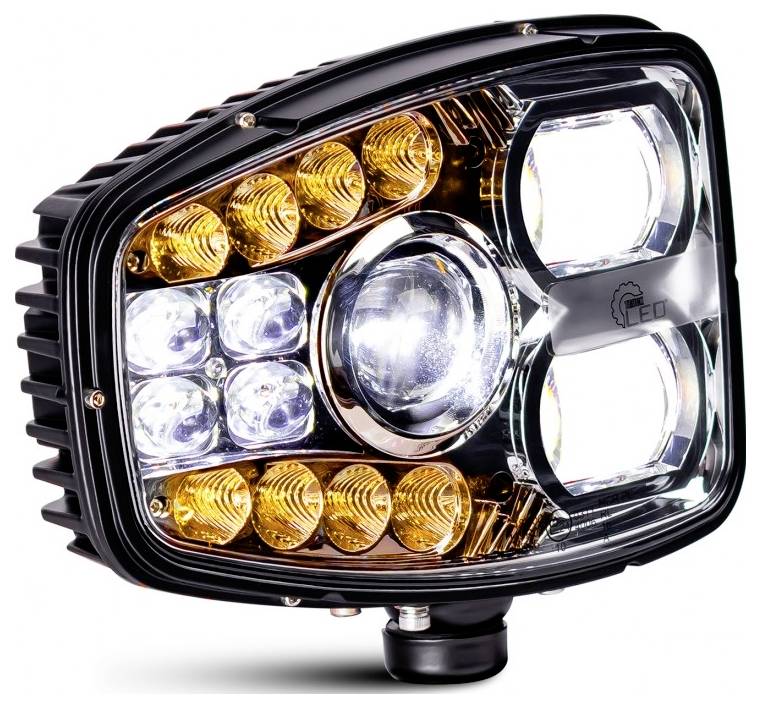

Black LED headlight assembly with multiple amber and white lamps in a rectangular housing.

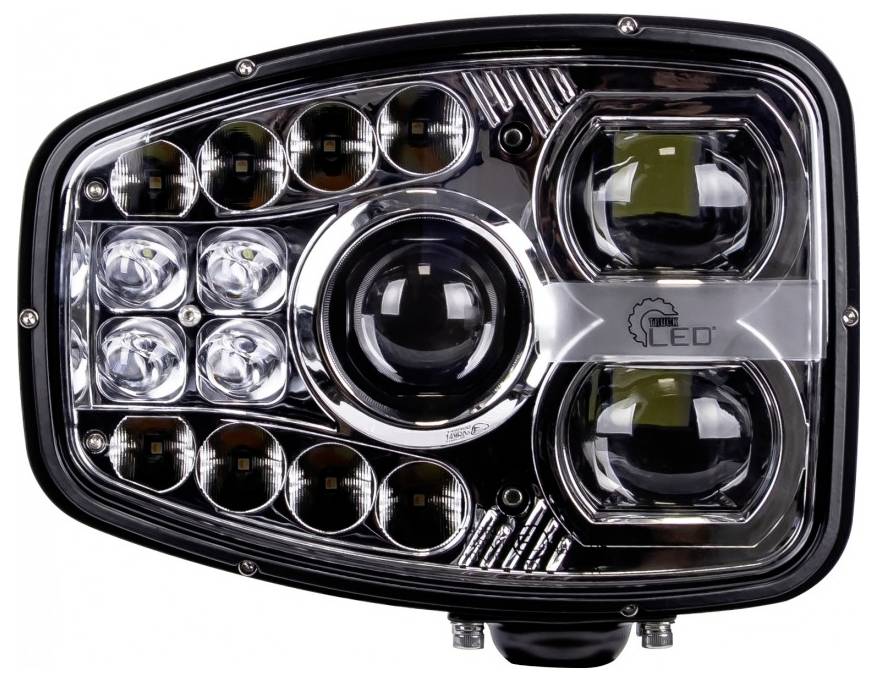

Black automotive LED headlight assembly with multiple projector and reflector lenses, shown front-facing on a white background.

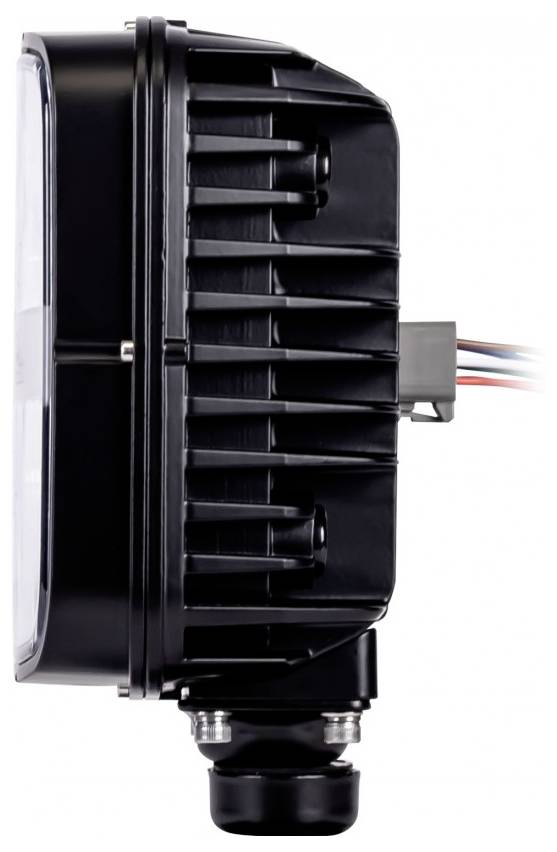

Black automotive LED light or headlamp module shown in side view with cooling fins and attached wiring connector.<br>

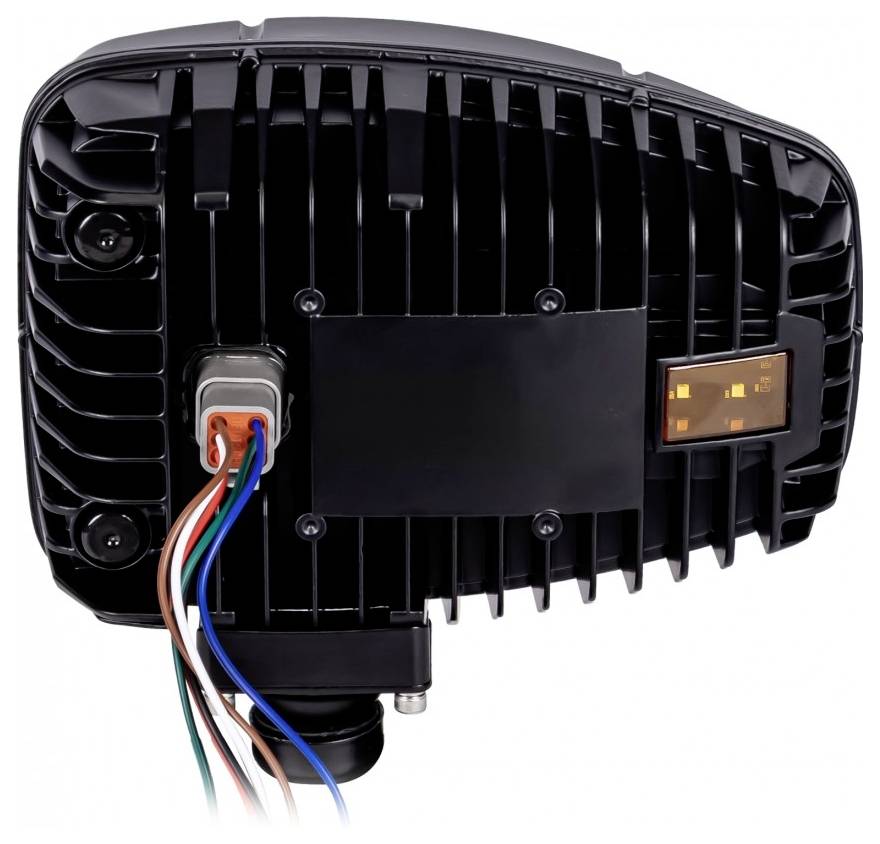

Rear view of a black rectangular electronic device with cooling fins, a wired connector, and a small orange status display on the right.

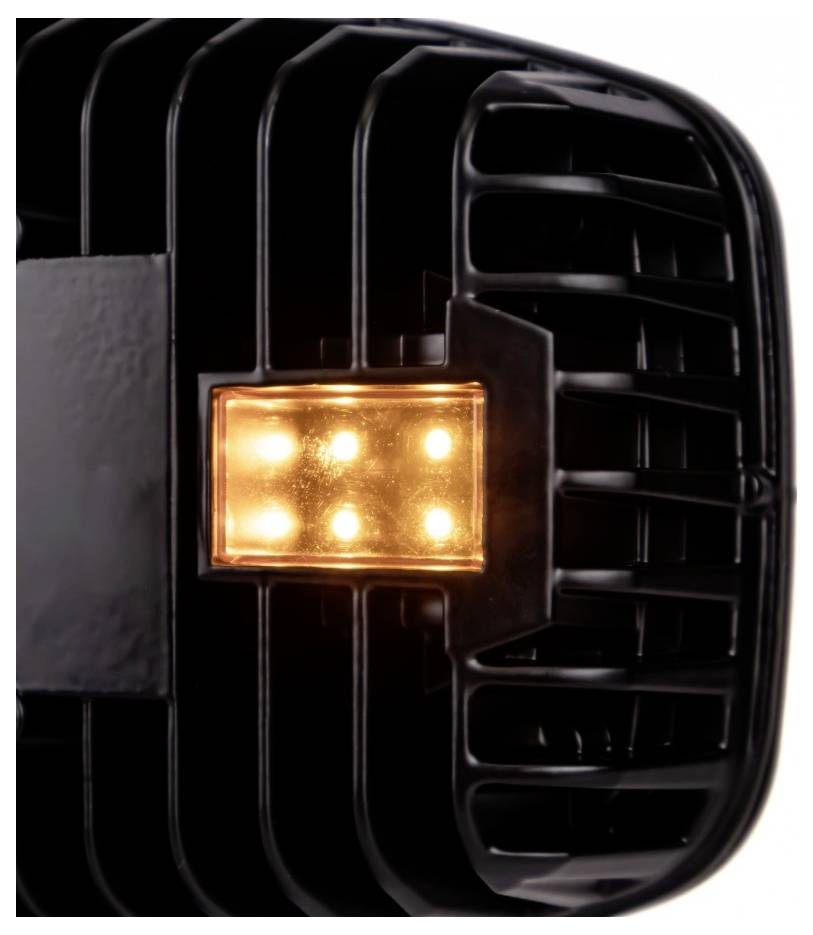

Close-up of a black air vent or grille with a small amber light glowing at the center.

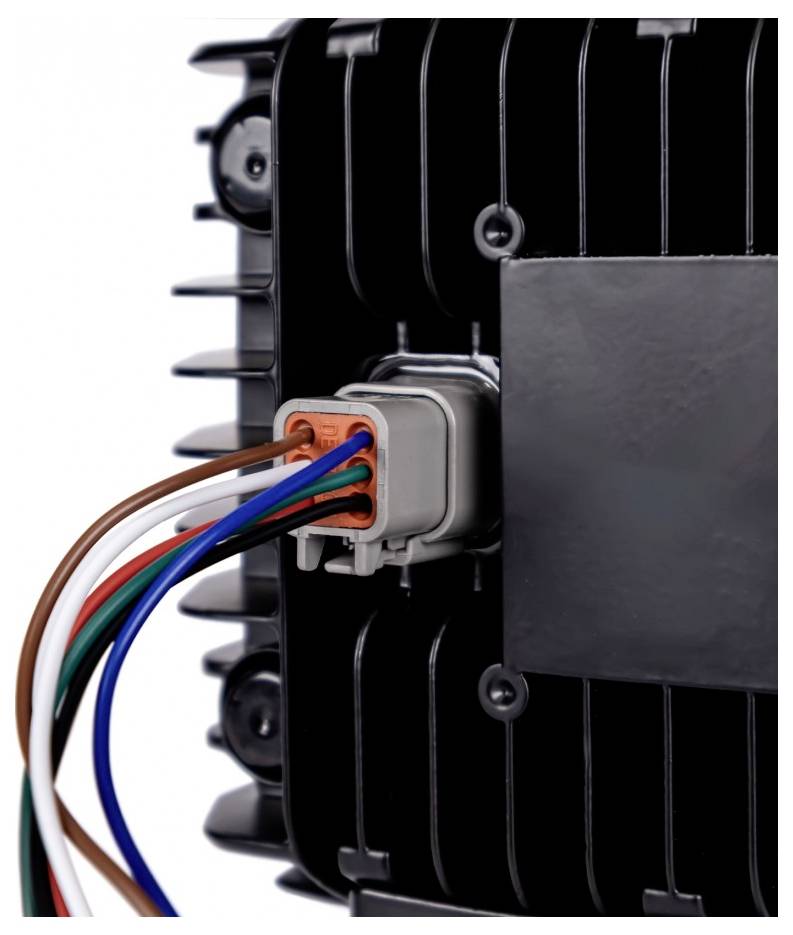

Close-up of a black electronic device with a gray connector and multicolored wires plugged into it, showing a wired power/control connection.

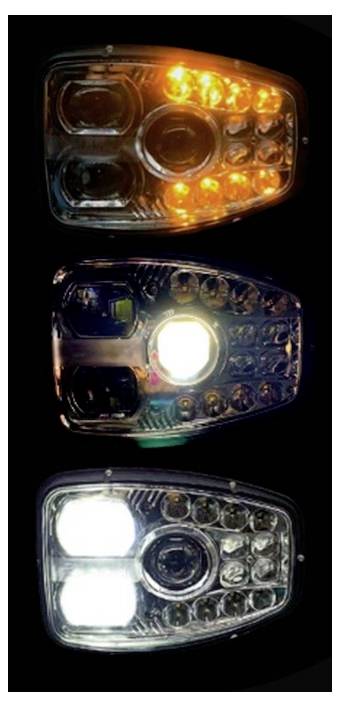

Three stacked vehicle headlight assemblies shown on a black background, comparing different light patterns: amber turn signals, bright white beam, and white LED lights.
Technical line drawing of a vehicle side mirror shown front and side views with dimensions labeled 217, 158, 26, 59, and 187.
Promotional ad for new head lamps, showing a construction loader and close-up LED headlight; lists IP65 and R10, R148, R149 compliance with left and right part numbers L3430 and L3431.

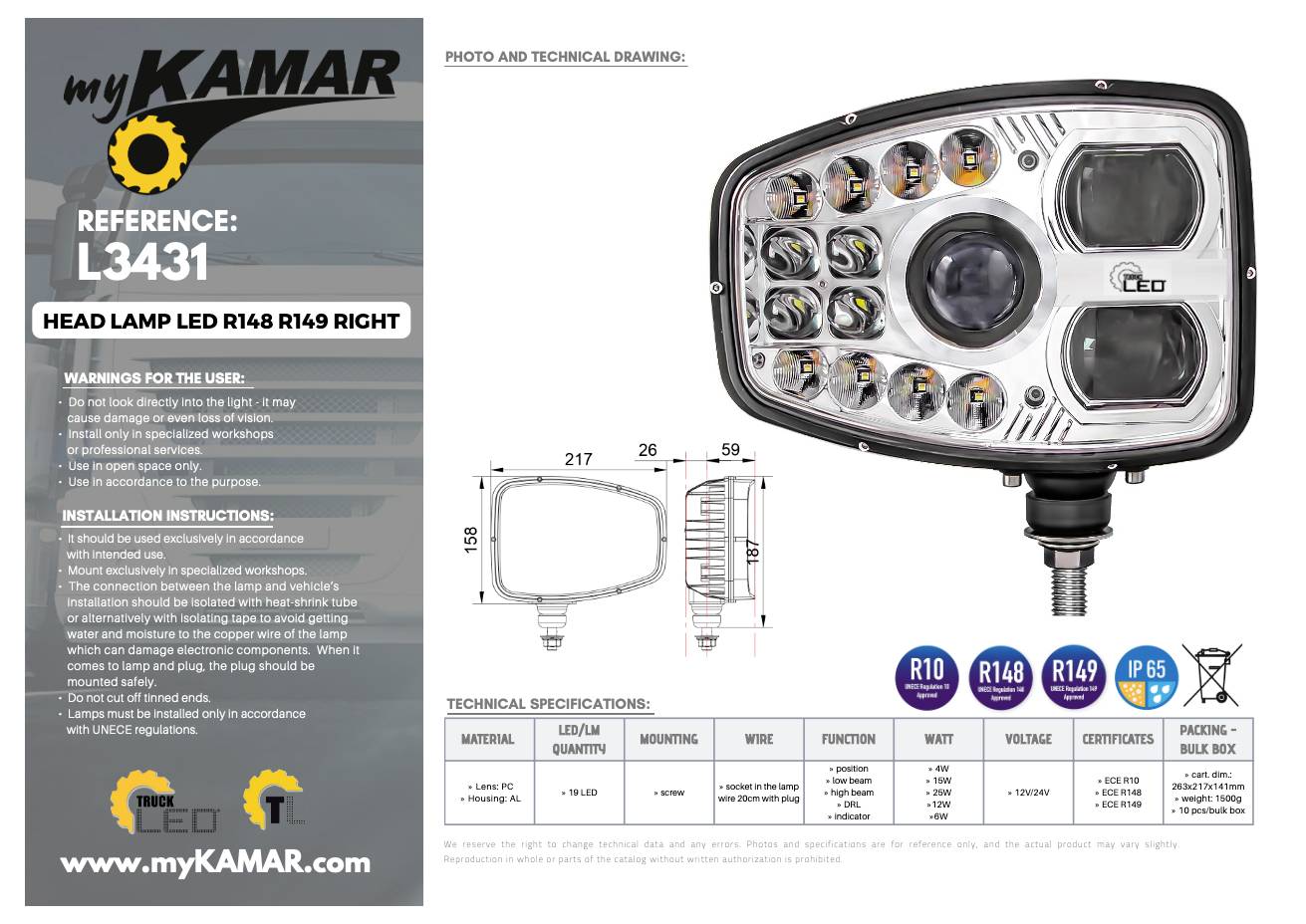

Product sheet for myKAMAR L3431 right headlamp LED R148/R149, showing the lamp photo, dimensions, specs, and installation warnings.
1/10
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
11 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 179.99 / piece)
€ 179.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

LED front light right 12–24V with stand, low beam, remote, daytime running lights & indicators

  • LED front lights for the right side of the vehicle
  • Connection via 6-pin German plug with 200 mm cable
  • All lighting functions integrated
  • High light output with low power consumption
  • Long life thanks to LED technology
  • Robust design for professional use
  • Compact design for versatile mounting

Technical specifications

  • Parking light 4 W
  • Low beam 15 W
  • Distance light 25 W
  • Daylight driving light (DRL): 12 W
  • Flashing light 6 W
Product type

Headlight

Bulb type

LED (monochrome)

Recommended use

Agriculture

Quads

Forklifts

Construction plant

LEDs

18 pc(s)

Fastening method

Screw mount

Operating voltage

12 V DC

24 V DC

Content

1 pc(s)

ECE type approval labels

ECE R10 R148 R149

Mounting site

front

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3746037 KAMAR Headlight L3431 L3431 LED (monochrome) front

Warranty Terms

Warranty Terms 3746037 KAMAR Headlight L3431 L3431 LED (monochrome) front

Description

Modern LED head spot light for commercial vehicles, trucks, construction and agricultural machines. The spotlight combines all the important light functions in a compact, high-quality casing and provides optimum view as well as enhanced safety in daily use. Thanks to efficient LED technology it offers strong light output with low power consumption and long life.

The headlight is specially designed for the right side of the vehicle.

Functions:
LED front headlights with integrated parking light, low beam, high beam, daytime running lights and flashing light – all functions combined compactly in one system.

The robust housing is designed for demanding applications and reliably resists vibrations, moisture and dirt. Owing to its compact design the headlight Ideal is suitable for different vehicle types and retrofit solutions. The modern look of each vehicle is upgraded in addition.

This text is machine translated.

Features

  • Mounting side: Right
  • Operating voltage 12 24 V DC
  • Lighting functions: Parking light, low beam, high beam, daytime running lights, flashing light
  • Power consumption:
  • Parking light 4 W
  • Low beam 15 W
  • Distance light 25 W
  • Daylight driving light (DRL): 12 W
  • Flashing light 6 W
  • Connection: German plug 6-pin with 200 mm cable
  • Light source LED
  • Aluminium casing material
  • Disc material: Polycarbonate (PC)
  • Mounting: Screw fixing
  • APPROVALS: ECE R148, ECE R149, ECE R10

Scope of delivery

  • Attachment material and connection cable with connector
