Name: SecoRüt Headlight (complete), Headlight 95860KL LED (monochrome) front, left (W x H x D) 214 x 201 x 109 mm Black
Brand: SecoRüt
SKU: 2785280
Availability: BackOrder

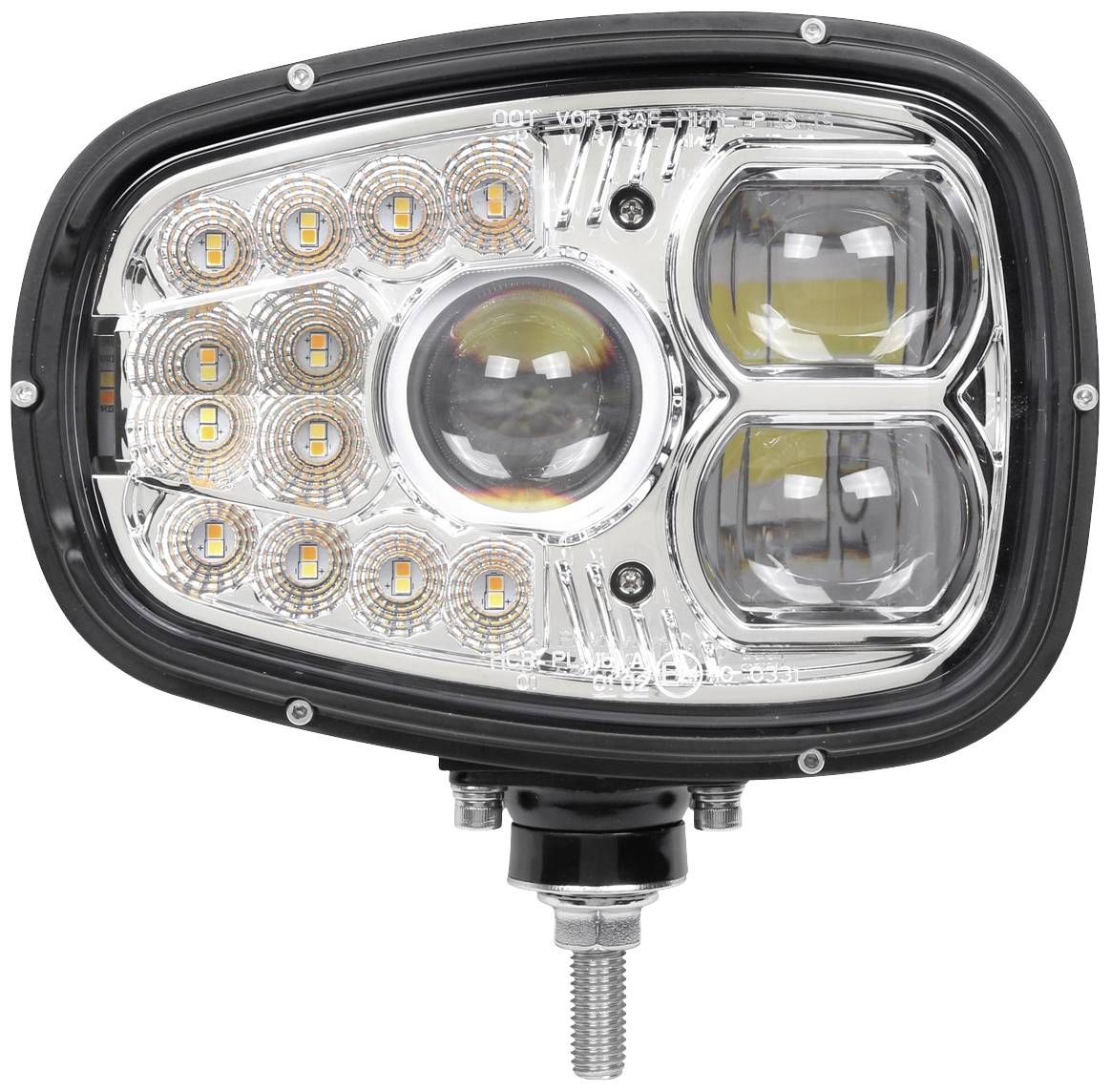

Rectangular LED work light with circular and rectangular lens design, robust housing, and screw mounting at the base.

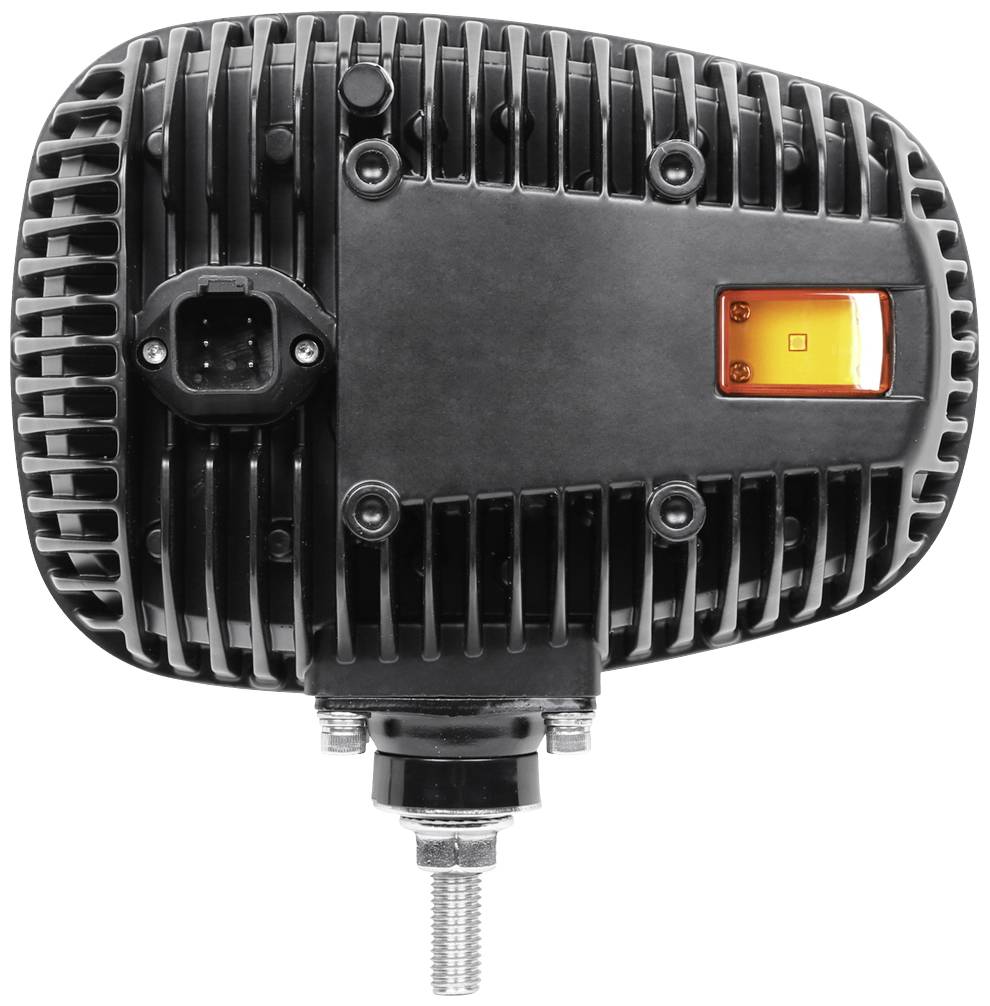

A rectangular, black LED work light with cooling fins, plug connection and orange viewing window, mountable with threaded screw.

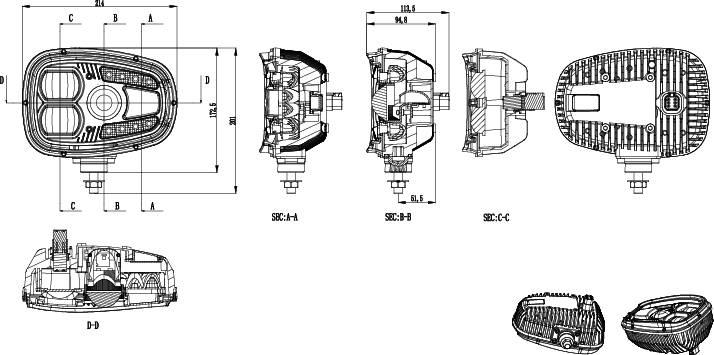

Technical drawing of a mechanical component with various views and dimensions, showing the internal structure and components.<br><br>Note: This seems to already be in British English, so no significant changes were required.

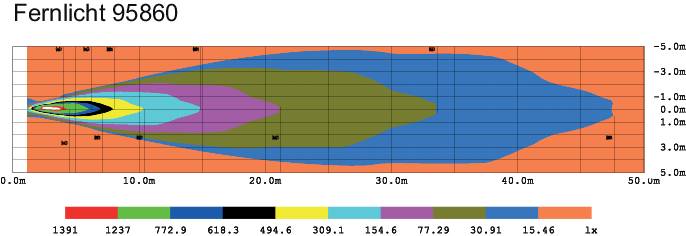

'Fernlight 95860' Graphical representation of light distribution in a diagram. Horizontal axis shows distance up to 50 m, edge colours differentiate intensity.

1/4

EAN:

Part number:

Item no:

Dispatches on Wed 18 Nov

1 Piece(s)

Show alternatives

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 209.99 / piece)

€ 209.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

LED complete front headlight

Full LED
Incl. Indicator
For construction machinery, tractors and other
Watertight: (IP67)

Technical specifications

Dim: (W x H x D) 214 x 201 x 109 mm

Product type: Headlight (complete)

Bulb type: LED (monochrome)

Recommended use: Construction plant
ATVs
Agriculture
HGVs
Forklifts

Version: High beam
Lighting
Turn signal

Design type: LED front headlights, parking lights, low beams, high beams and indicators

Fastening method: Screw mount

Operating voltage: 9 V
12 V
24 V
32 V

Factory colour: Black

Content: 1 pc(s)

Compatible with: Universal

Compatible with: Universal

Width: 214 mm

Height: 201 mm

Depth: 109 mm

ECE type approval labels: E24

: 6000 K

Mounting site: front
left

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2785280 SecoRüt Headlight (complete), Headlight 95860KL LED (monochrome) front, left (W x H x D) 214 x 201 x 109 mm Black

Warranty Terms

Warranty Terms 2785280 SecoRüt Headlight (complete), Headlight 95860KL LED (monochrome) front, left (W x H x D) 214 x 201 x 109 mm Black

Description

The fully-LED front headlight with the latest LED technology is suitable for the hard working day. The robust housing with stable PC diffusion panel is optimally suitable for construction machines, tractors and other vehicles. Through the universal stainless steel holder the headlight is to be fixed in almost every position. The connection is made via a central plug (type DT 6P FEM). The design was held in clear glass, therefore the headlight is also a visual highlight.

This text is machine translated.

Features

Parking lights, dipped headlights, main beam lights, flashing lights (front and rear)ECE APPROVAL (ECE R112, ECE R6, ECE R7, HCR PL)Power: High beam 44 W, dipped beam 22 W, parking light 4 W, flash light 4 wattsIP 67PC. Diffusion discAluminium casingCable length approx. 80cm with connector (type DT 6P FEM)Operating temperature range -50 to +80° C.Attachment screw M12 with nut (stainless steel)Weight: 1720 g

Description

Features

Parking lights, dipped headlights, main beam lights, flashing lights (front and rear)ECE APPROVAL (ECE R112, ECE R6, ECE R7, HCR PL)Power: High beam 44 W, dipped beam 22 W, parking light 4 W, flash light 4 wattsIP 67PC. Diffusion discAluminium casingCable length approx. 80cm with connector (type DT 6P FEM)Operating temperature range -50 to +80° C.Attachment screw M12 with nut (stainless steel)Weight: 1720 g
