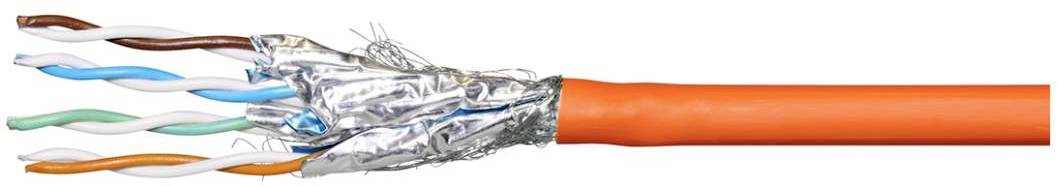

Shielded, orange Ethernet cable with exposed, twisted pairs in different colours; suitable for data transmission.

Shielded, orange Ethernet cable with exposed, twisted pairs in different colours; suitable for data transmission.

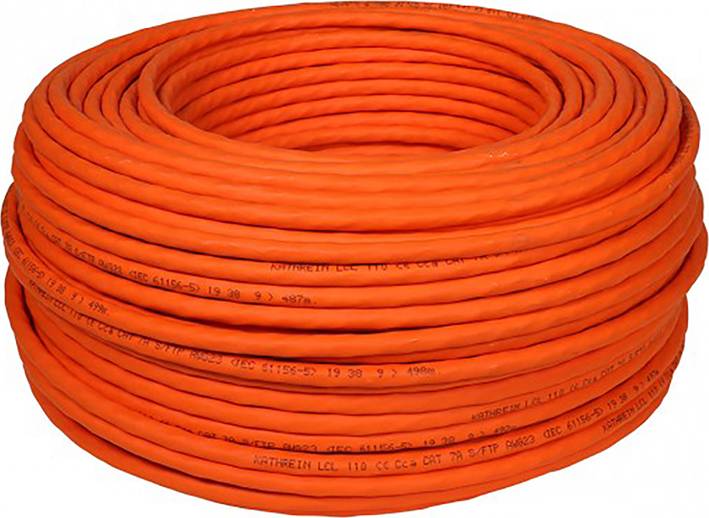

A large stack of orange cable, coiled in multiple layers, ready for use.

Cross-section of a cable with four pairs in an orange jacket. Details: copper conductor, PE insulation, aluminium foil, LSZH sheath.

1/3

Kathrein

Product type

Network cable

Specification

CAT 7a

Shielding

S/FTP

No. of leads

8 x

Cross section (each core)

0.258 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (1 m = € 1.08)

€ 269.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Kathrein LCL 110/250m network cable

Cat 7A Network cable 1200 MHz, Class Fa
Meter marking
Halogen-free; FRNC/LSZH=Flame Redant Non Corrosive / Low Smoke Zero Halogen
S/FTP, conductor construction: Twisted Pair 4x2xAWG23/1 (Ø 0.58 mm) Copper Construction product regulation 305/2011 EN 50575 Fire class: CCA s1a,d1,a1 Outer diameter 7.7 mm
Data cable suitable for structured building cabling
Suitable RJ45 network plug: EML 12 field configurable without tools
This text is machine translated.

Technical specifications

Shielding: LSZH/LS0H

Product type: Network cable

: CAT 7a

: S/FTP

No. of leads: 8 x

Cross section (each core): 0.258 mm²

Cross section: 4 x 2 x 0.258 mm²

Outside Ø: 7.7 mm

Factory colour: Orange

Max. frequency: 1200 MHz

Content: 250 m

AWG max.: 23

Manufacturer part #: 215500001

Type: LCL 110/250m

Insulation material: PE

RoHS-compliant: Yes

Min. temperature range (flexible installation): 0 °C

Max. temperature range (flexible installation): +50 °C

Min. temperature range (fixed installation): -20 °C

Max. temperature range (fixed installation): +60 °C

Standards: BauPVO305 CCA S1A, D1, A1

Halogen-free: Yes

Twisted pair cabling (part 1): Yes (1)

Connections: RJ45 connector

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2308327 Kathrein 215500001 Network cable CAT 7a S/FTP 4 x 2 x 0.258 mm² Orange 250 m

Conformity certificate

Conformity certificate 2308327 Kathrein 215500001 Network cable CAT 7a S/FTP 4 x 2 x 0.258 mm² Orange 250 m

Features

Network cable Cat7a
S/FTP
Copper AWG23
BauPVO 305/2011 (EN50575:2014 + A1:2016)
BauPVO: CCA s1ad1a1
LSZH/LS0H
Outer diameter 7.7 mm
Copper component: 25.4 kg/km.

Description

Features

Network cable Cat7a
S/FTP
Copper AWG23
BauPVO 305/2011 (EN50575:2014 + A1:2016)
BauPVO: CCA s1ad1a1
LSZH/LS0H
Outer diameter 7.7 mm
Copper component: 25.4 kg/km.
