Name: Kathrein ESD 83 Antenna socket BK, DAB+, SAT, TV, FM Screw fastening, Flush mount Single
Brand: Kathrein
SKU: 3479055
Availability: OutOfStock

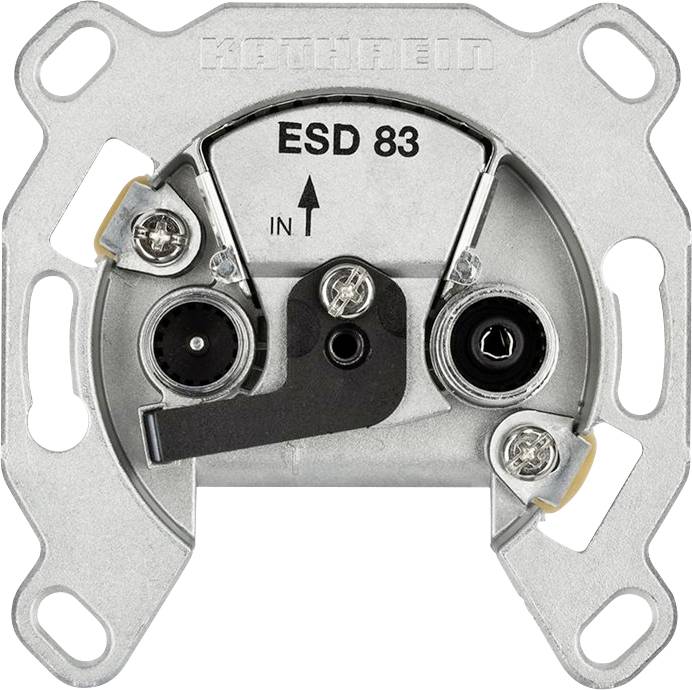

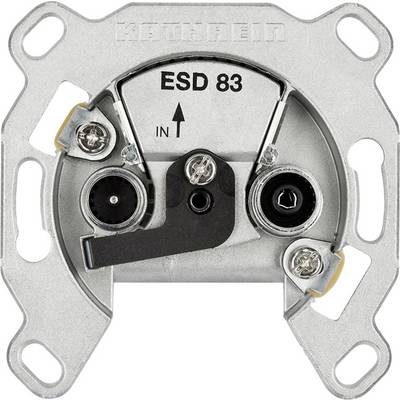

A metal TV and radio wall socket labeled 'ESD 83 IN' with multiple connectors for cable inputs, mounted in a frame.

EAN:

Part number:

Item no:

Currently not available

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 17.99 / piece)

€ 17.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

ESD 83 High-End-Broadband-Single connection box 2-fold

High-end broadband end-socket 2-hole, IEC
Ultra-broad band optimization: The box has been specially optimized for an extremely wide frequency range of 5 to 2150 MHz.
Improved interference protection: It has an increased radiation resistance against LTE interference and achieves a very high level of shielding.
Innovative technology: The application of the new Insulation Optimizer technology ensures excellent performance.
MoCATM-enabled and material: The ESD 83 was developed for home networking with the help of MoCATM technology and is also nickel-free and anti-allergic

Technical specifications

Type: Single

Product type: Antenna socket

Suitable for: BK
DAB+
SAT
TV
FM

Mounting type: Screw fastening
Flush mount

Features: Reverse channel

FM (min.): 30 MHz

FM (max.): 300 MHz

TV signal frequency (min.): 5 MHz

TV signal frequency (max.): 2150 MHz

SAT frequency (min.): 950 MHz

SAT frequency (max.): 2150 MHz

No. of FMs: 1 x

No. of TVs: 1 x

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3479055 Kathrein ESD 83 Antenna socket BK, DAB+, SAT, TV, FM Screw fastening, Flush mount Single

Description

The ESD 83 High-End-Broadband-Single connection socket 2fold redefines the Standards in the Antenna socket technique. It is ultra-broadband optimized for the entire frequency range from 5 to 2150 MHz. Developed to meet the requirements of EN 60728-11 and EN 50083-2, the ESD 83 offers a very high shielding effect and increased radiation resistance against LTE interference thanks to its innovative insulation optimizer technology. Moreover, this ultra-modern can is nickel-free and therefore anti-allergen.
