Kathrein ESN 100 Network outlet Flush mount Insert with main panel and frame CAT 6A Pure white (RAL 9010)
EAN:
Part number:
Item no:
Number
Total (€ 10.99 / piece)
€ 10.99
incl. VAT
14-day return policy included
Highlights & Details
Kathrein ESN 100 network socket
- Class EA (500 MHz) 10 Gigabit according to ISO/IEC 11801
- 40° outlet, LSA terminals
- Labeling plate with clear cover
- Fully shielded aluminum die-cast housing
- Design-able, compatible with all common switch programs (UAE) installable in switch boxes and hollow wall sockets as well as installation channels POE-enabled according to IEEE 802.3af 15.4 W, IEEE 802.3at 30 W and IEEE 802.3bt 90 W.
- RJ45 contacts made of phosphor bronze, 40-80 μ" nickel-plated, contact area gold-plated
- Including cover frame and central plate made of ABS
- LSA-contacts made of phosphor bronze, tin-plated/nickel-plated

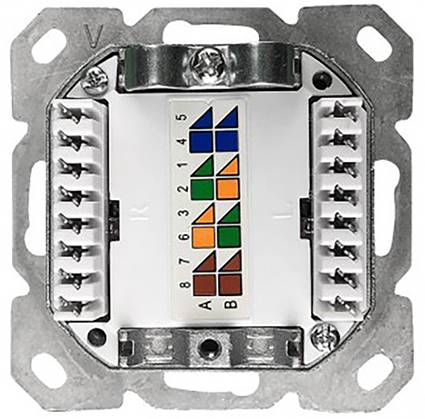

- Color code / allocation options: EIA/TIA 568A , EIA/TIA 568B wire thickness suitable for AWG22/1 - AWG26/1
- This text is machine translated.
Technical specifications
- Product type
Network outlet
- Mounting type
Flush mount
- Type
Insert with main panel and frame
CAT 6A
- Factory colour
Pure white (RAL 9010)
- Switch type function
Network junction box
- Switch type component
Insert
- Similar RAL
9010
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2308322 Kathrein ESN 100 Network outlet Flush mount Insert with main panel and frame CAT 6A Pure white (RAL 9010)
Description
Features
- Network socket
- Flush-mounted
- Cat. 6A
- 500 MHz
- 2-port
- Shielded
- White
- Right/Left.
