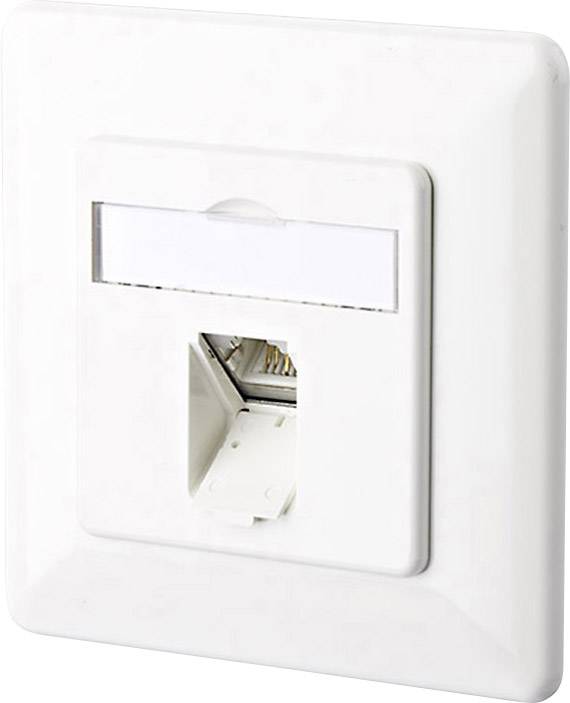

Metz Connect 130C371002-I Network outlet Flush mount Insert with main panel and frame CAT 6A 1 port Pure white
EAN:
Part number:
Item no:
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Highlights & Details
BTR CAT 6a RAL 9010 flush-mounted network box 1x RJ45
- Modular design
- Compatible design central piece leading to manufacturer
- Cable entry on 8 sides
Technical specifications
- Product type
Network outlet
- Mounting type
Flush mount
- Type
Insert with main panel and frame
CAT 6A
- No. of LAN ports
1 x
- Features
Modular
- Factory colour
Pure white
- Cable feed
universal
- Switch type function
Network junction box
- Switch type component
Insert
- Similar RAL
9010
- Port
1 port
- Fitting type (details)
Flush-mounted
- Weight
0
- UKCA
not relevant
Description
Compact CAT 6A data socket with a low installation depth. The screw connection of the flap for the strain relief and screen inspection can take place from the front. The connection with LSA tool can also be done from front. The cable feed is possible in 8 positions, which makes a perfect mounting with cable reserve with minimum effort possible in the first place.
Features
- Conforms to the valid standards ISO/IEC 11801 Ed.2.2 (2010) TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT certified
- Suitable for Power over Ethernet (PoE and PoE plus)
- Screwing the cap for strain-relief and screen removal is done from front
- Mountable in the 58-mm flush-mounted beaker
Scope of delivery
- Box [Delete for UK]
- Cover frame
- 1 pc. E-DAT module
