Name: Metz Connect 130B12D11002-E Network outlet Flush mount Insert with main panel and frame CAT 6A 1 port Pure white
Brand: Metz Connect
SKU: 986513
Availability: InStock

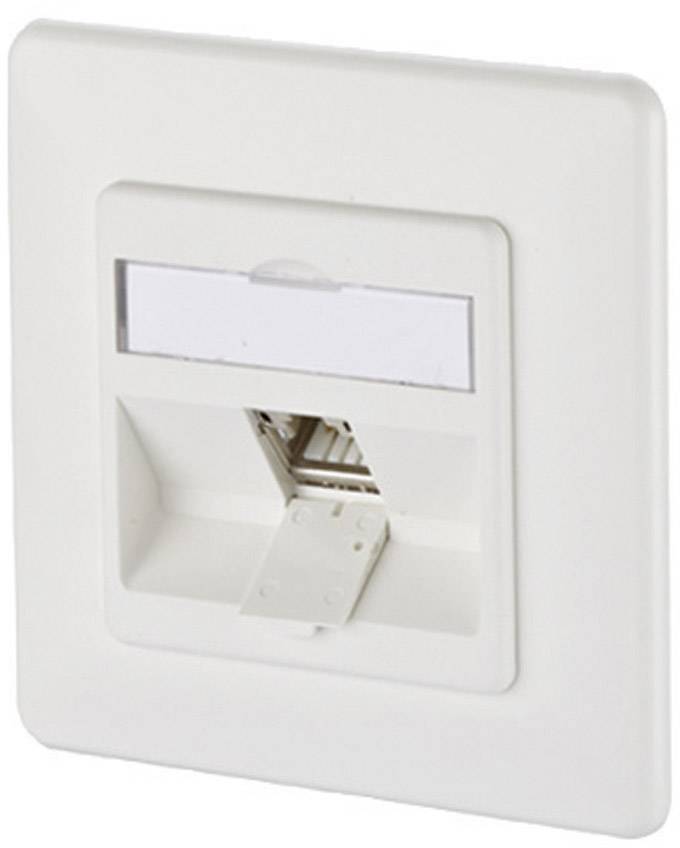

White network socket with RJ45 connection, mounted in a wall plate.

'Technical drawing of a rectangular device with dimensions: 80.5 mm width, 41.4 mm depth, side view and connection details.'

1/2

EAN:

Part number:

Item no:

Fast track dispatch on Mon 9 Nov

29 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 17.99 / piece)

€ 17.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

BTR NETCOM 130B12D11002-E RJ-45

For 10 GBit
Space-saving module design

Technical specifications

Product type: Network outlet

Mounting type: Flush mount

Type: Insert with main panel and frame

: CAT 6A

No. of LAN ports: 1 x

Features: Modular

Factory colour: Pure white

Switch type function: Network junction box

Switch type component: Insert

Similar RAL: 9010

Port: 1 port

Screen size diagonal (inches): 24 inch

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 986513 Metz Connect 130B12D11002-E Network outlet Flush mount Insert with main panel and frame CAT 6A 1 port Pure white

Description

Modular junction box for building a passive network infrastructure with the highest quality requirements. The junction box is suitable for connecting telephones up to 10 Gbit networks and the power supply with PoE with up to 90W. The only two-part, very robust, nickel-plated die-cast zinc module allows the installer to connect easily and in the shortest possible time without special tools. In addition to the permanent quality control accompanying the production, independant test laboratories with different certificates confirm the very good quality of the individual modules. The junction boxes are supplied in commercially-friendly, individual carton boxes with 10 pieces each.Variants, assembly type: AP, UP, UPK, UP0, Variants, number of ports: 1, 2, 3

This text is machine translated.

Features

GHMT CAT 6a re-embedded PVP certified.
Cat 6a component testing according to ISO/IEC 11801 Ed.2.2: 2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT certified
Compliance with the E A class up to 500 MHz according to ISO/IEC 11801 Ed.2.2: 2011-06, DIN EN 50173-1:2011-09
Tested: components up to 600 MHz, link up to 800 MHz
For 10 GBit Ethernet (IEEE 802.3an)
Suitable for Power over Ethernet (PoE, PoE plus and UPoE)
This enables an easy to mount connection of data lines AWG 24/1 - 22/1 (single-wired) and AWG 26/7 to 22/7 (multi-wired) to IDC terminals.
Insert direction of the module inclined 45° downward
Stain-relief with licking clip at the loading piece
With viewing window for accompanying inscription insert
Inscription arc 209 x 294 mm
Integrated dust-protection flaps
Cover panels, pure white RAL 9010, matt surface structure
Compatible with design-central piece of switching programmes
