Name: Metz Connect 1309121002-E Network outlet Flush mount Insert with main panel and frame 2 ports Pure white
Brand: Metz Connect
SKU: 986521
Availability: InStock

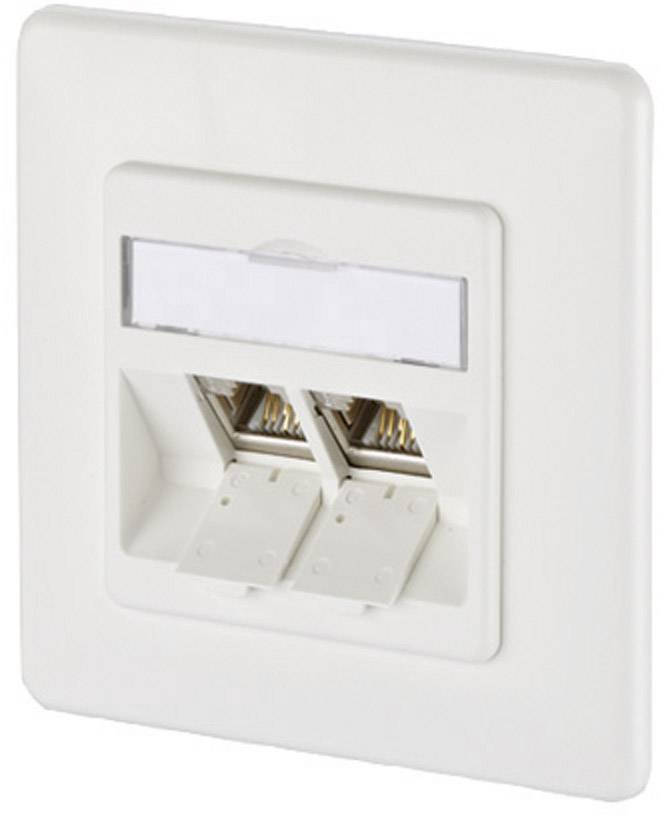

Double wall-mounted LAN socket in white with two RJ45 ports, suitable for network connections in offices or homes.

Technical drawing of a socket with front and side view. Dimensions: Width 80.5 mm, Depth 32.9 mm, Height 40.9 mm.

1/2

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 23.99 / piece)

€ 23.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

BTR NETCOM 1309121002-E RJ-45

Connecting unit with/for two E-DAT module
Cat 6 de-embedded GHMT PVP certified.
For 10 GBit Ethernet (IEEE 802.3an)

Technical specifications

Product type: Network outlet

Mounting type: Flush mount

Type: Insert with main panel and frame

No. of LAN ports: 2 x

Factory colour: Pure white

Switch type function: Network junction box

Switch type component: Insert

Port: 2 ports

Weight: 0.11

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 986521 Metz Connect 1309121002-E Network outlet Flush mount Insert with main panel and frame 2 ports Pure white

Description

Modular junction box for building a passive network infrastructure with the highest quality requirements. The junction box is suitable for connecting telephones up to 10 Gbit networks and the power supply with PoE with up to 90W. The only two-part, very robust, nickel-plated die-cast zinc module allows the installer to connect easily and in the shortest possible time without special tools. In addition to the permanent quality control accompanying the production, independant test laboratories with different certificates confirm the very good quality of the individual modules. The junction boxes are supplied in commercially-friendly, individual carton boxes with 10 pieces each.Variants, assembly type: AP, UP, UPK, UP0, Variants, number of ports: 1, 2, 3

This text is machine translated.

Features

Class EA Link up to 500 MHz according to ISO/IEC 11801 Ed.2.2: 2011-06, DIN EN 50173-1:2011-09
Suitable for Power over Ethernet (PoE, PoE plus and UPoE)
Easy to mount connection of 2 to 4-pair data cable AWG 24/1 - 22/1 and stranded conductors with a 7-wire copper strands AWG 26/7 to BTR 8-way IDC terminals
Insert direction of the module inclined 45° downward
Cord grip with cable binder at the module
With viewing window for accompanying inscription insert
Inscription arc 209 x 294 mm
Integrated dust-protection flaps
Color of the cover panels, pure white RAL 9010, matt surface structure
Compatible with design-central piece of switching programmes
Not suitable for mounting in standard 58-mm flush-mounted beaker.

Description

Features

Class EA Link up to 500 MHz according to ISO/IEC 11801 Ed.2.2: 2011-06, DIN EN 50173-1:2011-09
Suitable for Power over Ethernet (PoE, PoE plus and UPoE)
Easy to mount connection of 2 to 4-pair data cable AWG 24/1 - 22/1 and stranded conductors with a 7-wire copper strands AWG 26/7 to BTR 8-way IDC terminals
Insert direction of the module inclined 45° downward
Cord grip with cable binder at the module
With viewing window for accompanying inscription insert
Inscription arc 209 x 294 mm
Integrated dust-protection flaps
Color of the cover panels, pure white RAL 9010, matt surface structure
Compatible with design-central piece of switching programmes
Not suitable for mounting in standard 58-mm flush-mounted beaker.
