Kathrein ESN 300 Network outlet Flush mount Insert with main panel and frame CAT 6A Pure white (RAL 9010)
EAN:
Part number:
Item no:
Number
Total (€ 11.99 / piece)
€ 11.99
incl. VAT
14-day return policy included
Highlights & Details

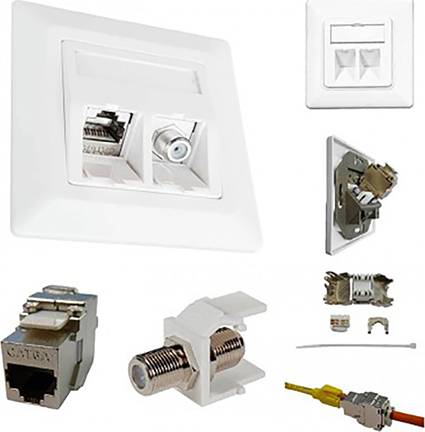

Kathrein ESN 300 network socket
- For use as surface-mounted or flush-mounted socket
- Cat.6A RJ45-Keystone module fully shielded, 500 MHz, 10 GBit
- Hybrid socket, network and TV/SAT
- Wire thickness suitable for AWG22/1 - AWG24/1
- Connections of the antenna module 2 x F-socket
- No LSA tool required
- Installation in modular distribution panels up to 24-port/1HE
- Strain relief via cable tie
- POE-enabled according to IEEE 802.3af 15.4 W and IEEE 802.3at 30 W
- COLOR CODE / OCCUPANCY OPTIONS: EIA/TIA 568A, EIA/TIA 568B
- Plastic housing
- This text is machine translated.
Technical specifications
- Product type
Network outlet
- Mounting type
Flush mount
- Type
Insert with main panel and frame
CAT 6A
- Recess depth
20.1 mm
- Factory colour
Pure white (RAL 9010)
- Switch type function
Network junction box
- Switch type component
Insert
- Similar RAL
9010
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2308323 Kathrein ESN 300 Network outlet Flush mount Insert with main panel and frame CAT 6A Pure white (RAL 9010)
Description
Features
- Combined network socket
- keystone
- Cat. 6A
- 500 MHz
- 10 Gbit, RJ45, LAN + TV/SAT, F-antenna module.
