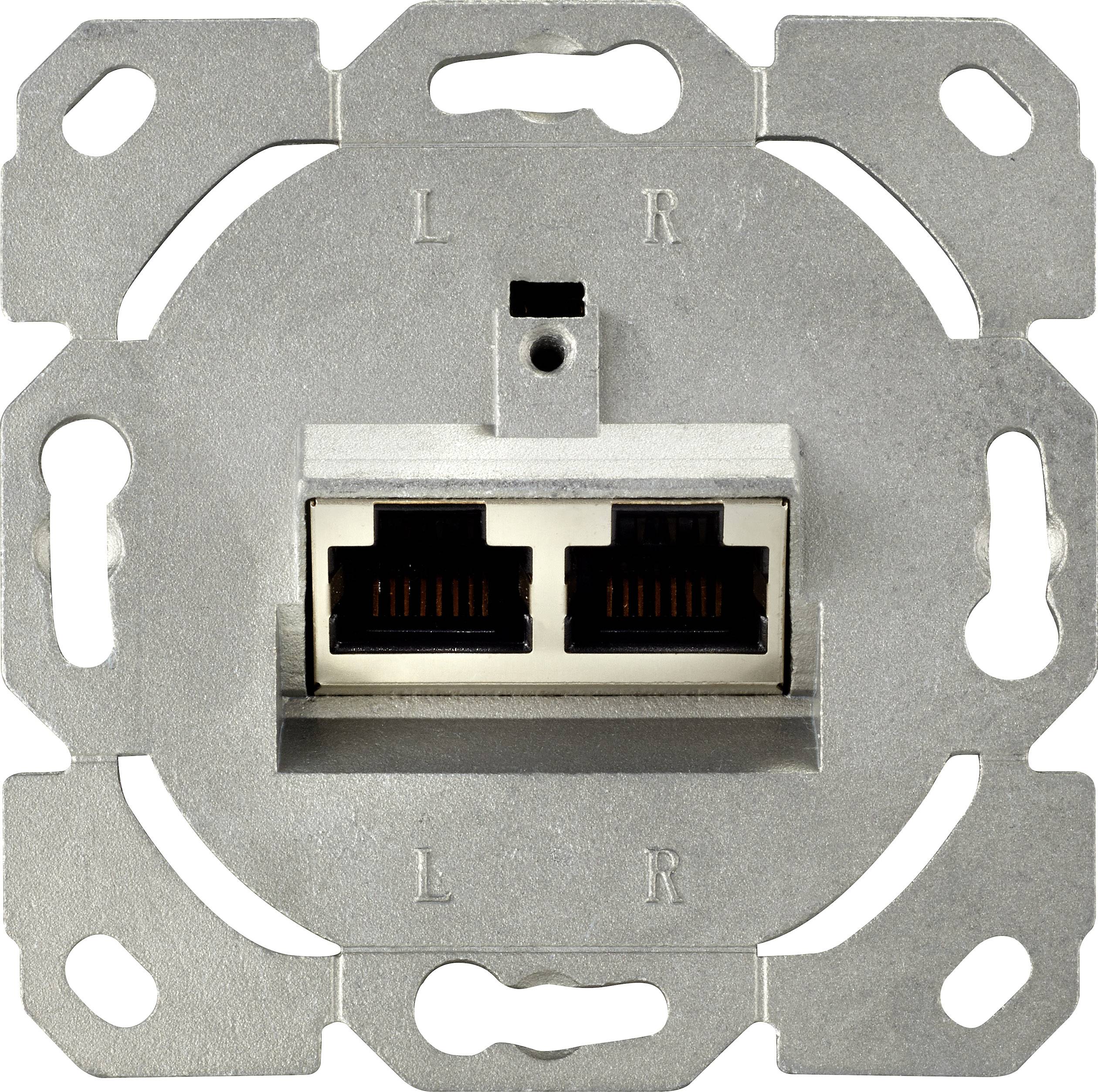

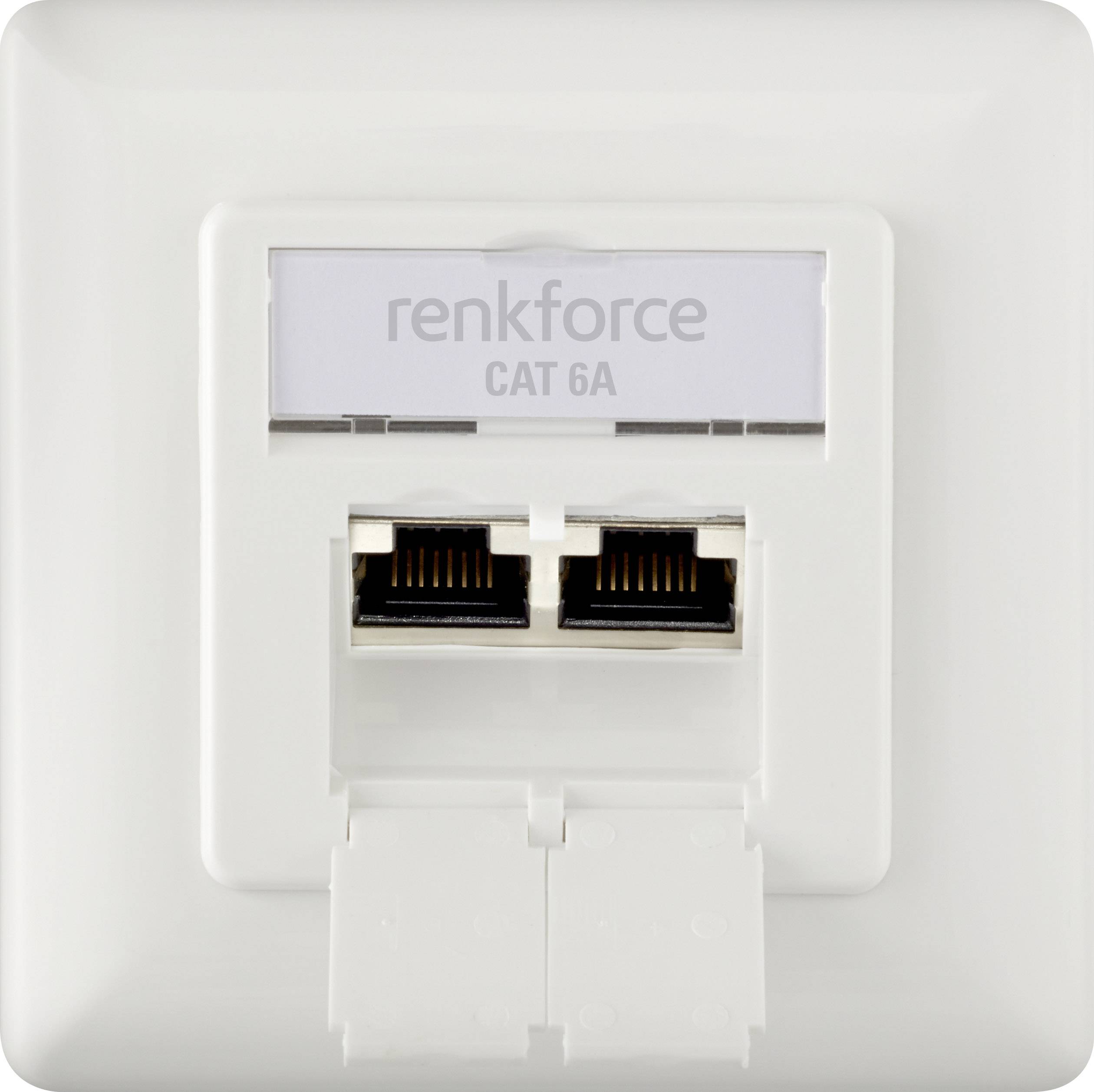

Renkforce Network outlet Flush mount Insert CAT 6A 2 ports White

Whether for industry, office or household use, Network sockets are for a structured network cabling is essential. To use the rigid, fitted into the wall network cable to TV, PC and notebook, NAS Server or VoIP telephones in the network and thus to the Internet. There are clear advantages: no electrosmog, maximum safety, and first and foremost, no loss of transfer speed. What you feed in on one end comes out on the other.

Reliable data transmission for your network.
The Renkforce network socket of category 6A transfer speeds of up tom1000 Mbps - 10 000 MBit/s and is therefore 100 x faster than Cat 5. Means no more sluggishness during high data volume transfers such as HD streaming and some server applications.

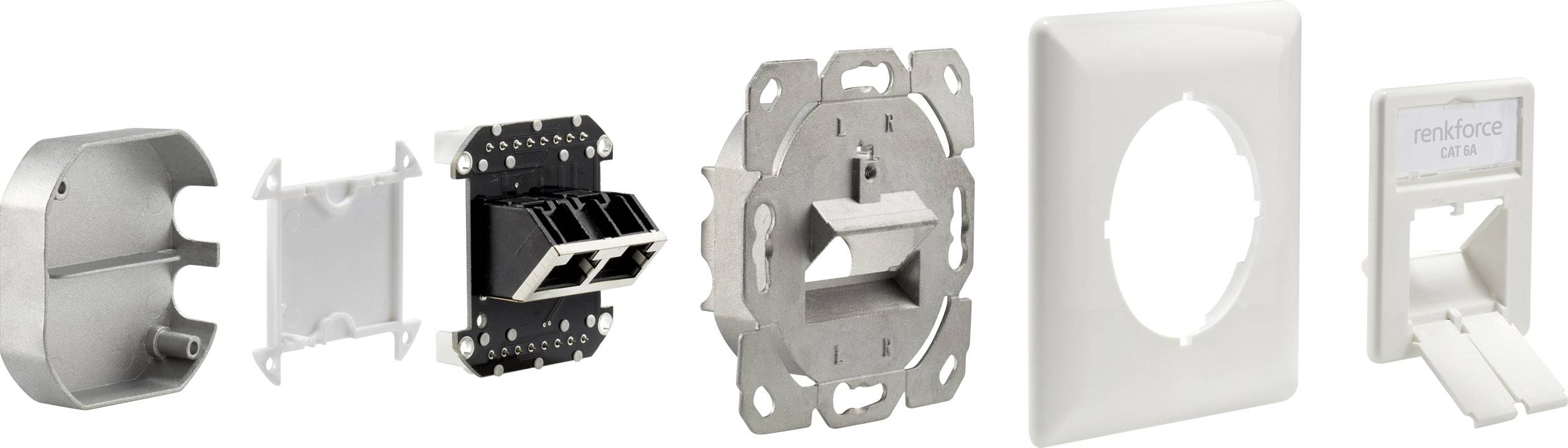

So simply works the Installation
The connection of a network socket is a task, which is also a hobby electricians can handle. If you step by step, the connection is done quickly and easily:
1. Insulate the with a knife the LAN installation cable, so that the braided shielding backwards can be ready for use.
2. Do not remove the associated pairs in pair shielding
3. LAN cable in the clip of the zugentlatung slide and pairs sorting
4. Insulation and remove the wire pairs with a punch-down tool in the provided plug-in terminals connections press-fit
5. Cut off any excess cable
6. Rear cover of the socket attached
7. Main panel and frame

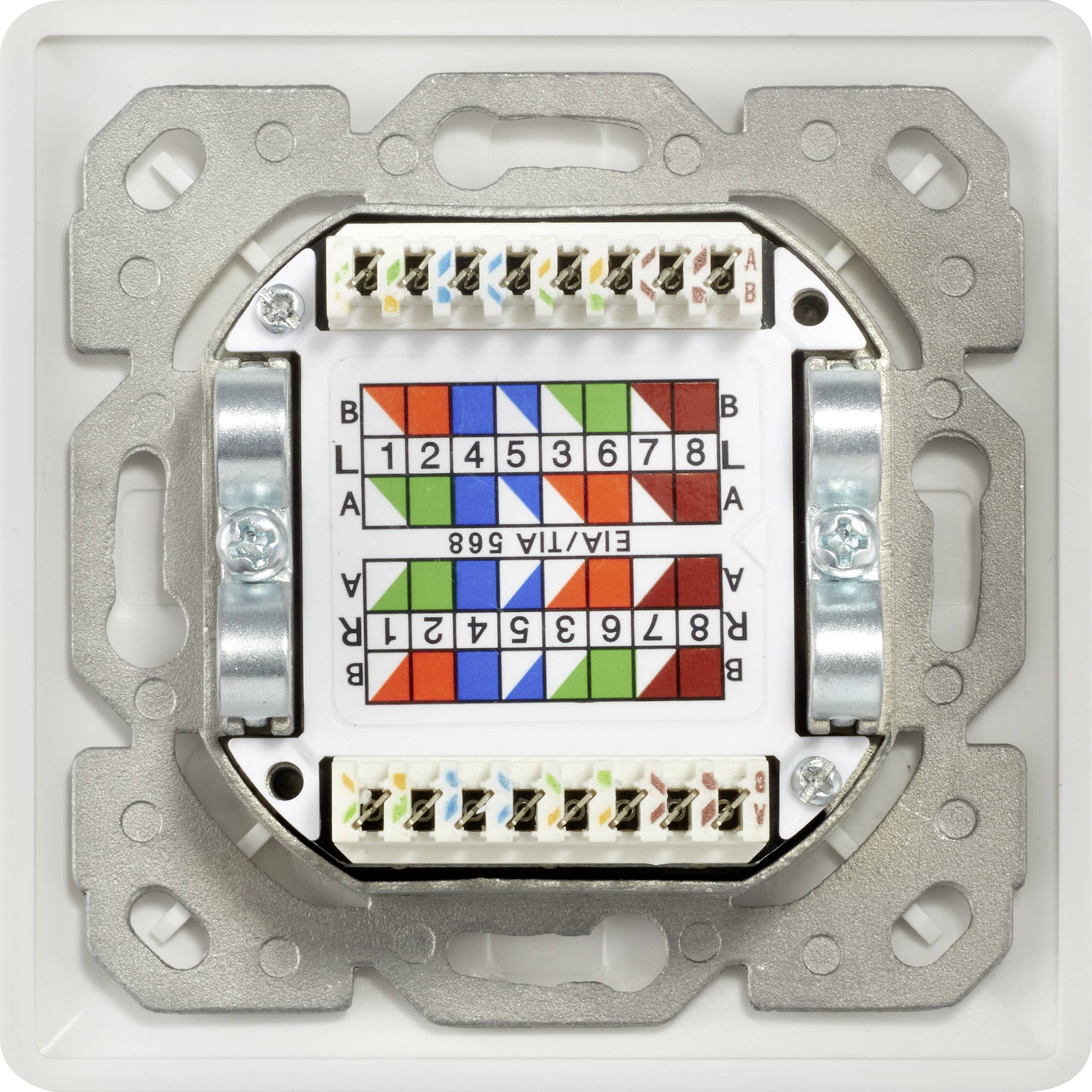

Wiring standard to Permanent Link Class EA
The Netzwerkose is in accordance with ISO/IEC 11801 Class EA assigned. The Link Class "EA" has a bandwidth of 500 MHz and is suitable for high-speed networks. These link class, for example, in 10GBase-T.
