Kathrein EXR 25016 SAT multiswitch Inputs (multiswitches): 5 (4 SAT/1 terrestrial) No. of participants: 16 Standby mode,
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 217.65 / piece)
€ 217.65
plus VAT.
Only 1 Piece(s) available
Highlights & Details

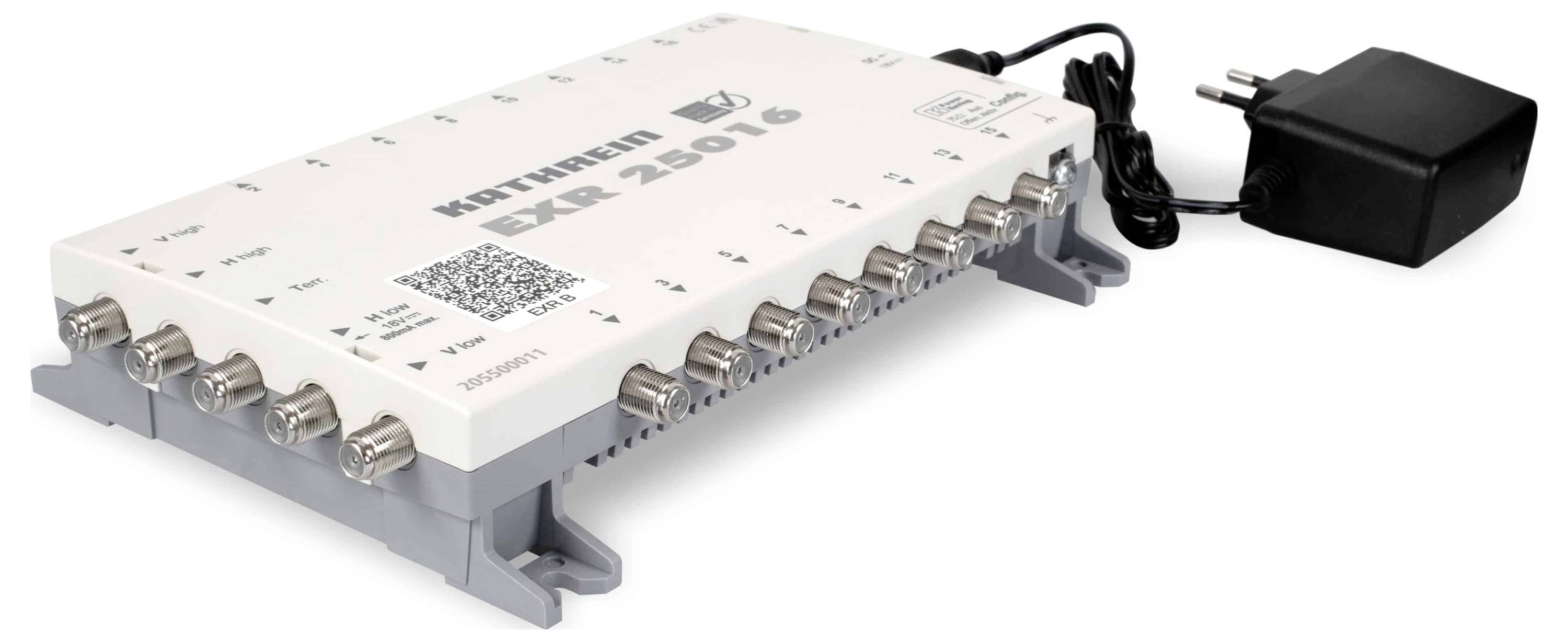

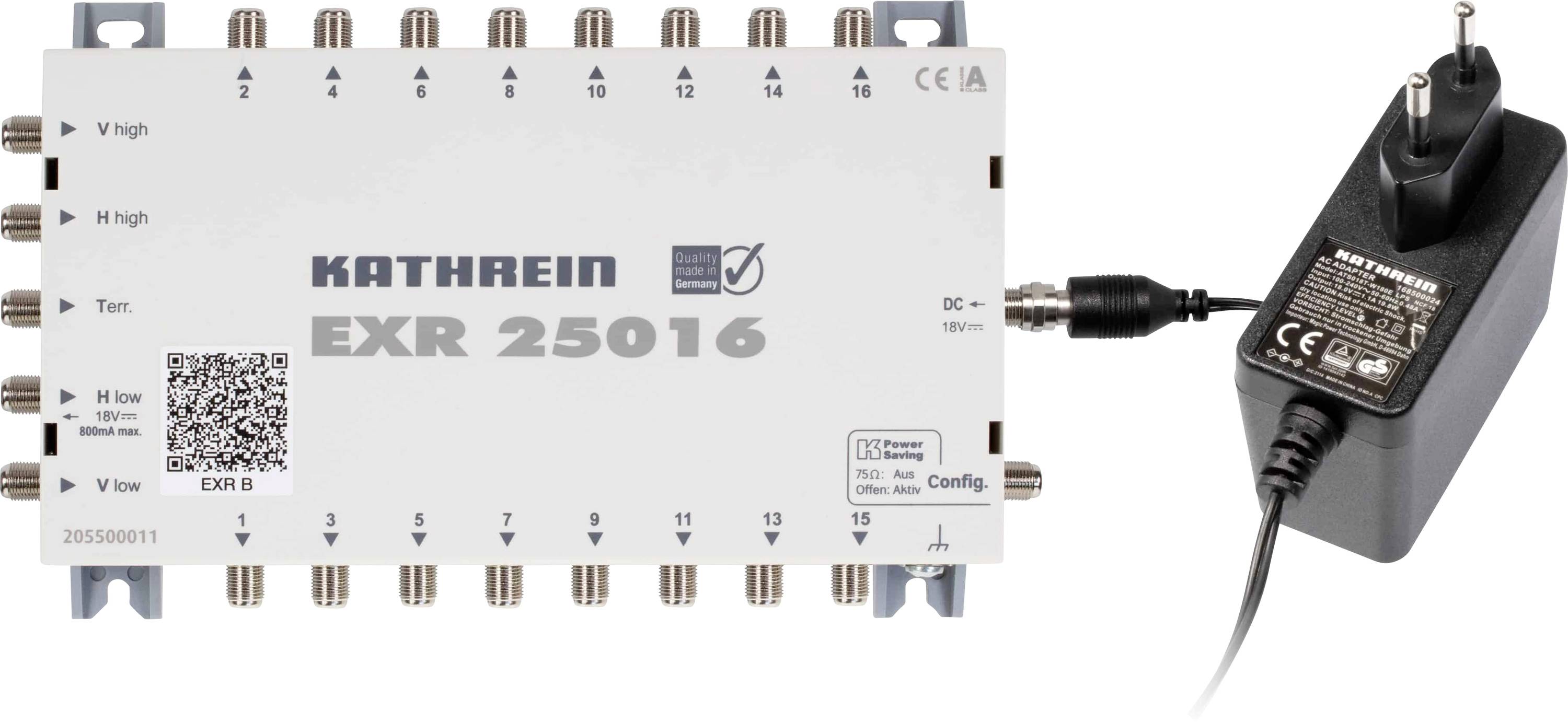

EXR 25016 multi-switch
- High capacity and versatility: the multi-switch can cascaded and allows the distribution of four satellite levels and terrestrial signals. It has five inputs (1 x terr. And 4 x sat-ZF) and 16 subscriber connections
- Efficiency through Kathrein-Power-Saving: The Kathrein-Power-Saving function switches off the LNB voltage supply as soon as no receiver is active anymore
Technical specifications
- 14/18 V, 0/22 kHz control /Max. Output level 109 dBµV. / External power supply required via power supply NCF 18. / Protection class IP 30.
- Product type
SAT multiswitch
- Inputs (multiswitches)
5 (4 SAT/1 terrestrial)
- Participants
16
- Quad LNB compatibilty
Yes
- Min. frequency
5 MHz
- Max. frequency
2150 MHz
- Features
Standby mode
Quad LNB compatible
- Width
239 mm
- Height
148 mm
- Depth
43 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3479038 Kathrein EXR 25016 SAT multiswitch Inputs (multiswitches): 5 (4 SAT/1 terrestrial) No. of participants: 16 Standby mode,
User & Safety Instructions
User & Safety Instructions 3479038 Kathrein EXR 25016 SAT multiswitch Inputs (multiswitches): 5 (4 SAT/1 terrestrial) No. of participants: 16 Standby mode,
Description
Maximise your signal distribution with the Kathrein EXR 25016.
This cascaded multi-switch was developed for indoor mounting and reliably distributes signals from the terrestrial range (5 - 862 MHz) and four SAT-levels (950 - 2150 MHz).
With 5 inputs and 16 subscriber connections, it offers maximum flexibility. An integrated amplifier and pre-phase provide for optimum signal quality and low connection attenuations. Even with switched off satellite receiver the reception of the terrestrial range is possible. Rely on high decoupling (up to 40 dB base decoupling) and save energy with Kathrein Power saving
This text is machine translated.
This cascaded multi-switch was developed for indoor mounting and reliably distributes signals from the terrestrial range (5 - 862 MHz) and four SAT-levels (950 - 2150 MHz).
With 5 inputs and 16 subscriber connections, it offers maximum flexibility. An integrated amplifier and pre-phase provide for optimum signal quality and low connection attenuations. Even with switched off satellite receiver the reception of the terrestrial range is possible. Rely on high decoupling (up to 40 dB base decoupling) and save energy with Kathrein Power saving
This text is machine translated.
