Klingspor 337729 DT 350 A Extra Diamond cutting disc Diameter 300 mm Bore diameter 25.4 mm Asphalt, Limestone 1 pc(s)

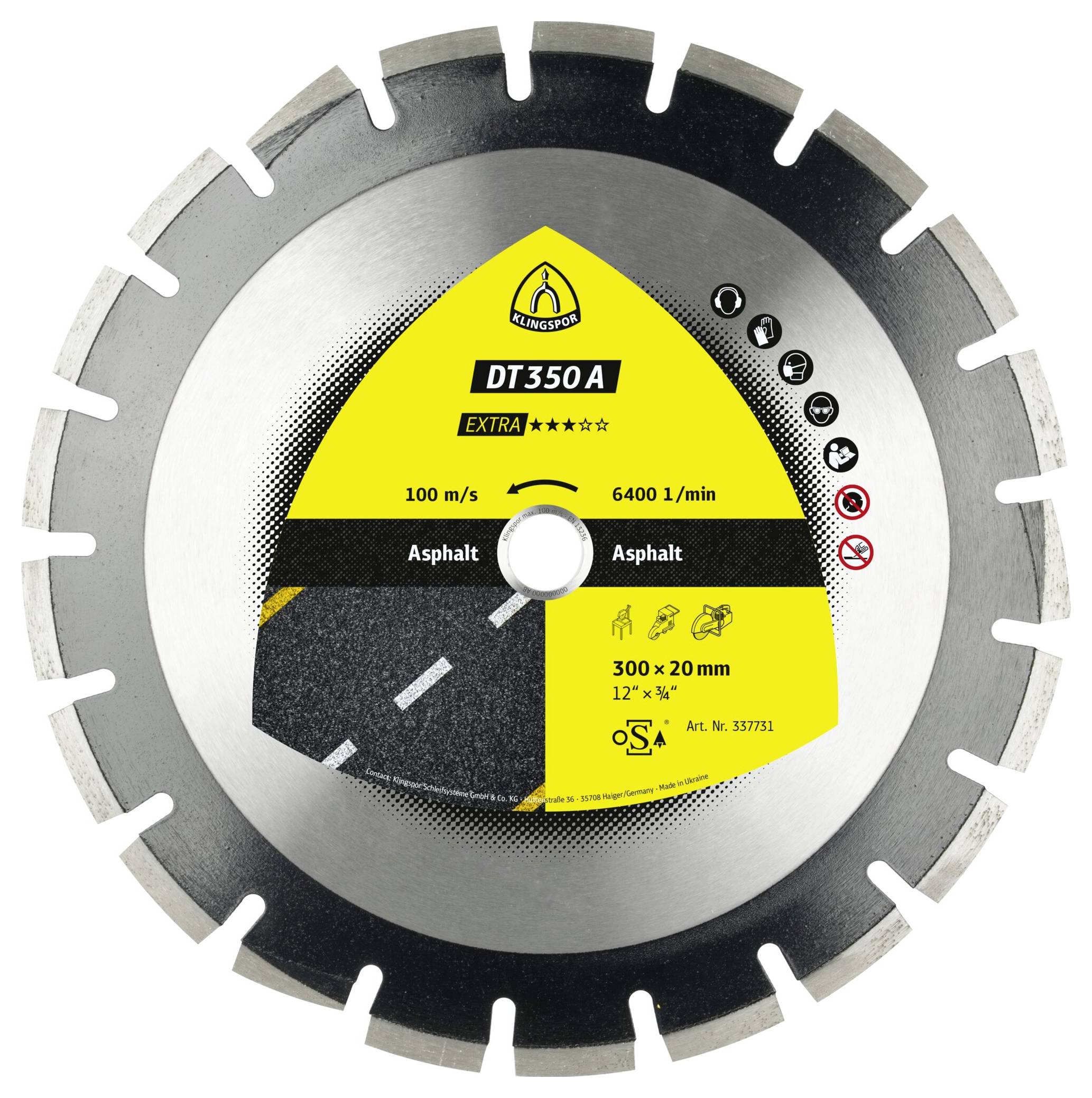

A circular saw blade labeled 'DT350 A Extra' for cutting asphalt, showing specs: 100 m/s, 6400 1/min, 300 x 20 mm, 12". OSA-certified.
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 73.99 / piece)
€ 73.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

DT 350 A diamond cutting discs, 300 x 2.8 x 25.4 mm 18 segments 40 x 2.8 x 10 mm, wide toothed

  • Diamond cutting disc with outstanding price performance ratio for general repair work
  • Specially developed for applications on asphalt
  • Angular protection segment to avoid back loops and optimum protection of the master blade
  • 'Water resistance' symbol featuring a shield, water droplets, and a plus sign inside a circle.
  • Symbol of a windshield defroster, showing air flow directed towards a windshield to clear fog or frost.
  • Cross-section diagram of a gear showing teeth and circular design, highlighting mechanical structure.
  • Symbol inside a circle showing a two-legged figure with a straight back labelled '90°', crossed by two lines indicating incorrect posture.
  • 'Black and white icon depicting a tire, a droplet with a plus sign, and a droplet with a slash, suggesting water-repellent feature.'
  • Windshield defrost indicator icon, showing a bent rectangle with curved lines and an arrow pointing downward, suggesting air direction.
  • A close-up illustration of a tire tread design inside a circle, highlighting grooves and patterns for enhanced traction.
  • A symbol showing a crossed-out figure with a bent knee and '90°', indicating to avoid bending or sitting with a 90-degree angle.
  • Circular saw blade with a starburst icon indicating a warning or danger, likely related to the blade's operation or maintenance.
  • A line drawing of a circular saw, showing the blade guard and handle, often used for cutting wood or other materials in construction.
  • '10 kW' next to a line drawing of a small steamroller, indicating power output.

Technical specifications

  • Usage type: Petrol separator, joint cutter
  • Aggressivity: Medium
  • Design: Laser welded
  • Segmentation: Widely interlinked
  • Service life: Low
  • Top speed 100 m/s.
  • Maximum speed 6400 rpm
  • Machine type: Joint cutter
  • Edge design: Wide teethed
  • Number of segments: 18 pcs
  • Segment width 2.8 mm
  • Segment height 10 mm
  • Segment length 40 mm
Product type

Diamond cutting disc

Material suitability

Asphalt

Limestone

Bore Ø

25.4 mm

Dim

(Ø) 300 mm

(Ø)

300 mm

Rotational speed (max.)

6400 U/min

Features

Diamond

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3530270 Klingspor 337729 DT 350 A Extra Diamond cutting disc Diameter 300 mm Bore diameter 25.4 mm Asphalt, Limestone 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3530270 Klingspor 337729 DT 350 A Extra Diamond cutting disc Diameter 300 mm Bore diameter 25.4 mm Asphalt, Limestone 1 pc(s)

Information

Information 3530270 Klingspor 337729 DT 350 A Extra Diamond cutting disc Diameter 300 mm Bore diameter 25.4 mm Asphalt, Limestone 1 pc(s)

Description

The laser-welded DT 350 A extra with angular protection segments is Ideal for cutting asphalt. It offers proven Klingspor brand quality with good cutting power at an attractive price.

This text is machine translated.
