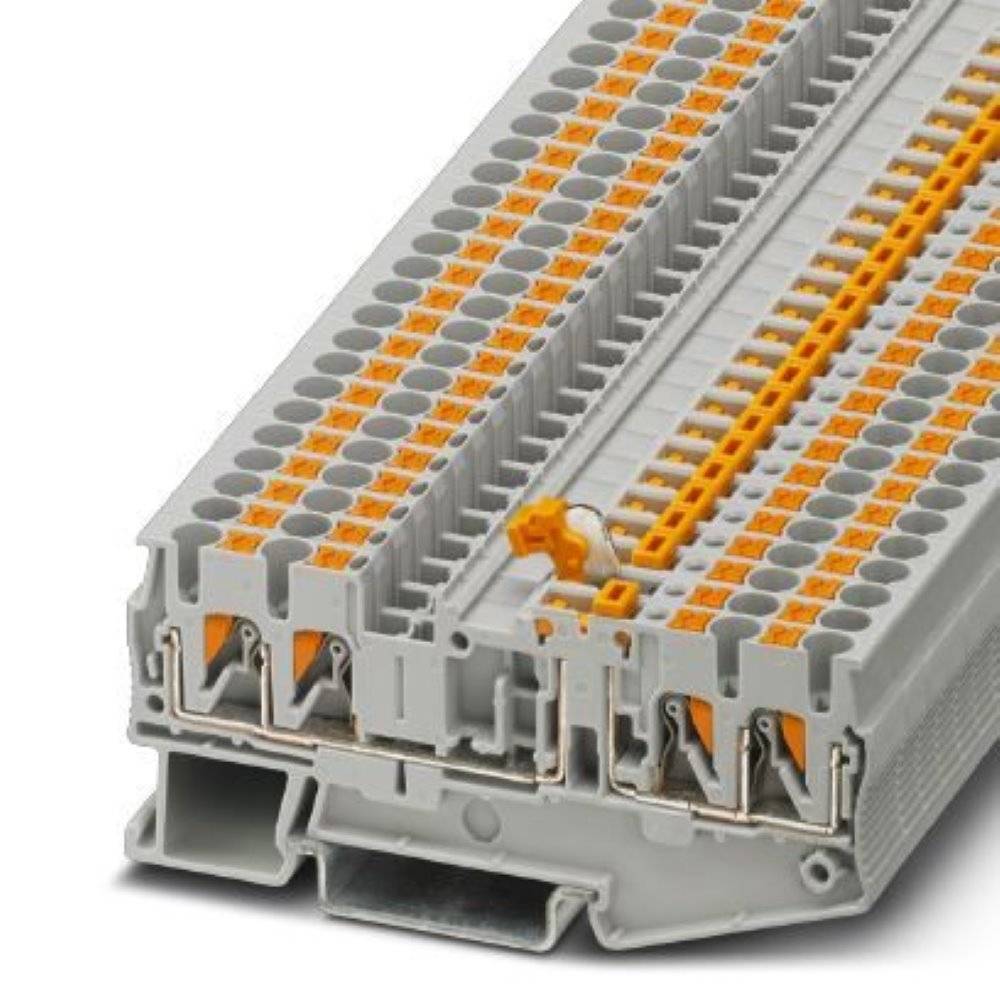

Name: Knife disconnect terminal block PT 2,5-QUATTRO-MT 3210172 Phoenix Contact
Brand: Phoenix Contact
SKU: 566333
Availability: InStock

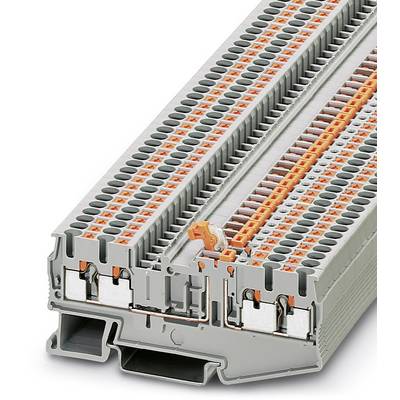

'Electrical terminal blocks, grey housing with orange levers, showing internal wiring and connection rows.'

Image similar

Product type

N terminal

Connection

Quick-connect

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (max.)

4 mm²

Nominal current - rounded value

20 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

6 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 3.40 / piece)

€ 169.99

incl. VAT

Only 6 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: N terminal

Connection: Quick-connect

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 4 mm²

AWG (min.): 26

AWG max.: 14

Clamp width: 5.2 mm

No. of rows: 1

Number of pins: 4

Factory colour: Grey

Nominal current: 20 A

Nominal current - rounded value: 20 A

Nominal voltage: 400 V

Min. stripping length: 8 mm

Stripping length (max.): 10 mm

Manufacturer part #: 3210172

Content: 50 pc(s)

Industrial packaging: Yes

Type: PT 2,5-QUATTRO-MT

Dim: (L x W x H) 84 x 5.2 x 36.5 mm

Width: 5.2 mm

Height: 36.5 mm

Length: 84 mm

Contamination level: 3

Flammability rating: V0

Insulation material: PA

Insulation: PA

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connection

Cross section (flexible) (max.)

Cross section (flexible) (min.)

Cross section (inflexible) (max.)

Cross section (inflexible) (min.)

Factory colour

Nominal current - rounded value

Product type

Knife disconnect terminal block PT 2,5-QUATTRO-MT 3210172 Phoenix Contact

Item no:566333

Fast track dispatch on Thu 29 Oct

6 Set(s)Conrad Electronic

This article

Quick-connect

2.5 mm²

0.14 mm²

4 mm²

0.14 mm²

Grey

20 A

N terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 169.99^*

Feed-through terminal block ST 4-HEDI 3035140 Phoenix Contact

Item no:565839

Dispatches on Fri 30 Oct

9 Set(s)Conrad Electronic

Pull spring

4 mm²

0.08 mm²

6 mm²

0.08 mm²

Black

20 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 295.00^*

Knife disconnect terminal block PT 2,5-MT BU 3211650 Phoenix Contact

Item no:566441

Dispatches on Fri 30 Oct

350 Set(s)Conrad Electronic

Quick-connect

2.5 mm²

0.14 mm²

4 mm²

0.14 mm²

Blue

20 A

N terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

Knife disconnect terminal block PT 2,5-MT OG 3212316 Phoenix Contact

Item no:566452

Dispatches on Fri 30 Oct

162 Set(s)Conrad Electronic

Quick-connect

2.5 mm²

0.14 mm²

4 mm²

0.14 mm²

Orange

20 A

N terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 149.99^*

Knife disconnect terminal block PT 2,5-QUATTRO-MT BU 3211676 Phoenix Contact

Item no:566440

Dispatches on Fri 30 Oct

65 Set(s)Conrad Electronic

Quick-connect

2.5 mm²

0.14 mm²

4 mm²

0.14 mm²

Blue

20 A

N terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 169.99^*

Knife disconnect terminal block PT 2,5-TWIN-MT 3210169 Phoenix Contact

Item no:566332

Dispatches on Fri 30 Oct

967 Set(s)Conrad Electronic

Quick-connect

2.5 mm²

0.14 mm²

4 mm²

0.14 mm²

Grey

20 A

N terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Knife disconnect terminal block PT 2,5-TWIN-MT BU 3211663 Phoenix Contact

Item no:566442

Dispatches on Fri 30 Oct

120 Set(s)Conrad Electronic

Quick-connect

2.5 mm²

0.14 mm²

4 mm²

0.14 mm²

Blue

20 A

N terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Knife disconnect terminal block STS 2,5-MT 3036990 Phoenix Contact

Item no:565690

Dispatches on Fri 30 Oct

206 Set(s)Conrad Electronic

Pull spring

2.5 mm²

0.08 mm²

4 mm²

0.08 mm²

Grey

20 A

N terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

Knife disconnect terminal block STS 2,5-MT BU 3035425 Phoenix Contact

Item no:566236

Dispatches on Wed 2 Dec

Conrad Electronic

Pull spring

2.5 mm²

0.08 mm²

4 mm²

0.08 mm²

Blue

20 A

N terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

Knife disconnect terminal block ZDMTK 2,5 3005798 Phoenix Contact

Item no:565333

Dispatches on Fri 30 Oct

11 Set(s)Conrad Electronic

Pull spring

2.5 mm²

0.2 mm²

4 mm²

0.2 mm²

Grey

16 A

N terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 825.00^*

Documents & Downloads

Datasheet

Datasheet 566333 Knife disconnect terminal block PT 2,5-QUATTRO-MT 3210172 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 566333 Knife disconnect terminal block PT 2,5-QUATTRO-MT 3210172 Phoenix Contact

Description

Knife disconnect terminal block, Connection type: Push-in connection, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Nominal current: 20 A, Nominal voltage: 400 V, Length: 84 mm, Width: 5.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15
