Name: Knipex 98 99 12 26-Piece Electricians Tool Case
Brand: Knipex
SKU: 816629
Availability: InStock

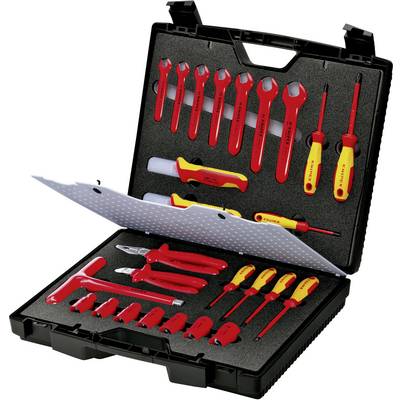

A black toolbox reveals a variety of red and yellow insulated hand tools, including screwdrivers and pliers.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

4 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 669.00 / piece)

€ 669.00

incl. VAT

Only 4 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Knipex 98 99 12 26-Piece Electricians Tool Case

Containing a range of insulated KNIPEX tools for works on electrical installations
Shock-resistant plastic case
Foam inserts with recesses for the tools
iFxable partition wall
Dimensions, exterior (W x H x D): 440 x 105 x 385 mm

Technical specifications

Product type: Tool kit

Range of uses: Electrical contractor

Car phone holder features: Case

Weight: 4230 g

Material (details): IMpact-resistant plastic case

Type: 98 99 12

Documents & Downloads

Datasheet

Datasheet 816629 Knipex 98 99 12 26-Piece Electricians Tool Case

User & Safety Instructions

User & Safety Instructions 816629 Knipex 98 99 12 26-Piece Electricians Tool Case

Description

The Knipex 98 99 12 26-Piece Electricians Tool Case is equipped with an assortment of conventional insulated KNIPEX-tools for working on electrical systems, tested according to DIN EN/IEC 60900: 2004.

Scope of delivery

VDE Combination pliers KNIPEX 03 07 200: chromed, dip-insulated, VDE-tested, IEC 60900, DIN EN 60900, ASTM F1505, with grip zones for flat and round materials, with cutters for soft and hard wires, long cutting for thicker cables, cutter inductive-hardened in addition, cutting hardness approx. 60 HRC, special tool steel, hardened in oil and tempered, max. cutting value: medium-hard/hard wire Ø 3.8/2.5 mm, CU-/AL: Ø 13 mm, length 200 mm
VDE Side-cutter KNIPEX 70 07 160: DIN ISO 5749, chromed, dip-insulated, VDE-tested, with facette, IEC 60900, DIN EN 60900, ASTM F1505, precision cutting for soft and hard wire, clean cut at the cutting edges, even in case of thin Cu-wires, cutter inductive-hardened in addition, cutting hardness approx. 62 HRC, slim head shape for use in work areas difficult to access, vanadium electo-steel, hardened in oil and tempered, max. cutting value: soft/medium-hard/hard wire: Ø 4/2.8/2 mm, length 160 mm
7 single-head wrenches SW 10/11/12/13/14/17/19 mm insulated till 1000 V: Head position 15° base tool chrome-plated, forged from chromium-vanadium steel, tested according to DIN EN/IEC 60900 : 2004
VDE Stripper knife KNIPEX 98 53 03: stable, fixed hook-blade, blade hardened in oil and tempered, grip with anti-skid protection, transparent protective cap, VDE-tested according to DIN EN/IEC 60900 : 200, blade length 28 mm, radius 7 mm, length 155 mm
4 VDE slotted screwdrivers: 2.5 x 75/3.5 x 100/4.0 x 100/5.5 x 125 mm
3 VDE slotted PH-screwdrivers: PH 0/PH 1/PH 2
Cross-handle with outer hexagon 12.5 mm (1/2") KNIPEX 98 40 insulated till 1000 V: For accepting socket wrench inserts, fast, secure and easy locking of the activation tools, base tool chrome-plated, special tool steel, square hardened in oil and tempered, tested according to DIN EN/IEC 60900 : 2004, Cross-handle 165 mm, length 200 mm
7 socket-wrench inserts with inner hexagon 12.5 mm (1/2") 10/11/12/13/14/17/19 mm insulated till 1000 V: Base tool chrome-plated, chromium-vanadium steel, tested according to DIN EN/IEC 60900 : 2004
VDE cable stripping knife KNIPEX 98 52: Ergonomic grip with stable, fixed blade, tested according to DIN EN 60 900 and VDE standard, transparent protective cap, blade length 50 mm, length 180 mm
Case.
