Name: Knipex PreciForce 97 52 36 SB Crimper Insulated cable lugs, Insulated connectors, Insulated butt connectors 0.5 up to 6
Brand: Knipex
SKU: 826970
Availability: SoldOut

A red and blue crimping plier with a blue cable between them, suitable for cables from AWG 20-10. Marked 'Knipex'.

A red and blue Knipex crimping pliers for processing wire end ferrules.

Crimping pliers with red and blue handles, suitable for cable end sleeves from 0.5 to 2.5 mm². Manufactured in Germany.

Crimping pliers with red and blue handles, used for crimping connectors. Suitable for cables 0.5-4.0 mm².

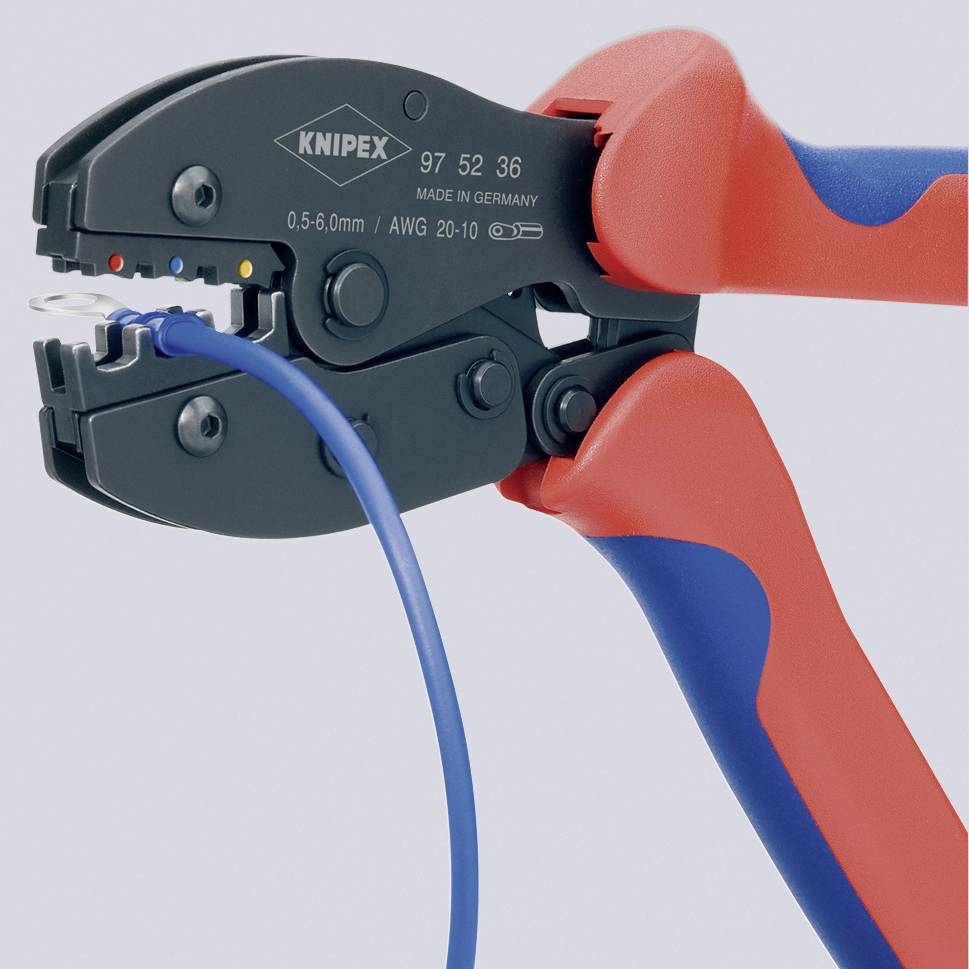

A crimping plier holds a blue cable. The pliers are black with red and blue handles. Suitable for 0.5-6 mm² cables.

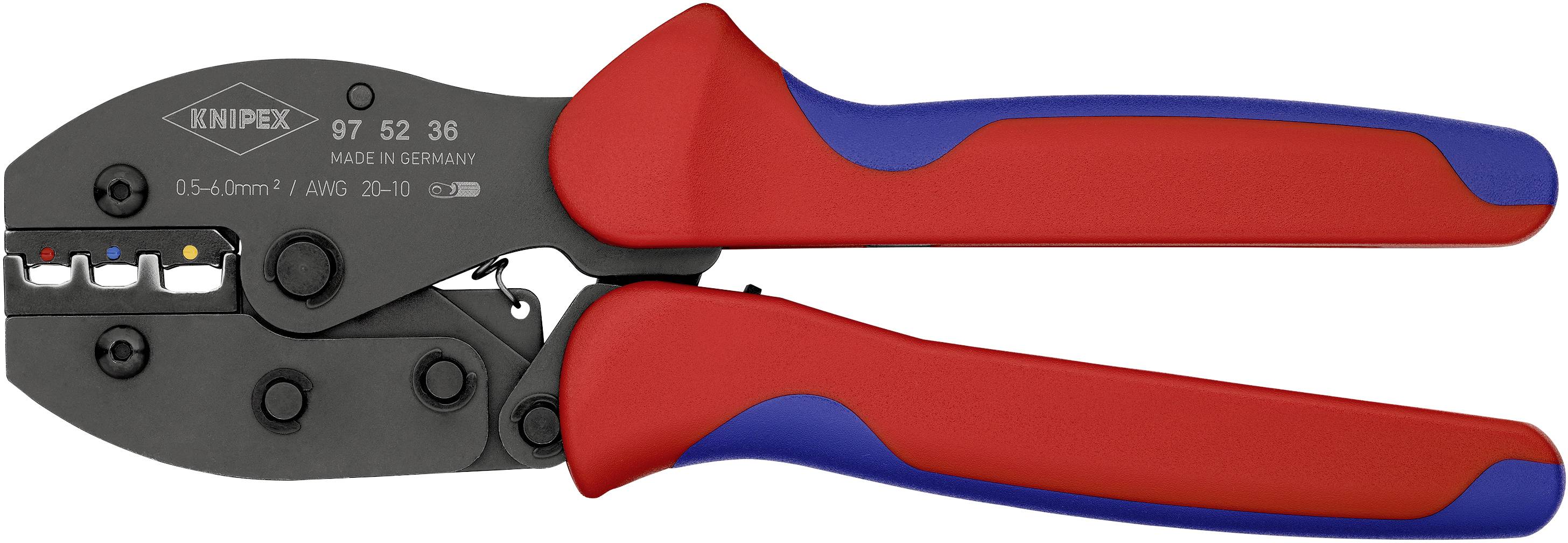

A red and blue Knipex crimping pliers, suitable for crimping cables in the range of 0.5-6.0mm².

A red and blue crimping pliers by Knipex, suitable for use with wire sizes from 0.5 to 6 mm².

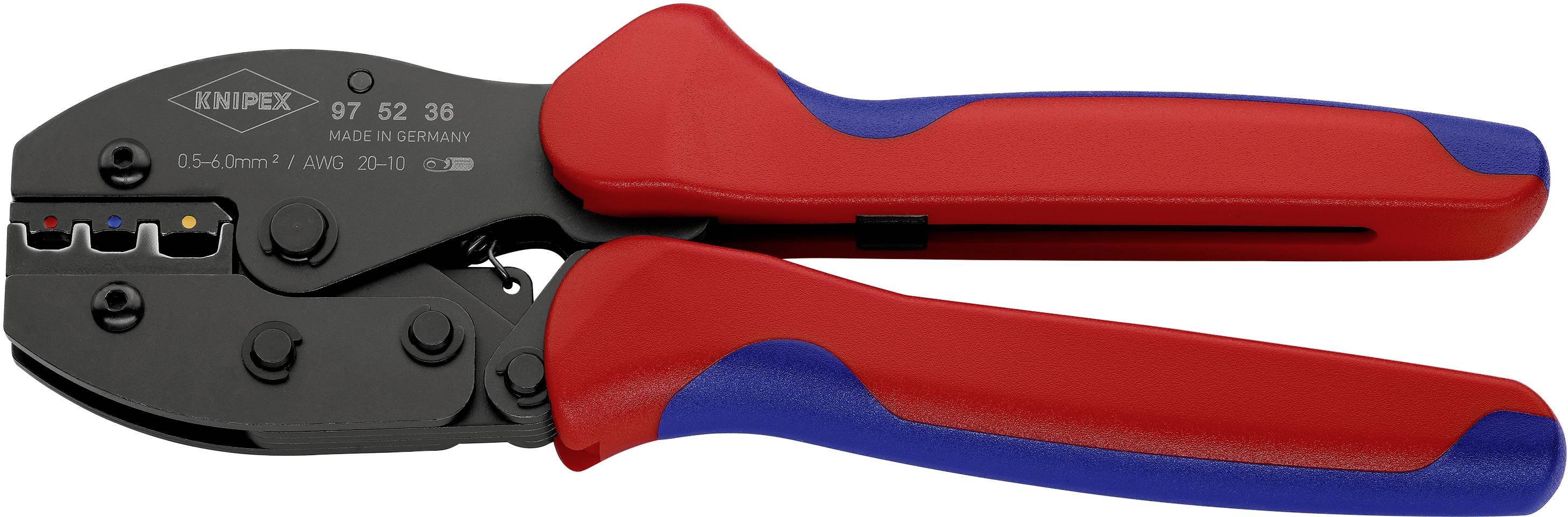

A black crimping pliers with red and blue handles in a closed position, used for connecting cable lugs and connectors.

1/8

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Alternative article by TOOLCRAFT

TOOLCRAFT 1486609 Crimper 1-piece Insulated cable lugs, Insulated connectors, Insulated butt connectors 0.5 up to 6 mm²

€ 35.99

€ 32.99

incl. VAT plus

Highlights & Details

Crimping lever pliers KNIPEX 97 52

Consistent high crimping quality through precision inserts and lock (can be unlocked)
Crimping pressure is factory-precisely adjusted (calibrated), operating positions
Power strengthening through lever transmission for fatigue-free working
Good handling through favorable grip position, low weight, short design and ergonomically-shaped grips
Chromium-vanadium electro-steel in special quality, oil-hardened

Technical specifications

Product type: Crimper

Manufacturer part #: 97 52 36 SB

Range of uses: Insulated cable lugs
Insulated connectors
Insulated butt connectors

Crimp area: 0.5 up to 6 mm²

Crimp area AWG: 10 up to 20 awg

Crimp area (min.): 0.5 mm²

Crimp area (max.): 6 mm²

Crimp area AWG (min.): 20 awg

Crimp area AWG (max.): 10 awg

Length: 220 mm

Material: Chromium-vanadium electric furnace steel

Material properties: burnished
tempered

Width: 70 mm

Height: 50 mm

Weight: 487 g

Factory colour: Multicolour

Range of uses: Type 97 52 36 Insulated cable lugs and connectors

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Range of uses

Crimp area (max.)

Crimp area (min.)

Knipex PreciForce 97 52 36 SB Crimper Insulated cable lugs, Insulated connectors, Insulated butt connectors 0.5 up to 6 mm²

Item no:826970

Unavailable

Conrad Electronic

This article

Insulated cable lugs

6 mm²

0.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Knipex PRECIFORCE 97 52 34 Crimper Non-insulated open end connectors 0.1 up to 2.5 mm²

Item no:821051

Dispatches on Mon 19 Oct

Conrad Electronic

Non-insulated open end connectors

2.5 mm²

0.1 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Knipex PRECIFORCE 97 52 38 Crimper Ferrules 0.25 up to 6 mm²

Item no:821053

Fast track dispatch on Fri 16 Oct

15 Piece(s)Conrad Electronic

Ferrules

6 mm²

0.25 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

Knipex PreciForce 97 52 33 Crimper Non-insulated spade terminals, Non-insulated crimp cable lugs, Non-insulated crimp contacts, Non-insulated crimp connectors, Non-insulated butt connectors 1 up to 10 mm²

Item no:813466

Fast track dispatch on Fri 16 Oct

34 Piece(s)Conrad Electronic

Non-insulated spade terminals

10 mm²

1 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

Knipex PreciForce 97 52 35 Crimper Non-insulated open end connectors 0.5 up to 6 mm²

Item no:826957

Fast track dispatch on Fri 16 Oct

10 Piece(s)Conrad Electronic

Non-insulated open end connectors

6 mm²

0.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Knipex PreciForce 97 52 37 Crimper Heatshrink terminals 0.5 up to 6 mm²

Item no:814495

Fast track dispatch on Fri 16 Oct

14 Piece(s)Conrad Electronic

Heatshrink terminals

6 mm²

0.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 97.99^*

Knipex PreciForce 97 52 50 Crimper BNC, TNC coax connectors RG58, RG174, RG188, RG316

Item no:826983

Fast track dispatch on Fri 16 Oct

25 Piece(s)Conrad Electronic

BNC, TNC coax connectors

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

Knipex PRECIFORCE 97 52 30 Crimper Non-insulated crimp connectors 1.5 up to 10 mm²

Item no:821052

Currently not available

29 Piece(s)Conrad Electronic

Non-insulated crimp connectors

10 mm²

1.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 826970 Knipex PreciForce 97 52 36 SB Crimper Insulated cable lugs, Insulated connectors, Insulated butt connectors 0.5 up to 6

Description

For solder-free electrical connections Consistent high crimping quality through precision inserts and lock (can be unlocked) Cirmping pressure is precisely set (calibrated) at the factory High Power strengthening through lever transmission for fatigue-free working. Good handling through favorable grip position, low weight, short design and ergonomically shaped grips. Chromium-vanadium electro-steel in special quality, oil-hardened

This text is machine translated.

Features

With precise profies and locking catch, for making standard electrical connections with constant high crimp quality
Cimping pressure is set precisely (calibrated) at the factory
The high rate of leverage provided by the lever lets you work effortlessly
The well-positioned handles, low weight, short design and ergonomically shaped handle grips make the pliers a pleasure to handle. All stressed parts are made of special oil-hardened and tempered steel.

Description

Features

With precise profies and locking catch, for making standard electrical connections with constant high crimp quality
Cimping pressure is set precisely (calibrated) at the factory
The high rate of leverage provided by the lever lets you work effortlessly
The well-positioned handles, low weight, short design and ergonomically shaped handle grips make the pliers a pleasure to handle. All stressed parts are made of special oil-hardened and tempered steel.
