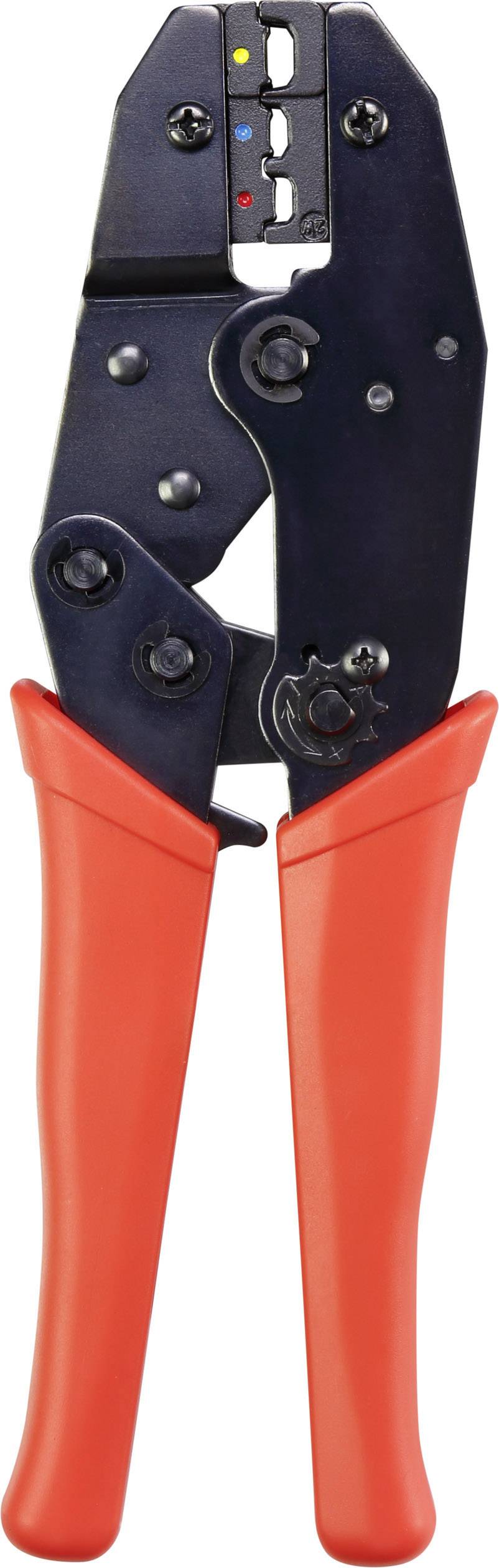

TOOLCRAFT 1486609 Crimper 1-piece Insulated cable lugs, Insulated connectors, Insulated butt connectors 0.5 up to 6 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 30.24
-17 %
€
Highlights & Details
For insulated crimp-type connectors
- Insulated terminal
Technical specifications
- Crimp area:
- 0.5 mm² - 1.0 mm² (AWG 22-18)
- 1.5 mm² - 2.5 mm² (AWG 16-14)
- 4.0 mm² - 6.0 mm² (AWG 12-10)
- Manufacturer part #
1486609
- Range of uses
Insulated cable lugs
Insulated connectors
Insulated butt connectors
- Crimp area
0.5 up to 6 mm²
- Crimp area AWG
10 up to 22 awg
- Crimp area (min.)
0.5 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
22 awg
- Crimp area AWG (max.)
10 awg
- Length
218 mm
- Material
Carbon steel
- Material properties
tempered
- Suitable for
TOOLCRAFT
- Width
68 mm
- Height
23 mm
- Weight
500 g
- Product type
Crimper
Variants(All information is without VAT, plus shipping costs)
Range of uses
Crimp area (max.)
Crimp area (min.)
TOOLCRAFT 1486609 Crimper 1-piece Insulated cable lugs, Insulated connectors, Insulated butt connectors 0.5 up to 6 mm²
This article
Insulated cable lugs
6 mm²
0.5 mm²
Minimum order quantity: 1
Multiple: 1
€ 25.20*
TOOLCRAFT 1486699 Crimper 1-piece Non-insulated open end connectors 0.5 up to 6 mm²
Non-insulated open end connectors
6 mm²
0.5 mm²
Minimum order quantity: 1
Multiple: 1
€ 17.64*
TOOLCRAFT 1486700 Crimper Coax connector RG6, RG58, RG59, RG62
Coax connector
Minimum order quantity: 1
Multiple: 1
€ 26.88*
Documents & Downloads
Datasheet
Datasheet 1486609 TOOLCRAFT 1486609 Crimper 1-piece Insulated cable lugs, Insulated connectors, Insulated butt connectors 0.5 up to 6 mm²
User & Safety Instructions
User & Safety Instructions 1486609 TOOLCRAFT 1486609 Crimper 1-piece Insulated cable lugs, Insulated connectors, Insulated butt connectors 0.5 up to 6 mm²
Warranty Terms
Warranty Terms 1486609 TOOLCRAFT 1486609 Crimper 1-piece Insulated cable lugs, Insulated connectors, Insulated butt connectors 0.5 up to 6 mm²
Description
For crimping insulated cable lugs and impact connectors and spade connectors.
Features
- Ratchet mechanism
- Toothed wheel for torque setting (with fixing screw)
- Release Lever for unlocking the lock in the event of a wrong crimping
- rubberized handles for a comfortable handling.
Scope of delivery
- 1 x crimp pliers
