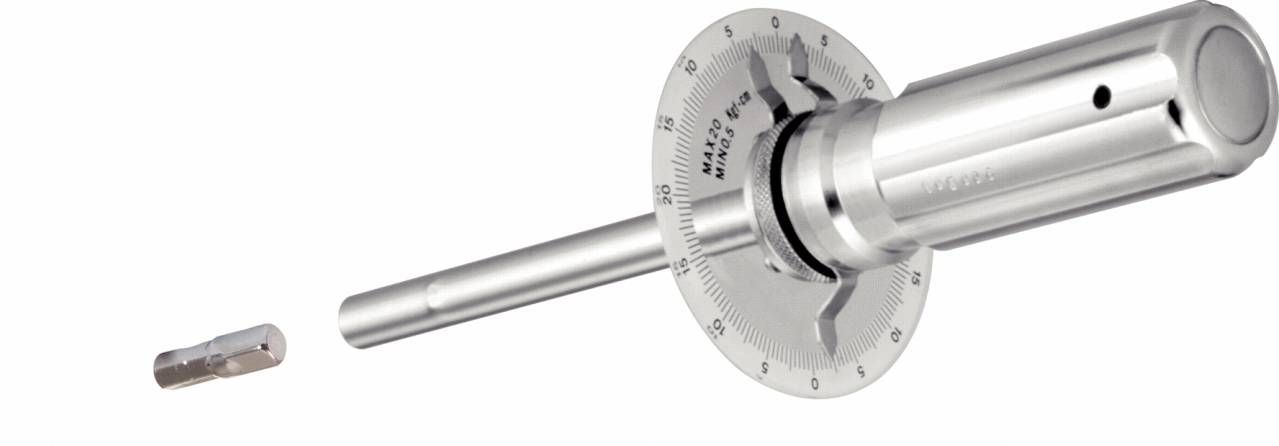

A cylindrical metal tool with a scale that is inserted into a lock, and a small, separate metal cylinder.

A cylindrical metal tool with a scale that is inserted into a lock, and a small, separate metal cylinder.

Four drawings demonstrate step by step how to unwind and hold a yarn from a ball of wool. Hands and tools visible.

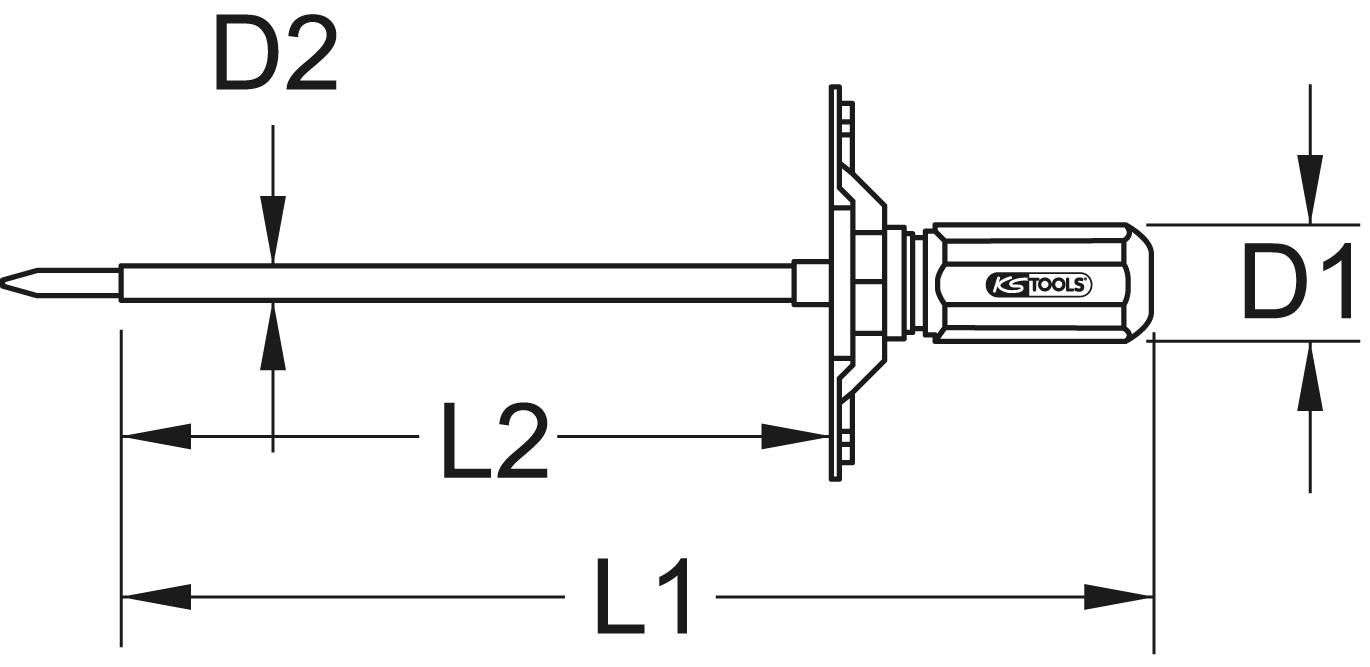

Technical Drawing of a Screwdriver with Dimensions: D1, D2, L1 and L2. Dimensioning lines show various lengths and diameters.

1/3

KS Tools

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 499.00 / piece)

€ 499.00

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Standard DIN 3126 - E 6.3 Weight 420 gFunctional attribute 1: Electrically conductive ESD Total length L1 in mm: 300 mmPart length L2 in mm: 188 mmDiameter D1 48 mmDiameter D2: 14.0 mmDisplay: Dial gauge Screw driver type Torque tool attachment: Bit Trigger accuracy +/-6% Measurement range 100 - 500 Hexagonal admission in mm 6.3 mmHexagonal admission in inches: 1/4"Division cNm: 20.0

Product type: Torque screwdriver

Length: 300 mm

Weight: 420 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2700136 KS Tools 5163270 Torque screwdriver

Description

Measuring accuracy: ±6 % tolerance of the set scale valueAccurate and precise with at least 5,000 load changesFor controlled right and left-wing examinationIndication of test torque screwdriver with drag functionErgonomic shape of the handle for secure torque transmissionHexagon socket to DIN 3126 - E 6.3Electrostatic protectionLightweight design due to aluminum gripsIndividual serial number for clear product identificationIncludes calibration declaration of conformity to DIN EN ISO 6789:2017(E) – traceable to national normal

This text is machine translated.

Description

Measuring accuracy: ±6 % tolerance of the set scale valueAccurate and precise with at least 5,000 load changesFor controlled right and left-wing examinationIndication of test torque screwdriver with drag functionErgonomic shape of the handle for secure torque transmissionHexagon socket to DIN 3126 - E 6.3Electrostatic protectionLightweight design due to aluminum gripsIndividual serial number for clear product identificationIncludes calibration declaration of conformity to DIN EN ISO 6789:2017(E) – traceable to national normal

This text is machine translated.
