Kyoritsu KEW 2432 Clamp meter, Handheld multimeter Digital CAT III 300 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 457.98 / piece)
€ 457.98
plus VAT.
Only 2 Piece(s) available
Highlights & Details

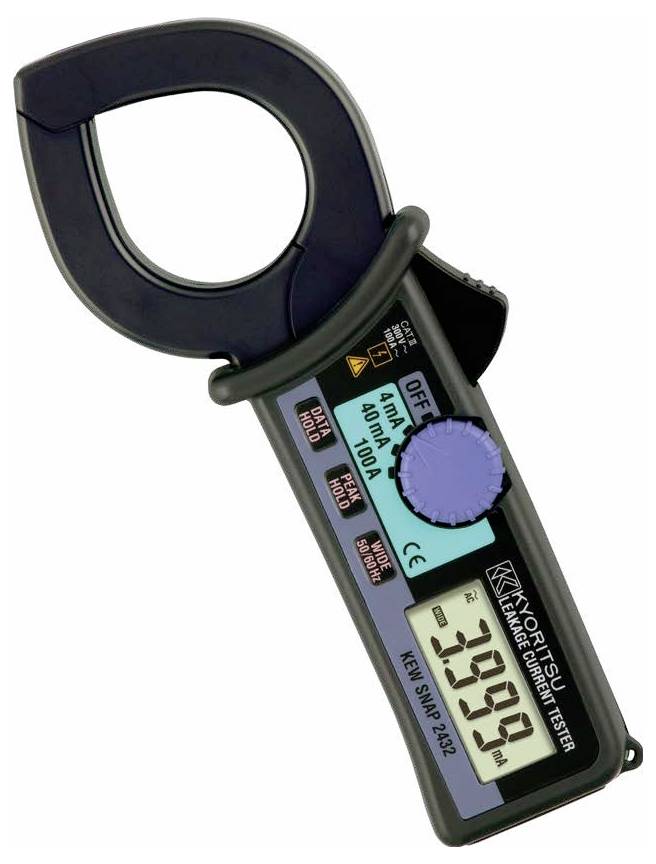

Leakage current pliers KEW 2432
- Resolution 1 µA
- teardrop shape Pliers
Technical specifications
- Product type
Clamp meter
- A AC reading range (min.)
0.001 mA
- Amperage reading range AC (max.)
100 A
- Basic accuracy
1 %
- Measurement type (details)
True RMS
- Frequency range
20 Hz - 1 kHz
- Interfaces
none
- Power supply (details)
2x micro battery (type AAA)
- Height
185 mm
- Width
81 mm
- Weight
270 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 300 V
- Current reading
AC
- Type
KEW 2432
- Display
Digital
- Display (counts)
4000
- Dim
(W x H) 81 mm x 185 mm
- Opening range of current clamps
40 mm
- Resolution
0,001" mA
- Basic accuracy
1 %
- Displays
4000 Counts, LCD
Documents & Downloads
Datasheet
Datasheet 122552 Kyoritsu KEW 2432 Clamp meter, Handheld multimeter Digital CAT III 300 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 122552 Kyoritsu KEW 2432 Clamp meter, Handheld multimeter Digital CAT III 300 V Display (counts): 4000
Description
The compact Leakage current pliers KEW-2432 allows accurate measurements at a very high display resolution. The teardrop shape also allows easy pincer grasp the ladder even in cramped environments. The high accuracy is achieved through built-in frequency filters.
Features
- Bandwidth 20 Hz - 1 kHz
- Frequency filter
- Data-Hold
- Peak-Hold up to 20 ms.
Scope of delivery
- 2 Batteries (type AAA)
- Etui
- Operating instructions
