Kyoritsu KT171 Voltage tester CAT III 690 V, CAT IV 600 V LCD, LED

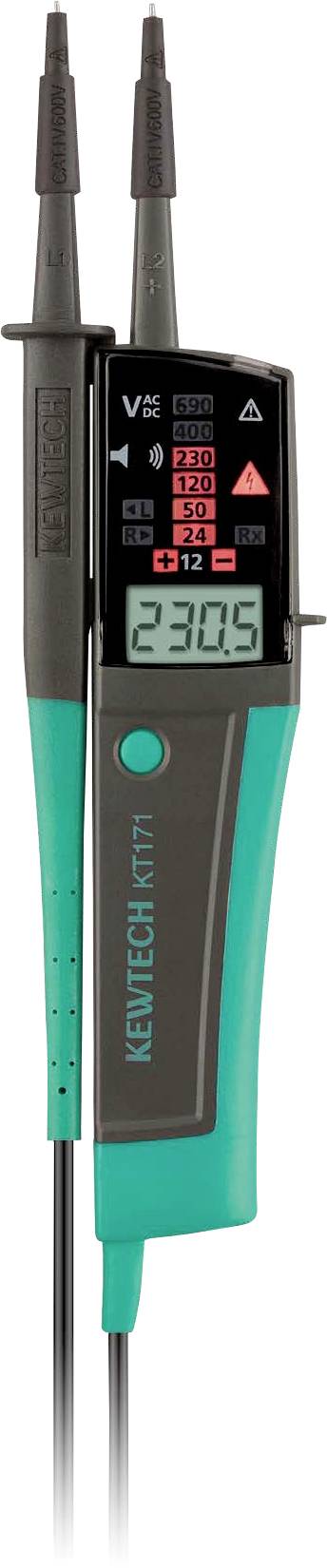

Digital multimeter displaying a reading of '230.5'. Features test leads and a backlit screen. Used for measuring voltage and continuity.
Datasheet (PDF)
EAN:
Part number:
Item no:
2 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 159.99 / piece)
€ 159.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
Only available for business customers
14-day return policy included
Report legal concerns

Highlights & Details

Kyoritsu KT171 voltage tester

  • VOLTAGE RANGE 12-690V AC/DC
  • Auto-Power ON/OFF
  • 2 or 4 mm variable probe tips
  • LED lamp
  • Two-pole and single-pole measurements
  • Dimensions 246x64x26mm
  • Weight 195g

Technical specifications

  • Continuity test: Audio signal and LED (0 to about 400 kΩ).
  • Single-pole phase test 100 V to 690 V AC.
  • Rotary field testing 180 V to 690 V (phase interval 50/60 Hz).
  • Special feature: Integrated measuring point lighting (flashlight function) for making work in dark switching cabinets easier.
  • Safety standard: Conforms to IEC 61243-3 (VDE 0682-401).
Product type

Voltage tester

Reading type

Two pole voltage testing

Display

LCD

LED

V AC reading range

12 up to 690 V

V DC reading range

12 up to 690 V

Reading category

CAT III 690 V

CAT IV 600 V

IP65

Manufacturer's standards (no certificate)

Dim

(L x W x H) 246 x 64 x 24 mm

Weight

190 g

Max. frequency

400 Hz

Frequency range

400 Hz (max)

V AC reading range (max.)

690 V

V AC reading range (min.)

12 V

Voltage DC reading range (max.)

690 V

Voltage reading range DC (min.)

12 V

Width

64 mm

Height

24 mm

Length

246 mm

Type

KT171

Documents & Downloads

Datasheet

Datasheet 3642336 Kyoritsu KT171 Voltage tester CAT III 690 V, CAT IV 600 V LCD, LED

User & Safety Instructions

User & Safety Instructions 3642336 Kyoritsu KT171 Voltage tester CAT III 690 V, CAT IV 600 V LCD, LED

Description

Kyoritsu voltage tester

This text is machine translated.

Scope of delivery

  • Voltage tester,
  • 2x batteries AAA
  • Protective caps for test probes
  • User manual
