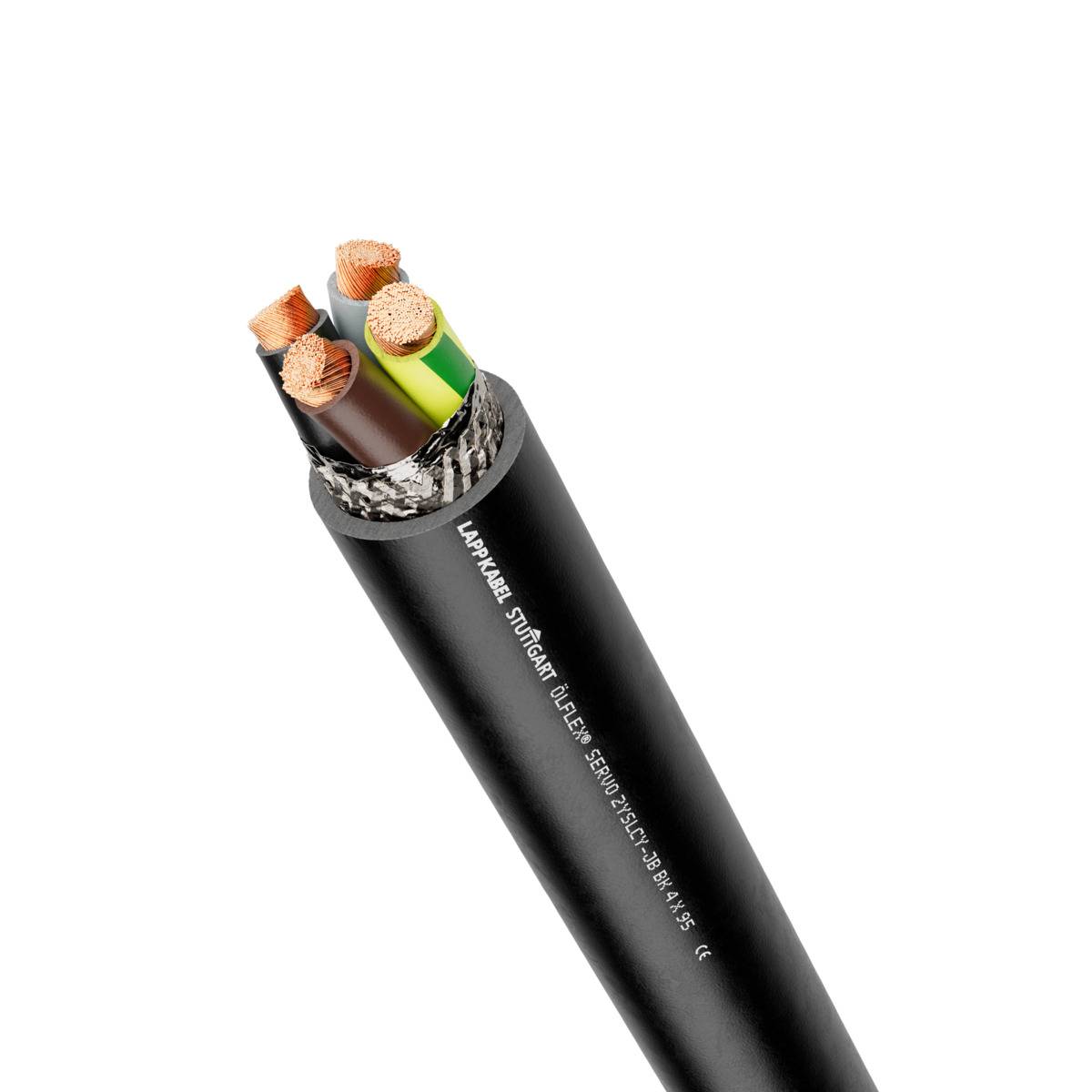

Black LAPP cable, Stuttgart, ÖLFLEX SERVO 2YSLCY-JB BK printed on the cable. Cable cross-section shows multiple insulated wires.

Black LAPP cable, Stuttgart, ÖLFLEX SERVO 2YSLCY-JB BK printed on the cable. Cable cross-section shows multiple insulated wires.

Image similar

LAPP

Product type

Servo lead

No. of leads

4 G

Cross section (each core)

4 mm²

Cable type

ÖLFLEX® SERVO 2YSLCY-JB

Outside Ø

15.60 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (1 m = € 9.37)

€ 9,369.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Ölflex ® SERVO 2YSLCY-JB

Technical specifications

Product type: Servo lead

No. of leads: 4 G

Content: 1000 m

Cross section (each core): 4 mm²

Cable features: Shielded

Cable type: ÖLFLEX® SERVO 2YSLCY-JB

Outside Ø: 15.60 mm

Packaged: Yes

Wire ID code: Colored according to HD 308S 2 VDE 0293-308

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 15

Halogen-free: No

Manufacturer part #: 1136452/1000

Factory colour: Black

Insulation material: PVC

Core layout: Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 5

Sold per metre: No

Nominal voltage: 1000 V

Nominal voltage U0: 600 V

Test voltage: 4000 V

Cross section: 4 G 4 mm²

Max. temperature range (flexible installation): +70 °C

Min. temperature range (flexible installation): -5 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Type: ÖLFLEX SERVO 2YSLCY-JB BK 4G4

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1501942 LAPP ÖLFLEX® SERVO 2YSLCY-JB Servo lead 4 G 4 mm² Black 1136452/1000 1000 m

User & Safety Instructions

User & Safety Instructions 1501942 LAPP ÖLFLEX® SERVO 2YSLCY-JB Servo lead 4 G 4 mm² Black 1136452/1000 1000 m

Description

Ölflex ® SERVO 2YSLCY-JB connection cable for electrical drives great performance and servo applications, EMC-optimized and double-shielded. Connection line from the frequency converter to the engine, paper industry, chemical industry, heavy industry.

This text is machine translated.

Description

Ölflex ® SERVO 2YSLCY-JB connection cable for electrical drives great performance and servo applications, EMC-optimized and double-shielded. Connection line from the frequency converter to the engine, paper industry, chemical industry, heavy industry.

This text is machine translated.
