Laserliner DampMaster Allround Set Moisture meter

1/9
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov

4 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 445.00 / piece)
€ 445.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 4 Piece(s) available
14-day return policy included

Highlights & Details

Universal inspection set for measuring the material humidity in wood and construction materials with digital connection, clear display, alligator clips and deep electrodes

  • Suitable for Building materials, Wood

Technical specifications

Product type

Moisture meter

Building moisture reading accuracy ±

0.15 %

Wood moisture reading accuracy ±

1 %

Manufacturer's standards (no certificate)

Suitable for

Building materials

Wood

Power supply (details)

Operates with 3 AAA batteries

Suitable for

Professional applications in building inspection, insulation testing and in case of hidden component levels.

Width

40 mm

Power supply

AAA batteries (3x)

Factory colour

Black

White

Battery voltage

1.5 V

Operating temperature (T-T)

-10 - 50 °C

Storage case

yes

Number of batteries supported

4

Backlight display

yes

Protective cap

yes

Self-test function

yes

Wood moisture measuring range

3 - 103,6 %

Material moisture measuring range

2 - 171,2

Accuracy

0.15

Material moisture measuring range

0 - 29,5 %

Accuracy

1 %

Built-in display

yes

Documents & Downloads

Datasheet

Datasheet 3758618 Laserliner DampMaster Allround Set Moisture meter

User & Safety Instructions

User & Safety Instructions 3758618 Laserliner DampMaster Allround Set Moisture meter

Description

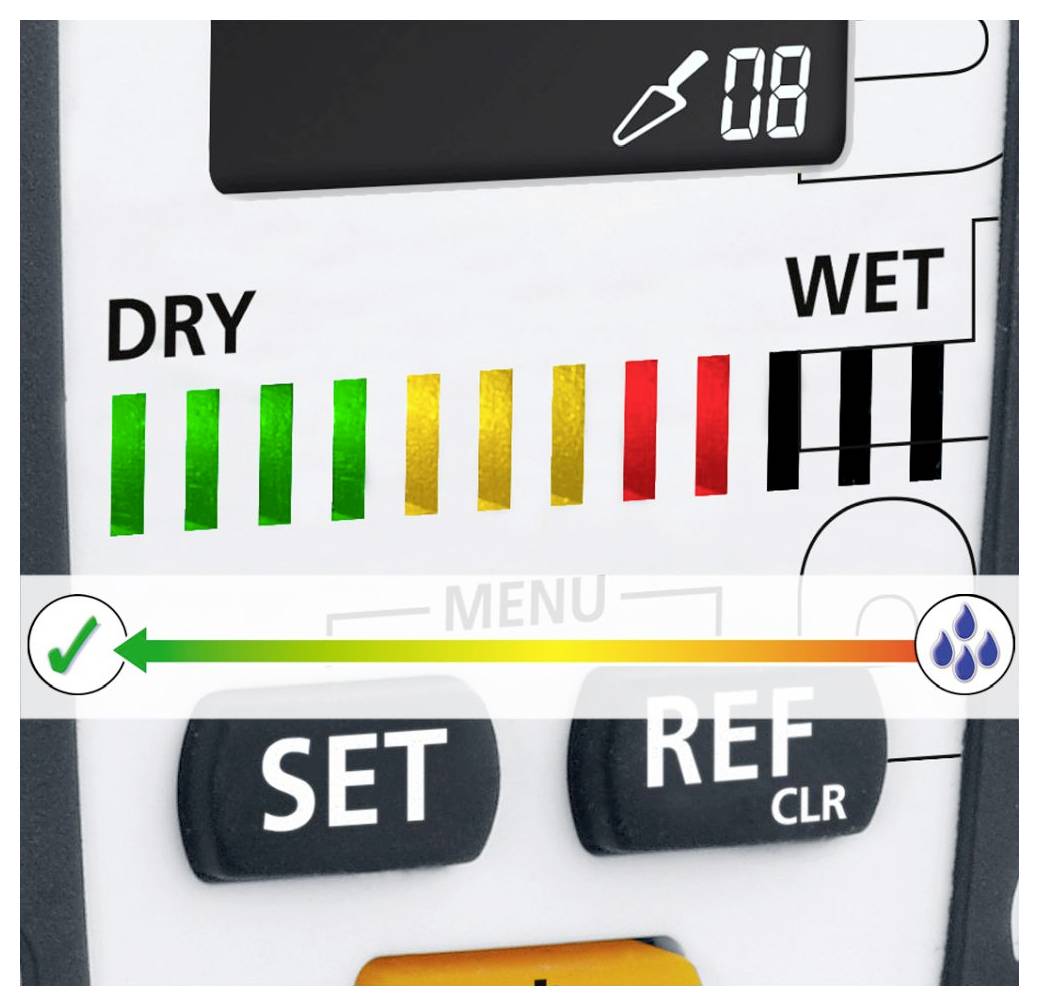

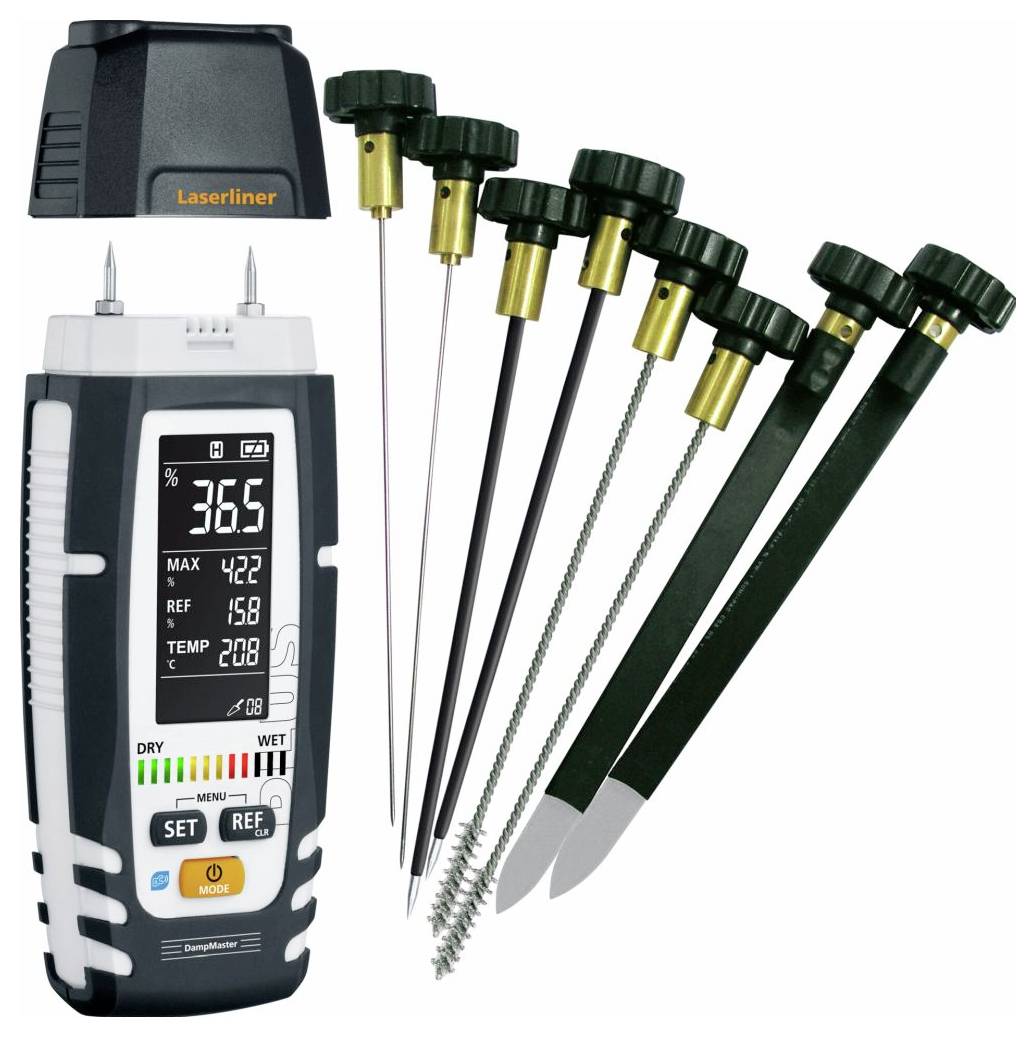

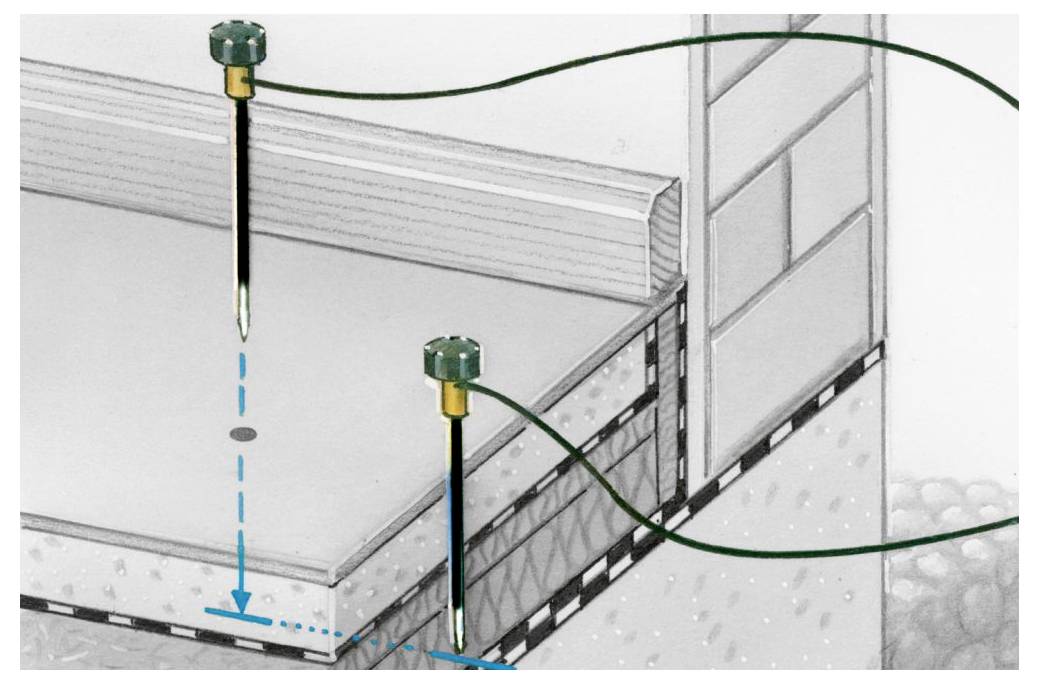

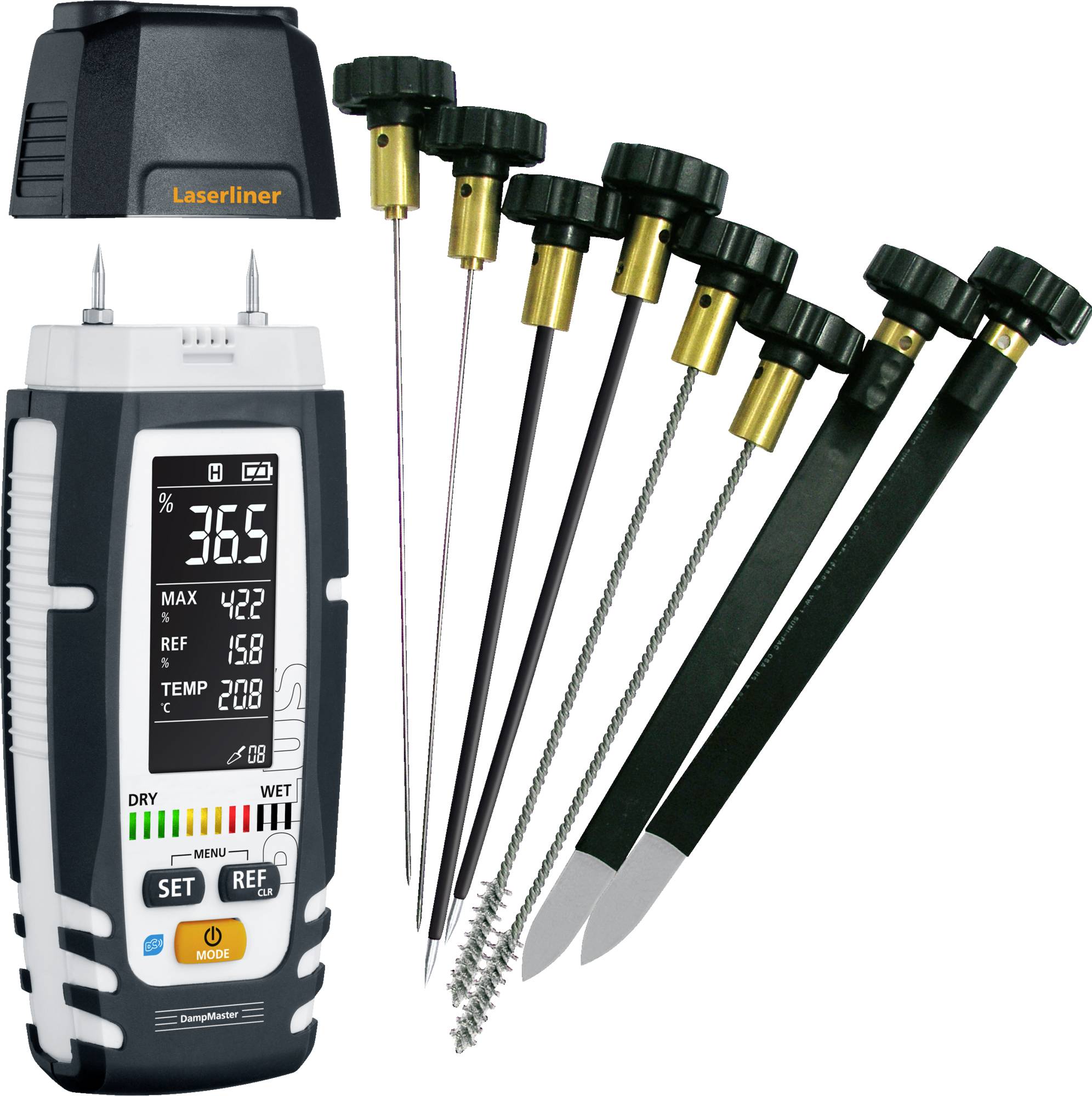

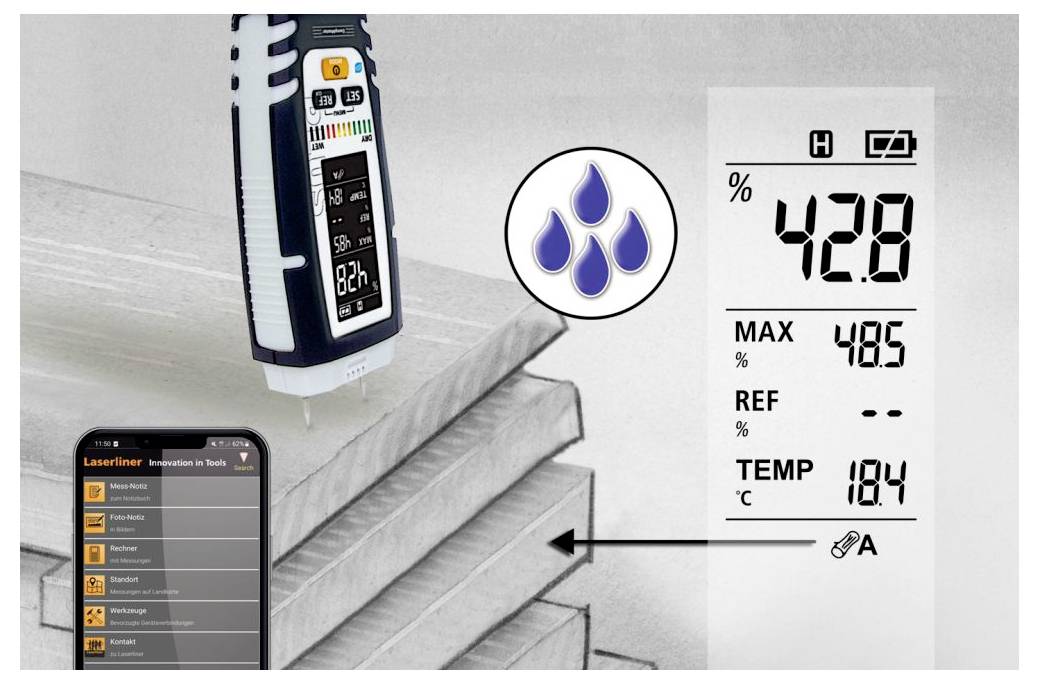

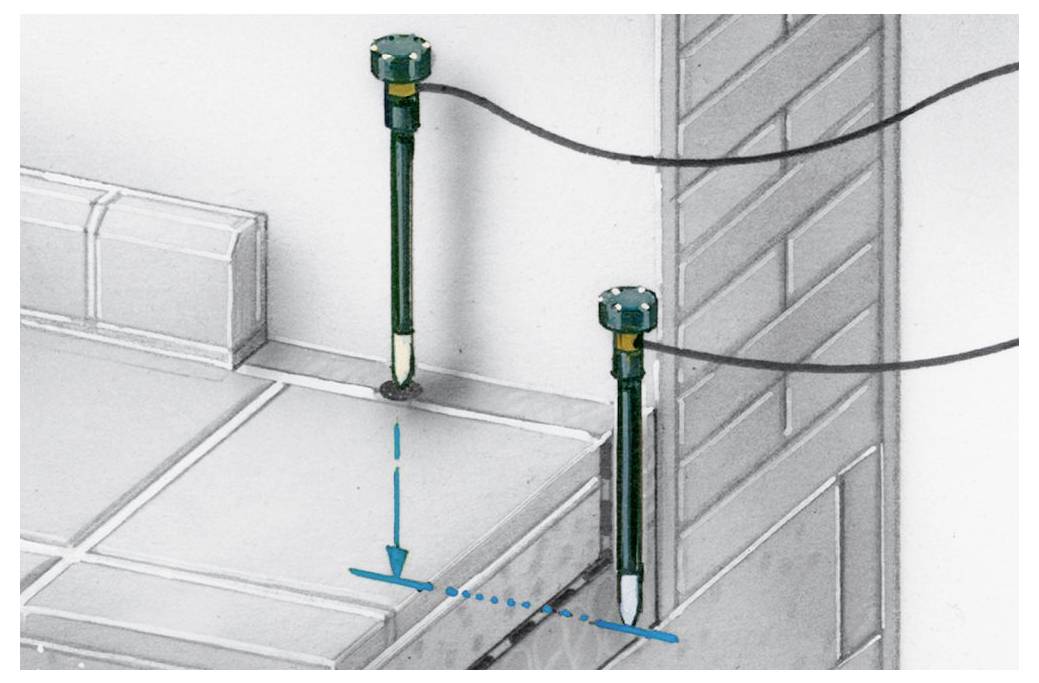

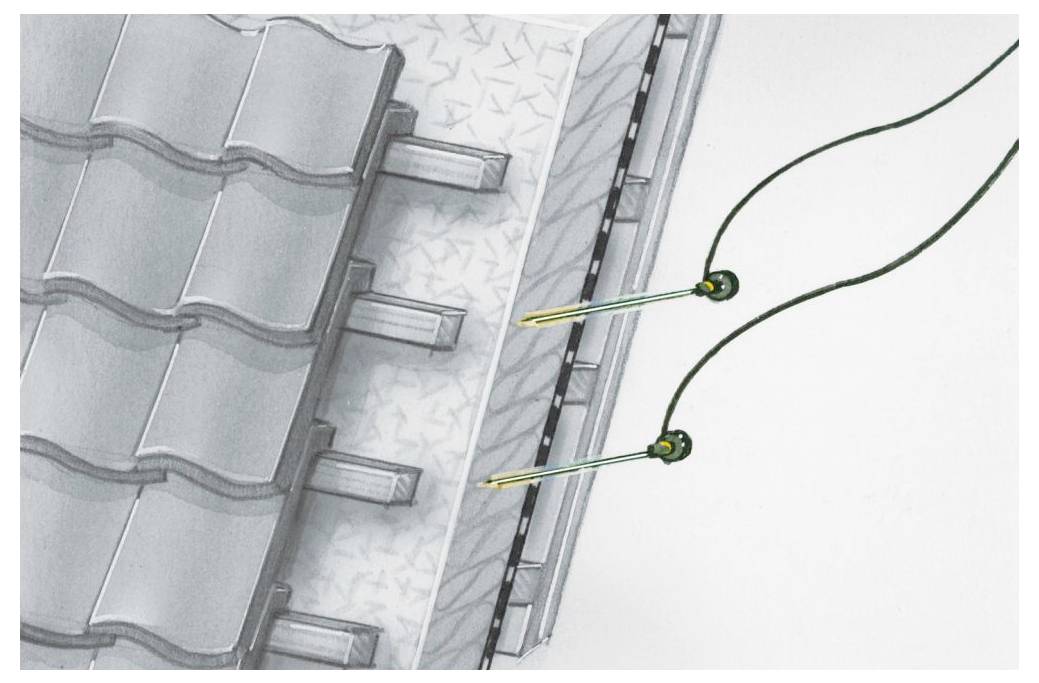

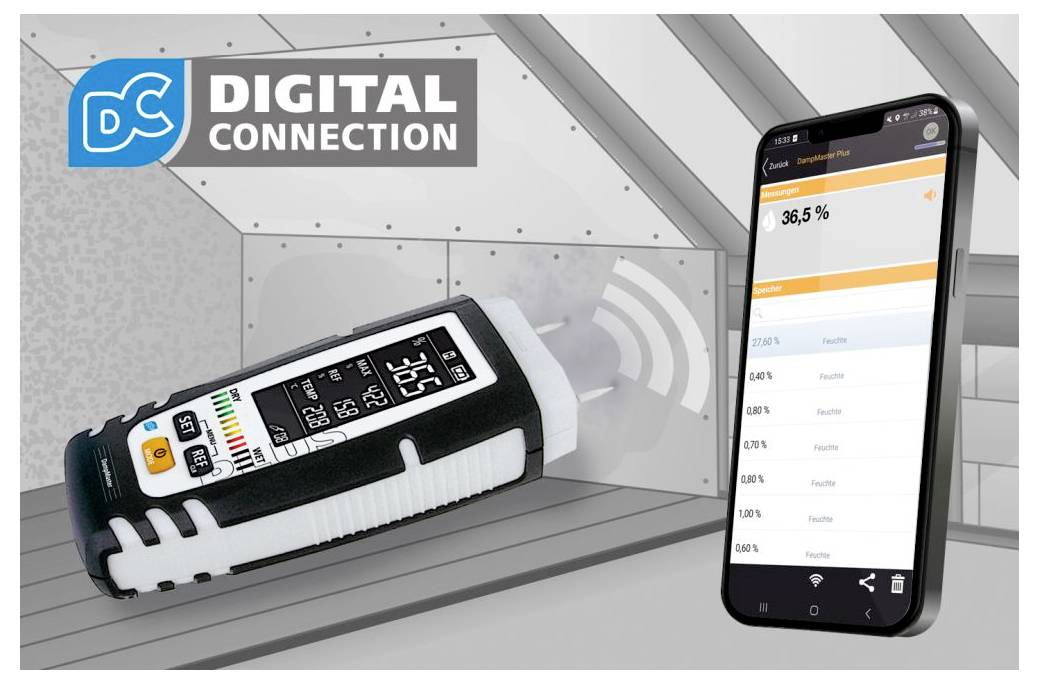

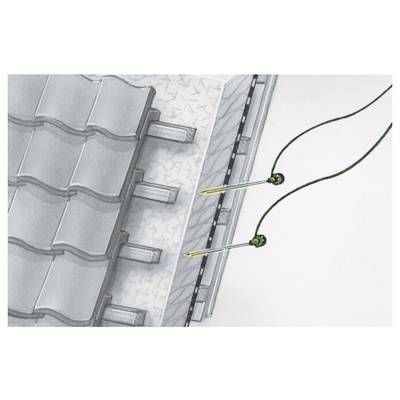

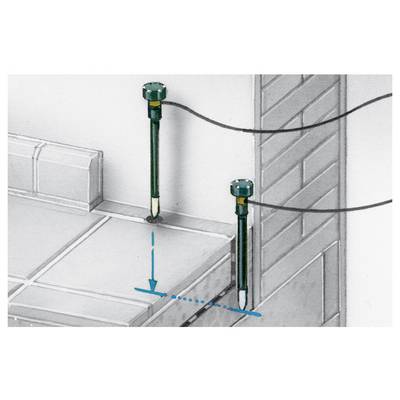

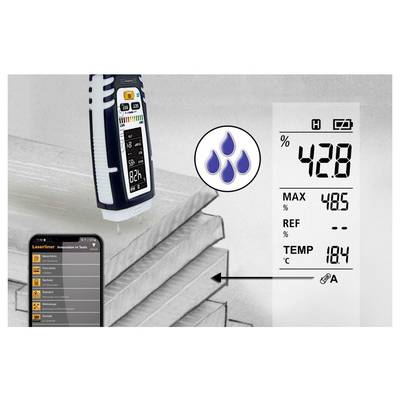

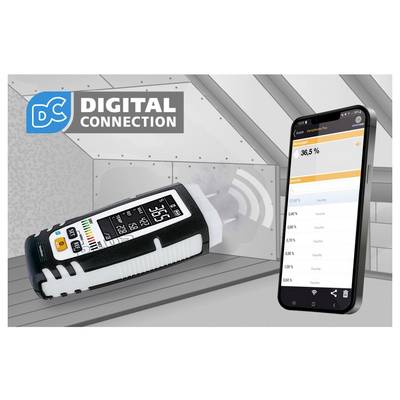

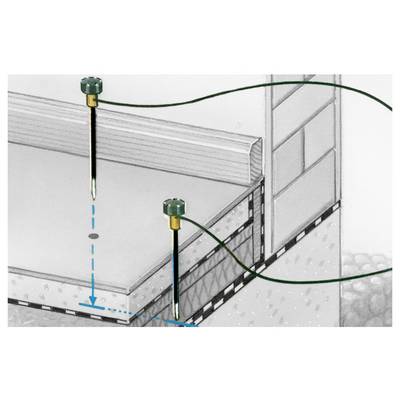

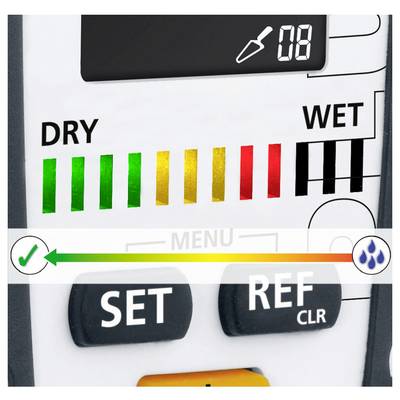

The inspection set, consisting of the professional humidity meter DampMaster Plus, deep electrodes and alligator clips, determines the moisture content of 111 wood types and 42 materials in mass%. The CM mode is available for 12 construction materials, which evaluates the material humidity in CM-% compared to the calcium carbide measurement method. Material-specific measurements ensure high accuracy. The clear display simultaneously shows the material moisture, maximum value, reference value and ambient temperature. The wet/dry indicator with 12 colored LEDs provides visual information about the degree of humidity or dryness. The material-independent index mode makes it possible to quickly locate moisture using comparative measurements. Data can be transferred easily to a Smartphone using the digital connection interface. The deep electrodes are designed for humidity measurements in building materials and insulation materials, multi-shell wall and ceiling structures, hidden component levels or in homogeneous construction materials. Alligator clips allow you to connect with broken nails or screws at measurement locations where the deep electrodes are not used.

This text is machine translated.

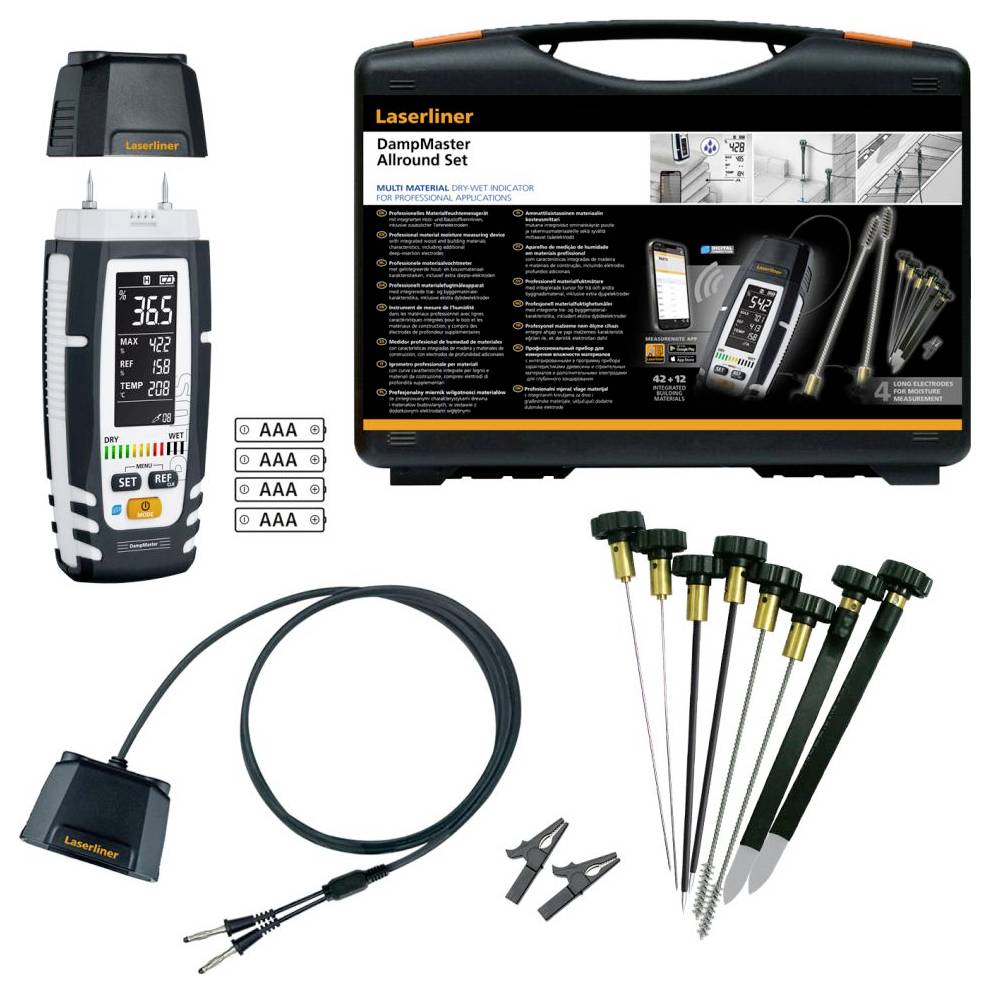

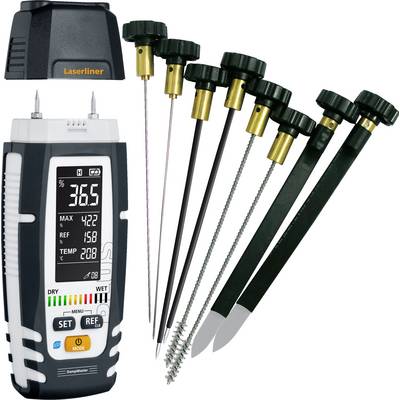

Scope of delivery

  • DampMaster plus
  • Batteries
  • Deep electrodes
  • Alligator clips
  • Lead
  • Carrying case
