Load monitor 18 - 30 V DC Murrelektronik MICO Basic 4.4 1 pc(s)

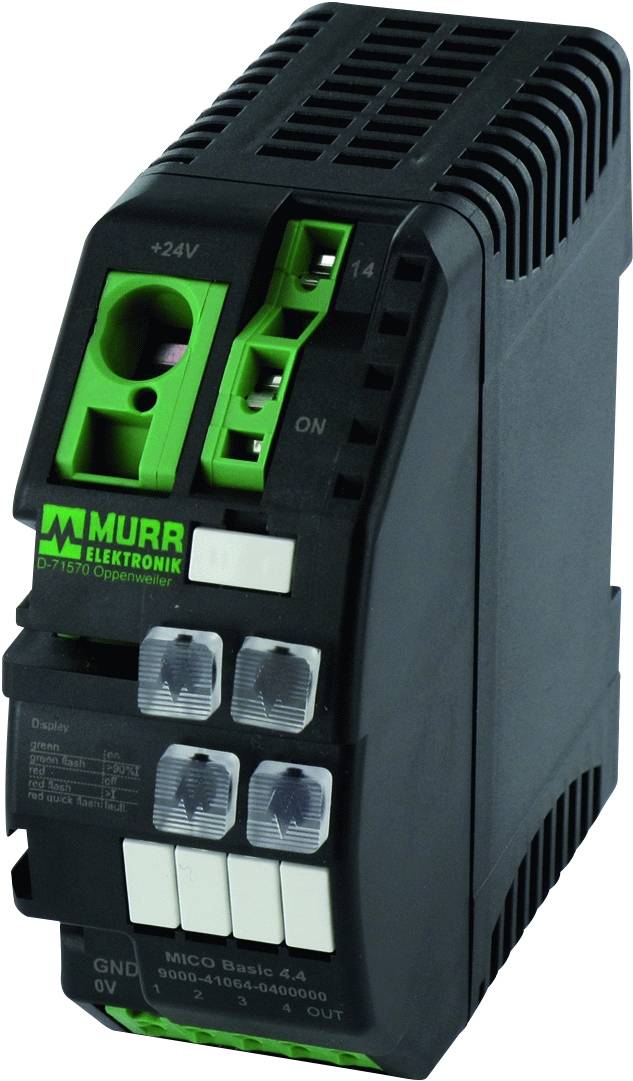

Electronic switching device by Murr Elektronik with green logo, connection terminals for 24V and 14V, switches and status indicators.
Image similar
Product type
Load monitor
Functions
Overload
Max. operating voltage
30 V DC
Switching voltage (max.)
30 V DC
Type
MICO Basic 4.4
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 12 Nov
1 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 164.99 / piece)
€ 164.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Piece(s) available
Only available for business customers
14-day return policy included
Report legal concerns

Technical specifications

  • Number of channels: 4
  • Output terminals: 1× 4 mm² per output
  • Mounting type: Snaps onto mounting rail TH35
  • Bridge concept: One-sided by means of spring power terminal or bridge set (max. 40 A)
  • Input terminals: 1× 16 mm²
  • INPUT VOLTAGE (ON): 10...30 V DC
  • Switch-on capacity: Max. 20 MF (per channel)
  • Impulse length (ON): Min. 20 ms
  • Signal terminals 2.5 mm²
  • Group message output: Max. 20 mA; high: ALL channels ON; Low: Not all channels ON
Product type

Load monitor

Type

MICO Basic 4.4

Functions

Overload

Operating voltage

24 V DC

Min. operating voltage

18 V DC

Max. operating voltage

30 V DC

Operating voltage

18 - 30 V DC

Amperage adjustment range (max.)

4 A

Adjustment range (amperage)

4 A (max)

Switching voltage (max.)

30 V DC

Connection

Spring-loaded terminal

IP20

Min. temperature

0 °C

Max. temperature

+55 °C

Width

36 mm

Height

90 mm

Depth

80 mm

Dim

(W x H x D) 36 x 90 x 80 mm

Content

1 pc(s)

Weight

0.09 kg

Nominal voltage

24 V DC

Nominal current

4 A

Cross section (flexible) (max.)

16 mm²

Cross section (inflexible) (max.)

16 mm²

Cross section (flexible) (min.)

0.5 mm²

Cross section (inflexible) (min.)

0.5 mm²

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2311933 Load monitor 18 - 30 V DC Murrelektronik MICO Basic 4.4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2311933 Load monitor 18 - 30 V DC Murrelektronik MICO Basic 4.4 1 pc(s)
