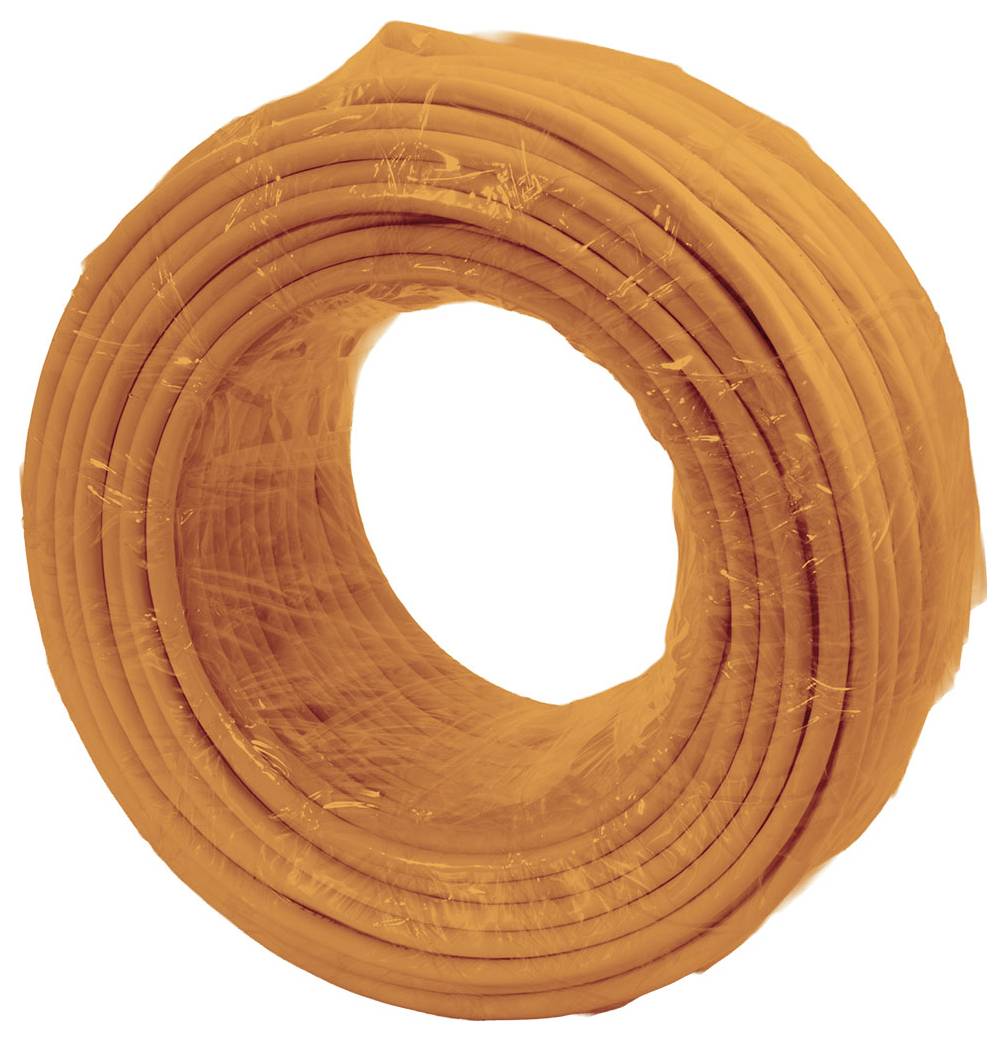

Coiled orange extension cord or hose rolled into a circular loop on a white background.

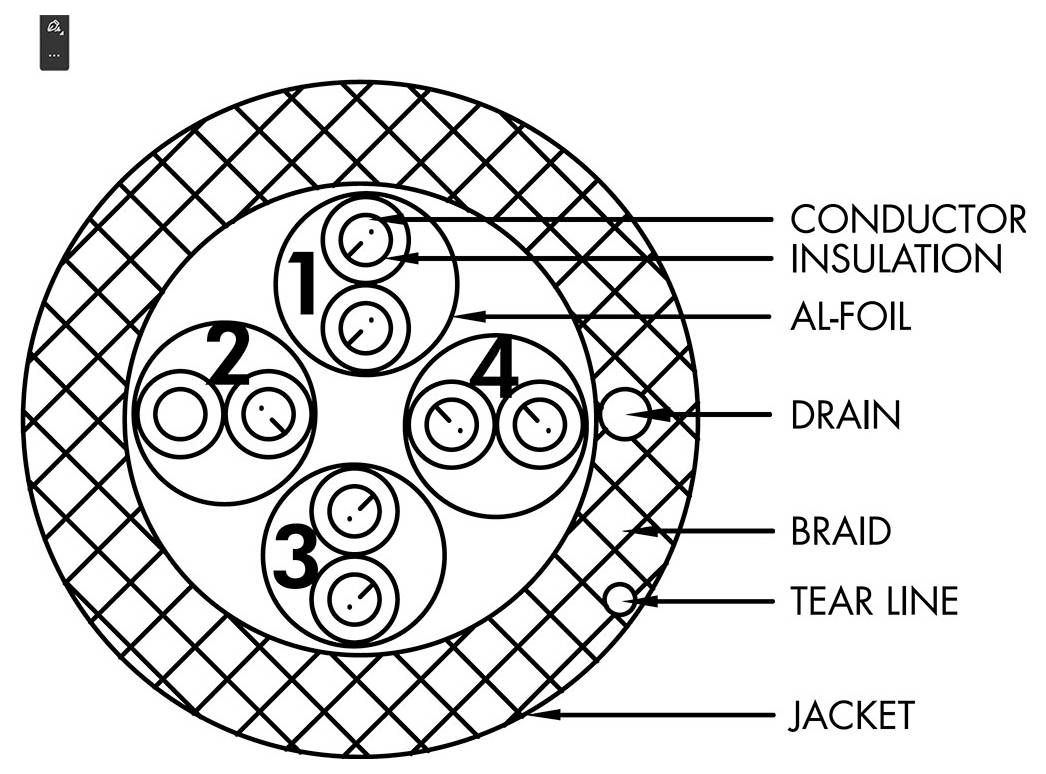

Diagram of a multi-conductor cable cross-section showing numbered conductors 1-4, with labels for conductor insulation, al-foil, drain, braid, tear line, and jacket.

1/4

LogiLink

Product type

Network cable

Specification

CAT 7

Shielding

S/FTP

Cable type

LSZH

No. of leads

8 x

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 28 Oct

10 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 1.00)

€ 9.99

incl. VAT

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

LogiLink CAT.7 600 MHz laying cable, 23 AWG CCA, S/FTP, LSZH, 10 m

CAT.7 23 AWG S/FTP laying cable, CCA, 10 m ring
4 individually shielded pairs (PIMF)
Total shield made of AL-MG braid
LSZH outer sheath, orange, 7.5 mm diameter
Conforms to EN50575 + EN50399 (BPV), class ECA
CAT.7 power up to a cable length of 70 m (permanent link test)
Complies with ISO/IEC 11801 and IEC 61156-5

Technical specifications

Product type: Network cable

: CAT 7

: S/FTP

Cable type: LSZH

No. of leads: 8 x

Cross section (each core): 0.258 mm²

Cross section: 4 x 2 x 0.258 mm²

Factory colour: Orange

Max. frequency: 600 MHz

Content: 10 m

AWG max.: 23

Sold per metre: No

Manufacturer part #: CPV0086

Type: CPV0086

Insulation material: LSZH

Twisted pair cabling (part 1): Yes (1)

Documents & Downloads

Datasheet

Datasheet 3830046 LogiLink CPV0086 Network cable CAT 7 S/FTP 4 x 2 x 0.258 mm² Orange 10 m

User & Safety Instructions

User & Safety Instructions 3830046 LogiLink CPV0086 Network cable CAT 7 S/FTP 4 x 2 x 0.258 mm² Orange 10 m

Description

This CAT.-7 installation cable with CCA conductors is an economical solution for structured building wiring. It offers a high shielding, a stable data transmission and an attractive price-performance ratio. Ideal is suitable for home networks, offices and projects in which the costs are to be optimized. The S/FTP construction with pairs of aluminum foil and additional overall shield offers very good protection against electromagnetic interferences. With a transmission power of up to 600 MHz (class F) a reliable operation of Gigabit and 10 Gigabit Ethernet is possible at shorter distances. The halogen-free LSZH sheath according to CPR ECA reduces the smoke emissions and the formation of harmful gases in the event of fire.

This text is machine translated.

Description

This CAT.-7 installation cable with CCA conductors is an economical solution for structured building wiring. It offers a high shielding, a stable data transmission and an attractive price-performance ratio. Ideal is suitable for home networks, offices and projects in which the costs are to be optimized. The S/FTP construction with pairs of aluminum foil and additional overall shield offers very good protection against electromagnetic interferences. With a transmission power of up to 600 MHz (class F) a reliable operation of Gigabit and 10 Gigabit Ethernet is possible at shorter distances. The halogen-free LSZH sheath according to CPR ECA reduces the smoke emissions and the formation of harmful gases in the event of fire.

This text is machine translated.
