Buy LogiLink CPV0089 Network cable CAT 7 S/FTP 4 x 2 x 0.258 mm² Orange 40 m | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

Cutaway of an orange Ethernet cable showing four twisted wire pairs and shielding inside the outer jacket.

Cutaway of an orange Ethernet cable showing four twisted wire pairs and shielding inside the outer jacket.

Split cable with exposed silver wires on the left and orange insulation covering the right side.

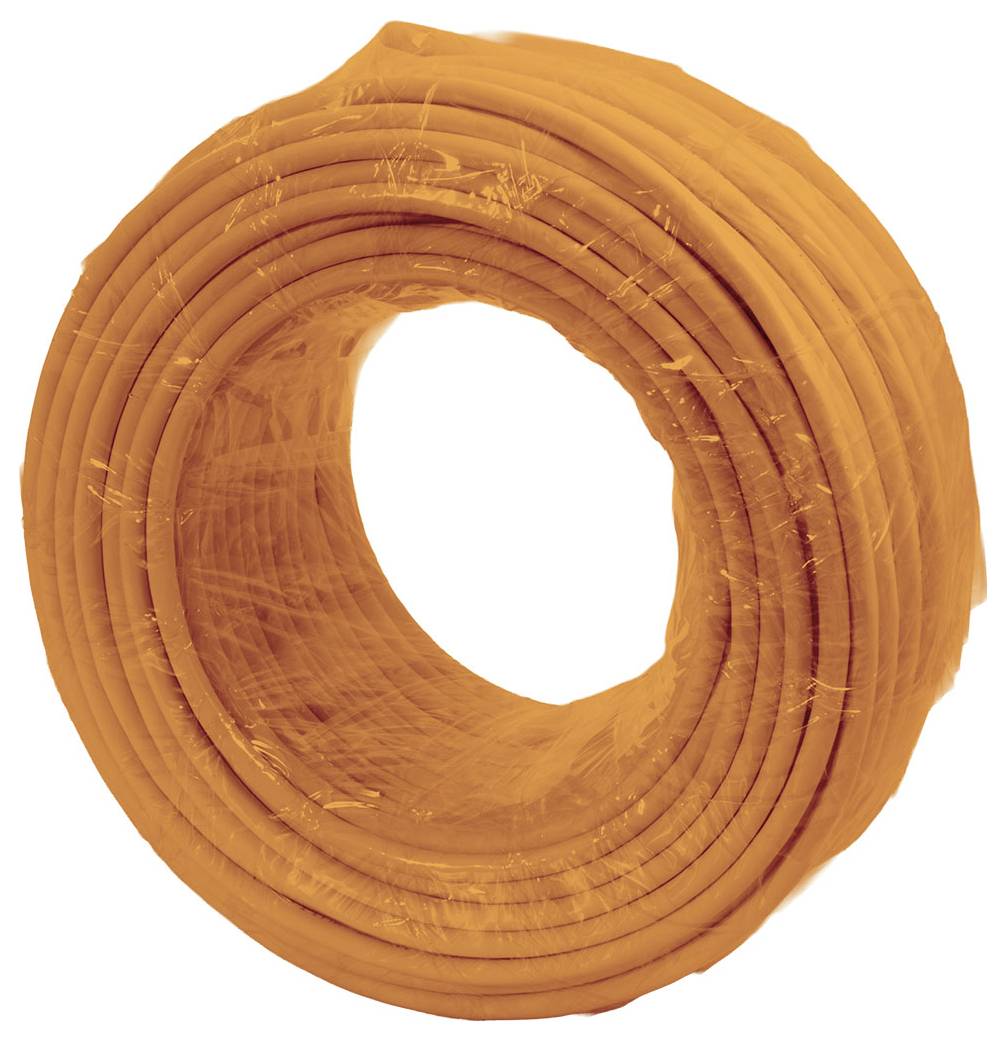

Coiled orange cable or hose looped into a ring on a white background.

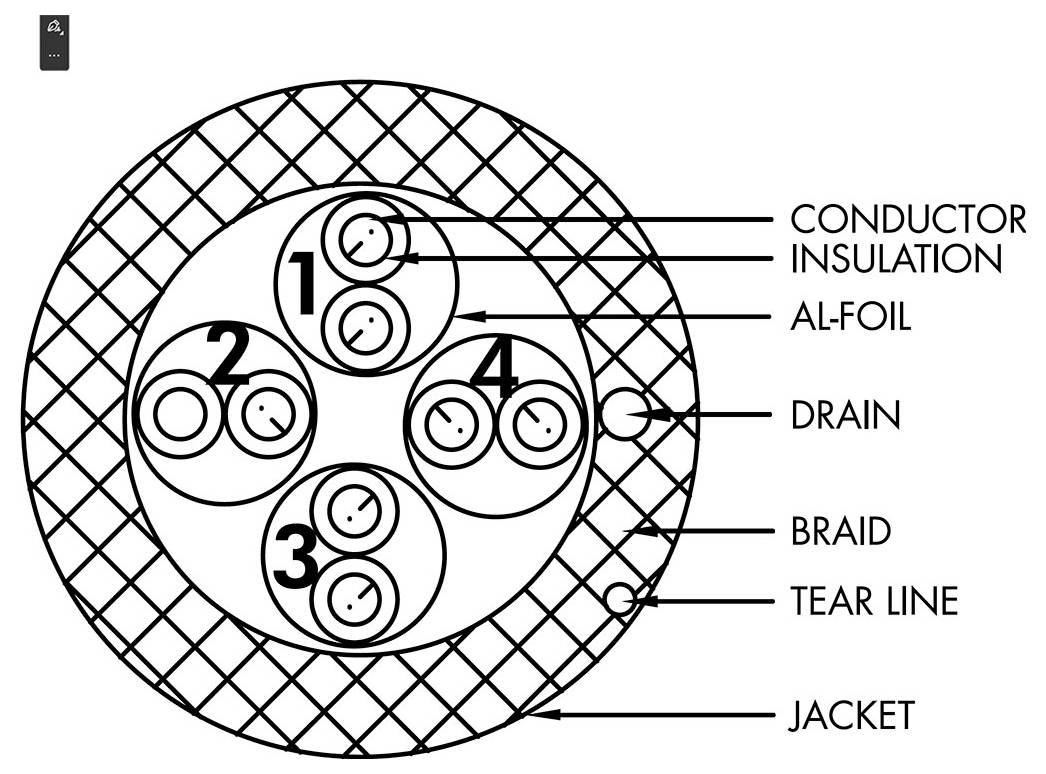

Diagram of a shielded multi-conductor cable cross-section showing conductors 1-4, insulation, Al-foil, drain wire, braid, tear line, and outer jacket.<br>

1/4

Product type

Network cable

Specification

CAT 7

Shielding

S/FTP

Cable type

LSZH

No. of leads

8 x

Datasheet (PDF)

LogiLink

Fast track dispatch on Tue 27 Oct

10 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 0.65)

€ 25.99

incl. VAT

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

LogiLink CAT.7 600 MHz laying cable, 23 AWG CCA, S/FTP, LSZH, 40 m

CAT.7 23 AWG S/FTP laying cable, CCA, 40 m ring
4 individually shielded pairs (PIMF)
Total shield made of AL-MG braid
LSZH outer sheath, orange, 7.5 mm diameter
Conforms to EN50575 + EN50399 (BPV), class ECA
CAT.7 power up to a cable length of 70 m (permanent link test)
Complies with ISO/IEC 11801 and IEC 61156-5

Technical specifications

Product type: Network cable

: CAT 7

: S/FTP

Cable type: LSZH

No. of leads: 8 x

Cross section (each core): 0.258 mm²

Cross section: 4 x 2 x 0.258 mm²

Factory colour: Orange

Max. frequency: 600 MHz

Content: 40 m

AWG max.: 23

Sold per metre: No

Manufacturer part #: CPV0089

Type: CPV0089

Insulation material: LSZH

Twisted pair cabling (part 1): Yes (1)

Documents & Downloads

Datasheet

Datasheet 3830049 LogiLink CPV0089 Network cable CAT 7 S/FTP 4 x 2 x 0.258 mm² Orange 40 m

User & Safety Instructions

User & Safety Instructions 3830049 LogiLink CPV0089 Network cable CAT 7 S/FTP 4 x 2 x 0.258 mm² Orange 40 m

Description

This CAT.-7 installation cable with CCA conductors is an economical solution for structured building wiring. It offers a high shielding, a stable data transmission and an attractive price-performance ratio. Ideal is suitable for home networks, offices and projects in which the costs are to be optimized. The S/FTP construction with pairs of aluminum foil and additional overall shield offers very good protection against electromagnetic interferences. With a transmission power of up to 600 MHz (class F) a reliable operation of Gigabit and 10 Gigabit Ethernet is possible at shorter distances. The halogen-free LSZH sheath according to CPR ECA reduces the smoke emissions and the formation of harmful gases in the event of fire.

This text is machine translated.

Description

This CAT.-7 installation cable with CCA conductors is an economical solution for structured building wiring. It offers a high shielding, a stable data transmission and an attractive price-performance ratio. Ideal is suitable for home networks, offices and projects in which the costs are to be optimized. The S/FTP construction with pairs of aluminum foil and additional overall shield offers very good protection against electromagnetic interferences. With a transmission power of up to 600 MHz (class F) a reliable operation of Gigabit and 10 Gigabit Ethernet is possible at shorter distances. The halogen-free LSZH sheath according to CPR ECA reduces the smoke emissions and the formation of harmful gases in the event of fire.

This text is machine translated.
