Buy LogiLink CPV0090 Network cable CAT 7 S/FTP 4 x 2 x 0.258 mm² Orange 50 m | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

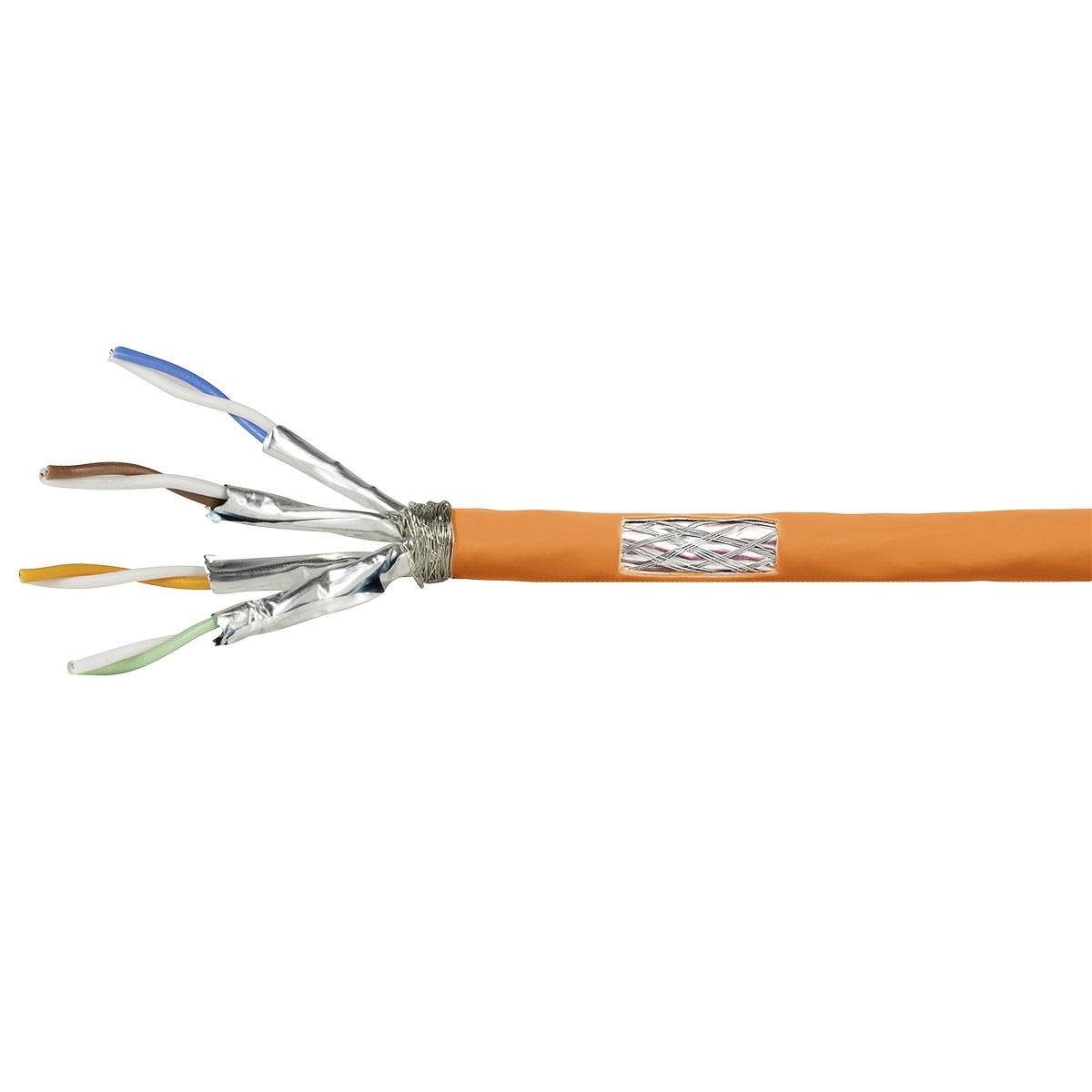

Cutaway of an orange Ethernet cable showing four twisted wire pairs and shielding exposed at the cut end.<br>

Cutaway of an orange Ethernet cable showing four twisted wire pairs and shielding exposed at the cut end.<br>

Close-up of a cable split into exposed silver wires on the left and an orange insulated section on the right.

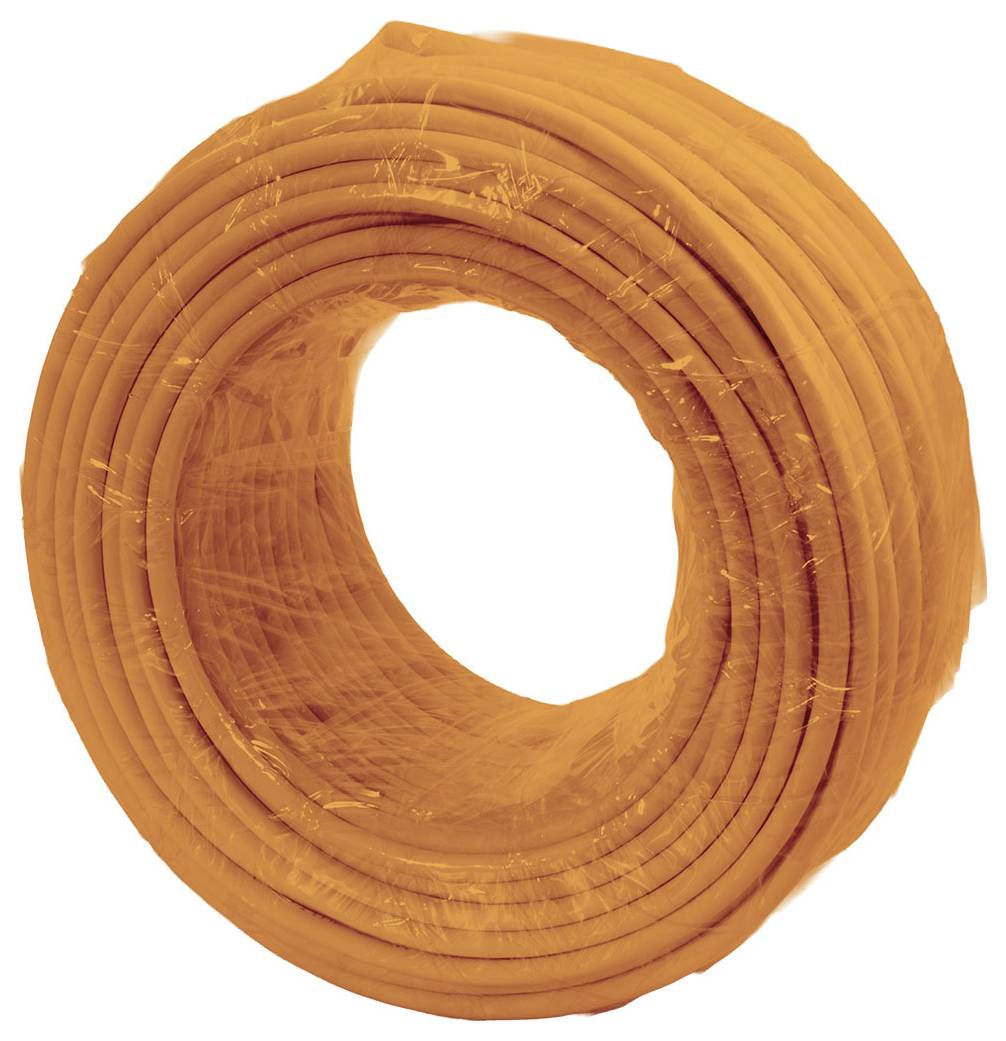

Coiled orange hose or tubing rolled into a circular bundle on a white background.

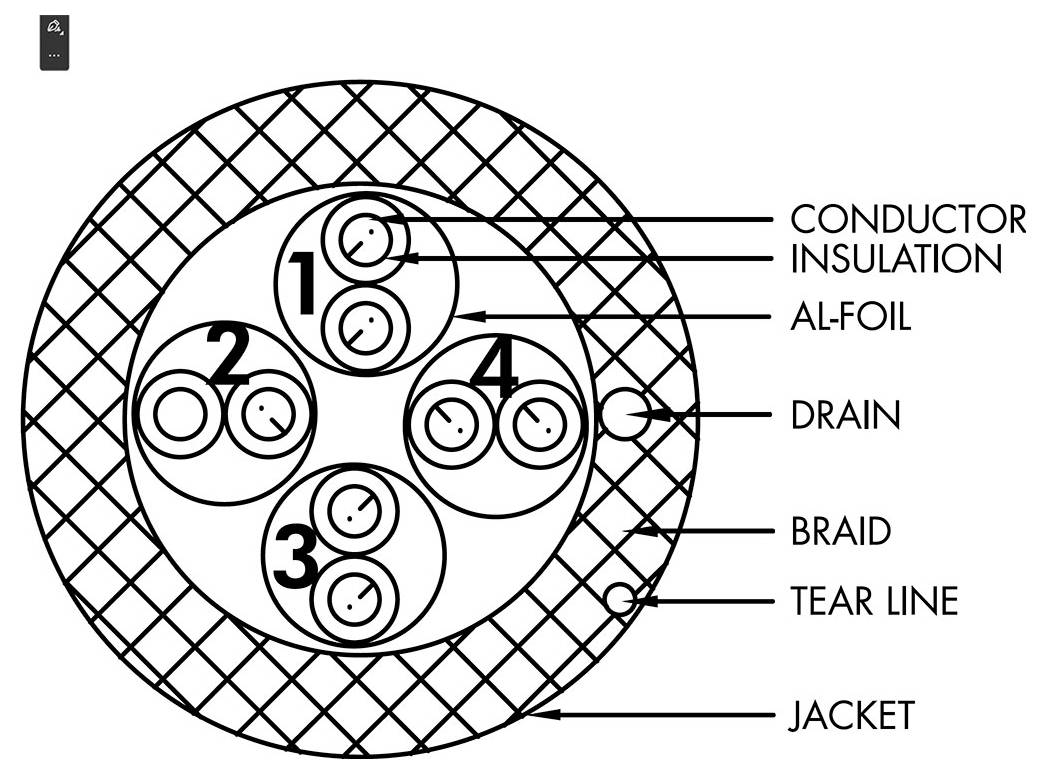

Diagram of a shielded cable cross-section showing four numbered conductors inside insulation, wrapped by Al-foil and braid, with drain, tear line, and outer jacket labeled.

1/4

Product type

Network cable

Specification

CAT 7

Shielding

S/FTP

Cable type

LSZH

No. of leads

8 x

Datasheet (PDF)

LogiLink

Fast track dispatch on Fri 23 Oct

10 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 0.70)

€ 34.99

incl. VAT

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

LogiLink CAT.7 600 MHz laying cable, 23 AWG CCA, S/FTP, LSZH, 50 m

CAT.7 23 AWG S/FTP laying cable, CCA, 50 m ring
4 individually shielded pairs (PIMF)
Total shield made of AL-MG braid
LSZH outer sheath, orange, 7.5 mm diameter
Conforms to EN50575 + EN50399 (BPV), class ECA
CAT.7 power up to a cable length of 70 m (permanent link test)
Complies with ISO/IEC 11801 and IEC 61156-5

Technical specifications

Product type: Network cable

: CAT 7

: S/FTP

Cable type: LSZH

No. of leads: 8 x

Cross section (each core): 0.258 mm²

Cross section: 4 x 2 x 0.258 mm²

Factory colour: Orange

Max. frequency: 600 MHz

Content: 50 m

AWG max.: 23

Sold per metre: No

Manufacturer part #: CPV0090

Type: CPV0090

Insulation material: LSZH

Twisted pair cabling (part 1): Yes (1)

Documents & Downloads

Datasheet

Datasheet 3830050 LogiLink CPV0090 Network cable CAT 7 S/FTP 4 x 2 x 0.258 mm² Orange 50 m

User & Safety Instructions

User & Safety Instructions 3830050 LogiLink CPV0090 Network cable CAT 7 S/FTP 4 x 2 x 0.258 mm² Orange 50 m

Description

This CAT.-7 installation cable with CCA conductors is an economical solution for structured building wiring. It offers a high shielding, a stable data transmission and an attractive price-performance ratio. Ideal is suitable for home networks, offices and projects in which the costs are to be optimized. The S/FTP construction with pairs of aluminum foil and additional overall shield offers very good protection against electromagnetic interferences. With a transmission power of up to 600 MHz (class F) a reliable operation of Gigabit and 10 Gigabit Ethernet is possible at shorter distances. The halogen-free LSZH sheath according to CPR ECA reduces the smoke emissions and the formation of harmful gases in the event of fire.

This text is machine translated.

Description

This CAT.-7 installation cable with CCA conductors is an economical solution for structured building wiring. It offers a high shielding, a stable data transmission and an attractive price-performance ratio. Ideal is suitable for home networks, offices and projects in which the costs are to be optimized. The S/FTP construction with pairs of aluminum foil and additional overall shield offers very good protection against electromagnetic interferences. With a transmission power of up to 600 MHz (class F) a reliable operation of Gigabit and 10 Gigabit Ethernet is possible at shorter distances. The halogen-free LSZH sheath according to CPR ECA reduces the smoke emissions and the formation of harmful gases in the event of fire.

This text is machine translated.
