LogiLink PA0368 USB charger 65 W USB-A socket, USB-C® socket Quick Charge 4.0, Power Delivery 3.0 White Indoors, Mains s
EAN:
Part number:
Item no:
Number
Total (€ 15.96 / piece)
€ 15.96
plus VAT.
14-day return policy included
Highlights & Details

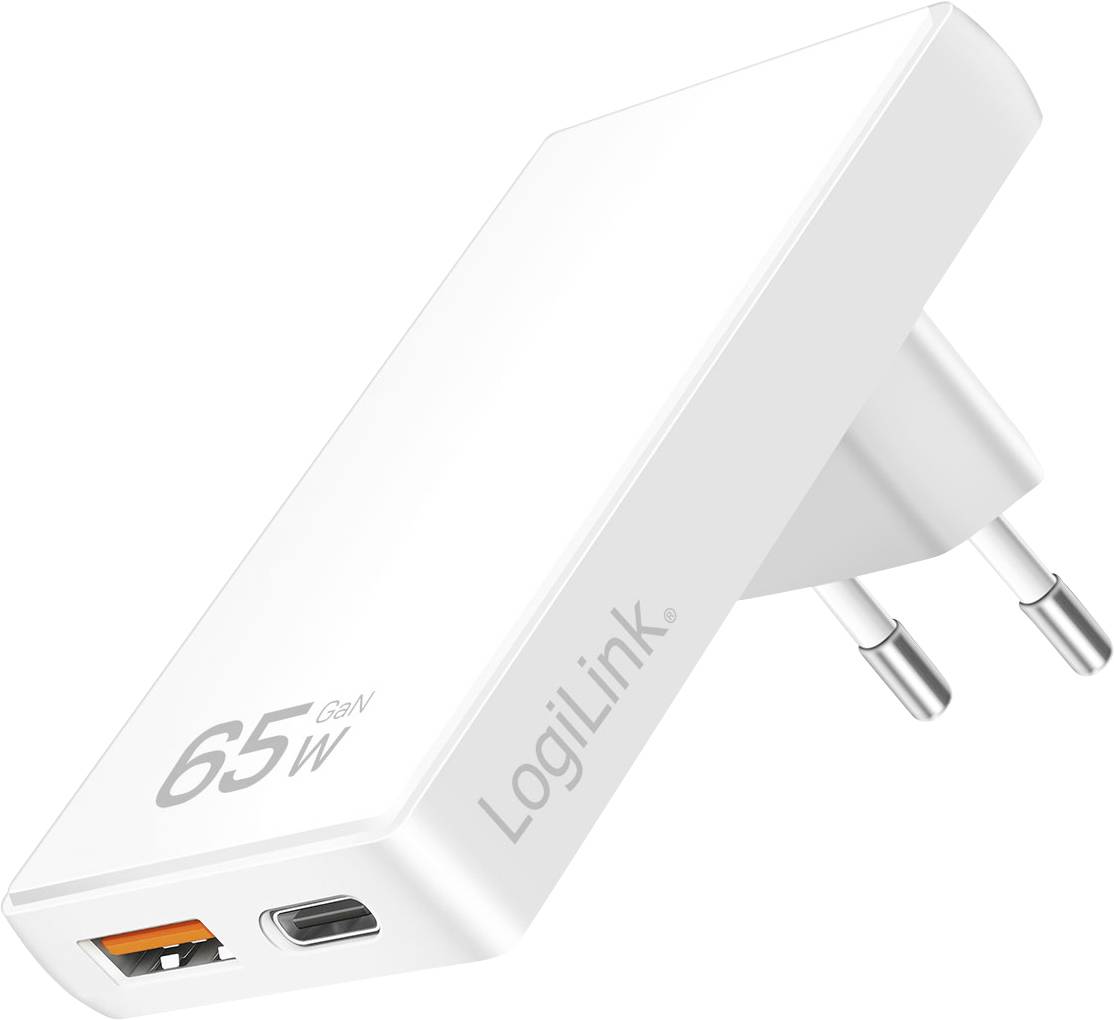

LogiLink PA0368 USB charger

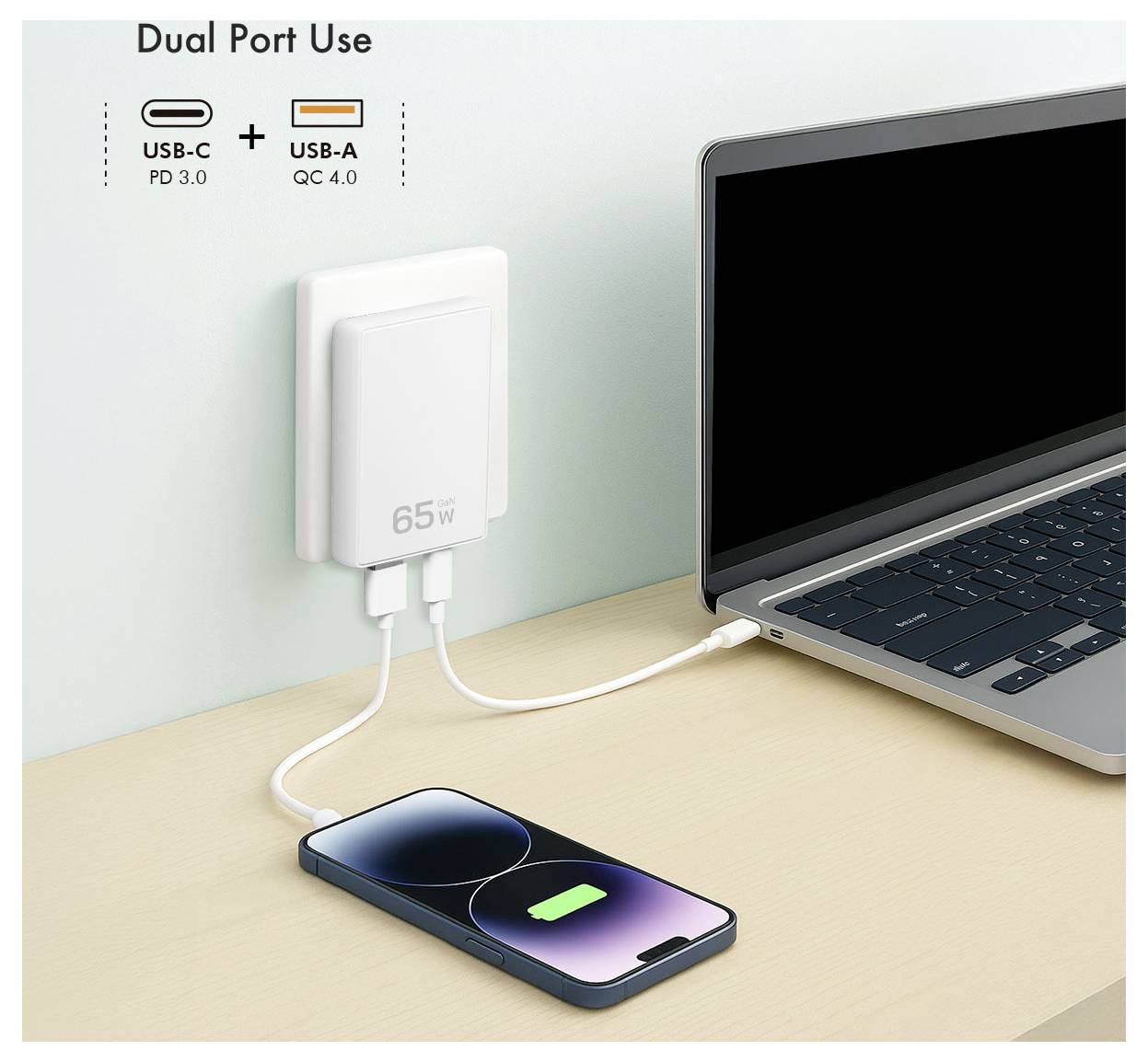

- USB-A (QC) 18 W AND USB-C (PD) 65 W

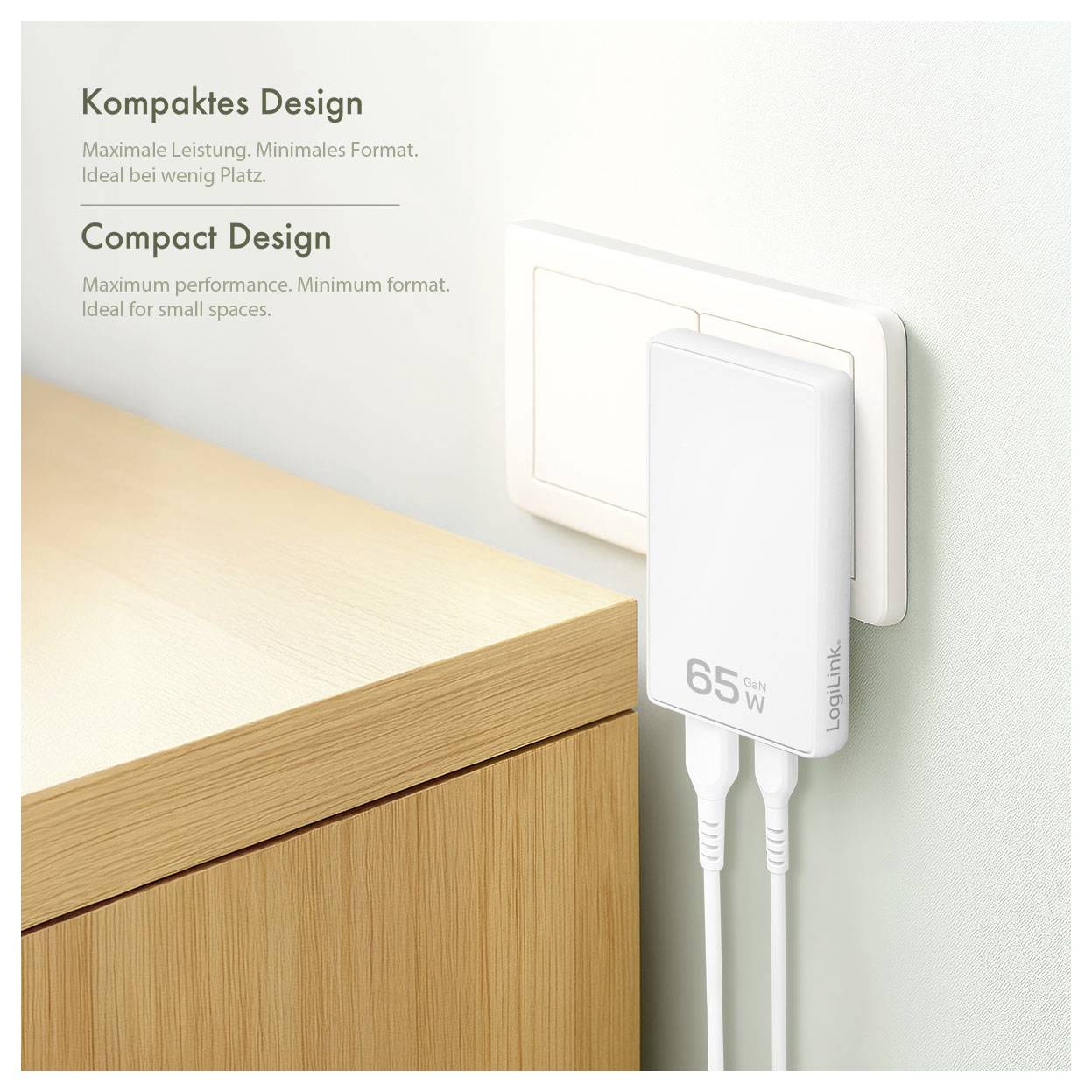

- Ultra-slim design, only 1.4 cm thick
- GaN technology for compact design and better heat dissipation.
- Input 100-240 V AC 50/60 Hz 1.5A max.
- OUTPUT USB-C 5.0 V/3.0 A (15.0 W) 9.0 V/3.0 A (27.0 W) 12.0 V/3.0 A (36.0 W) 15.0 V/3.0 A (45.0 W) 20.0 V/3.25 A (65.0 W MAX.) USB-A:5.0 V/3.0 A (15.0 W) 9.0 V/2.0 A (18.0 W) 12.0 V/1.5 A (18.0 W MAX.) USBA+C: 12.0 W+ 45.0 W = 57.0 W TOTAL:
- Average operational efficiency: 81.28%, low load efficiency (10%): 80.20%; zero load power consumption: 0.08 W.
- Device protection: Overcurrent, overvoltage, overheating and short circuit protection
- Compatible with a wide range of devices, including laptops, smartphones and tablets.
- Colour: White
Technical specifications
- Product type
USB charger
65 W
- No. of outputs
2 x
- Outputs
USB-A socket
USB-C® socket
- Output current (max.) - rounded
3.25 A
- Max. output current
3.25 A
- Max. output current per channel
3.25 A
- Type
PA0368
- Suitable for
Universal
- PSU features
USB Power Delivery (USB-PD)
- Dim
(L x W x H) 52 x 83 x 47 mm
- Height
47 mm
- Length
52 mm
- Width
83 mm
- Weight
79 g
- Factory colour
White
- Used at
Indoors
Mains socket
- Charging method
Quick Charge 4.0
Power Delivery 3.0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642431 LogiLink PA0368 USB charger 65 W USB-A socket, USB-C® socket Quick Charge 4.0, Power Delivery 3.0 White Indoors, Mains s
Description
The LogiLink USB-C GaN 65W charger is an ultra-slim charger that was specially developed for small spaces. Thanks to the innovative GaN technology it is physically smaller and dissipates higher voltages than silicon-based chargers, with better heat dissipation. With only 1.4 cm thickness, it is Ideal for traveling and narrow sockets. The charger offers a maximum total output power of 65 W. It has a USB-C port with Power Delivery (PD) 65 W and a USB-A port with Quick Charge (QC) 4.0. You can quickly charge a USB-A and a USB-C device at the same time. The compatibility is large, including laptops, smartphones, tablets and more. Improved safety features such as over-current, over-voltage, over-temperature and short-circuit protection ensure extremely safe charging.
