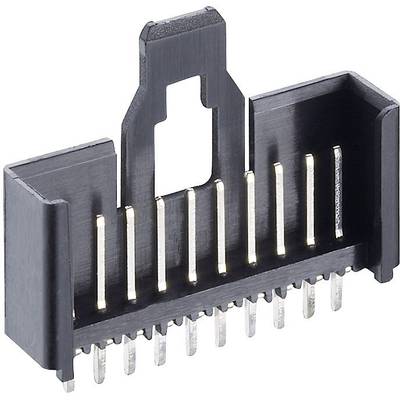

Lumberg 2,5 MSF 08 Pin strip 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin strip
Total no. of pins
Connector type
Pin strip, straight
CS
2.54 mm
Content
1 pc(s)
Datasheet (PDF)
61 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.70
15
9% = € 0.06
€ 0.64
25
11% = € 0.08
€ 0.62
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.70 / piece)
€
Highlights & Details
Mini module pin connector, direct
- Pitch 2.5 mm
Technical specifications
- Product type
Pin strip
- Total no. of pins
- Connector type
Pin strip, straight
- Features
1x locking mechanism
- CS
2.54 mm
- Nominal current
5 A
- Nominal current - rounded value
5 A
- DIN standard
DIN EN 60664
- Connection
Print
- Factory colour
Black
- Case material
PA 6.6
- Manufacturer part #
2,5 MSF 08
- Content
1 pc(s)
- Contact material
CuZn
- Width
7.5 mm
- Height
22.5 mm
- Length
24.7 mm
- Type
2,5 MSF 08
- Dim
(L x W x H) 24.7 x 7.5 x 22.5 mm
- Nominal voltage
160 V AC
- Compatible with (details)
Cable Connector 2.5 MBX empty casing 3114
- RoHS-compliant
- Contact surface
Tin plated
- Material (details)
PA 6.6, V0 in accordance with UL 94
- Type
With locking latch
- Nominal voltage (details)
40 V/AC (Level of pollution: 3), 160 V/AC (Level of pollution: 2)
- Nominal current (details)
5 A
- Pins
8
- Connection
-
- Temperature range
-40 - +120 °C
Documents & Downloads
Datasheet
Datasheet 732875 Lumberg 2,5 MSF 08 Pin strip 1 pc(s)
User & Safety Instructions
User & Safety Instructions 732875 Lumberg 2,5 MSF 08 Pin strip 1 pc(s)
Information
Information 732875 Lumberg 2,5 MSF 08 Pin strip 1 pc(s)
Description
Mini module connector system for cable-card and card-card connection Simple configuration for single conductor and ribbon cable Specially suitable for small and medium series For signal and low load currents up to 5 A. Applications in the household appliances or consumer electronics
