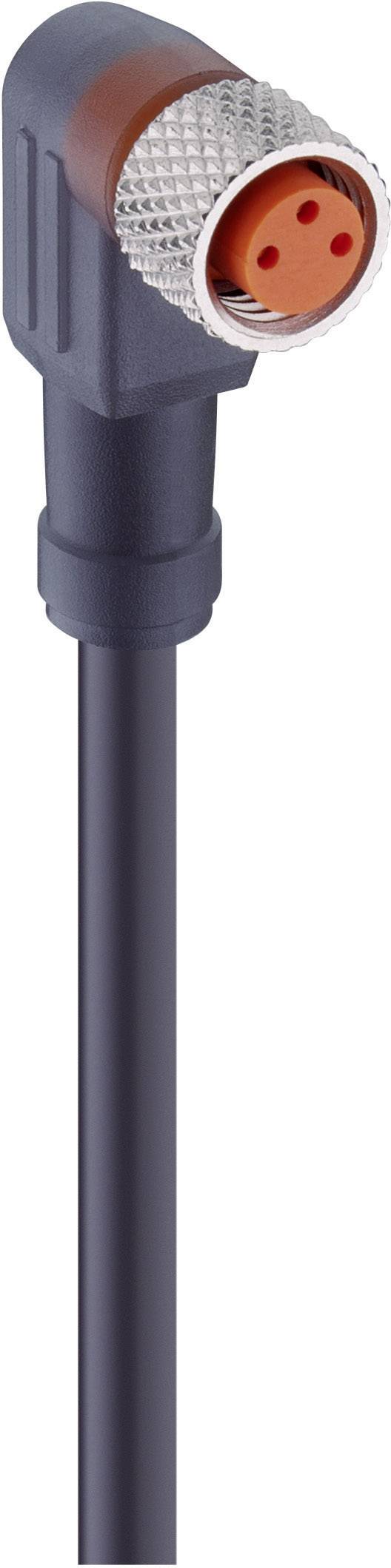

Lumberg Automation 13169-10 Sensor/actuator connector (pre-fab) M8 Socket, right angle 2.00 m No. of pins (RJ): 3 10 pc(
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
Socket, right angle
Connection side A
Cable, open end
Connection side B
M8 socket, right angle
No. of pins
3
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 8.82 / piece)
€ 88.23
plus VAT.
Highlights & Details
Actuator-sensor connection, M8-coupling, angled
Technical specifications
- Material: housing: TPU
- Contact: CuZn, Gold plated and nickle coated
- Type
RKMWV 3-224/2 M
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Socket, right angle
- Connection side A
Cable, open end
- Connection side B
M8 socket, right angle
- No. of pins
3
- Cable length
2.00 m
- Jacket material
PVC
- Nominal voltage
60 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
Open end cable
- Factory colour
Black
- Thread type connection side
M8
- Cable colour
Black
- Contact material
CuZn
- Contact surface
Gold plated
IP67/IP69
- Features
Shake-proof
- Min. temperature
-40 °C
- Max. temperature
+90 °C
- Seal type
Screw-on
- Manufacturer part #
13169-10
- Industrial packaging
Yes
- Content
10 pc(s)
- Contamination level
3
- Connection
Screw cap, self secure
- Temperature range
-40 - +90 °C
Documents & Downloads
Datasheet
Datasheet 1718673 Lumberg Automation 13169-10 Sensor/actuator connector (pre-fab) M8 Socket, right angle 2.00 m No. of pins (RJ): 3 10 pc(
User & Safety Instructions
User & Safety Instructions 1718673 Lumberg Automation 13169-10 Sensor/actuator connector (pre-fab) M8 Socket, right angle 2.00 m No. of pins (RJ): 3 10 pc(
Description
Connection cable with self-locking threaded joint and molded cable.
